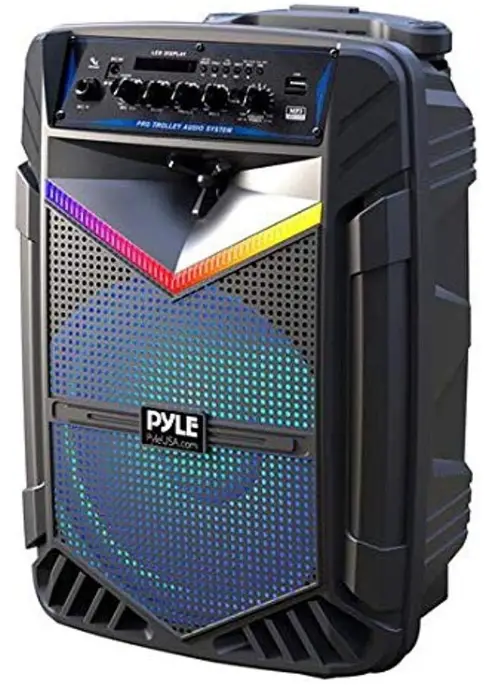

Pyle PPHP1542B 15-inches Portable Bluetooth PA Speaker System
WARNING
- DO NOT place objects on top of the device, as objects may scratch the device.
- DO NOT expose the device to dirty or dusty environments.
- DO NOT insert any foreign objects into the device.
- DO NOT expose the device to strong magnetic or electrical field.
- DO NOT use the device in the rain
- Please check with your Local Authority or retailer for proper disposaI of electronic products.
- DO NOT disassemble the device. Only a certified service technician should perform repair.
- The device has apertures to disperse heat. DO NOT block the device ventilation, the device may become hot and malfunction as a result.
Illegal operation may cause personal injury, which could be fatal and may cause damage to property.

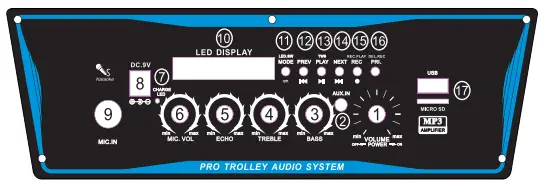

PPHP1542B CONTROL BOARD FUNCTIONS
- Master volume control/Power swich
- 5MM AUX input jack
- Bass volume control knob
- Treble volume control knob
- Echo control knob
- Microphone volume control knob
- Charge LED indicator, red color is on charge mode, light off is full charge mode
- DC 9V input jack
- 5MM microphone input jack
- Display screen
- Short press to choose mode/Press and hold to turn ON/OFF light
- Previous
- Play/Pause/press and hold for TWS function
- Next
- Short press to start recording, and short press again to save and play recording Press and hold press to play recording files, and press and hold again to quit recording
- Microphone priority button. When playing the recorded file, press and hold to delete current recording.
- USB and Micro SD Memory Card Slot

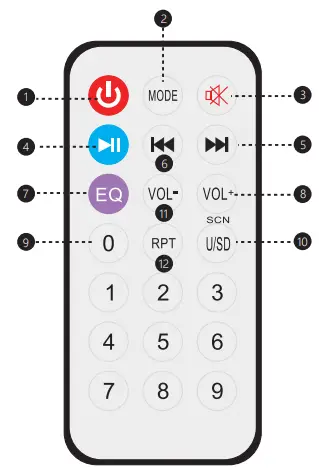

REMOTE CONTROL FUNCTIONS
- Power: Used to turn on and off the MP3 player power
- MODE: Used to switch the AUX/USB/Wireless BT/Radio
- Mute button
- Play/Stop button
- Next song on USB
- Previous song on USB
- EQ solution
- Increase volume
- Choose song number directly
- Choose USB signal directly
- Decrease volume
- Repeat song
TWS FUNCTION
For increase sound effect, our unit provides TWS function as follows:
- Step-1: Turn ON BT mode on your device and connect the machine.
- Step-2: Press and hold each control board “TWS” button more than 3’s, and you will see “ON” on display, unit will start to connect the other unit automatically, now you can enjoy stereo sound, and adjusting one unit volume will affect the other unit.
Remark:
- After connection, press and hold again one of control board “TWS” button more than 3’s, you will see “OFF” on display, unit’s TWS disconnection.
TROUBLESHOOTING
Wireless BT Streaming
- Built-in BT for Wireless Music Streaming
- Simple & Hassle-Free Pairing
- Works with All of Today’s Latest Devices Smartphones, Tablets, Laptops, Computers, etc.
- Wireless BT Version: 4.2
- Wireless BT Network Name: ‘PYLEUSA’
- Wireless Range: Up to 32’ ft.
What’s in the Box
- PA Speaker System
- Remote Control
- Power Adapter
- Wired microphone
Warning: This product can expose you to a chemical or group of chemicals, which may include “Lead and lead compounds” which is known in the state of California to cause cancer, birth defects, or other reproductive harm. For more info, go to https://www.p65warnings.ca.gov/.
FEATURES
- True Wireless Stereo System
- Portable Speaker System
- High-Powered PA Loudspeaker Style
- Wireless BT Music Streaming Ability
- Multi-Color Flashing LED Party Lights
- Built-in Rechargeable Battery
- FM Radio with Digital LED Display
- Connect & Stream Audio from External Devices
- Aux (3.5mm) Input Connector Jack
- USB Flash Memory Reader
- Micro SD Card Reader
- 5mm Microphone input
- Battery Level LED Indicator Lights
- Recording Function
- Microphone Priority Function
- Microphone Echo Adjust Knob
- Bass & Treble Adjust Knobs
- Rugged & Durable Molded Cabinet Design
- Convenient Trolley & Wheels
- For Indoor / Outdoor Use
TECHNICAL SPECIFICATIONS
- CONSTRUCTION MATERIAL: Polypropylene (PP)
- MAX POWER OUTPUT: 1200 Watt Max
- SOUND SYSTEM: 15’’ -inch Subwoofer + 1” Tweeter
- IMPEDANCE:6 Ohm
- FREQUENCY RESPONSE: 40Hz-16KHz
- USB INTERFACE TYPE:0
- DIGITAL AUDIO FILE SUPPORT: MP3
- MAXIMUM USB FLASH SUPPORT: 32GB
- Remote Control Battery Operated: 1 Piece Button Cell Battery CR-2025 (Included)
- BATTERY LIFE: Up to 2.5 Hours (Charge Time: Approx. 5 Hours)
- RECHARGEABLE BATTERY:4V, 3600mAh – 26.64 Wh
- POWER SUPPLY: 120/240V, Switchable (9V/1.5A Power Adapter)
- PRODUCT DIMENSIONS (L X W X H):8’’ x13.3’’ x 27.4’’ –inches
FAQs
By plugging the power cord into the socket, you may connect this amplifier system to the power source. Switch on the amplifier. The Power Indicator turns red. The RECHARGE indicator appears red when the battery is charging, flashes when it is almost full, and goes out when it is finished.
Putting your speakers in standby mode or turning them off completely has no impact on how powerful they are. This indicates that it is okay to leave them connected into the mains even when they are not in use (AC power).
The battery life of the device is approximately 8 hours. For charging, allow 8 to 10 hours on average. Pyle Bluetooth is not working? Before associating the speaker with your device once more, you might need to first unpair it.
Speakers On/Off Button Press the button to turn on all speaker pairs at once. To turn it off, press the button one more time.
Any micro USB connection as well as a USB port on a PC or laptop can be used to charge the device. Since the majority of contemporary smartphones use the same micro USB port, you can charge the speaker using the charger from your phone.
To turn on or off the lighting feature, press and hold the BATT (battery) and LIGHT buttons within the speaker cap for around 3 seconds. The illumination feature can be turned back on or off by pressing and holding the button down for an additional three seconds.
To select your favourite music on the devices or mobile phones, hit the Forward or Backward button. The Bluetooth device can be used to raise and lower the volume. To change the volume, you can also long-press the Forward or Backward buttons.
HOW TO CONNECT. Your iPhone or Android device’s Bluetooth settings may have Pyle Audio. Click it after entering your pairing code, which is 0000.
Prior to beginning the pairing procedure, activate BT mode on your phone. When the phone locates this ship/car audio system, the name “PYLE” will be shown. Select “PYLE” from the list of devices to pair and connect with this ship/car audio system. After you confirm, the BT logo will stop flashing.
For the price, the sound quality is quite good. The microphone has a broad field of vision, good clarity, and little background noise. a selection of combinable inputs Actually, sound is significantly (and favourably) influenced by echo and bass/treble.
Even though it is an inexpensive speaker, it has a built-in microphone, solid construction, and great sound for a backyard gathering!
Yes!” You can swap the stock automobile speakers for PA speakers to give your system a strong, booming sound. Of course, you must make sure that they are installed properly and that you have access to electricity in order to take advantage of the better quality of these speakers.
You should aim to have at least five watts of power per participant if the performance is indoors. Increase it and use 10 watts per person if you wish to play outside or at “rave loudness.”
