Pyle Pphp2645b Portable Bluetooth Speaker User Guide

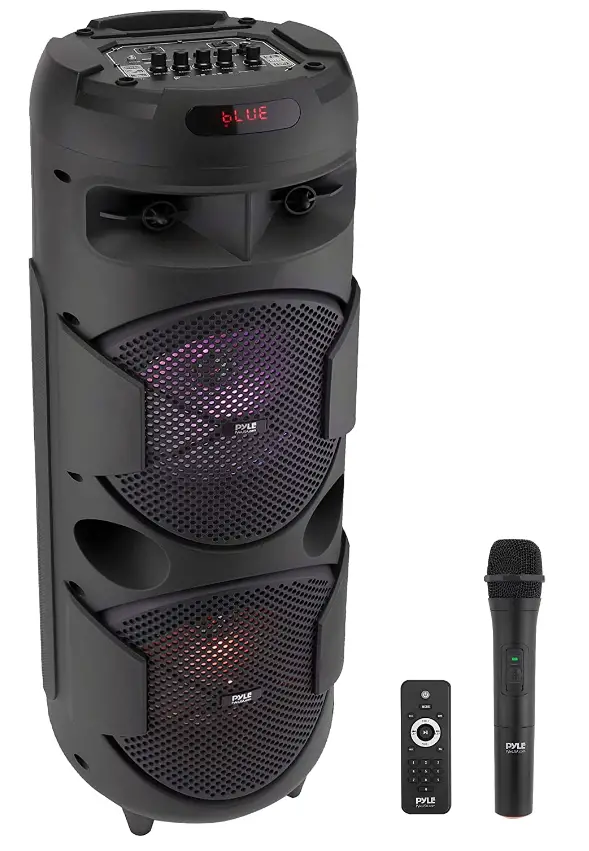

Pyle PPHP2645B Portable Bluetooth Speaker

INTRODUCTION

For excellent bass response and full-range surround stereo sound reproduction, the wireless karaoke PA portable BT speaker has dual 6.5″ subwoofers and a 1″ tweeter with 240 watts of peak output. This powerful Bluetooth speaker system is Bluetooth-enabled for wireless audio streaming and is compatible with gadgets including iPhones, Android phones, iPads, tablets, and PCs. Ideal for usage inside and outside of a residential house. The Pyle Bluetooth speaker karaoke PA system has a 3.5mm AUX in, a 6.5mm microphone input, a USB flash drive and SD card reader that can be used as an MP3 player, and an FM radio with a digital LED display. Includes wireless microphone and remote control.

The multi-color flashing disco LED lights on the Bluetooth party speaker with lights bring life to any occasion and are ideal for patio parties or other gatherings at night when a colorful presence is apparent. These Bluetooth-enabled Pyle PA wireless speakers are excellent for karaoke, stage acts, and crowd management. It has a built-in 7.4V, 3000mAh rechargeable battery and a handy carry handle, making it completely portable.

SPECIFICATION

• BRAND: Pyle
• COLOR: Black
• STYLE: Portable
• SPECIAL FEATURE: Rechargeable, Portable, Led Display, Wireless
• CONNECTIVITY TECHNOLOGY: Bluetooth, Auxiliary, USB
• MODEL NAME: Pyle
• POWER: 240 watt
• BATTERY: 3000mAh
• VOLTAGE: 7.4V
• PACKAGE DIMENSIONS: 25.5 x 10.5 x 10.5 inches
• ITEM WEIGHT: 9.88 pounds

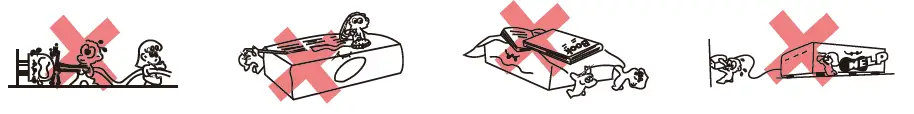

IMPORTANT SAFETY MEASURES

Before using this machine, please read all the safety and operating instructions. Meanwhile, please observe all the indications about safe operating.

1. Protection of electric power supply line: Be aware that the electric power supply line is not tramped, pressed by heavy objects. Pay special attention to the plug of power supply line and outlet on the machine. DO NOT lengthen the electric shock, DO NOT pull or drag or the power supply line.
2. Ventilation: This set must be put in ventilated place. DO NOT put disk on it or cloth to cover it. The distance away from the wall should not be less than 10 centimeters. DO NOT put this set on the bed, sofa, carpet or other objects with similar surface in case of good ventilation.
3. Casing Dismantling: DO NOT dismantle the casing. If one touches the inner components, he will probably get serious electric shock.
4. Unusual smell: When you discover unusual smell and smoke, cut power supplies immediately and pulls out the plus from the outlet on the wall.
   Contact the sell shop or nearest repair center.

PRODUCT FEATURES

1. High-Powered PA Loudspeaker
2. With Karaoke function
3. Bass & Treble Adjust Knobs
4. Compatible to DVD/VCD/CD/TAPE/Audio/MP4/AUX;
5. Wireless Music Streaming Ability
6. Multi-Color Flashing LED Party Lights
7. Aux (3.5mm) Input Connector Jack

WHAT’S IN THE BOX:

• PA Speaker System
• Remote Control
• Power Adapter
• Wireless microphone

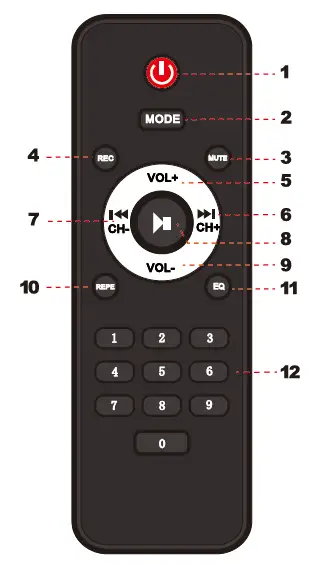

REMOTE CONTROL FUNCTIONS

1. Power: Standby button.
2. MODE: Used to switch the BT, FM, AUX, USB, SD
3. MUTE: Mute button
4. REC: Recording, press once to start recording, press again to play the current recording.
5. VOL + : Main volume increase
6. Next song/Next channel
7. Previous song/Previous channel
8. Play/Stop Auto-search by press and hold the FM button, press and hold the BT button to turn on TWS
9. VOL – : Main volume decrease
10. REPEAT: Single repeat/repeat all
11. EQ: Choose from EQ1, EQ2, EQ3, EQ4…
12. Choose song number directly/channel directly.

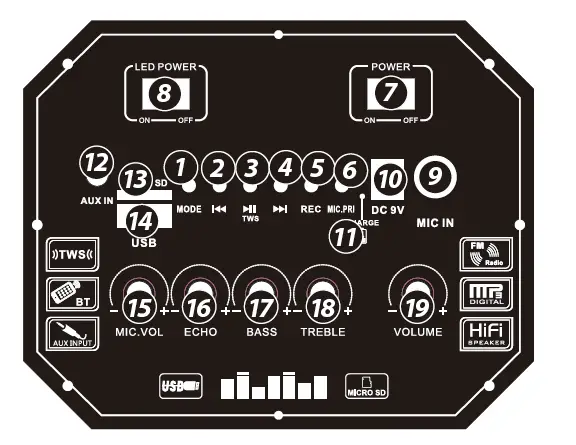

UNIT DESCRIPTION

1. MODE: Mode Switch for BT, FM, AUX, USB, MicroSD
2. Previous song/channel
3. TWS: play/stop, Auto- search by press and hold the FM button, press and hold the BT button to turn on TWS
4. Next song/channel
5. REC: Press once to start recording, and press again to play the current recording
6. PRI: Mic priority
7. POWER ON/OFF
8. LED ON/OFF
9. IN
10. 9V IN
11. CHARGE
12. AUX: Aux input
13. Micro SD port
14. USB port
15. VOL
16. ECHO: echo effect for mic
17. BASS: Adjust the bass effect knob
18. TREBLE: Adjust the treble effect knob
19. VOLUME: Main volume knob

GETTING STARTED

1. Ensure the Portable PA Speaker is turned off. Ensure all volume controls are turned all the way down. Next, connect one side of the included power cable to the Portable PA Speaker’s power inlet and the other to a grounded power outlet.
2. Ensure that the power supply complies with the power requirements listed on the identification sticker located on the bottom of your product. Turn on the power to the Portable PA Speaker using the power switch.
3. Slowly turn up the function keys until the desired level is reached.

WIRELESS BT CONNECTION

Switch the Portable PA Speaker to MODE, then switch to BT (BT MODE) pairing mode and connect to a new BT device using BT Network Name: ‘PYLE USA’.

WARNING: To prevent the risk of fire or electric shock, do not expose this appliance to rain or moisture. To prevent electric shock do not remove the cover. No user serviceable parts inside. Refer servicing to qualified service personnel.

SAFETY: Prior to connecting mains, ensure that the supply voltage is correct and the mains lead is in good condition. Avoid ingress of water or particles into the enclosure.

PLACEMENT: Keep the unit out of direct sunlight and away from heat sources. Place the unit in an upright position during use and storage. Keep the unit away from moisture or dusty environments.

CLEANING: Use a soft cloth with a neutral detergent to clean the cabinet, panel and controls. To avoid damage, do not use solvents to clean this equipment.

FCC STATMENT

WARNING

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may cause undesired operation.

Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.

If this equipment does cause harmful interference to radio or television reception which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.Consult the dealer or an experienced radio/TV technician for help

NOTE: This device and its antenna(s) must not be co-located or operated in conjunction with any other antenna or transmitter.

RF EXPOSURE STATEMENT

To maintain compliance with FCC’s RF Exposure guidelines. This equipment should be installed and operated with a minimum distance of 20cm from the radiator of your body. This device and its antenna(s) must not be co-located or operated in conjunction with any other antenna or transmitter.

FAQs

Can I hook up right and left audio inputs?

Unfortunately no. You can only use 1 device connected to the Aux input. For more info, kindly visit our website pyleaudio.com. Type the model number on the search box PPHP2845B.

Can I use an additional wired mic (3/4 inch audio cable) while using the included wired mic?

Sure. Just use a Y cable.

How much does it weigh?

It is around 9.8 lbs. For more info, kindly visit our website pyleaudio.com. Type the model number on the search box PPHP2645B.

Do you have to plug it in the wall outlet for it to work or is it Bluetooth

You plug into wall to charge but Bluetooth should work and hook up either way. Plugged or unplugged.

How to reset Bluetooth?

Our sincere apologies but you cannot reset the Bluetooth using the speaker. However, you may use the devices that are previously connected to this unit (i.e. smartphone). Go to your phone’s Bluetooth settings the choose the speaker name. Press and hold the BT name then hit forget.

How do you connect the wireless microphone to the speaker

You may use the Mic input port. Connect the mic wireless receiver there and it will work. For more info, kindly visit our website pyleaudio.com. Type the model number on the search box PPHP2645B.

What is the rms power rating?

The RMS is 150 watts. For more info, kindly visit our website pyleaudio.com. Type the model number on the search box PPHP2845B.

Could I bought extra mic it will be working together ? Thanks a lot !

We can provide the part/s that is available in our warehouse. For other concerns and inquiries kindly call our Customer Support Department at 718 535 1800 Press 2 then 1 from Monday to Friday 9 AM to 5 PM EST.

Can I connect it with the TV?

Yes you can connect it to your TV using 3.5 mm to RCA cable or via Bluetooth. For more info, kindly visit our website pyleaudio.com. Type the model number on the search box PPHP2645B.

Is this loud enough for a house party?

That will depend on the size of the venue. It can handle small to medium rooms. For more info, kindly visit our website pyleaudio.com. Type the model number on the search box PPHP2645B.

How do I record? I’m trying both micro SD and a memory stick, but have no recordings

Our sincere apologies for the inconvenience. We have dedicated Technical Support who can help you out with your concern. Please call 718 535 1800 Press 2 then 1 from Monday to Friday from 9 AM to 5 PM EST.

What is the charging time for a Pyle speaker?

The system has a battery life of about 8 hours. 8 to 10 hours on average for charging.

When charging, can I use my Bluetooth speaker?

It is completely safe to use your Bluetooth speaker while it is charging if your speaker has a built-in battery. It is not advised to use your Bluetooth speaker while it is charging if the battery is removable.

What happens if a Bluetooth speaker is overcharged?

Modern batteries have sophisticated sensors that prevent overcharging, but this does not guarantee that leaving the battery hooked into the charger won’t harm it. One charging cycle is finished when a battery is fully charged; a battery can only be fully charged a certain number of times before it is irreparably harmed.

What is the lifespan of a Bluetooth speaker?

The Bluetooth speaker’s battery life varies based on the model and the company who made it. A speaker should typically operate for ten to twenty hours after a full charge.
