PATRIOT PFP2640 Pathfinder Dual Large Tank Plumbing Kit Instructions

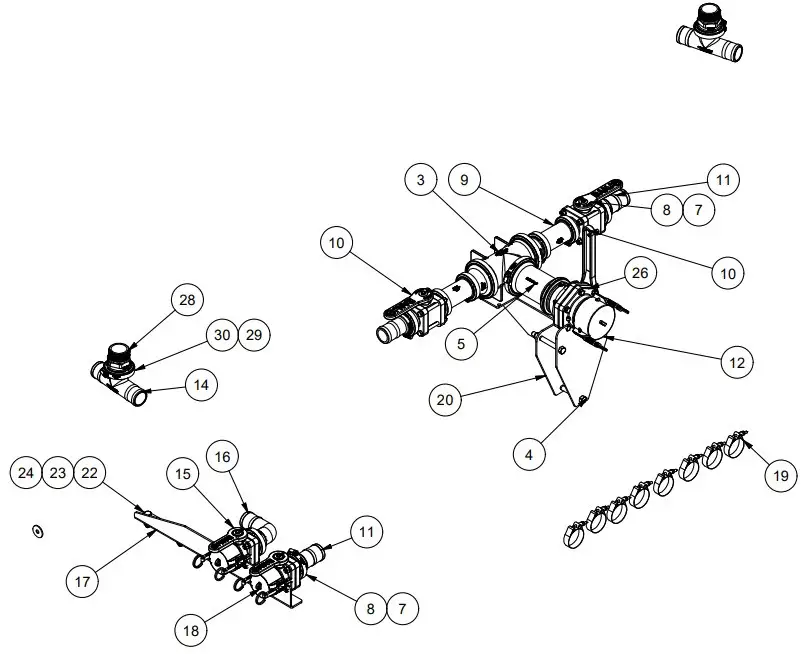

Parts Description
Parts List
| ITEM | QTY | PART NUMBER | DESCRIPTION |
| 1 | 4 | M302G | 3″ Gasket |
| 2 | 4 | FC300 | 3″ HI TORQUE CLAMP |
| 3 | 1 | M300TEE | 3″ MANIFOLD TEE |
| 4 | 1 | PF-CP-P133 | Valve Mounting Plate |
| 5 | 1 | M300CPG55 | 3″ Extension |
| 6 | 2 | M300200CPG | M300 x M200 Coupling |
| 7 | 8 | M202G | 2″ Gasket |
| 8 | 8 | FC200 | 2″ HI TORQUE CLAMP |
| 9 | 2 | M200CPG | 2″ MANIFOLD COUPLING |
| 10 | 2 | MV200CF | 2″ X 2″ CLAMP VALVE |
| 11 | 3 | M200BRB | 2″ HB x 2″ MNFLD |
| 12 | 1 | 300CAP | 3″ COUPLING CAP |
| 14 | 2 | M220200HBT | 2″ Flange x 2″ HB |
| 15 | 2 | VSF200CF | 2″ Valve |
| 16 | 1 | M200BRB90 | 90° 2″ HB X 2″ MNFLD |
| 17 | 1 | PF-CP-P134 | Valve Mount Bracket |
| 18 | 2 | 200CAP | 2″ MOLDED CAP |
| 19 | 8 | TC231 | Clamp |
| 20 | 1 | PF-CP-A036 | Clamp Plate/Support Plate |
| 21 | 3 | B1/2×4.5 | Hex Bolt |
| 22 | 5 | N1/2NYL | Nylock Nut |
| 23 | 2 | W1/2F | Plain Washer |
| 24 | 2 | B1/2×1.5 | Hex Bolt |
| 26 | 312″ | KA390SD-2 | 2″ Kanaflex Hose |
| 27 | 1 | MVSF300 | 3″ Stubby Valve F Endplate |
| 28 | 2 | M220MPT | 2″ FP Man. x 2″ Male NPT |
| 29 | 2 | M222G | 2″ FP MAN. GASKET |
| 30 | 2 | fc220 | 2″ FP HI TORQUE CLAMP |
Minden Machine Shop Inc.
1302 K Road Minden, NE
308-832-0220
