Minden PFP2000 Pathfinder Single Tank Plumbing Kit
Product Information: PFP2000 Pathfinder Single Tank Plumbing Kit
The PFP2000 is a plumbing kit designed for use with single tanks. It is compatible with PF-1000, PF-1600, and PF-2610 models. The kit includes various parts such as tank bungs, caps, valves, hose, and clamps necessary for single tank plumbing.
Parts List:
| Item | Description | Quantity |
|---|---|---|
| 1 | 3 Tank Bung (TF300) | 1 |
| 2 | 3 CAP (300CAP) | 1 |
| 3 | 3 Valve (VSFMT300) | 1 |
| 4 | 2 Tank Bung (TF200) | 1 |
| 5 | 2 HB x MPT x 90 (HB200-90) | 1 |
| 6 | 2 Valve (VSF200CF) | 1 |
| 7 | 2 HB X 2 MNFLD FLANGE (M200BRB) | 1 |
| 8 | 2 MANIFOLD GASKET W/ SKIRT (M202G) | 1 |
| 9 | 2 HI TORQUE CLAMP (FC200) | 1 |
| 10 | 2 MOLDED CAP (200CAP) | 1 |
| 11 | Valve Mount Single Tank (PF-CP-P132) | 1 |
| 12 | 2-5/16 – 2-5/8 D (TC231) | 2 |
| 13 | 2 Kana flex Supply Hose (KF2390) | 10′ |
Product Usage Instructions:
- Install the tank bungs (items 1 and 4) in the tank using appropriate tools.
- Attach the 3 valve (item 3) to the 3 tank bung (item 1) using appropriate tools.
- Connect the 2 Kana flex Supply Hose (item 13) to the 3 valve (item 3).
- Install the valve mount single tank (item 11) on the tank using appropriate tools.
- Attach the 2 HB x MPT x 90 (item 5) to the valve mount single tank (item 11) using appropriate tools.
- Attach the 2 valve (item 6) to the 2 HB x MPT x 90 (item 5) using appropriate tools.
- Connect the 2 Kana flex Supply Hose (item 13) to the 2 valve (item 6).
- Attach the 2 HB X 2 MNFLD FLANGE (item 7) to the valve mount single tank (item 11) using appropriate tools.
- Place the 2 MANIFOLD GASKET W/ SKIRT (item 8) between the valve mount single tank (item 11) and the 2 HB X 2 MNFLD FLANGE (item 7).
- Attach the 2 HI TORQUE CLAMP (item 9) to the 2 HB X 2 MNFLD FLANGE (item 7) using appropriate tools.
- Attach the 2 MOLDED CAP (item 10) to the remaining tank bung (item 4) and valve mount single tank (item 11) using appropriate tools.
For further assistance or inquiries, contact Minden Machine Shop Inc. at 308-832-0220.

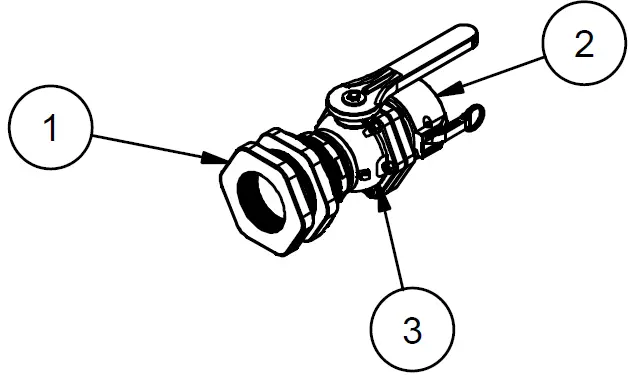

Parts description
| Parts List | |||
| ITEM | QTY | PART NUMBER | DESCRIPTION |
| 1 | 1 | TF300 | 3″ Tank Bung |
| 2 | 1 | 300CAP | 3″ CAP |
| 3 | 1 | VSFMT300 | 3″ Valve |
| 4 | 1 | TF200 | 2″ Tank Bung |
| 5 | 1 | HB200-90 | 2″ HB x MPT x 90 |
| 6 | 1 | VSF200CF | 2″ Valve |
| 7 | 1 | M200BRB | 2″ HB X 2″ MNFLD FLANGE |
| 8 | 1 | M202G | 2″ MANIFOLD GASKET W/ SKIRT |
| 9 | 1 | FC200 | 2″ HI TORQUE CLAMP |
| 10 | 1 | 200CAP | 2″ MOLDED CAP |
| 11 | 1 | PF-CP-P132 | Valve Mount Single Tank |
| 12 | 2 | TC231 | 2-5/16″ – 2-5/8″ D |
| 13 | 10′ | KF2390 | 2″ Kana flex Supply Hose |
