3DIVBODYSRT Temptrol Triple Outlet Diverter Valve Instructions

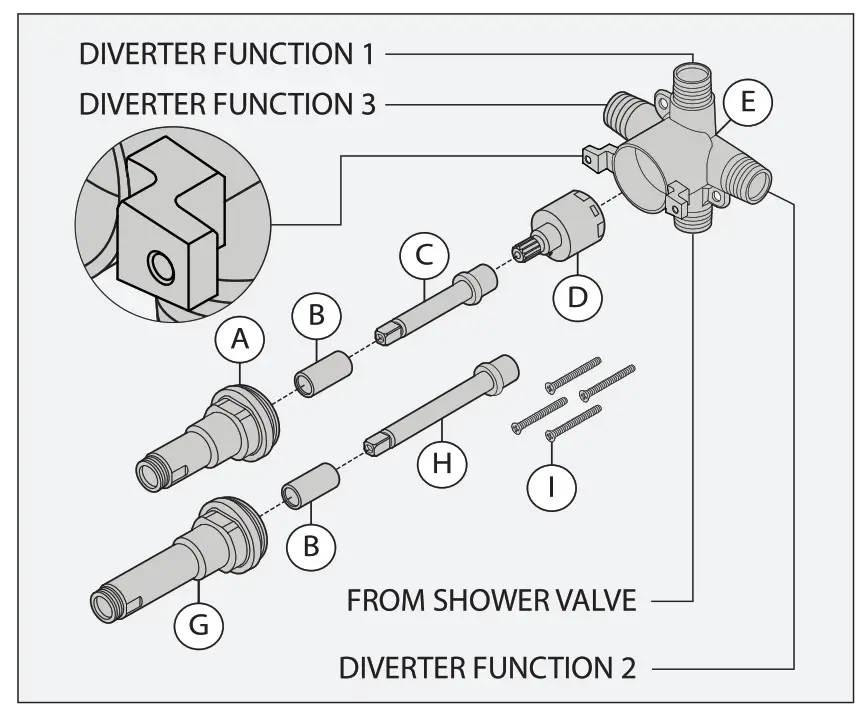

Parts Breakdown
Important: Do not plug outlet ports. Do not use the diverter as a shut-off valve. Important: Do not expose the diverter valve to heat for longer than 2 minutes when sweating in copper tubing. Doing so may damage the internal components of the valve and will void the product warranty.
Note: Diverter valve can be installed in the wall with the shower valve or in an adjoining wall to the shower valve.
Replacement Parts | ||
| Item | Description | Part Number |
| A | Cap Assembly | RTS-DIVCAP- SRT |
| C | Cartridge Extender | RTS-DIVEXT- SRT |
| D F | Cartridge Retaining Sleeve | RTS-3DIV |
| B G H I | Spacer 1″ Cap Extender 1″ Cartridge Extender 4″ Mounting Screws | RTS-DIV-1EXT |
| Tools Required | |
| Adjustable Wrench |  |
| Drill (optional) |  |
| Plumber Tape |  |
| Safety Glasses |  |
| Solder |  |
| Torch |  |
Important: Cartridge (D) must be installed with arrow facing down.
