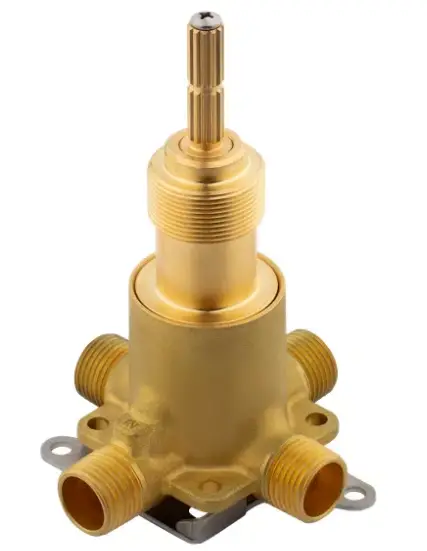

PFISTER 015-3WDNS In-Wall Diverter Valve
Installation Support
- Personal Assistance, Product Specs, & “How-to” Questions: 1-800-PFAUCET (732-8238)
pfisterfaucets.com/support - Installation Videos Available
pfisterfaucets.com/videos
WARNING
To reduce the risk of injury or property damage, read all instructions before installing product. Wear safety goggles. Product must be installed in accordance with all state & local plumbing & building codes. Call a professional if you are uncertain about installing this product
Required Tools
Basic tools required
Additional Helpful Tools

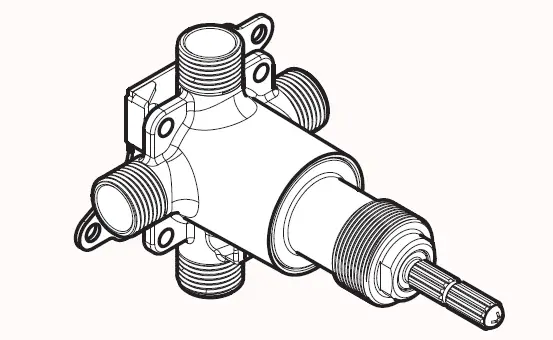

Parts in the Box
Turn Off Water Supply
Locate the water supply valves and shut off the water supply to shower panel installation area.
Position and Secure In-Wall Diverter Valve
Basic tools for your mounting method required
Set Up for Three Devices
Set Up for Two Devices

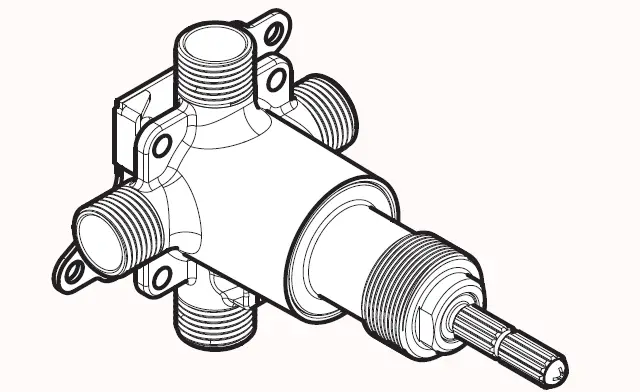

Installational Dimensions

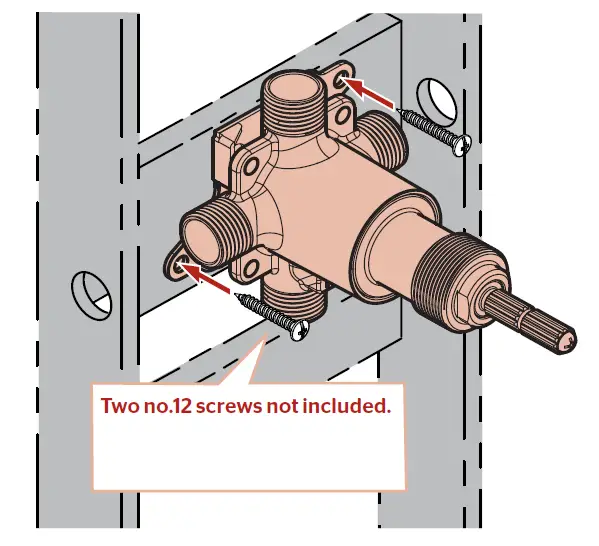

Mount to secure support

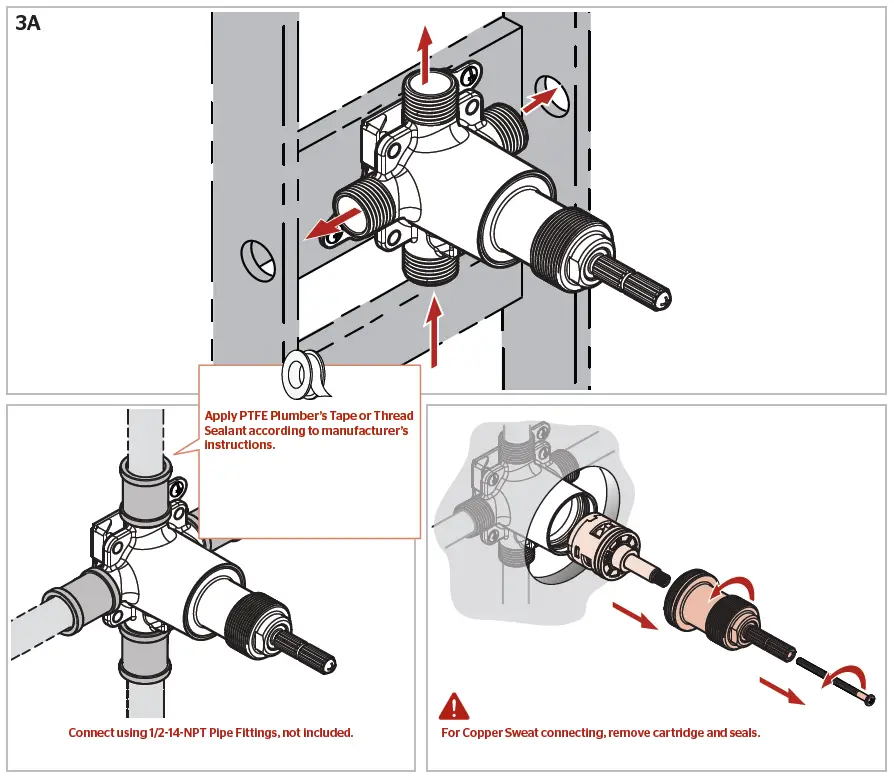

Connecting In-Wall Diverter Valve
In-Wall Diverter Outlet Positions

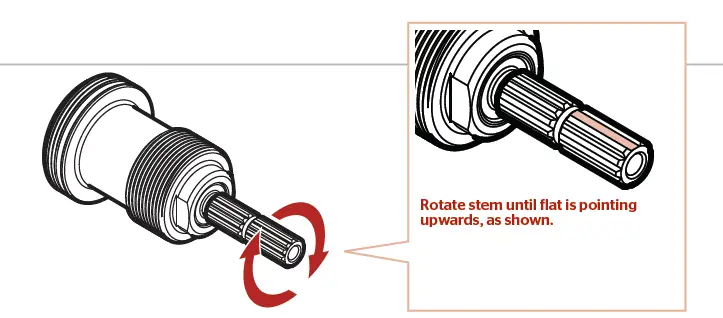

Handle Placement Based on Outlet Location
- Modes shown for setup with three devices

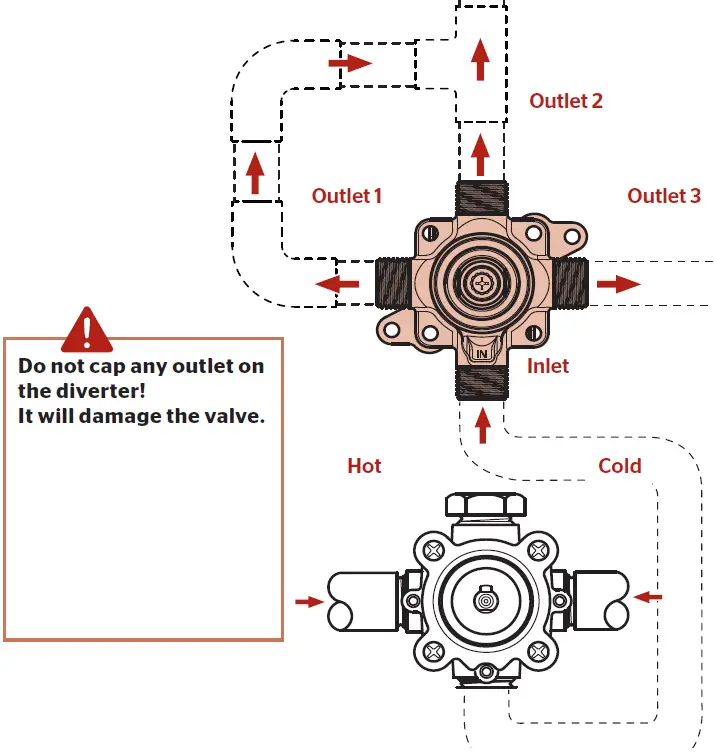

- Do not cap any outlet on the diverter! It will damage the valve.
- If setup for two devices, positions marked with * will flow to the same device.
For Additional Installation Help:
1-800-PFAUCET (732-8238)
pfisterfaucets.com
