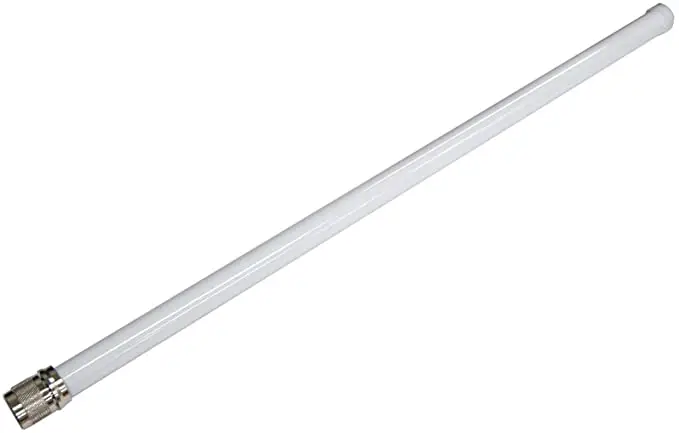

ALFA 2.4~2.5GHz 10dBi Mesh Omni Antenna
AOA-2410M antennas are professionally engineered and manufactured with the highest industry quality at the lowest possible price providing extreme value. AOA-2410M is designed for the 2.4GHz ISM band, supporting 2.4 to 2.5 GHz and provides superb performance in IEEE 802.11b/g WiFi and Bluetooth applications. AOA-2410M easy mount directory on the AP with an integrated N male connector.
Applications:
2.4 – 2.5 GHz ISM Band
IEEE 802.11b, 802.11g, 802.11n Wireless LAN Directional and multipoint applications Bluetooth
Public Wireless Hotspot
WiFi, RFID
Wireless Video Systems
Features:
- Superior performance
- Light weight
- All weather operation
- DC Short lightning protection
- Installed for vertical
Specifications:
- Model: AOA-2410M
- Frequency: 2.4-2.5GHz
- VSWR: ≦ 1.5
- Gain: 10dBi
- Polarization: Vertical
- Power Handling: 50 Watts
- Impedance: 50 Ω
- Beam Width: H: 360° / V: 12°
- Connector: N male
- Operation: Temp -40℃ ~ +80℃
- Dimension: 770*17 mm
- Mounting: 20 ~ 23 mm ( 1.2 ~1.75 inch )
- Weight: 190g

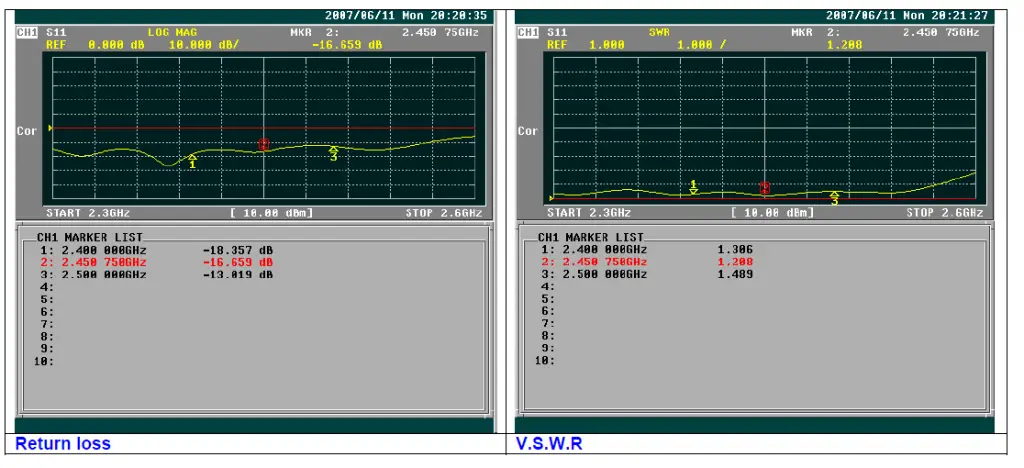

Network Analyzer Test Report

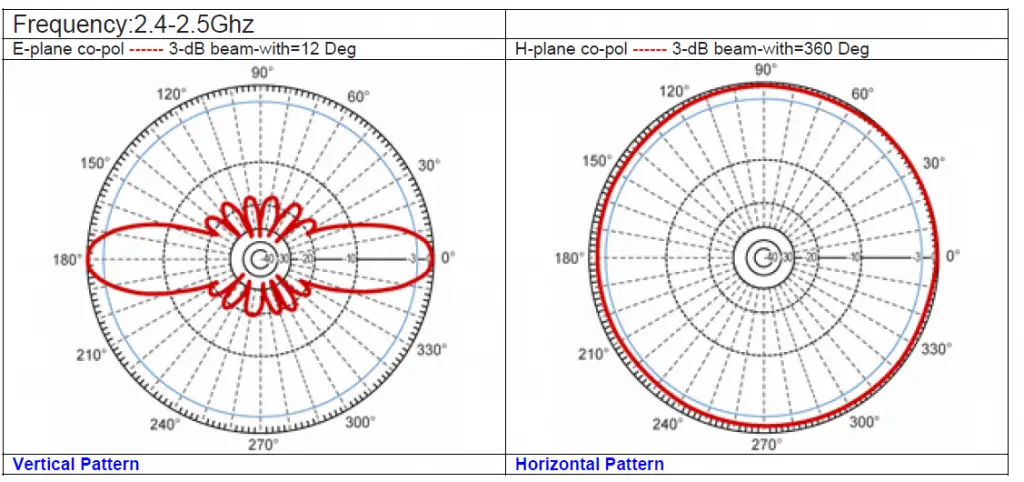

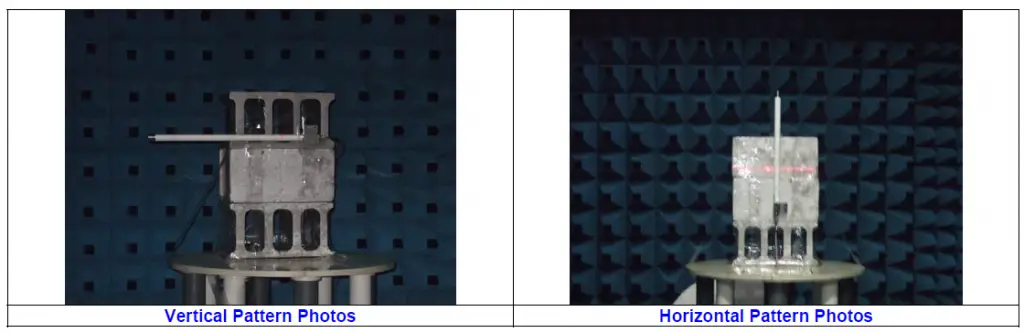

RF Chamber Test Report Frequency: 2.4 ~ 2.5GHz

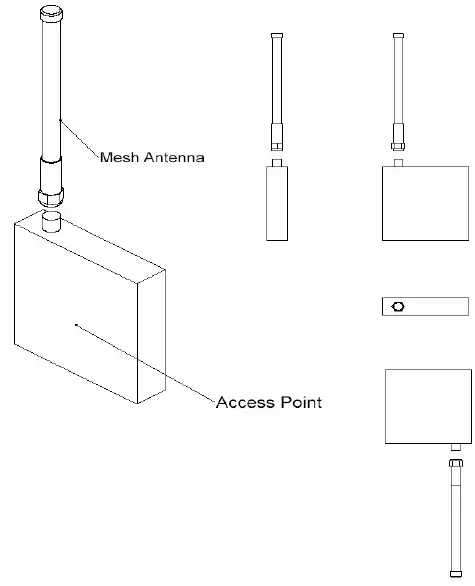

Mounting Kits Install Guide
Web: http://www.alfa.com.tw TEL: +886-2-27968477 E-mail: [email protected]
ALFA Network Inc. All Rights Reserved. Specifications are subject to change without notice.
