ANT-120-006
5-8 dBi Omni-Directional 3G/4G/LTE Aerial Antenna
Applications
- Direct Replacement for Low Gain Antennas included with many Cellular Products
- 3G/4G/LTE Routers & Modems
- Cellular Amplifiers
- Optional Magnetic Base
Product Features
- Compatible with most Cellular Modems/Routers
- Compatible with all 3G/4G/LTE Networks
- 5 – 8 dBi Peak Gain
- Omni-Directional
- Integrated SMA Male Connector
- Swivels 90° & Rotates 360°
- No Ground Plane Required
Ordering Information
| Part No. | Description |
| ANT-120-006 | 5-8 dBi Omni-Directional 3G/4G/LTE Aerial Antenna |
| ANT-120-006-SMA | 1 Antenna + 1 Magnetic Base +10ft Coax w/ SMA Male Connector (ANT-120-MB3) |
| ANT-120-006-TS9 | 1 Antenna + 1 Magnetic Base + 10ft Coax w/ TS9 Male Connector (ANT-120-MB9) |
| ANT-120-006-295 | 1 Antenna + 1 Magnetic Base + 10ft Coax w/ UML290/295 Male Connector (ANT-104-290) |
General Description
The Proxicast 3G/4G Aerial is a mid/high-gain 3G/4G Omni-directional antenna. The “rubber-duck” style aerial is an 11 in. (280 mm) dipole antenna that provides 5 to 8 dBi of gain for use on all 2G, 3G, and 4G/LTE/xLTE/AWS frequency bands (698~960, 1710~2170, and 2500~2700 MHz) used by U.S. and Canadian cellular carriers such as Verizon Wireless, AT&T Wireless, T-Mobile, Rogers, Bell Mobility and Telus as well as most other cellular operators worldwide.
The polycarbonate antenna swivels 90 degrees and rotates 360 degrees for optimal positioning and maximum signal reception and has an integrated SMA male plug connector and ground plane. This antenna is a smart choice for mobile or stationary applications where extra gain is required.
Compatible with all SMA-based equipment including modems and routers from Cisco, Cradlepoint, Digi, Pepwave, Proxicast, Sierra Wireless, Sixnet/Red Lion, and many others.
Optional magnetic bases make this a stand-alone antenna and provide compatibility with a wide variety of modems, hotspots, and other cellular equipment.
For MIMO applications use 2 identical antennas.
Electrical Specifications
| Parameter | Rating |
| Frequency Range | 698-960 MHz 1710-2170 MHz 2500-2700 MHz includes all 2G, 3G, 4G, LTE Bands |
| Peak Gain | 5 – 8 dBi |
| VSWR | ≤ 3.0:1 |
| Input Impedance | 50 Ohm |
| Polarization | Vertical |
| Max Input Power | 20 W |
| DC Grounded | No |
| Ground plane | Not Required |
Mechanical Specifications
| Parameter | Rating |
| Connector Type | SMA Male (plug) |
| Length | 11.25 inches / 285 mm |
| Diameter | 0.51 inches / 13 mm |
| Weight | 1.2 oz / 34 g |
| Materials | Polycarbonate / Brass – RoHS compliant |
| Antenna Color | Black |
| perating Temperature | -30°C to +75°C |
Operation of this device outside the parameter ranges given above may cause permanent damage.

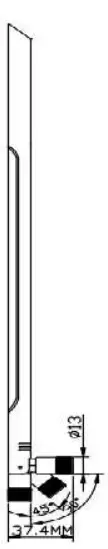

Mechanical Dimensions
Dimensions in millimeters

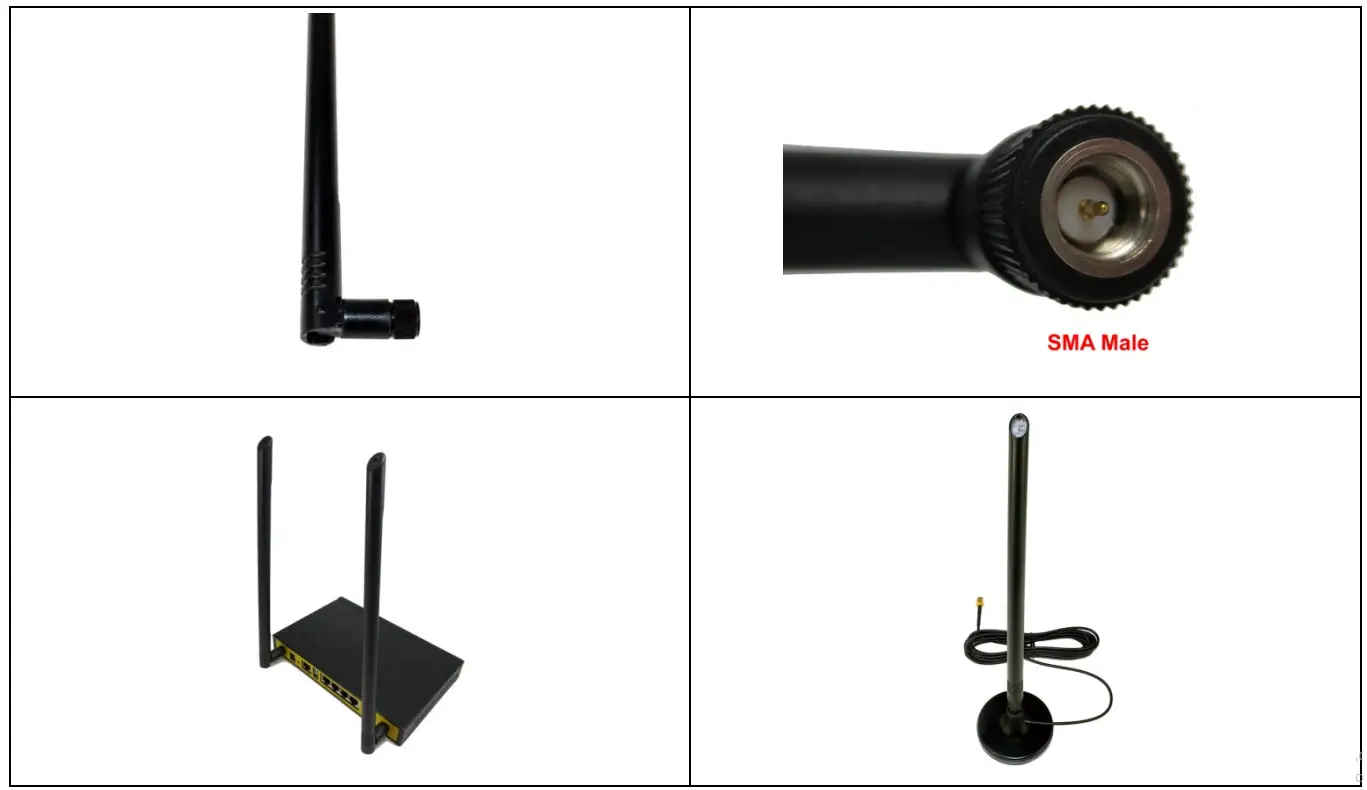

Additional Product Images

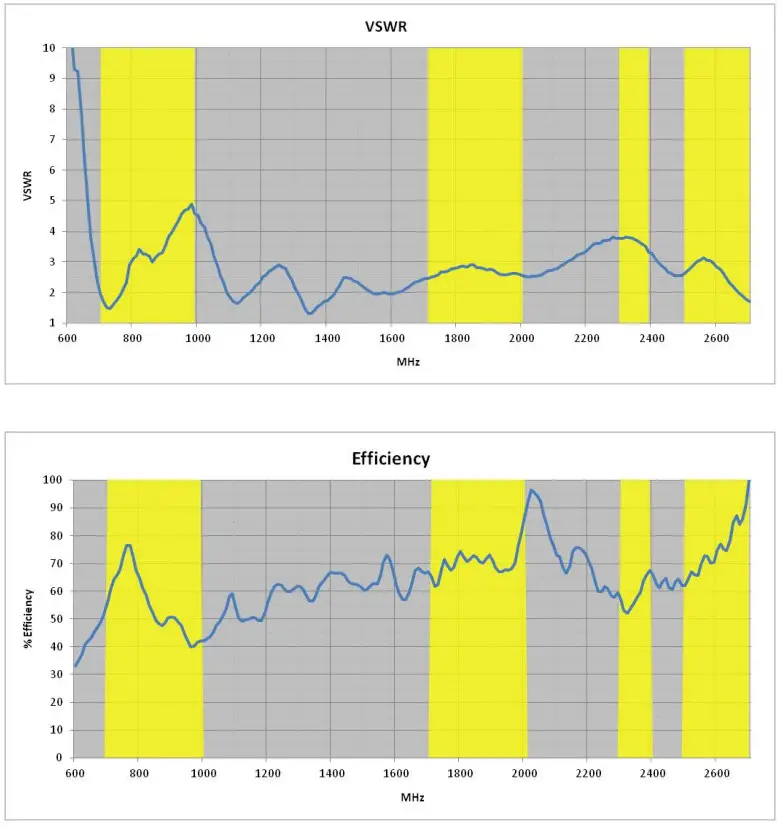

Electrical Characteristics
Highlighted areas represent the primary 3G/4G/LTE/WiFi frequency bands.
Radiation Patterns

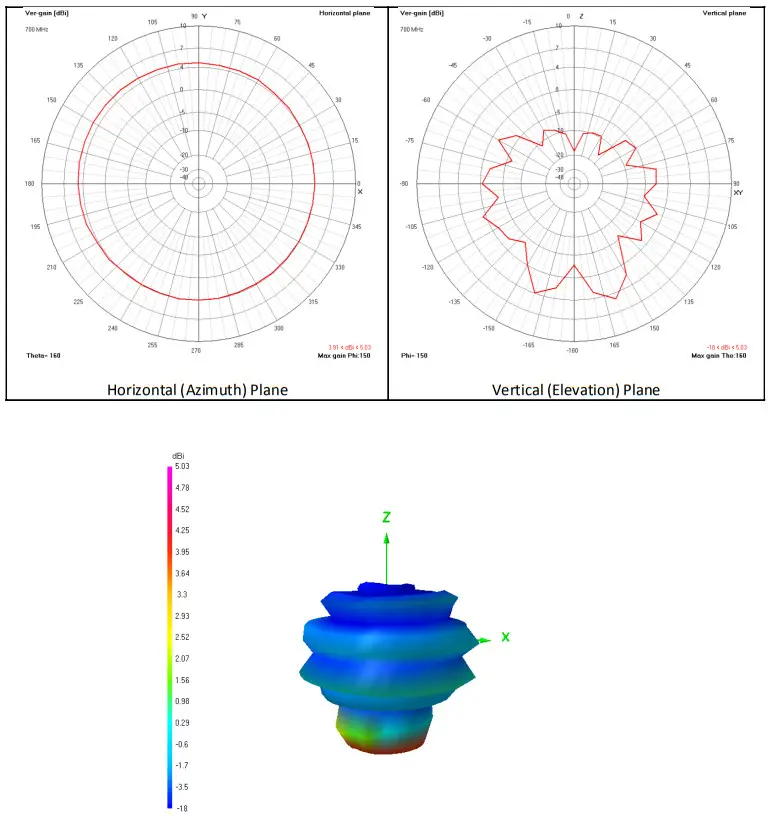

700 MHz

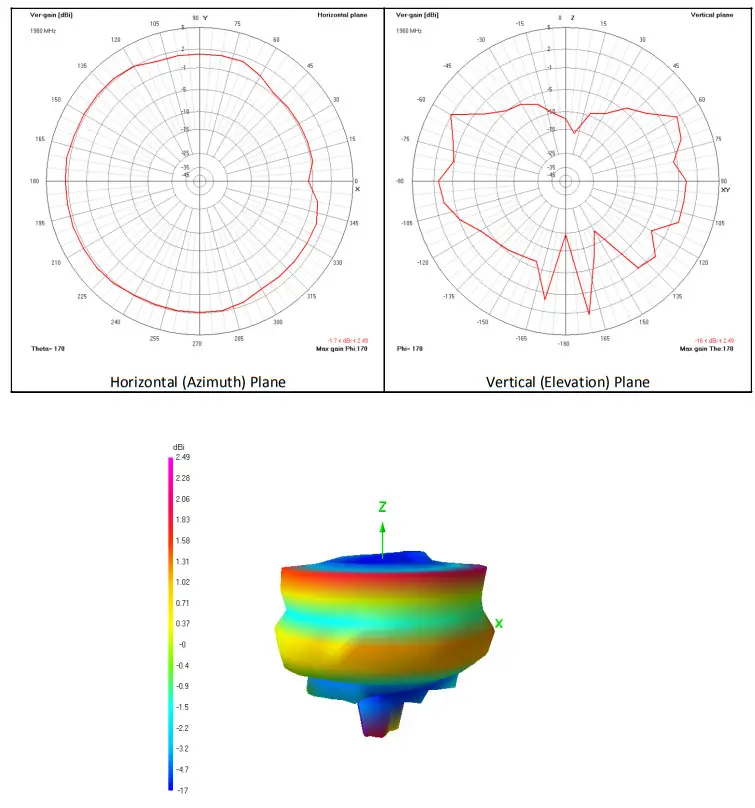

1980 MHz

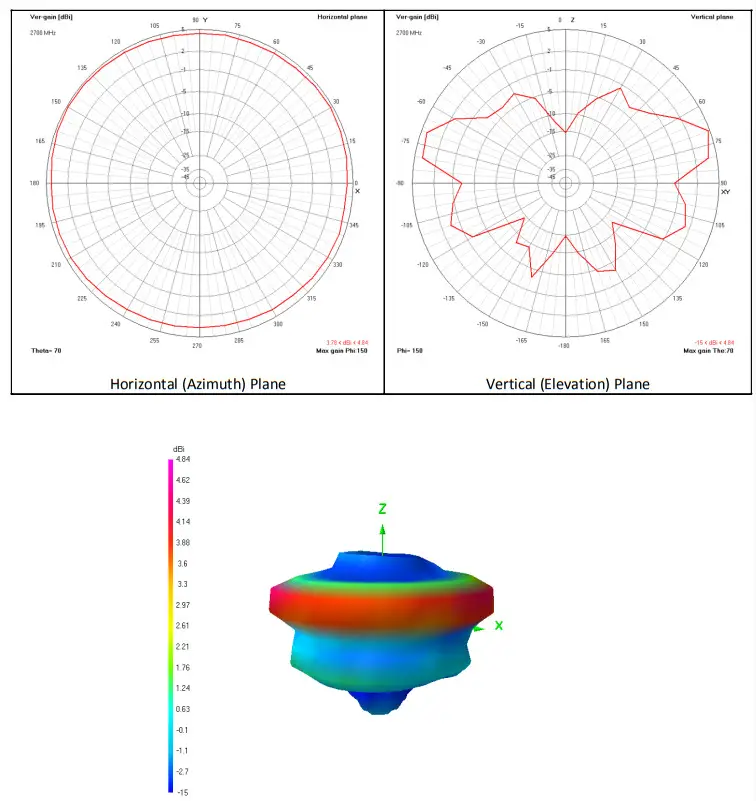

2700 MHz
Installation Instructions
- Orient antenna vertically
- Position away from:
- CRT/TVs
- Lighting fixtures & motors
- Other antennas & wireless devices
- Low-E or tinted/coated windows
- Large vertical metal or concrete objects
- Fully tighten antenna connector to modem’s antenna jack
- Rotate to find strongest signal
- Use 2 identical antennas if modem supports diversity or MIMO
- Not intended for permanent outdoor use unless weather sealed
