SC-289W 75 Ohm Omni Directional Outdoor Antenna
User Manual
Sure Call Wide Band Outdoor Omni
Antenna SC-289W User Guide

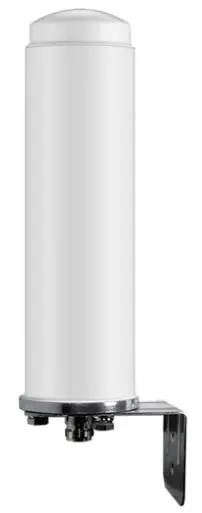

SC-289W 75 Ohm Omni Directional Outdoor Antenna
- Wide Band (698 – 2700 MHz) Broadband
- 2G/3G/4G and WLAN systems
- Designed for outdoor use only
- Omni-directional antenna 3-4 dB Gain
Overview The SC-288W wide band fiberglass antenna is an omni-directional antenna that can receive and send signals from 360° and does not need to be pointed toward a cellular tower. Range of antenna is approximately 30 miles to and from cellular towers free of obstructions.
Besides the antenna itself, parts include mounting equipment for either a flat horizontal surface or a wall. It should be mounted in an upright position for best results.
Installation

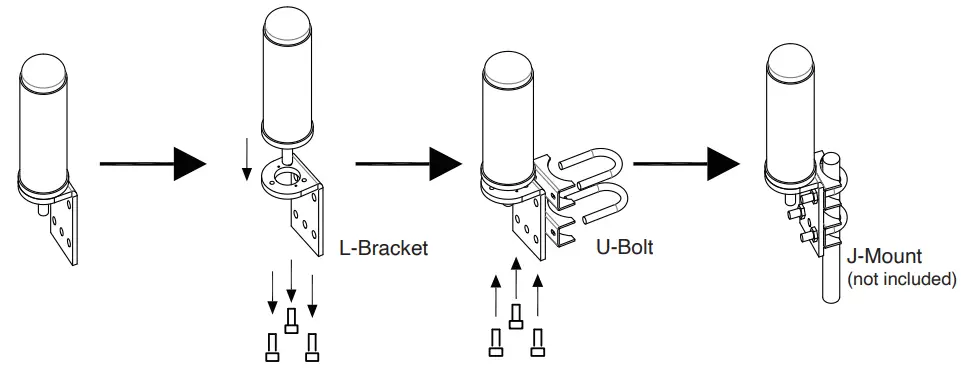

Place antenna through the hole on the top of the L-Bracket.
Attached 3 screws through the L-Bracket and into holes on the base of the antenna. Place the 2 U-bolt ends with the J-Mount (not included) inside, through the U-Bolt base and then through the L-Bracket.
Attach the 3 lock washers to the ends of the U-Bolts on the back of the L-Bracket and tighten with the provided Hex nuts.
Specifications
| Frequency | 698-960 / 1700-2700 MHz |
| Input Impedance | 75 Ohm |
| Antenna Gain | 2-3 dBi / 3-4 dBi |
| VSWR | s2.0 |
| Power Rating | 10 W |
| Polarization Type | Vertical |
| Radiation | Omni-directional |
| Maximum Power | 100 Watt |
| Connector type | F-Female |
| Dimension | 9.5″ x 3.9″ |
| Color | White |
| Mount | Mounts on the roof or wall |
| Operating Temperature | -22°F to +176° |
| Beam width Groundplane | E:72 H:360 / E:50 H:360 |
| Material | Fiberglass |
