ANT-127-002

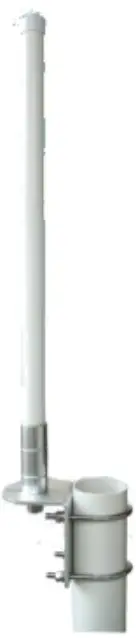

10 dBi Omni-Directional 3G/4G/LTE Fiberglass Antenna
Applications
- 3G/4G/LTE Routers & Modems
- Cellular Amplifiers
- Signal Challenged Locations Requiring High Gain Omni-Directional Antennas
- Pole & Wall Mount Options
Product Features
- Compatible with most Cellular Modems/Routers
- Compatible with all 3G/4G/LTE Networks
- Integrated N Female Connector
- No Ground Plane Required
- White Polyurethane Coated Fiberglass
- 26 inches Tall
Ordering Information
| Part No. | Description |
| ANT-127-002 | Proxicast High Gain 10 dBi Universal Wide-Band 3G/4G/LTE Omni-Directional Outdoor Pole/Wall Mount Fiberglass Antenna |
General Description
Proxicast’s 26-inch easy-to-install permanent mount Omni-directional antenna improves transmit and receive signals for all 3G and 4G/LTE, xLTE, AWS frequencies on Verizon, AT&T, Sprint, T-Mobile, US Cellular, Bell Mobility, Rogers, Telus, Sasktel, Telcel, Movistar, Digicel, and many other cellular operators worldwide.
This antenna is also suitable for unlicensed 900 MHz (ISM) radio applications and a 2.4 GHz WiFi / ISM band. It also covers the GPS frequency (1575 MHz) and can be used as a passive GPS antenna or as a multiplexed cellular + GPS antenna.
The omnidirectional design provides high gain without the cellular tower location and alignment hassles of directional antennas.
Its gloss white finish blends into any environment and makes it ideal for many outdoor applications, including building rooftops, utility poles, surveillance trailers, well sites, remote telemetry units, meters, homes and offices.
With the appropriate adapter cable (not included), this antenna is compatible with USB cellular modems and MiFi Hotspots, external 3G/4G cellular modems, routers and signal amplifiers from companies such as CalAmp, Cisco, Cradlepoint, Digi, MoFi, Netgear, Novatel, Pepwave, Proxicast, Sierra Wireless, SureCall, weBoost/Wilson and ZTE. For MIMO applications use 2 identical antennas. Proxicast’s XBOOM Cross-Over Bracket (ANT-800-XB1) makes it easy to mount 2 antennas on a single vertical mast.
Electrical Specifications
| Parameter Rating | |
| Frequency Range | 700-2700 MHzincludes all 2G, 3G, 4G, LTE Bands used wor and GPS, 900MHz and 2.4 GHz WiFi bands |
| Peak Gain | 10 dBi |
| VSWR | 5 2.5:1 |
| Input Impedance | 50 Ohm |
| Polarization | Vertical |
| Max Input Power | 100 W |
| Ground Plane | Not Required |
Mechanical Specifications
| Parameter | Rating |
| Connector Type | N Female (jack) integrated into the base of the antenna |
| Length | 25.6 in / 650 mm with bracket: 27.5 in / 700 mm |
| Diameter | .98 in / 25 mm |
| Weight | 1.3 lbs / 0.59 kg |
| Materials | UV stabilized polyurethane coated fiberglass, stainless, steel, aluminum – RoHS compliant |
| Antenna Color | Gloss White |
| Operating Temperature | -50°C to +70°C |
| Mounting | Pole/Wall Mount via an integrated bracket (2.0” dia. U-bolt included) |
Operation of this device outside the parameter ranges given above may cause permanent damage.
Electrical Characteristics

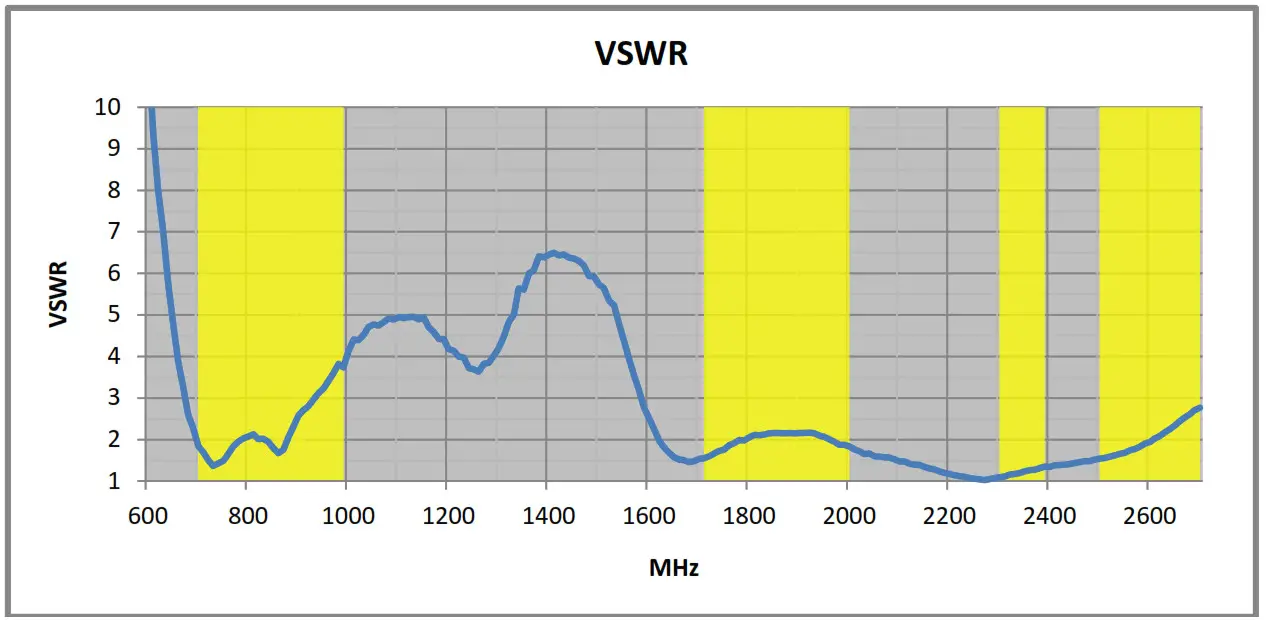

VSWR

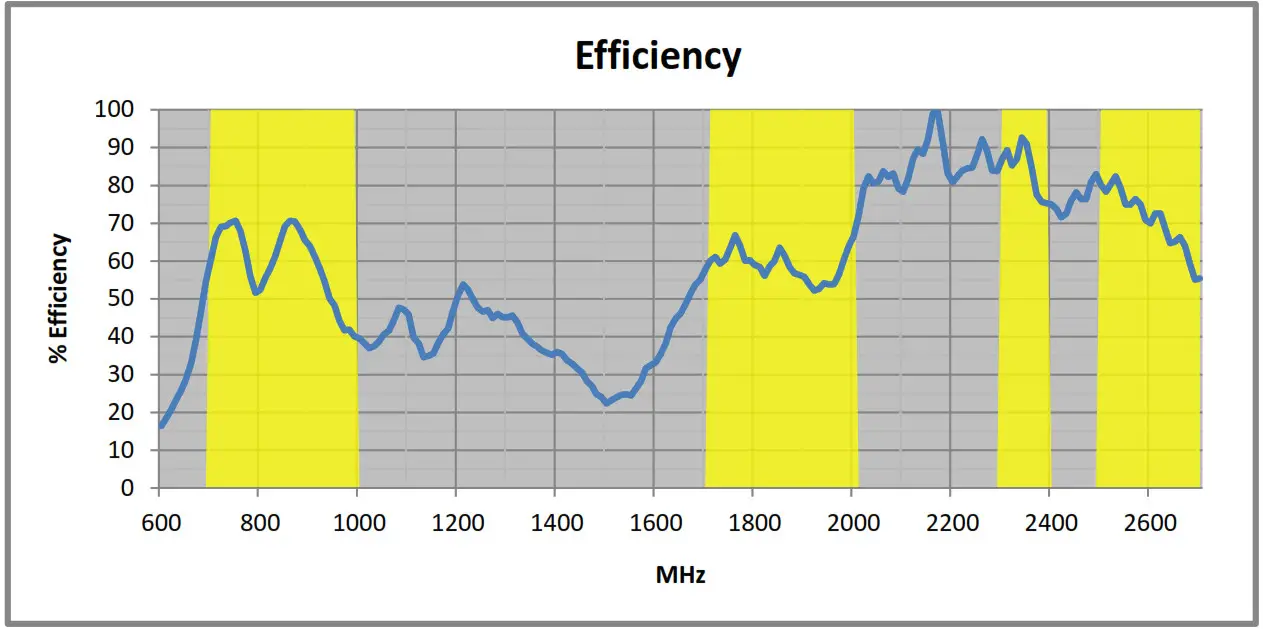

Efficiency
Highlighted areas represent the primary 3G/4G/LTE frequency bands.
Radiation Patterns
800 MHz

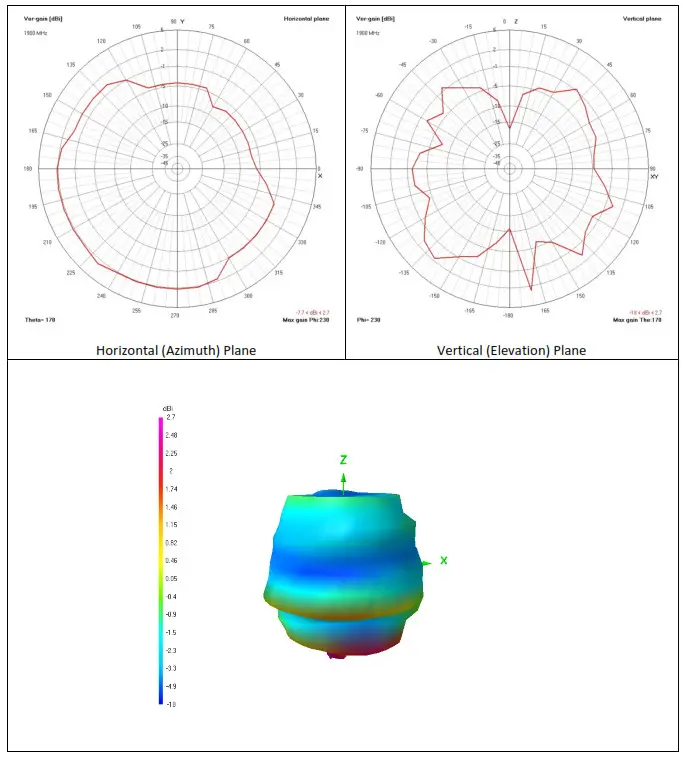

Radiation Patterns
1900 MHz

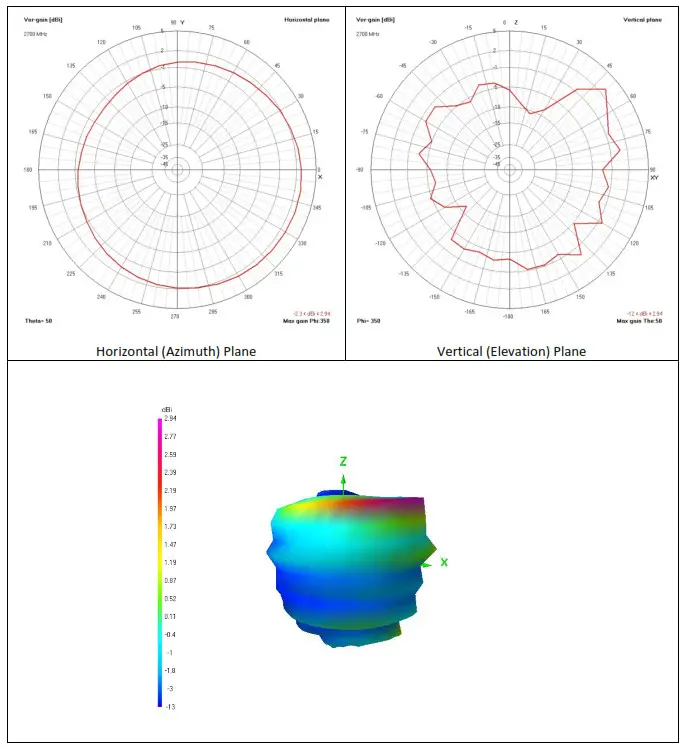

Radiation Patterns
2700 MHz

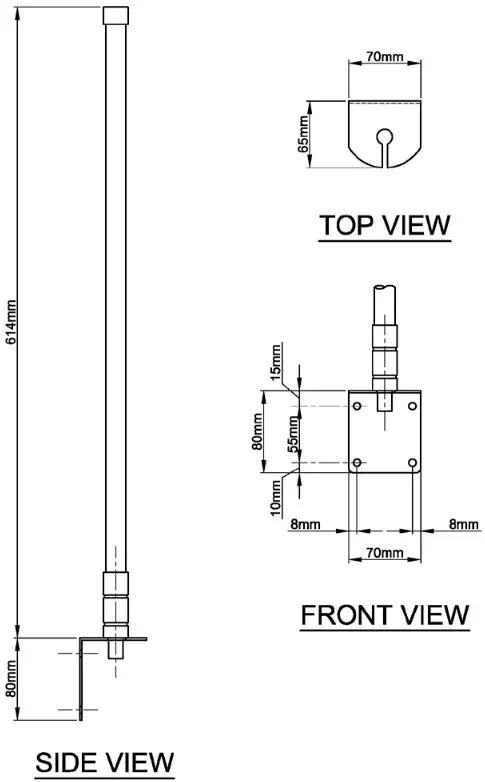

Mechanical Dimensions
Dimensions in millimeters

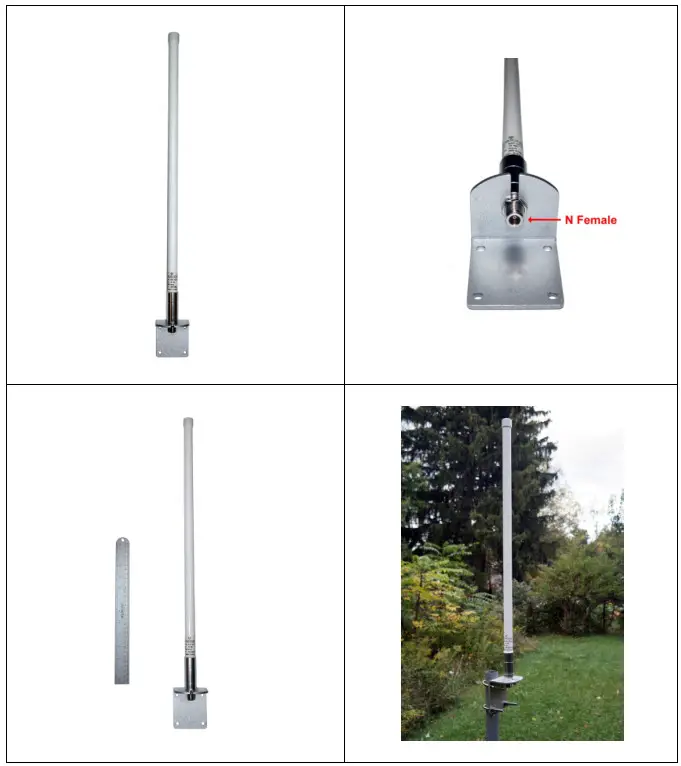

Additional Product Images
Installation Instructions
- Orient antenna vertically
- Position away from:
- CRT/TVs
- Lighting fixtures & motors
- Other antennas & wireless devices
- Low-E or tinted/coated windows
- Large vertical metal or concrete objects
- Mount as high as possible
- Weather seal outdoor coax connections
- Fully tighten coax connector to antenna connector
- Install in-line lightning protection if required by local building, fire, insurance or safety codes
- Use 2 identical antennas if modem supports diversity or MIMO
Important Notice
The information contained herein is believed to be reliable. Proxicast makes no warranties regarding the information contained herein. Proxicast assumes no responsibility or liability whatsoever for any of the information contained herein.
Proxicast assumes no responsibility or liability whatsoever for the use of the information contained herein. The information contained herein is provided “AS IS, WHERE IS” and with all faults, and the entire risk associated with such information is entirely with the user. All information contained herein is subject to change without notice.
The information contained herein or any use of such information does not grant, explicitly or implicitly, to any party any patent rights, licenses, or any other intellectual property rights, whether with regard to such information itself or anything described by such information. Proxicast products are not warranted or authorized for use as critical components in medical, life-saving, or life-sustaining applications, or other applications where a failure would reasonably be expected to cause severe personal injury or death.
Contact Information
For the latest specifications, additional product information, worldwide sales and information about Proxicast:
Web: www.proxicast.com Tel: 1-877-777-7694
Email: [email protected]
1-412-213-2477
Proxicast • 312 Sunnyfield Drive, Suite 200 • Glenshaw, PA 15116 USA
For technical questions and application information:
Email: [email protected]
Data Sheet: Rev B 09/22/18
