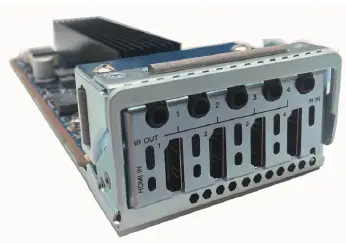

VigilLink VLIP-SD10G-ECRD 10G SDVoE Quad HDMI Input Module
Thank you for purchasing this product
Please read these instructions carefully for optimum performance and safety before connecting, operating, or adjusting this product. Please keep this manual for future reference.
A surge protection device is recommended.
This product contains sensitive electrical components that may be damaged by electrical spikes, surges, electric shocks, lightning strikes, etc. The use of surge protection systems is highly recommended to protect and extend the life of your equipment.
Introduction
This module uses NetGear 96 10G Ethernet switch to realize video matrix switching. Each card supports 4-channel HDMI input, 4-channel IR output, and 1-
channel IR input. Supported video resolution is up to 4K2K @50/60hz YCbCr 4:4:4. The product supports 3D, HDR video, and CEC control. It provides distribution mode and switching mode.
Features
- HDCP 2.2 compliant
- Supports 18Gbps video bandwidth
- Video resolution is up to 4K2K @50/60hz YCbCr 4:4:4
- Supports 4-channel HDMI input, 4-channel IR output, and 1-channel IR input
- Supports 3D, HDR format video, and CEC control.
- Supports HDMI audio formats: LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD
- Compact design for easy and flexible installation
Package Contents
| Qty | Item |
| 1 | Module |
| 4 | IR Blaster cable (1.5 meters) |
| 1 | IR Receiver cable (1.5 meters) |
| 1 | User Manual |
Specifications
| Technical | |
| HDCP Compliance | HDCP 2.2 |
| Video Bandwidth | 594MHz / 18Gbps |
|
Video Resolution | 4K2K 50/60Hz 4:4:4 4K2K 50/60Hz 4:2:2 4K2K 50/60Hz 4:2:0 4K2K 30Hz 4:4:4 1080p, 1080i, 720p, 720i, 480p, 480i All HDMI 3D TV formats All PC resolutions, including 1920 x 1200 |
| Color Space | RGB, YCbCr4:4:4, YCbCr4:2:2, YCbCr 4:2:0 |
| Color Depth | 8-bit (4K 60Hz 4:4:4), 10-bit (4K 60Hz 4:4:4), 12-bit (4K 30Hz 4:4:4/4K 60Hz 4:2:0) |
| HDMI Audio Formats | LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD |
| ESD Protection | Human body model—±8kV (Air-gap discharge) & ±4kV (Contact discharge) |
| Connection | |
| Input Ports | 4×HDMI Type A (19-pin female) 1×IR IN [3.5mm Stereo Mini-jack] |
| Output Ports | 4×IR OUT [3.5mm Stereo Mini-jack] |
| Mechanical | |
| Housing | Galvanization Enclosure |
| Silkscreen Color | Silver |
| Dimensions | 210mm (W) × 67mm (D)× 37mm (H) |
| Weight | 405g |
| Power Supply | Input: AC100 – 240V 50/60Hz, Output: DC 54V/600mA (US/EU standard, CE/FCC/UL certified) |
| Power Consumption | 25W |
| Operation Temperature | 0°C ~ 45°C / 32°F ~ 113°F |
| Storage Temperature | -20°C ~ 60°C / -4°F ~ 140°F |
| Relative Humidity | 20~90% RH (non-condensing) |
Operation Controls and Functions

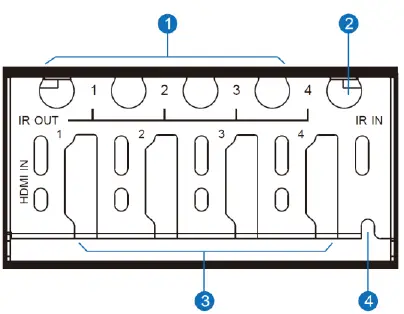

| No. | Name | Function Description |
| 1 | IR OUT 1~4 | IR signal output for IR control of HDMI source. |
| 2 | IR IN | IR signal input for receiving the signal of the IRremote. |
| 3 | HDMI IN 1~4 | HDMI source input. |
| 4 | Reset button | Press this button for 5 seconds while the device is powered on, and the system will restore the factory settings. |
Application Example
Note: This is just a connection demonstration. All the LAN ports in the diagram above can be connected with control devices or extenders randomly.
FAQ
Q: What other control methods does the product support?
A: This product can also be matched with HDV-CTL100 and controlled via Web UI.
Please get in touch with our customer service for details.
