VigilLink VLHA-EMR HDMI 2.0 Audio Embedder18Gbps
Thank you for purchasing this product
Please read these instructions carefully for optimum performance and safety before connecting, operating, or adjusting this product. Please keep this manual for future reference.
Surge protection device recommended
This product contains sensitive electrical components that electrical spikes may damage, surges, electric shock, lightning strikes, etc. The use of surge protection systems is highly recommended to protect and extend the life of your equipment.
Introduction
The HDMI 18Gbps Audio Embedder could embed audio signals from digital optical or analog stereo Line audio to HDMI output. Further, both input and output HDMI support video resolution up to 4K2K@50/60Hz (YUV444). It supports 10bits HDR (High Dynamic Range) pass-through and HDMI high resolution digital audio formats bypass, LPCM 2CH, Dolby TrueHD, Dolby Digital Plus, Dolby Atmos, and DTS-HD Master Audio, and audio sampling rate up to 192 kHz. HDCP 2.2 and CEC bypass are supported.
Features
- Embeds multi-channel optical (SPDIF) or Line analog audio to HDMI output
- Optical audio supports LPCM 2CH, Dolby Digital 2/ 5.1CH, DTS 2/5.1CH
- Analog audio supports PCM2.0
- HDMI 2.0b (18Gbps), HDCP 2.2, and DVI 1.0 compliant
- Video resolutions up to 4K2K@50/60Hz (YUV444)
- Supports HDMI High Bit Rate(HBR) audio pass-through
- 10bits HDR (High Dynamic Range) pass-through
- Supports CEC bypass
Package Contents
- 1 x HDMI 18Gbps Audio Embedder
- 1 x 5V/1A Power Adapter
- 1 x User Manual
Specifications
| Technical | |
| HDMI Compliance | HDMI 2.0b |
| HDCP Compliance | HDCP 2.2 and HDCP 1.4 |
| Video Bandwidth | 18Gbps |
| Video Resolutions | up to 4K2K@50/60Hz(YUV4:4:4),4K2K@ 30Hz,1080P@120Hz and 1080P3D@60Hz |
| Color Space | RGB, YCbCr 4:4:4, YCbCr 4:2:0 |
| Color Depth | 10-bit, 12-bit |
| HDMI Audio Formats (Pass-through) | LPCM 2/5.1/7.1CH, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X |
| Optical Audio Formats | LPCM 2CH, Dolby Digital 2/5.1CH, DTS 2/5.1CH |
| L/R Audio Formats | Analog Stereo 2CH |
| ESD Protection | Human body model — ±8kV (air-gap discharge) & ±4kV (contact discharge) |
| Connections | |
| Inputs | 1x HDMI Type A [19-pin female] 1x Line In [3.5mm Stereo Mini-jack] 1x Optical In [S/PDIF] |
| Outputs | 1x HDMI Type A [19-pin female] |
| Mechanical | |
| Housing | Metal Enclosure |
| Color | Black |
| Dimensions | 73.5mm [W] x 60.7mm [D] x 17mm [H] |
| Weight | 122g |
| Power Supply | Input: AC100 – 240V 50/60Hz Output: DC 5V/1A (US/EU standards, CE/FCC/UL certified) |
| Power Consumption | 1.25W |
| Operation Temperature | 32 – 104°F / 0 – 40°C |
| Storage temperature | -4 – 140°F / -20 – 60°C |
| Relative Humidity | 20 – 90% RH (Non-Condensation) |
Operation Controls and Functions

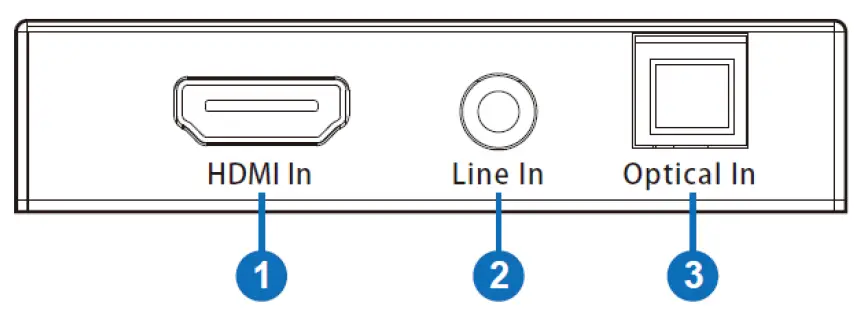

Front Panel
| Number | Name | Function description |
| 1 | HDMI In | Connect to HDMI source device, such as DVD player or Set-top box |
| 2 | Line In | Analog audio input port. |
| 3 | Optical In | Optical audio input port. |

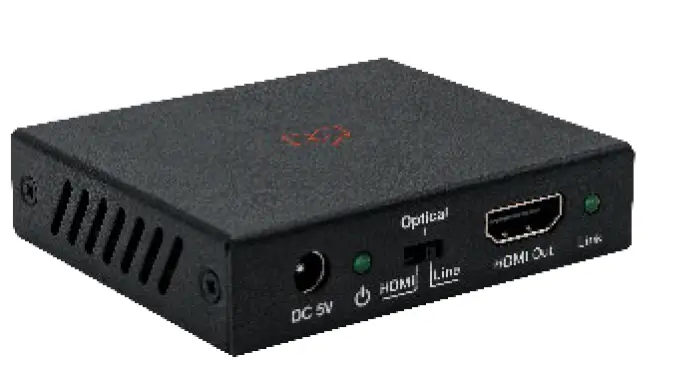

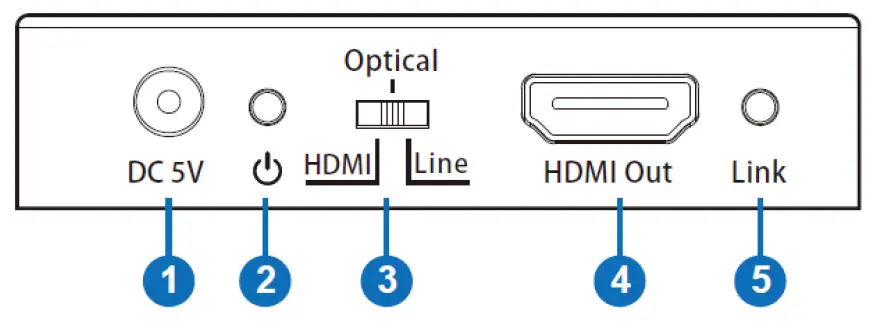

Rear Panel
| Number | Name | Function description |
| 1 | DC 5V | Connect 5V/1A adapter to AC wall outlet for power supply. |
| 2 | Power LED | System power indicator. |
|
3 |
HDMI/ Optical/Line | Users can select input audio format according to HDMI, Optical, or Line. ▪ When the dial switch is dialed to HDMI, the HDMI Out port outputs audio from HDMI In port input. ▪ When the dial switch is dialed to Optical, the HDMI Out port outputs audio from the Optical In port input. ▪ When the dial switch is dialed to Line, the HDMI Out port outputs audio from the Line In port input. |
| 4 | HDMI Out | Connect to HDMI display device such as TV/Projector. |
| 5 | Link LED | The LED will illuminate when detected HDMI output signal. |

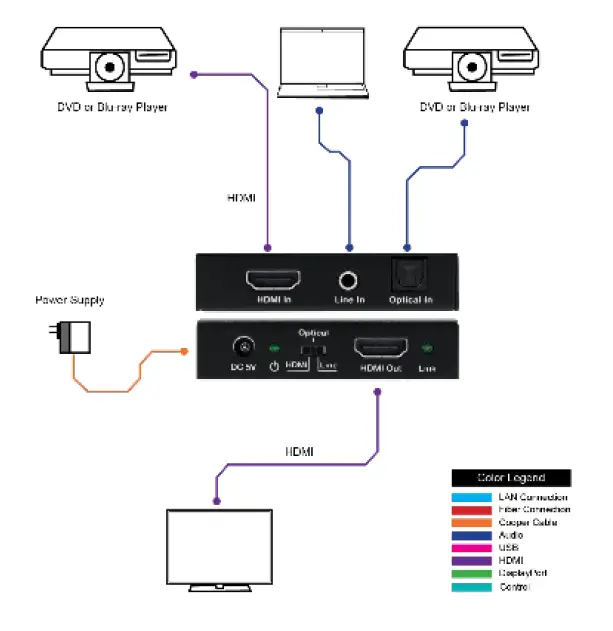

Application Example
