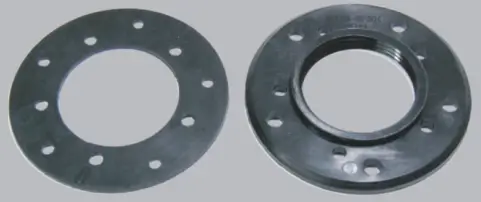

KUS FL2-WE Flange for Water Instructions
Revision History
| Revision | Description |
| 1.0 | Original Document |
General
Applicable to aluminium alloy/plastic tank assembly with size 2-8mm.

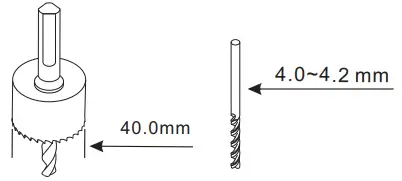

Preparation: 40mm opener, 4.0~4.2 driller, electric hand drill, marker pen, ruler, cutter knife.
Installation
Step 1:

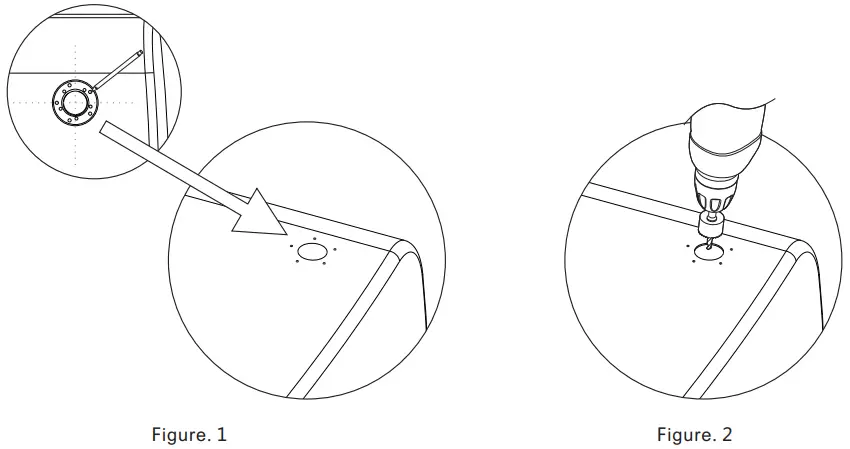

Place gasket in the required hole area in tank, draw a large hole and 5 small holes.(Figure 1)
Step 2:
Use 40.0mm opener to open a hole, then use 4.2mm dill the screw hole.
Step3:

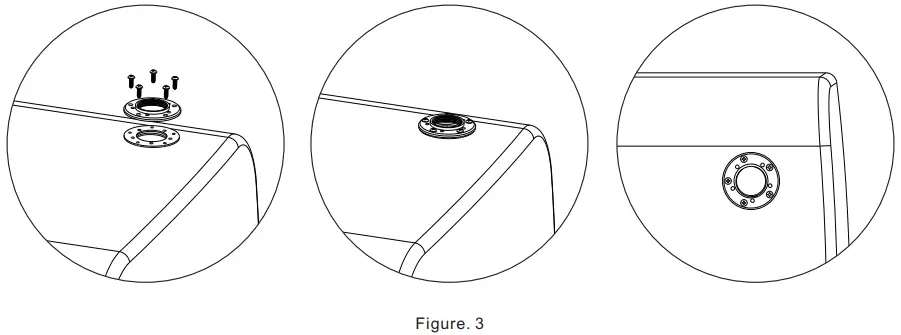

Lock the gasket and flange on tank according to figure. 3.
