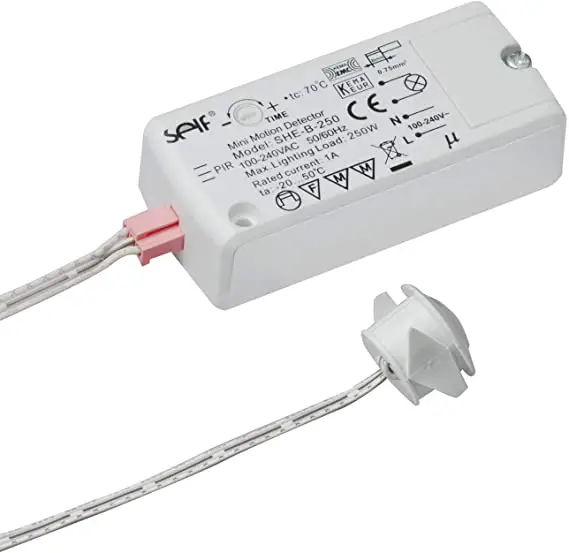

LEYTON SHE-B-250S 250 Watt Electronic Sensory Relay
INSTRUCTION MANUAL
SERIES: SHE-B-250S
Read these instructions completely and carefully.
ATTENTIONS
Read the instruction carefully before installation，non-observance of this instruction may cause damage to the fixture or hurt to the human body. The installation must be carried out by a qualified electrician in accordance with local or national codes.
Cut off the power supply before installation and maintenance!
Keep this instruction manual handy for future use.
Use only in an indoor, dry location. Clean the product with a dry cloth.
The luminaire shall be mounted out of arm’s reach. The recommended installation height shall be at least 2,5 meters (above the ground).”
Specifications：
| Model No. | Rated Input | Rated current | Delay Time | ta | L x W x H |

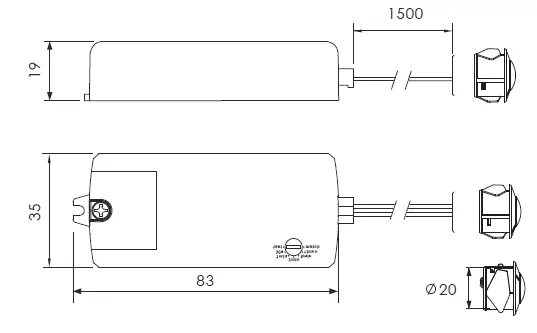

| SHE-B-250S | 100-240VAC | Max.1A | 8s(test location), 30s,1min,3min,5min,10min | -20-50°C | 83x35x19mm |
| Types of load Range voltage | Incandescent lamp/ HV-halogen lamp | Electronic ballast | Inductance ballast | Electronic transformer | LED driver |
| AC 100V,50/60HZ | 250VA | 80VA | 60VA | 250VA | 80VA |
| AC 240V,50/60HZ | 250VA | 150VA | 100VA | 250VA | 150VA |
| Sensor (Optional) | Dimensions in mm(inch) | Hole opening diameter(D) | DayLight Detection | Light Sensitivity* |
| Sensor 1: T/SLF5.876.045 |
|
20 | Yes | 80-160 lux |
| Sensor 2: T/SLF5.876.019 | No | No |
Note: *When the sensor detects ambient light illumination >160lux, the sensor controller shuts off the auto-detect mode.
When the sensor detects ambient light illumination <80lux, the sensor controller starts the auto-detect mode.

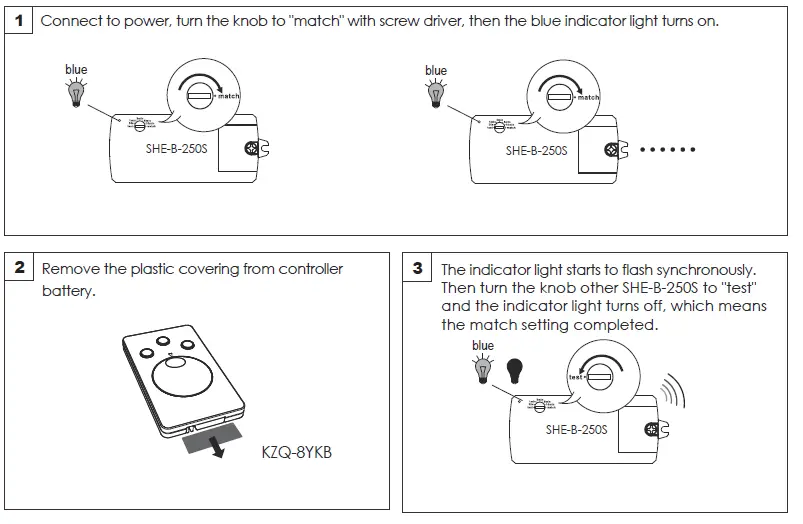

How to Match 1：

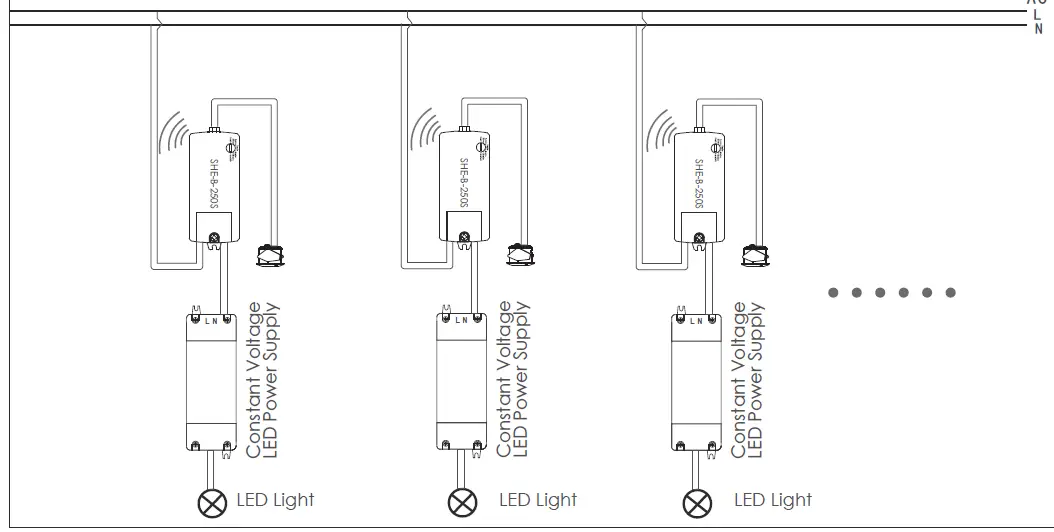

Wiring Diagram:
How to Match 2：

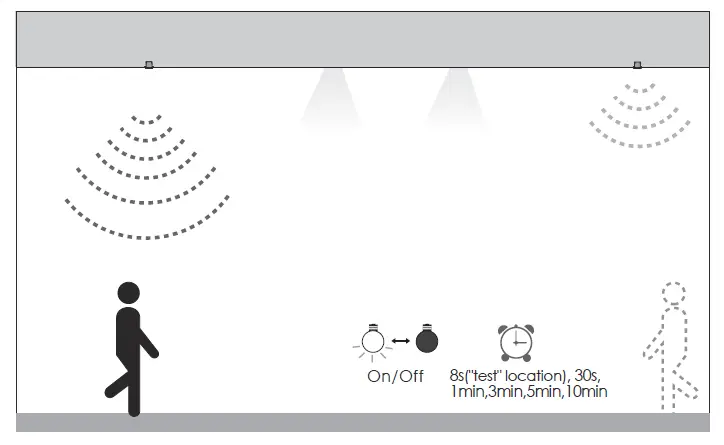

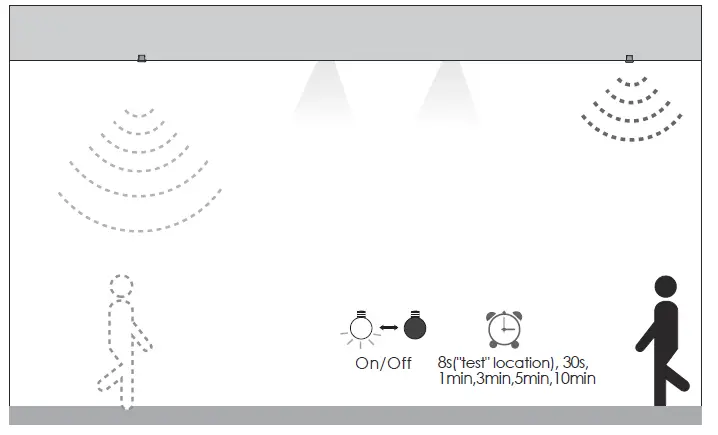

Time delay setting
Power on, Set the delay time with a screwdriver.
The delay time can be set to 8s (“test” location), the 30s,1min.,3min.,5min.,10min.
Wiring Diagram:

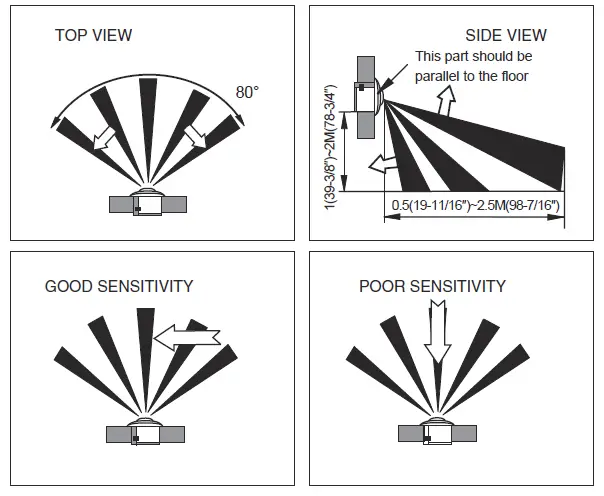

Detection area
The detection range for the suspended installation:
- This part should be parallel to the floor
- Sensitivity: Highest
- Fix position: 1-2m in height
Function

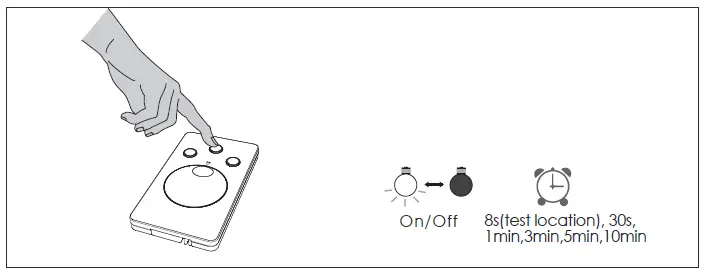

- Switch on / off fast (<2S) twice, the sensor controller goes into keeping the light on mode.(The lamp load flicks twice once power on)
- Power on again, wait for about 30 seconds, lamp load turns off, and the sensor controller goes into auto-detect mode.
PIR Sensor :
Note: *When the sensor detects ambient light illumination >160lux, the sensor controller shuts off the auto-detect mode. When the sensor detects ambient light illumination <80lux, the sensor controller starts the auto-detect mode.
On/off:
