HALCYON LED356 LED Light with Sensor
LED356 WITH SENSOR INSTALLATION INSTRUCTIONS
- Ensure Mains power is disconnected prior to connection

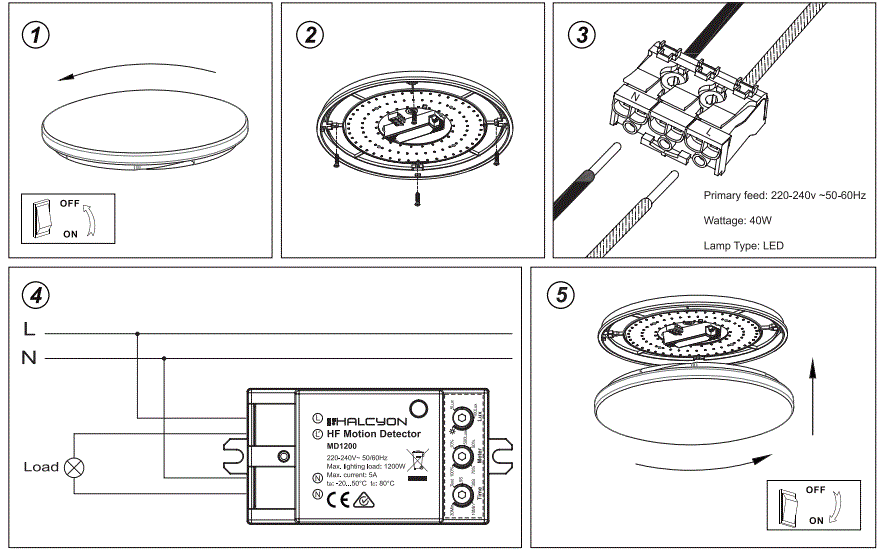

- Remove diffuser from base rotating in an anticlockwise direction (Diagram 1)
- Position base plate with mains feed cable fed through protection grommet
- Screw to ceiling or appropriate surface with screws supplied or using other appropriate method (Diagram 2)
- Terminate feed to terminal or junction box (note product is non-dimmable) (Diagram 3)
- Adjustment of sensor (Diagram 4)
Detection area is max. 10 metres (Preset value is 5 metres)
Hold time adjustable from 5 seconds to 30 minutes (Preset value is 30 seconds)
Daylight sensor with adjustable threshold (Preset value is 100 Lux) - Test luminaire illuminates and replace diffuser ensuring four keyways are positioned correctly on base tabs and tighten diffuser with clockwise rotation (Diagram 5)
LVD: IEC/EN 60598-1, IEC/EN 60598-2-1, IEC/EN 62471, IEC/EN 62031
EMC: EN 55015, EN 61547, EN 61000-3-2, EN 61000-3-3
EMF: EN 62493
