Product Specifications

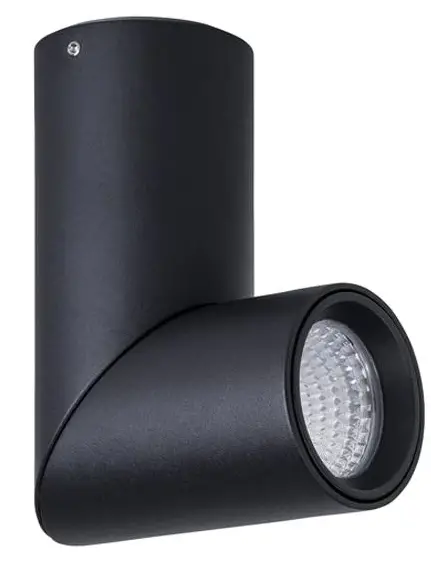

| Nella Surface Mounted Downlight Installation Instructions | ||||||||
| Product Specifications | ||||||||
| Model No. | HV5822T-BLK | HV5822T-WHT | HV5823T-BLK | HV5823T-WHT | HV5824T-BLK | HV5824T-WHT | HV5825T-BLK | HV5825T-WHT |
| Name | Nella Rotatable | |||||||
| Material | Aluminium | |||||||
| Colour | Black | White | Black | White | Black | White | Black | White |
| IP Rating | IP54 | |||||||
| Input Voltage | 240v | |||||||
| Protection Class | 1 (Requires Earth) | |||||||
| Lamp Base | Built in LED | |||||||
| Lamp Wattage | 1x 7w | 1x 12w | 1x 18w | 1x 24w | ||||
| Colour Temp | TRI-Colour – 3000k , 4000k, 5500k | TRI-Colour – 3000k , 4000k, 5500k | TRI-Colour – 3000k , 4000k, 5500k | TRI-Colour – 3000k , 4000k, 5500k | ||||
| Lumens | 395lm, 485lm, 465lm | 790lm, 880lm, 855lm | 1415lm, 1600lm ,1485lm | 2100lm, 2320lm, 2270lm | ||||
| CRI | > 80 | |||||||
| Wiring | Parallel | |||||||
| Dimmable | Yes – Triac Dimmable | |||||||
| Warranty | 3 Years Replacement* | |||||||

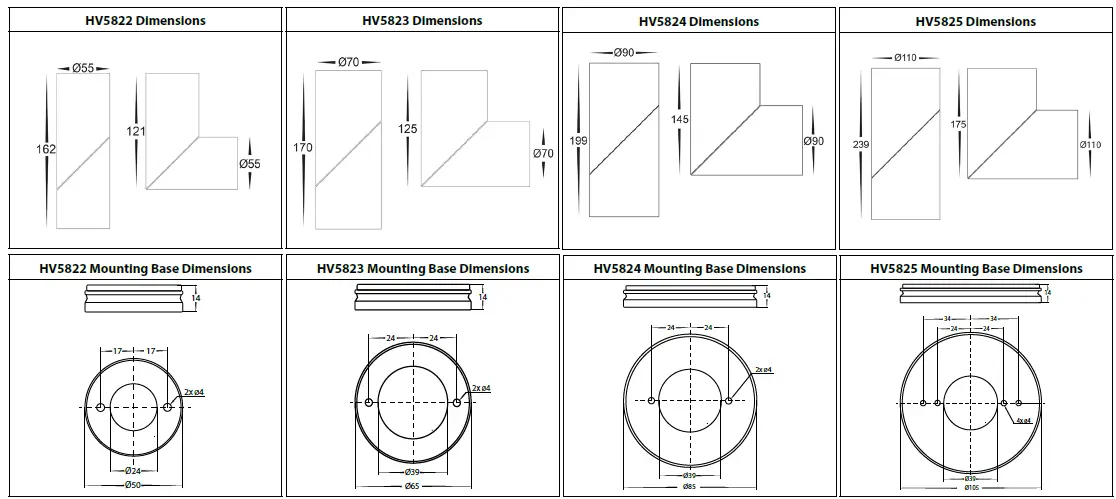

Important Safety Issues
- This product must be installed by a qualified electrician according to AS/NZS 3000.
- Ensure all electrical mains are disconnected before any installation.
- Modification of this product will void any warranty.
- Havit Lighting does not take responsibility for wrong installation, incorrect use, or use of installation material that does not belong to the system.
- Aluminium and 304SS fittings must not be installed within 5km of any salt water environments.
- All o-rings and seals must be in place correctly to maintain warranty
- This form may be updated at any time due to product improvements, please check online installation form for most current version.
Steps for Installation
- Make sure that the electrical circuit is free of voltage (master switch off )
- Remove base plate by loosening allen screws on side of fitting.
- Unplug fitting from driver and set fitting aside
- Install base plate in desired location using appropriate screws for application.
- Connect the cable: Use wire with earth, connect earth first then positive and then neutral
- Reconnect plug from fitting to base plate.
- Fitting is preset to 3000k, To change slide switch inside fitting to desired colour temperature
- Reattach fitting to base plate and tighten allen screws making sure these are tight.
- Rediredt head by gently moving bottom half of fitting to desired direction.
- All connections must be carried out carefully, inspect all contacts before switching back on the electric circuit.
Contact Details
143 Beauchamp Road Matraville NSW 2036 Australia
Tel: 02 9381 8300
Fax: 02 9666 8881 Email: [email protected] Web: www.havit.com.au
