XC110 10W Wireless Charging Pad

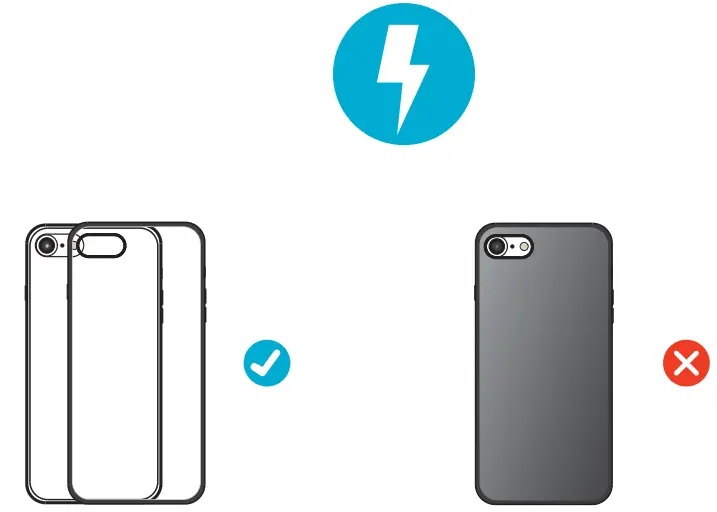

Slim Case(within 4mm)
Case Thickness(Over 4mm)

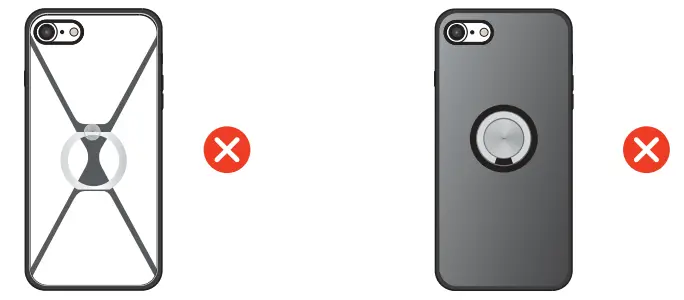

Metal Ring/Case
Magnetic Pad

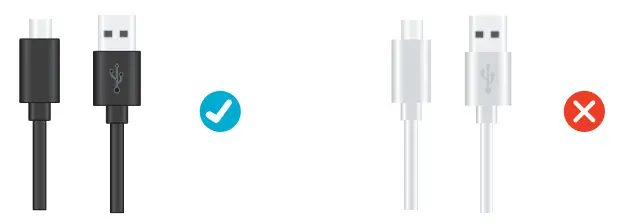

Original Cable/charge cable
Inferior 3rd Party Cable
High Quality/Phone Original Adapter
Inferior 3rd. Party Adapter
FCC ID:2AOSUF500S
FCC STATEMENT: This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Use Instruction
- Please use a good brand 5V,2A adapter or 9V,2A fast charging adapter.

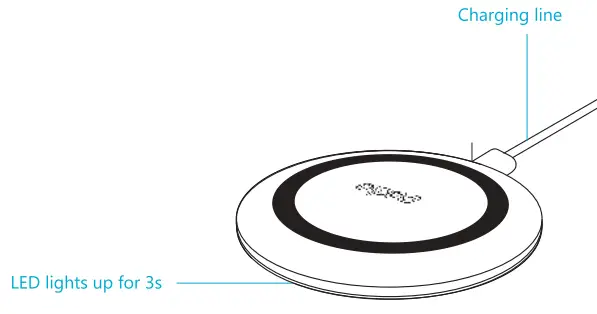

- Connecting power with USB port, the indicator will light up for 3 seconds when power is on.

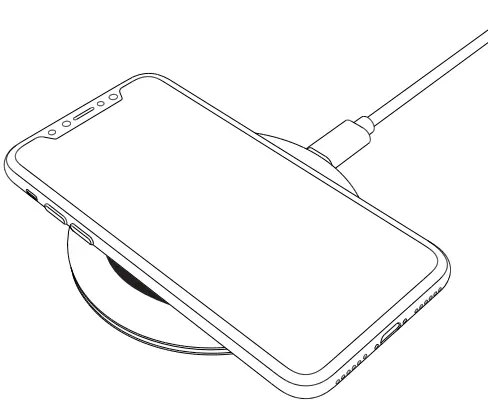

- 1) Locate your phone on the charging pad and make sure it is on the sweet spot for effective charging.

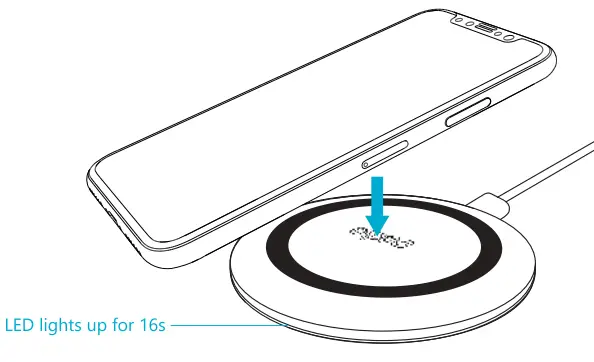

(2) When the phone is charged successfully, the LED indicator will light up for 16 seconds and then off to keep the whole charging process sleep-friendly.
Product Specification
Model: XC110
Size: 94.4mm*12.2mm
Input: 5V
2A ,9V 2A
Output: 5W/7.5W/10W
Charging Distance: 4mm-6mm
Coil: 1 coil
Attention
- Keep the charger away from water and other liquid.
- Please make sure the power is cut off before cleaning the charger
- Use the charger between 0-45°C
5W
| Adapter Type | Using 5V,2A adapter |
| Compatible Device | Compatible with Any Qi enabled devices |
7.5W
| Adapter Type | Using 9V/2A fast charging adapter |
| Compatible Device | iPhone 12 Pro Max/ 12 Pro/ 12/ 12Mini/ 11/ 11 Pro/ 11 Pro Max/ iPhone 8/ 8 plus/iPhone X/ XS/ XS Max! XR |
10W
| Adapter Type | Using 9V/2A fast charging adapter |
| Compatible Device | Samsung Galaxy S20 FE/ S20/ S20+ /Note 20/ 20 Ultrallote 10/Note 10+/ S10/ S10+/ S10e/S9/ S9+/ Note 9/ Note 8/ S8/ S8 plus/ S7/S7edge/ S6 edge plus/ Note 5/ Google Pixel 3/ 3XL |
EU Declaration of Conformity
In accordance with EU Directives and Regulations
Rapoo Europe B.V. Wag en Boa 132 CID, 2661GX Bergschenhoek, Netherlands
as the manufacturer. hereby declares under our sole responsibility that product(s): Wireless Charger Base
Product Type Wireless Charger. USB-powered Brand Rapoo Model Number XC110
Model names: XC150 is in conformity with the essential requirements of the Radio Equipment Directive 2014/53/EU: and conformity to the RoHS Directive 2011/65/EU and its amendment directive 2015/863/EU
Radio EN 303417 V1.1.1
EMC EN 301 489-1 V2.1.1 EN 301 489-3 V2.1.1
Safety EN60950-1:2006+A11:2009.A1:2010+.412:2011+A2:2013
Health EN 62311: 2008
RoHS
IEC 62321-2:2013; 1EC62321-1:2013; 1EC62321-3-12013; IEC 623215:2013: IEC 62321-7-1:2015, IEC 62321-7-2:2017 & ISO 17075-1:2017; 1EC62321-6:2015; IEC 62321-8:2017; IEC 62321-4:2013*A1:2017
The lab SGS Standard Technical Service Co., Ltd (SGS) performed a conformity assessment according to loAnnex III. Module B.
Signed on behalf of Rapoo Europe B.V.
Bob Blanked Meet&
Dale: 2020-02-17
Radio Equipment Directive 2014/53/EU:
Frequency Bands: 110- 205 kHz Maximum Radio Frequency Power Transmitted: -12.59 dBpA/m @10m
XC110
