XC145 Wireless Charging Pad
Quick Start Guide

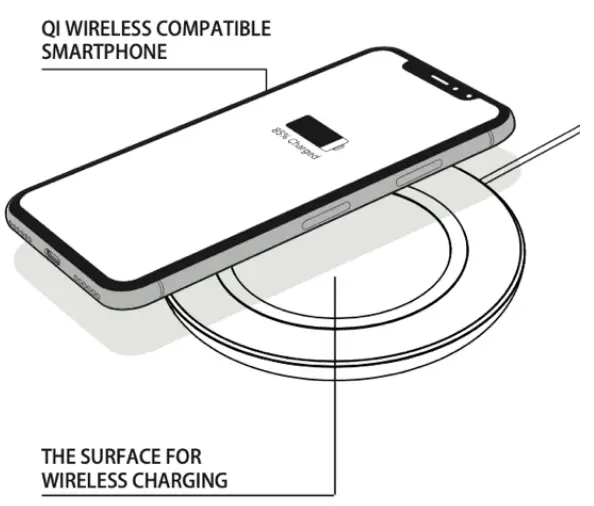

Product Description
Product Specifications
COMPATIBILITY: iPl-cine 12/12 Mini/12 Pro/I 2 Pro Max/SE 2020/Phone 11/11 Pro/11 Pro Max/XS MAX/ XR / XS/ X / 8 / 8 Plus ; Samsung Galaxy Note 20/20 Ultra 10/Note 10 Plus/S20620+/S20 Ultra/S10VSIO plus/SIGE/S10 5G/Note 9/ Note 8/S20/20+/S20 Ultra/S9 / S9+ 158 / 58+ / S8 Active/S7 / S7 edge/ S7 Active / 56 edge+ /S6 Active/ 58/ Note 5: Google Axel d/dXL3/3XL. Google Nexus d/5/6;LG V50 ThinCVV50N40 ThinCIN35N30+N30, LG G8 ThinO/GB/G7+ ThinO/G7 ThinO/G71G6+/G6: Microsoft Lumia 950/950 XL or other qi certified devices
INPUT: 5V2A,9V1.67A OUTPUT: 5W/7SN/10W
FOR MAX CHARGING SPEED USE Quick Charge adapter
WILL ONLY CHARGE THROUGH CASES SiAM THICK OR LESS
Troubleshooting

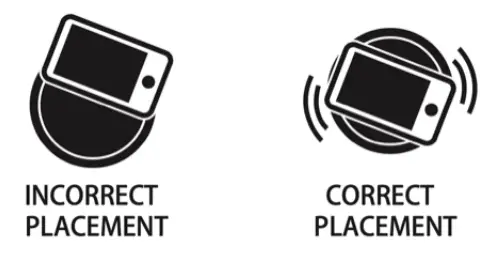

If you are experiencing issues with wireless charging, make sure your phone is centered on the charger (see image below).

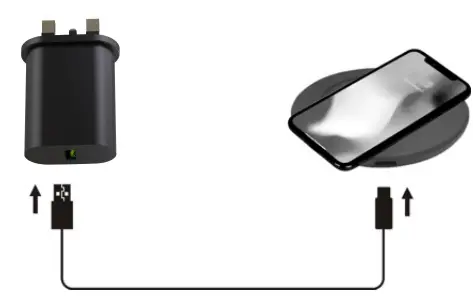

Installation
Wireless Charging
Please make sure to use the quick charge adapter in the package. Recommended not to use any USB ports under 5V2A or 9V 1.67A. Use enclosed Type-C cables.
ACTIVITY LED 1101AVIGlifi Tern on power. Red and Green Light &Ow, 2 tomes Chtagns; Green tight breathing Corer Objeetrre Detection: Red light ftrivrq Device fully chord: Greenlight on
Safety instructions
Do not open or repair this product. Do not use the product in a damp environment. Clean the product with a dry cloth
Warranty
The device is provided with two-year limited hardware warranty from the purchase day. Please see wwne.rapoo-eu.com for more information.
Radio Equipment Directive 2014/53/EU:
Frequency Bands:110 – 205 kHz
Maximum Radio Frequency Power Transmitted: -13.55 dflptt/rn @l0m
See www.rapoo-eu.com for the latest FAQs.
EU Declaration of Conformity
In accordance with EU Directives and Regulations
Rapoo Europe B.V.
Weg en Bos 132 C/D, 2661GX Bergschenhoek, Netherlands.
As the manufacturer, hereby declares under our sole responsibility that product(s): Wireless Charger with USB Wall Charger
Model names: XC145 is in conformity with the essential requirements of the Radio Equipment Directive 2014/53/EU: and conformity the RoHS Directive 2011/65/EU and its amendment directive 2015/863/EU
| Radio EMC Safety Health RoHS | EN 303 417 V1.1.1(2017-09) EN 301 489-1 V2.2.1 ( 2017-02) EN 301 489-3 V2.1.1 IEC 62368- 1:2014+A11:2017 EN 62311:2018 IEC 62321-3-1:2013: 1EC62321-4:2013+AMD1:2017: | (2019-03) |
1EC62321-5:2013: IEC 62321-7-1:2015: 1EC62321-7-2:2017: IEC 62321-6:2015: IEC 62321-8:2017:
EMC EN 55032:2015 EN 55035:2017
EN 61000-3-2:2014
EN 61000-3-3:2013
LVD EN62368-1:2014+A11:2017
ERP EN 50563-2011/A1:2013
The lab Shenzhen Anbotek Compliance Laboratory Limited(Anbotek) performed a conformity assessment according to Annex Ill, Module B.
