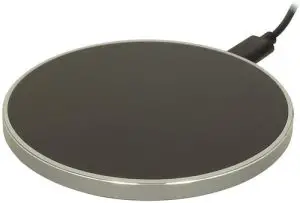

Rapoo Xc150 Wireless Qi Charging Pad User Manual

rapoo XC150 Wireless Qi Charging Pad User Manual

IMPORTANT USES

• SLIM Case (within 4mm)

• Case Thickness (Over 4mm)

• Metal Ring/Case

• Magnet Pad

• Original Cable/ charge cable

• Inferior 3rd Party Cable

• High Quality/Phone Original Adapter

• Inferior 3rd Party Adapter


Use Instruction

1. Please use a good brand 5V,2A adapter or 9V,2A fast charging adapter.
2. Connecting power with USB port, the indicator will light up for 3 seconds when power is on.
3. Locate your phone on charging stand and make sure it at sweet spot for effective charging.
   1. When the phone is charged successfully, the LED indicator will light up for 16 seconds then off to keep the whole charging process sleep-friendly.

Product Specification

Model: XC150
Size: 100mm*12.5mm
Input: 5V2A .9V2A
Output: 5W/7.5W/10W
Charging Distance: 4mm-6mm Coil: 2 coils

Attention

1. Keep the charger away from water and other liquid.
2. Please make sure the power is cut off before cleaning the charger 3. Use the charger between 0-45°C

• 5W


  Adapter Type	Using 5V,2A adapter
  Compatible Device	Compatible with Any Qi enabled

• 7.5W


  Adapter Type Adapter	Using 9V/2A fast charging adapter
  Compatible Device	iPhone 12 Pro Max/ 12 Pro/ 12/ 12Mini/ 11/ 11 Pro/ 11 Pro Max/ iPhone 8/ 8 plus/iPhone X/ XS/ XS Max/ XR

• 10W


  Adapter Type Adapter	Using 9V/2A fast charging adapter
  Compatible Device	Samsung Galaxy 520 FE/ 520/ 520+ /Note 20/ 20 Ultrallote 10/ Note 10+/ 510/ 510+/ S10e/ 59/ 59+/ Note 9/ Note 8/ 58/ 58 plus/ 57/ 57edge/ 56 edge plus/ Note 5/ Google Pixel 3/ 3XL

FCC ID:2AOSUF900

FCC STATEMENT

This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions:

1. this device may not cause harmful interference, and
2. this device must accept any interference received, including interference that may cause undesired operation.

EU Declaration of Conformity

In accordance with EU Directives and Regulations

Rapoo Europe B.V.

Wog on Bos 132 CID. 26616X Bergschenhook. Netherlands

as the manufacturer. hereby declares under our sole responsibility that product(s):

Wireless Charger Base

Product Type Wireless Charger. USB powered
Brand Rapoo Model Number XC150
Model names: XC150 is in conformity with the essential requirements of the Radio Equipment Directive 2014/53/EU: and conformity to the RoHS Directive 2011/65/EU and its amendment defective 2015/863/EU

• Radio EN 303417 V1.1.1(2017-09)
• EMC EN 301 489-1 V2.2.3(2019-11)
  EN 301 489-3 V2.1.1(2019-03)
  EN 550322015+AC2016
  EN 55035:2017
  EN 61000-3-22014
  EN 61000-3-3:2013
• Safety EN62368-1:2014+A112017
• Health EN 62311: 2008
• RoHS IEC 62321-22013;
  IEC62321-1:2013I
  IEC62321-3-12013;
  IEC 62321-52013;
  IEC 62321-4:2013+1U:2017;
  IEC 62321-7-1:2015,
  IEC 62321-7-2:2017 & ISO 17075-1:2017;
  IEC62321-6:2015;
  IEC 62321-8:2017;

The lab SGS Standard Technical Service Co.. Ltd (SGS) & Shenzhen Micro test Co..Ltd performed a conformity assessment according to Annex III. Module B.

Signed on behalf of Rapoo Europe B.V.

Bob Blankert Title: Moder Date: 2020-03-23

Radio Equipment Directive 2014/53/EU: Frequency Bands: 110- 205 kHz Maximum Radio Frequency Power Transmitted: -12.28 dBuA/m @3m
