Before using the appliance read the Safety Instructions carefully.

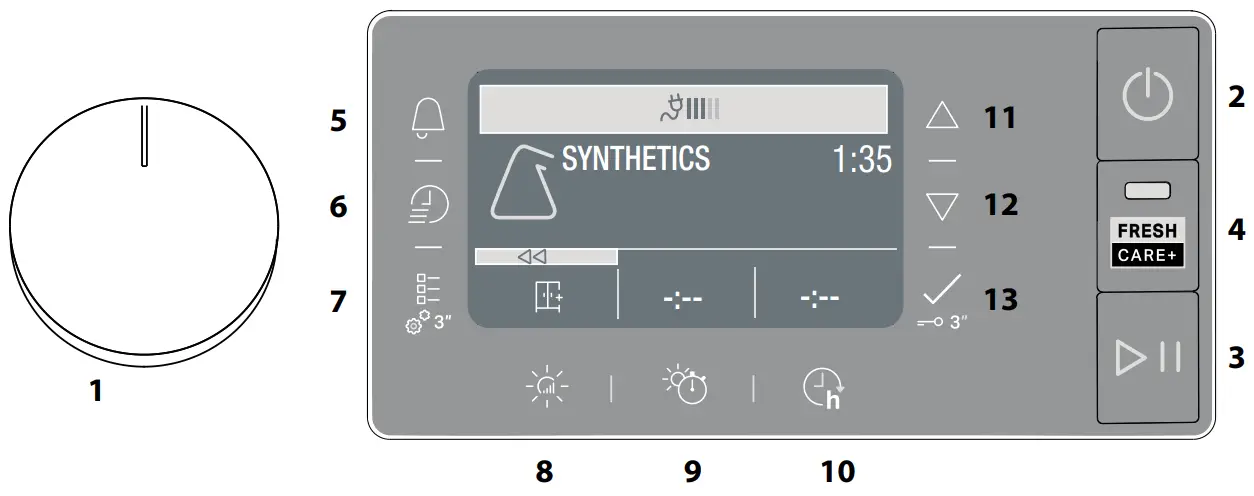

CONTROL PANEL

1. Programme selection knob
2. On/Off button
3. Start/Pause button
   Options buttons
4. FreshCare+
5. Cycle End Signal
6. Rapid
7. Cycle Options (hold for Settings)
8. Dryness Level
9. Timed Drying
10. Start Delay
    Navigation buttons and Key Lock
11. UP
12. DOWN
13. CONFIRM (hold for Key Lock)

INDICATORS

Cycle phase: Drying – Cool Down – End of Cycle
Empty water tank – Clean secondary filter – Clogged door filters – Autoclean – Eco Monitor
Refer to Troubleshooting section: Failure call After-sales Service – DEMO Demo Mode

FIRST TIME USE

When starting the appliance the first time, the control panel will automatically show the set language menu. The UP and DOWN buttons are used to show the languages available in the machine. Press the button to confirm. The machine cannot be used without having selected the language.
Make sure that the water tank is correctly inserted.
The dryer must be installed in a room with a temperature ranging between 5°C and 35°C to ensure proper operation.
Before using the dryer make sure it has been in an upright position for at least 6 hours.

DAILY USE

Doing this will keep your machine working at its BEST:

• remember to empty your water tank after each drying cycle.
• remember to clean your filters after each drying cycle.

Refer to the Care & Maintenance section.

1. Plug the dryer into the power supply socket.
2. Open the door and load garments; always refer to instructions on clothing labels and the max loads indicated in the programme section. Empty pockets. Make sure garments do not get caught between the door and/or the door filter. Do not load items that are dripping wet. Do not tumble dry large, very bulky items.
3. Close the door.
4. Press the “On/Off” button.
5. Select the most suitable programme for the type of fabric in that load.
6. Select the options, if necessary.
7. Press the “Start/Pause” button to begin drying.
8. At the end of the drying cycle, a buzzer will beep. An indicator on the control panel signals the end of the cycle. Pull the load out immediately to prevent the formation of creases on laundry.
9. Turn the machine off by pressing the “On/Off” button, open the door and pull the clothing out. If the machine is not switched off manually, after about a quarter of an hour from the end of the cycle , the appliance turns off automatically to save energy. Note that some programme/option accords with “Crease Care” system. This means that for some hours, after the end of the drying cycle, the drum rotates at regular intervals to prevent the formation of creases.
   In case of power failure, it is necessary to press the “Start/Pause” button to restart the cycle.

Eco Monitor
This indicator shows the energy consumption level according to the programme and the options set. The consumption is proportional to the lines on the display, by the ecomonitor icon.

OPENING THE DOOR DURING THE CYCLE

Laundry can be checked while the drying cycle runs and any garments already dry can be removed, while drying continues for the remaining items. After closing the door, press the “Start/Pause” button to resume machine operation.
Keep the door closed until the cycle end to save time and energy.

NAVIGATION

The “UP” and “DOWN” buttons are used to navigate the available menus.

• Press the button to confirm the selection.
• Press the option button at the symbol, where present on the display, to return to the previous screen.

If no selection is confirmed, after about 2 minutes, the display return to the main screen.

SETTINGS

To access the Settings menu, press and hold the relevant button for a few seconds.

• Set language shows the available languages on the display.
• Sounds allows to enable or disable the sounds (some sounds, as warnings, will remain active anyway).
• Brightness allows to modify the display brightness.
• Factory Default allows to reset the default settings. After having selected the setting, press and hold the button for a few seconds.

*MAX LOAD 8 Kg (Dry load)

CARE LABEL

Always check the care labels, especially when placing garments in the tumble dryer for the first time. Below are the most commonly used symbols:

May be tumble dried.
Do not tumble dry.
Tumble dry – high heat.
Tumble dry – low heat.

PROGRAMS

The duration of these programs will depend on the size of the load, types of textiles, the spin speed used in your washer and any extra options selected. In machines equipped with display, the duration of the cycles is shown on the control panel. The remaining time is constantly checked and adjusted during the drying cycle to show the best possible estimate.
Option to use – If all your loads on Automatic Cycles are consistently less dry or more dry than you would like, you may increase or decrease the dryness level using the specific option.

Eco Cotton kg Max*
This is the most efficient programme in terms of energy consuption and is suitable for drying normal wet cotton laundry.
The values on the Energy Label are based on this programme.

NOTE: for optimal energy efficiency, select “Cupboard Dry” using dryness level option. To increase the dryness level, select “Extra Dry”

Mixed kg 4
This programme is ideal for drying cotton and synthetic fabrics together.

Synthetics kg 4
For drying synthetic fabrics.

Wool kg 1
Programme for drying wool clothes. It is advisable to turn the items inside out before drying. If heavy edges remain damp, leave them to dry naturally.

Delicates kg 2
For drying delicate laundry requiring gentle treatment.

Coloured kg 3
Programme for the gentle drying of coloured fabrics.

Bed Linen kg Max*
This programme is intended for drying cotton sheets.

Duvet
Programme intended to dry bulky items, such as a single duvet.

Easy Ironing
This cycle relaxes fibres, thus making ironing and folding easier. Suitable for small load of damp or dry cotton and cotton blend fabrics. Do not use with still wet garments.

More Cycles

• Microfiber kg 2
  Gentle drying for microfiber.
• Towels kg Max*
  For drying sturdy cotton laundry, such as terry towels.
• Tecnhical Wear kg 4
  For drying synthetics or cotton technical wear.
• Down Jackets kg 2.5
  To dry down jackets, restoring their natural softness (2 jackets).
• Mats kg 3
  To dry small bath or kitchen mats. Do not dry mats with plastic parts to prevent fire hazard.
• Lingerie kg 2
  To dry very delicate underwear. Close all hooks before drying.
• Cuddly Toys kg 2
  The cycle preserves the original appearance and brilliance of the cuddly toys at best. Remove all accessories before proceeding with drying. Each single piece must not exceed 600 gr.

Sport kg 4
For drying synthetics or cotton sports garments.

Jeans kg 3
For drying sturdy cotton jeans-wear and garments, like denim, such as trousers and jackets.

Shirts kg 3
This is a programme for cotton or cotton blend/synthetics shirts.

Rapid 30′ kg 0.5
Ideal for drying cotton garments spun at high speed in the washing machine.

Refresh
A short programme suitable for refreshing fibres and garments through the emission of fresh air. Do not use with garments that are still wet. It can be used on with any load size but is more effective with small loads. It lasts about 20 minutes.

Dryness Level
Press the relevant button several times to obtain a different level of residual moisture on your laundry. The display signals the level being selected. After few seconds of inactivity, the display returns to the main menu.

Iron Dry: very delicate drying. Items will be more easily ironed immediately after the cycle.

Hanger Dry: a level intended for delicate garments ready to be hanged.

Cupboard Dry: the laundry is ready to be folded and put away.

extra Extra Dry: for laundry intended to be worn at the end of the cycle.

Timed Drying
This option is to manually set the drying time. Press the corresponding button to set the required time for drying. An indicator on the control panel signals the time being selected. h

Start Delay
This option is for delaying the start of the cycle. Press the corresponding button several times to find the required delay.
Once the max time is reached, the option is reset by pressing the button again. An indicator on the control panel signals the time being selected. After pressing the “Start/Pause” button, the machine signals the time remaining to the start of the cycle. If the door is opened, press the “Start/Pause” button once the door has been closed.

FreshCare+
If laundry is left inside of the drum once the cycle has ended, it can be subjected to bacterial proliferation. This option helps to prevent this from happening by controlling the temperature and gently rotating the drum. This will continue for up to 6 hours after the end of the cycle. This setting will remain in the memory of the previous cycle. If this is used alongside Start Delay, a crease treatment will be perfomed during this phase by periodic rotations of the drum.

Rapid
Enables quicker drying.

Key Lock
This option makes all machine controls inaccesible, except the “On/Off” button.
When the machine is on:

• to activate the option, keep the button pressed until the machines signalsthat the option has been enabled.
• to disable the option, keep the button pressed until the machine signals that the option has been disabled.
  This option remains in memory if selected in previous drying.

Cycle End Signal
This option activates a prolonged buzzer at the end of the cycle. Enable it if you do not think you will hear the normal sound at the end of the cycle. After having pressed the option button, it can be enabled or disabled using the “UP” and “DOWN” buttons.
Press the button to confirm. This option remains in memory, if selected in previous drying.

Cycle Option
This button provides access to the menu of options below. Scroll the options with the “UP” and “DOWN” buttons and press the button to confirm the selection.

• Gentle
  Enables a more gentle treatment of the laundry by reducing the drying temperature.
• Anti Tangle
  This option performes a special drum movement that reduces tangling and knotting of your clothes. It gives best results when used with smaller loads.

CARE AND MAINTENANCE

WARNING: unplug the dryer during the cleaning and maintenance procedures.

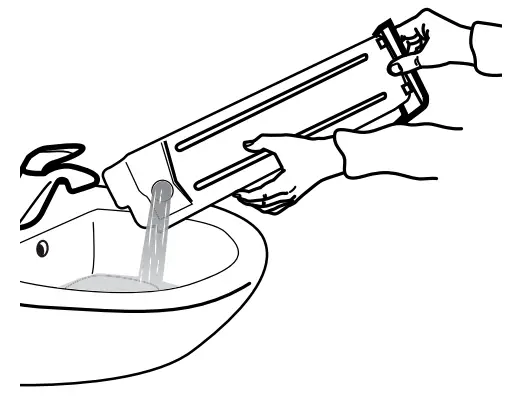

Emptying the water tank after each cycle (see Fig. A).

Pull the container out of the dryer and empty it into a sink or other suitable drain, then place it back properly. Do not use the dryer without having inserted the container back in place.

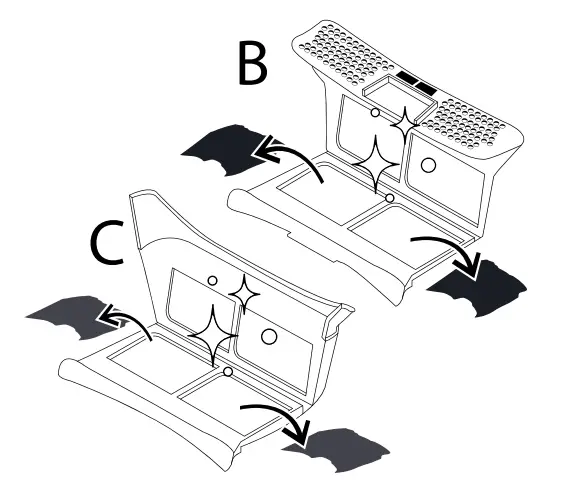

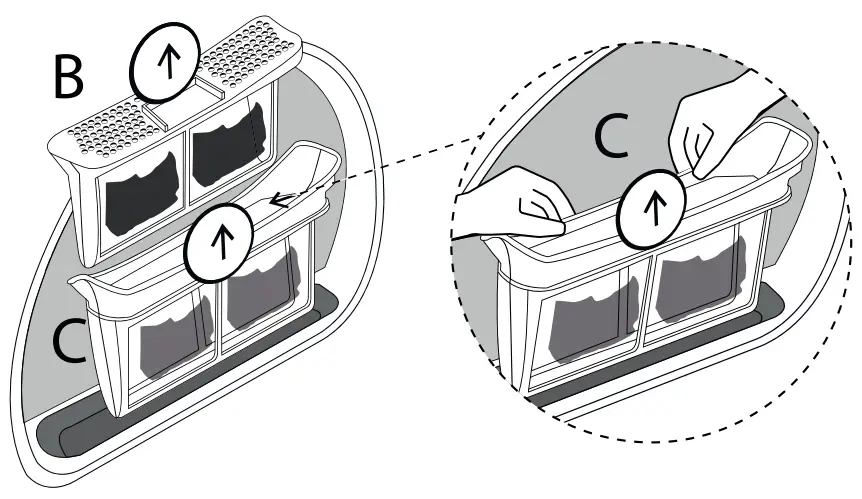

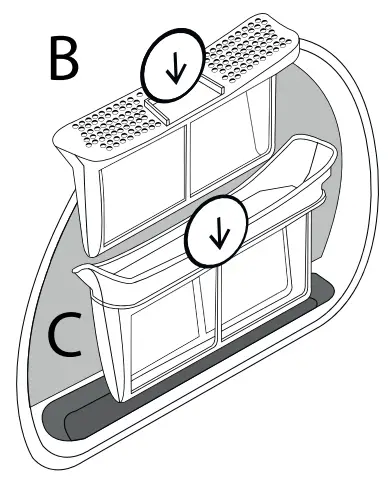

Cleaning the primary door filter after each cycle (see Fig. B).

Pull the primary door filter out and clean it by removing the lint from the filter surface under running water or using a vacuum cleaner.

Cleaning the secondary door filter when the relevant indicator turns on (see Fig. C).

Pull the secondary door filter out and clean it in all its parts by washing it under running water or using a vacuum cleaner.

Clogged filters – clean both door filters (see Fig. B, Fig. C).
For optimal performance, dry the filters before inserting them back in place.

Do not use the dryer without having inserted all filters back in place properly first.

The filters are essential parts for drying. They are intended to collect the lint formed during the drying process. In case of clogged filters, the air flow inside the dryer would be seriously affected: the drying time would be longer, the energy consumption would increase and the dryer could be damaged. If these procedures are not carried out properly, the dryer may not start.

Autoclean
The maintenance of the bottom filter of this model is automatic. The dryer carries out cleaning when the sensors signal the need to do so. In this case, the machine goes on working even when the drying cycle is completed. An indicator on the control panel will signal the maintenance. Do not switch the machine off during this phase.

Cleaning the tumble dryer

• The external metal, plastic and rubber parts can be cleaned with a damp cloth.
• Clean the front air intake grille regularly (every 6 months) with a vacuum cleaner to remove any lint, fluff or dust deposits. Furthermore, remove any lint deposits from the filters area, using a vacuum cleaner every so often.
• Do not use solvents or abrasives.

TRANSPORT AND HANDLING

Never lift the dryer by holding on to its top side.

1. Unplug the dryer
2. Remove the water from the water tank completely.
3. Make sure that door and water tank are properly closed.

Power consumption
off-mode (Po) – Watts			0.33
left-on mode (Pl) – Watts			2.00
Programmes	Kg	kWh	Minutes
Eco Cotton *	8	1.49	190
Eco Cotton	4	0.78	115
Synthetics	4	0.50	78
*This is the reference programme for the energy label and suitable to dry normal wet cotton laundry. This is the most efficient programme in terms of energy consumption for drying wet cotton laundry. (Standard/Default starting configuration)

Heat Pump System
The heat pump contains fluorinated greenhouse gases, contained in a hermetically sealed unit. This sealed unit contains 0.43 kg of the F gas R134a. GWP = 1430 (1 t CO2)

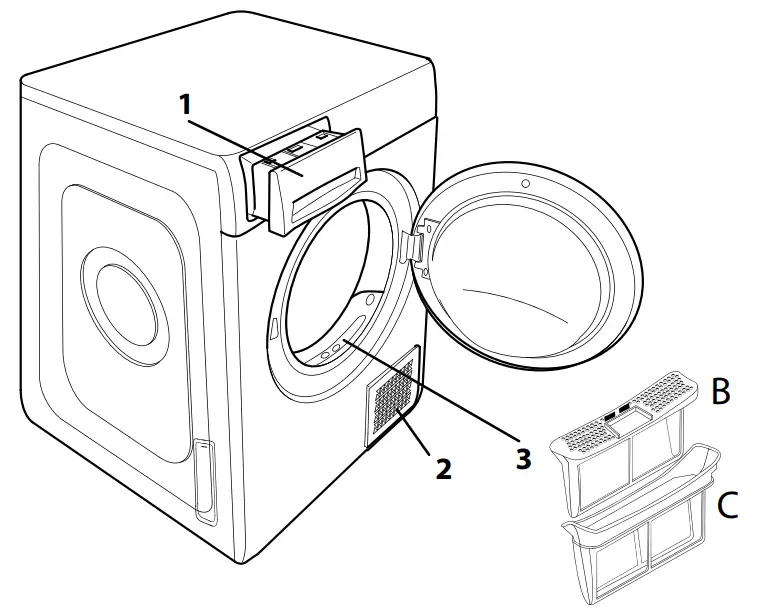

PRODUCT DESCRIPTION

1. Water Tank (A)
2. Air Intake grille
3. Door filter: primary (B), secondary (C)

Step 1

Step 2

Step 3

TROUBLESHOOTING

Before contacting the After-sales Service, refer to the table below. Often the malfunctions are minor and can be solved in few minutes.

Lights on or flashing

*Note: some models are auto-cleaning and not equipped with bottom filter. Please refer to the Care & Maintenance section.

You can download the Safety Instructions, User Manual, Product Fiche and Energy data by:

• Visiting our website – docs.whirlpool.eu
• Using QR Code
• Alternatively, contact our After-sales Service (See phone number in the warranty booklet). When contacting our After-sales Service, please state the codes provided on your product’s identification plate.
