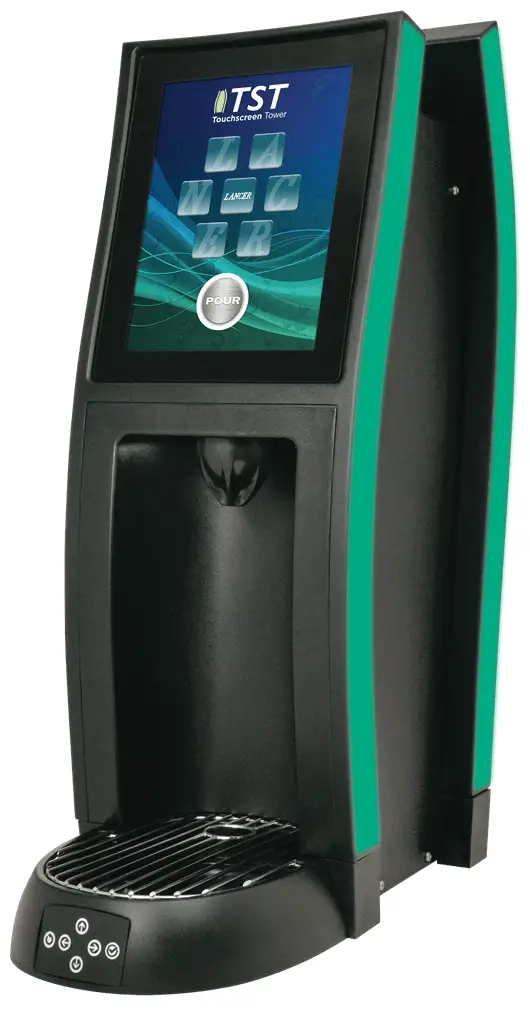

LANCER WORLDWIDE 75-6054-SP Kit Fashion Draft Tower Installation Guide
Receiving
- Conduct site survey to confirm unit can be installed • Verify a loading dock or forklift is available
- Remove straps, padding, and/or crating material
- Inspect for damage
Highball Valve
- Install Valve (rower) on the counter
- Set the valve body to clamp
- Install valve on the counter
- There are four (4) lines from valve, but two (2) circulating lines for the machine are not used
- Lines should be marked for soda water and liquor
- Carbonated Water Hose Connection
- Tee ott Co2 hose for syrup in the existing soda gun system to get a Cot hose for the liquor hose
- Insulate carbonated water and liquor lines from ice bin to tower
- Depressurize system and tee chilled carbonated water hose coming from under the ice bin and connect to carbonated hose of tower
- Liquor Hose Connection
- Install a Flojet pump for the liquor up into the dispenser
- Install the hose connecting the liquor bottle to the inlet of the pump. From the outlet of the pump it to connects to the inlet of the ice bin
- The hose from the outlet connector, under the ice bin needs to connect to the liquor hose to the valve. Insulate the hose
- Set up the parts to branch the hose
- Connect the Co2 hose to the Co2 inlet of the Flojet pump
- Tools needed: Hoses for carbonated water, liquor, and parts for teeing the hose, insulation for the liquor and carbonated water hoses coming out of the ice bin
Testing
- Pour and test drink quality
- Ratio should be set at – Toki, Roku, and Haku = 3:1
- Ratio should be set at – Jim Beam, Hornitos, and El Tesoro (Tequila) = 4:1
Troubleshooting
- Low carbonation / flat drinks – Out of Co2, pressure set below 105 psi, or no ice on cold plate
- No carbonated water, just Co2 – carbonator timed out or unplugged
- No carbonated water or spirits – Handle not making contact with paddle arms
- Foamy drinks – No ice on cold plate
- Too strong or too weak – check ratio

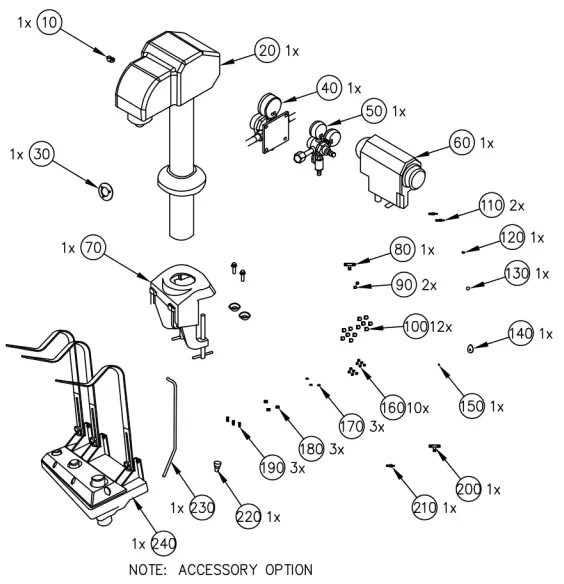

Materials
| ITEM NO. | PART NUMBER | DISCRIPTION | QTY. |
| 10 | 269970P01 | HANDLE, DSU2.5 | 1 |
| 20 | CFD-SPD-BNA | FASHION DRAFT, NSF APPROVED | 1 |
| 30 | 469169-01 | PLATE/RING, STAINLESS STEEL 304 | 1 |
| 40 | 18-0800 | REG, SEC. SODA, WALLMOUNT, 1/4 INLET, 1/4 OUTLET, W/ CHECK | 1 |
| 50 | 18-0048/02 | REG ASSY, CO2, TANK MNT, HP, 1/4 IN | 1 |
| 60 | T5000-140 | FLOJET BIB PUMP, 1/4 BARBSS SYRUP OUT, 1/4 BARB GAS IN | 1 |
| 70 | CLP-1B | HIGHBALL COUNTER ADAPTER — FOR DSU | 1 |
| 80 | 01-0527/01 | TEE, SS, 3/8B – 3/8B x 1/4B | 1 |
| 90 | 16700984 | CLMP, STPLS, OETIKER, to | 2 |
| 100 | 07-0409 | CLMP, STPLS, OETIKER, 31/64 | 12 |
| 110 | 7117 | SS SPLICER 1/8 BARB x 1/4 BARB | 2 |
| 120 | 458560-02 | SCREW, M4x12,10 | 1 |
| 130 | 473388P01 | cap, PLASTIC | 1 |
| 140 | 482558M01 | PLATE, HANDLE, DSU25 | 1 |
| 150 | 04-0989 | WASHER, LOCK, SPLIT, 8-32, SS | 1 |
| 160 | 07-0438 | CLAMP, STPLS, OETIKER, 21/32 | 10 |
| 170 | 05-0011/01 | WASHER, SEAL, FLR, NYLON, 1/4 | 3 |
| 180 | 01-0221/02 | STEM, 1/4 BARB FOR 1/4 NUT, SS 304 | 3 |
| 190 | 01-0222/02 | NUT, SWIVEL, 1/4 x .297ID, NP | 3 |
| 200 | 01-1280/01 | TEE, SS, 1/4 BARB | 1 |
| 210 | 01-0594/02 | SPLICER, SS, 1/4 BARB x 3/8 BARB | 1 |
| 220 | 450648-01 | CAP, BOTTLE | 1 |
| 230 | 456710-01 | PIPE, LIQUOR | 1 |
| 240 | 8000247 | RESERVE 3-BOTTLE – FOR SHURFLO | 1 |
| 250 | 28-3105 | GUIDE, INSTALL, HIGHBALL, BEAMTOWER | 1 |
| 280 | 90-0395 | CARTON, 20x18x22 | 1 |
| 270 | 90-0004 | BAG, 9 x 15, CLR PL | 3 |
| 280 | 08-0349 | TUBING, WHITEIN, .265 x .457, 500FT | 20 |
| 290 | 08-0351 | TUBING, WHITEIN, .375 x .635, 300FT | 6 |
