Miele H 7780 BP2 30 Inch Convection Double Oven

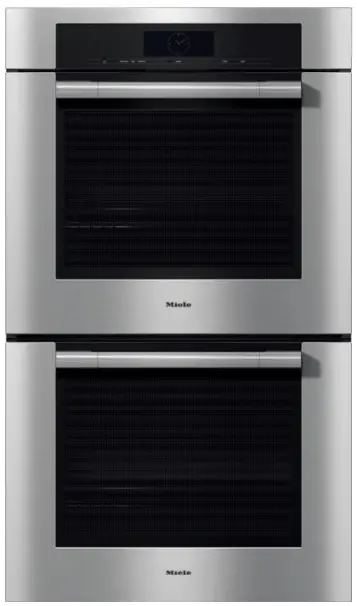

Miele-H-7780-BP2 -30-Inch-Convection-Double-Oven-PRODUCT

MODEL: H 7780 BP2

30” Convection Double Oven – ContourLine

Features

  • M-Touch Display with Motion React – Simple to use touch controls
  • Miele@Home – Control the appliances with your app
  • Roast Probe – For Precision cooking
  • Moisture Plus – a burst of steam for professional quality cooking results at home
  • Direct Water – No need to fill any water tanks
  • Taste Control – Prevents overcooked dishes

Included

  • 1 Perforated baking tray
  • 2 Universal baking tray
  • 4 Self Clean Ready Baking and Roasting Racks
  • 2 Self Clean Ready Rack with rail system

MATERIAL: 11805570

SPECIFICATIONS



Overall Unit Dimensions

2913/16” (757 mm) W x

511/2” (1308 mm) H x

233/4” (603 mm) D

Niche
Minimum Cabinet Niche Opening281/2” (724 mm) W x

511/8” (1299 mm) H x

24” (610 mm) D

Plumbing


Water Supply Requirements

  • Cold water connection
  • Male 3/8” compression fitting
  • Water pressure range 7.25 psi (0.5 bar) and 145 psi (10 bar)
Water Connection Line (Supplied)Length: 5 ft (1.5 m) Female 3/8” compression.
Electrical
Electrical Requirements120/208-240V, 60Hz, 50 Amps
Power CordNEMA 14-30 plug, 5 ft (1.52 m)
Shipping
Shipping Weight379 lbs (172 kg)


Shipping Dimensions

307/16” (776 mm) W x

58584” (1490 mm) H x

3215/16” (836 mm) D

PRODUCT DIMENSIONS

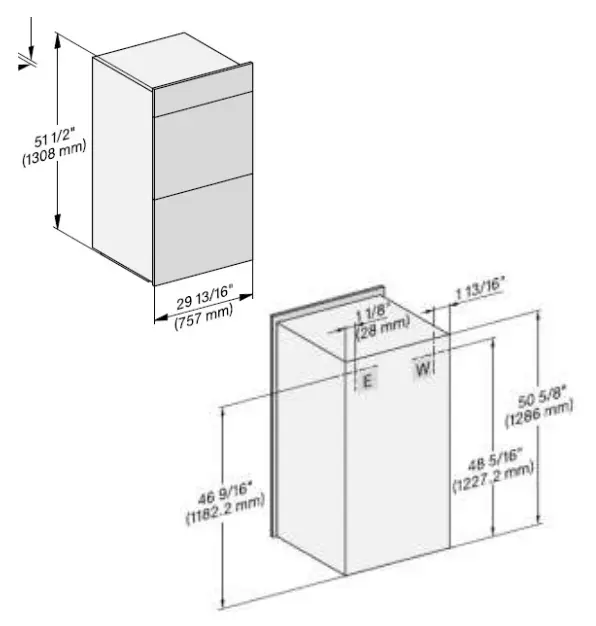

Miele-H-7780-BP2 -30-Inch-Convection-Double-Oven-FIG-1

FLUSH CUTOUT DIMENSIONS

Front View

Miele-H-7780-BP2 -30-Inch-Convection-Double-Oven-FIG-2

Side View

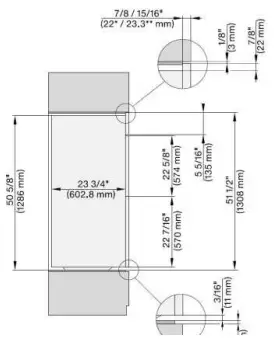

Miele-H-7780-BP2 -30-Inch-Convection-Double-Oven-FIG-3

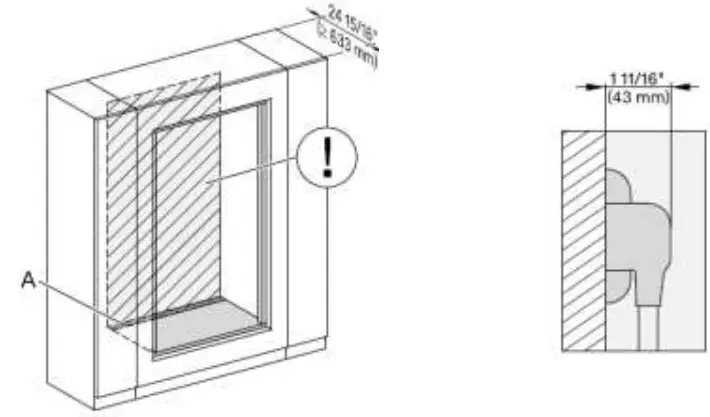

Miele-H-7780-BP2 -30-Inch-Convection-Double-Oven-FIG-4

  • A: Cut-out (4” x 28” [100 mm x 720 mm]) in the bottom of the cabinet for the power cord and Ventilation
    • Electrical and water supplies are recommended to be placed in adjacent cabinetry. Additional cabinet depth is required when placing the electrical and water supplies behind the appliance.
PROUD CUTOUT DIMENSIONS

Front View

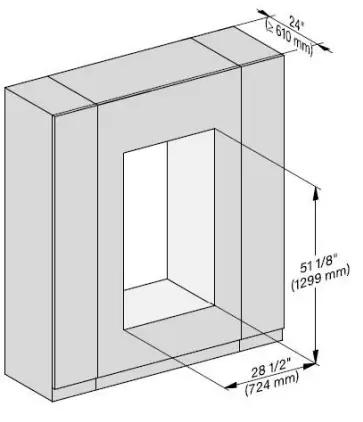

Miele-H-7780-BP2 -30-Inch-Convection-Double-Oven-FIG-5

Side View

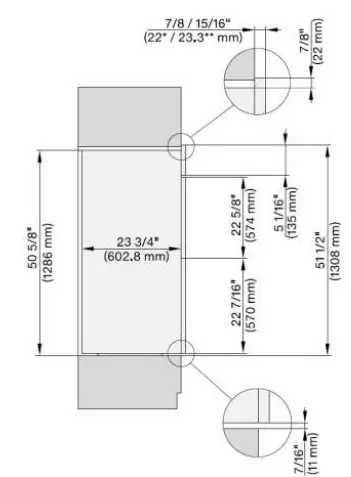

Miele-H-7780-BP2 -30-Inch-Convection-Double-Oven-FIG-6

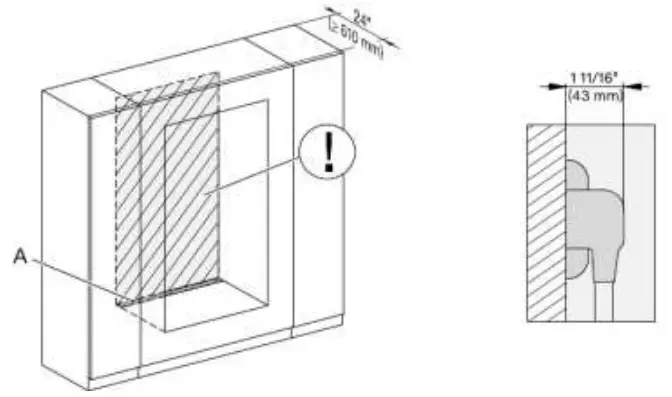

Miele-H-7780-BP2 -30-Inch-Convection-Double-Oven-FIG-7

  • A: Cut-out (4” x 28” [100 mm x 720 mm]) in the bottom of the cabinet for the power cord and Ventilation
    • Electrical and water supplies are recommended to be placed in adjacent cabinetry. Additional cabinet depth is required when placing the electrical and water supplies behind the appliance.
