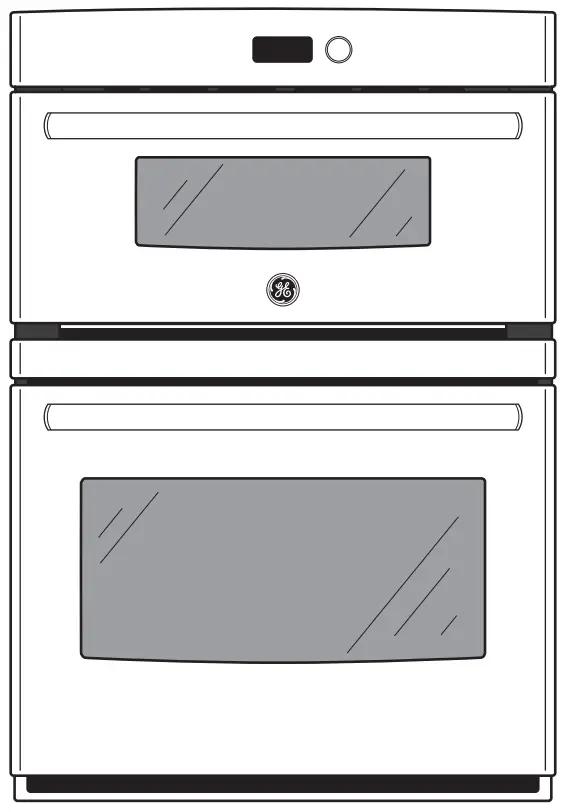

GE APPLIANCES JT3800DH 30 Inch Combination Double Wall Oven
GUARANTEED FIT
Replacing a similar wall oven from GE or another brand? GE wall ovens are guaranteed for an exact fit to make replacement easy Visit geappliances.com for more info

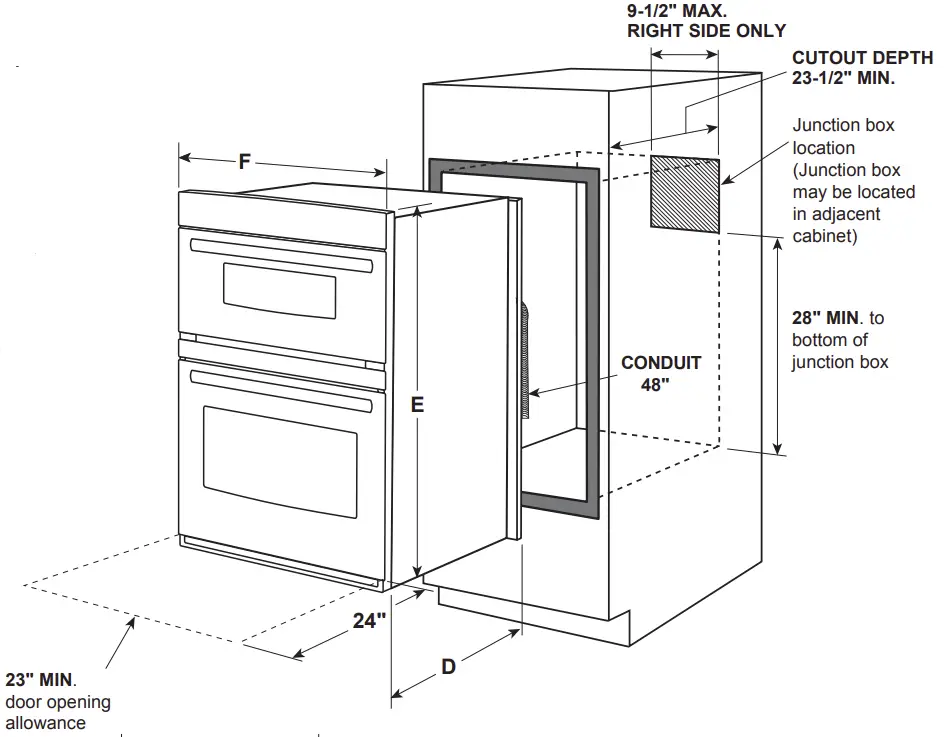

DIMENSIONS AND INSTALLATION INFORMATION
NOTE: Cabinets installed adjacent to wall ovens must have an adhesion spec of at least a 194°F temperature rating.
INSTALLATION INFORMATION:
Before installing, consult installation instructions packed with product for current dimensional data.
Door handle protrudes 3″ from door face.
Cabinets and drawers on adjacent 45° and 90° walls should be placed to avoid interference with the handle.
Electric wall ovens are not approved for installation with a plug and receptacle.
They must be hard wired in accordance with installation instructions.
NOTE: These ovens are not approved for stackable or side-by-side installations.
| KW RATING | |
| 240V | 7.2 |
| 208V | 5.4 |
| BREAKER SIZE | |
| 240V | 30 Amps |
| 208V | 30 Amps |
Dimension and installation information are shown in inches.
| ATTENTION INSTALLER: All electric wall ovens must be hard-wired (direct-wired) into an approved junction box. A plug and receptacle is NOT permitted on these products. |
| NOTE: If the cabinet does not have a solid bottom, two braces or runners must be installed to support the weight of the oven. For single ovens, the runners and braces must support 200 lbs (91 kg). For double ovens, the runners and braces must support 375 lbs. (170 kg). NOTE: If marks, blemishes or the cutout opening are visible above the installed oven, it may be necessary to add wood shims under the runners and front trim until the marks or opening are covered. NOTE: If the cabinet does not have a front frame and the sides are less than 3/4″ (1.9 cm) thick, shim both sides equally to establish the cutout width. |

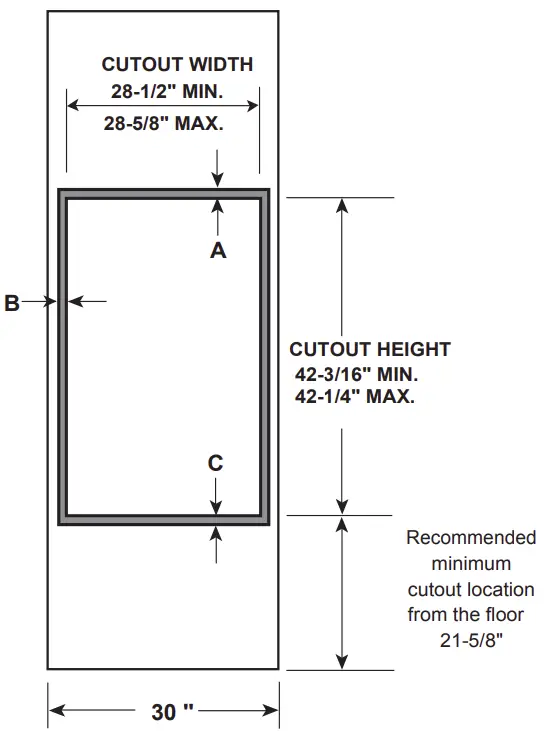

| JT3800 | |
| CABINET | 30″ |
| A –Overlap of oven at top of cutout | 1″ |
| B – Overlap of oven over side of edges of cutout | 3/4″ |
| C –Overlap of oven at bottom of cutout | 1″ |
| OVEN | |
| D –Install depth | 23-1/2″ |
| E –Overall height with trim | 42-3/8″ |
| F –Overall width | 29-3/4″ |
FEATURES AND BENEFITS
- High capacity microwave
- Sensor cooking microwave (upper oven)
- 16″ turntable (upper oven)
- Self-clean with Steam Clean option (lower oven)
- Never-scrub, heavy-duty oven racks (lower oven)
- Glass touch controls
- Halogen interior oven lighting (lower oven)
- 10-pass bake element (lower oven)
- 8-pass broil element (lower oven)
- Fit Guarantee
- Model JT3800DHBB – Black on black
