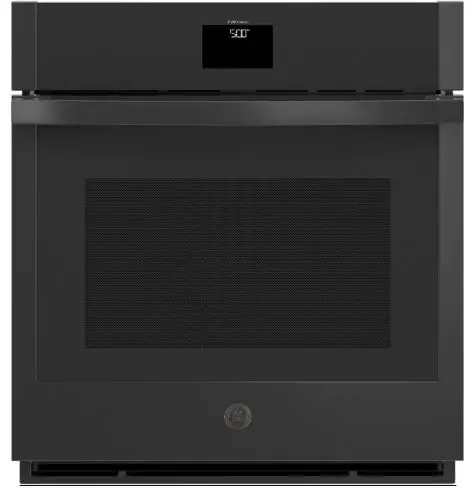

GE Appliances JKS5000DNBB 27-Inch Built-In Single Electric Convection Wall Oven

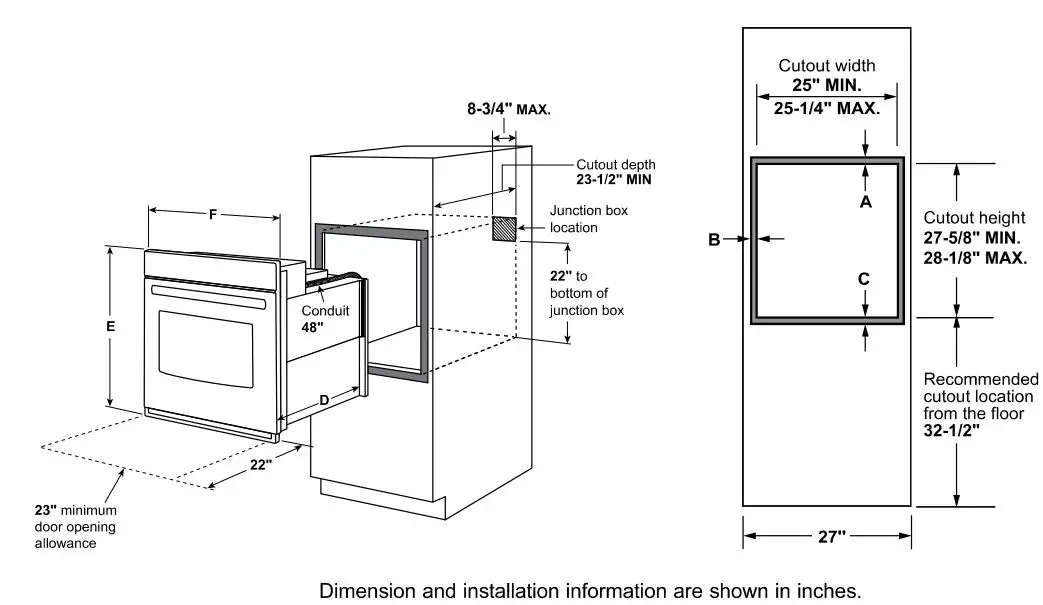

DIMENSIONS AND INSTALLATION INFORMATION

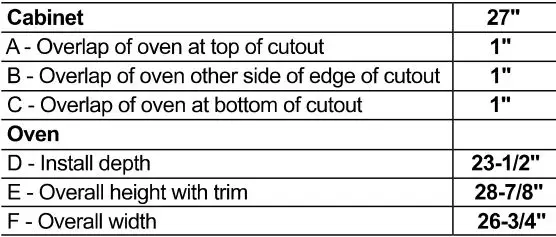

SIZES
NOTE:
Single-wall ovens are NOT approved for stacking above or below another single-wall oven.
NOTE:
Wall coverings, countertops and cabinets surrounding the wall oven must be able to withstand a temperature of up to 200°F (94°C).
NOTE:
If the cabinet in which the wall oven is installed does not have a solid bottom, two braces or runners must be installed to support the weight of the oven. The runners and braces must support up to 220 lbs (99 kg).
NOTE:
Door handle protrudes 3″ from door face. Cabinets and drawers on adjacent 45° and 90° walls should be placed to avoid interference with the handle.
ATTENTION INSTALLER:
Electric wall ovens are NOT approved for installation with a plug and receptacle. They must be hard-wired into an approved junction box.
IMPORTANT:
Before installing, consult installation instructions packed with product for current dimensional data.
NOTE:
27″ Single electric wall ovens are approved for installation below a countertop and below certain gas and electric cooktops. Refer to the Approved Combinations Matrix available at geappliances.com for specific information.
NOTE:
27″ Single electric wall ovens are approved for installation above 27″ warming drawers.
ATTENTION INSTALLER:
Electric wall ovens are NOT approved for installation with a plug and receptacle. They must be hard-wired into an approved junction box.
IMPORTANT:
Before installing, consult installation instructions packed with ALL products for current dimensional and combination data.

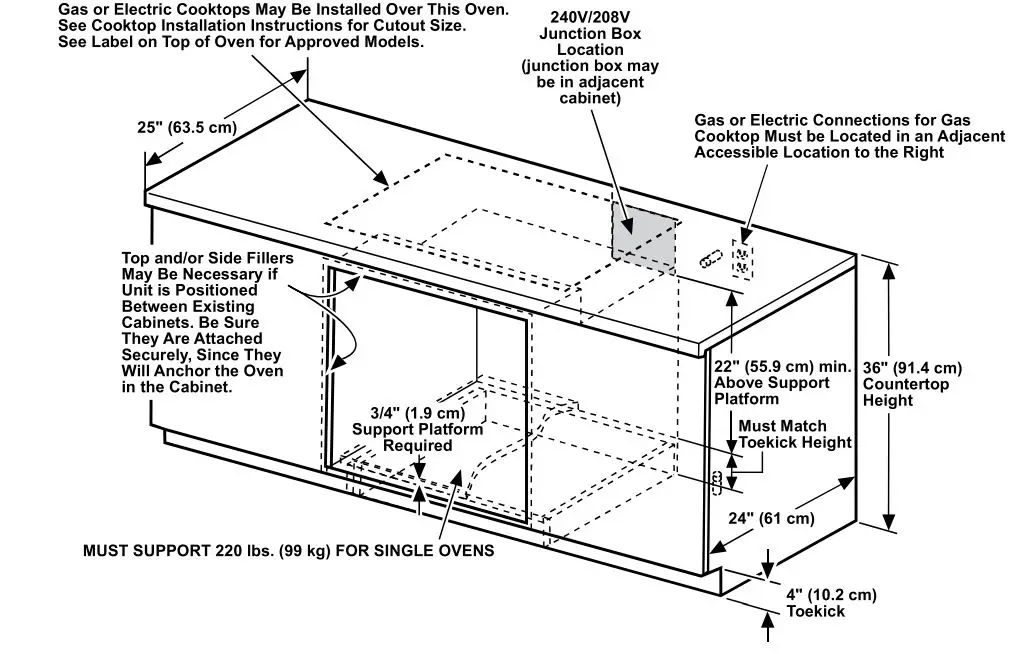

UNDERCOUNTER INSTALLATION

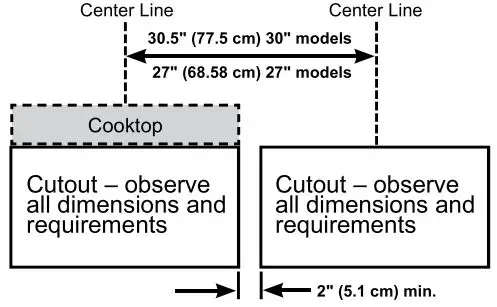

SIDE-BY-SIDE INSTALLATION
(TWO OVENS IN SEPARATE CUTOUTS)

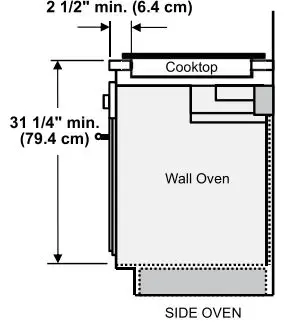

INSTALLATION BELOW A COOKTOP
NOTE:
One cooktop may be centered over either oven in the side-by-side installation.
For answers to your GE Profile- Series or GE Appliances product questions, visit our website at geappliances.com or call GE Answer Center® Service, 800.626.2000.
