GE APPLIANCES JKS5000DNBB 27 Inch Smart Built-In Convection Single Wall Oven User Guide
DIMENSIONS AND INSTALLATION INFORMATION (IN INCHES)

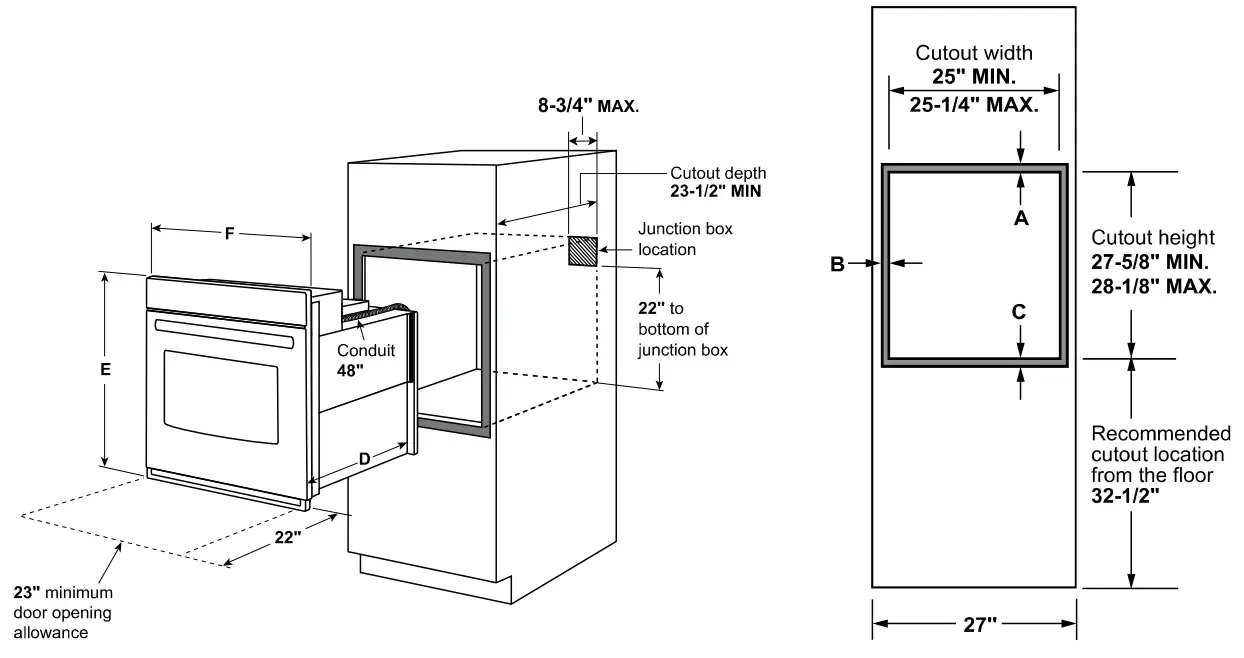

Dimension and installation information are shown in inches.
| JKS5000 | |
| Cabinet | 27″ |
| A- Overlap of oven at top of cutout | 1″ |
| B – Overlap of oven other side of edge of cutout | 1″ |
| C – Overlap of oven at bottom of cutout | 1″ |
| Oven | |
| D – Install depth | 23-1/2″ |
| E – Overall height with trim | 28-7/8″ |
| F – Overall width | 26-3/4″ |
NOTE: Single wall ovens are NOT approved for stacking above or below another single wall oven.
NOTE: Wall coverings, countertops and cabinets surrounding the wall oven must be able to withstand a temperature of up to 200°F (94°C).

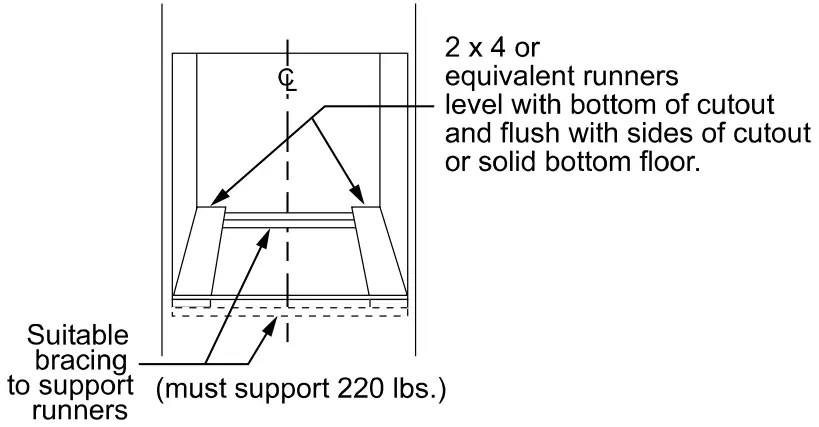

NOTE: If the cabinet in which the wall oven is installed does not have a solid bottom, two braces or runners must be installed to support the weight of the oven. The runners and braces must support up to 220 lbs (99 kg).
NOTE: Door handle protrudes 3″ from door face. Cabinets and drawers on adjacent 45° and 90° walls should be placed to avoid interference with the handle.
ATTENTION INSTALLER: Electric wall ovens are NOT approved for installation with a plug and receptacle. They must be hard wired into an approved junction box.
IMPORTANT: Before installing, consult installation instructions packed with product for current dimensional data.
| KW RATING | |
| 240V | 3.6 |
| 208V | 2.7 |
| BREAKER SIZE | |
| 240V | 20 Amps |
| 208V | 20 Amps |
DIMENSIONS AND INSTALLATION INFORMATION (IN INCHES)
NOTE: 27″ Single electric wall ovens are approved for installation below a countertop, and below certain gas and electric cooktops. Refer to the Approved Combinations Matrix available at geappliances.com for specific information.
NOTE: 27″ Single electric wall ovens are approved for installation above 27″ warming drawers.
ATTENTION INSTALLER: Electric wall ovens are NOT approved for installation with a plug and receptacle. They must be hard wired into an approved junction box.
IMPORTANT: Before installing, consult installation instructions packed with ALL products for current dimensional and combination data.

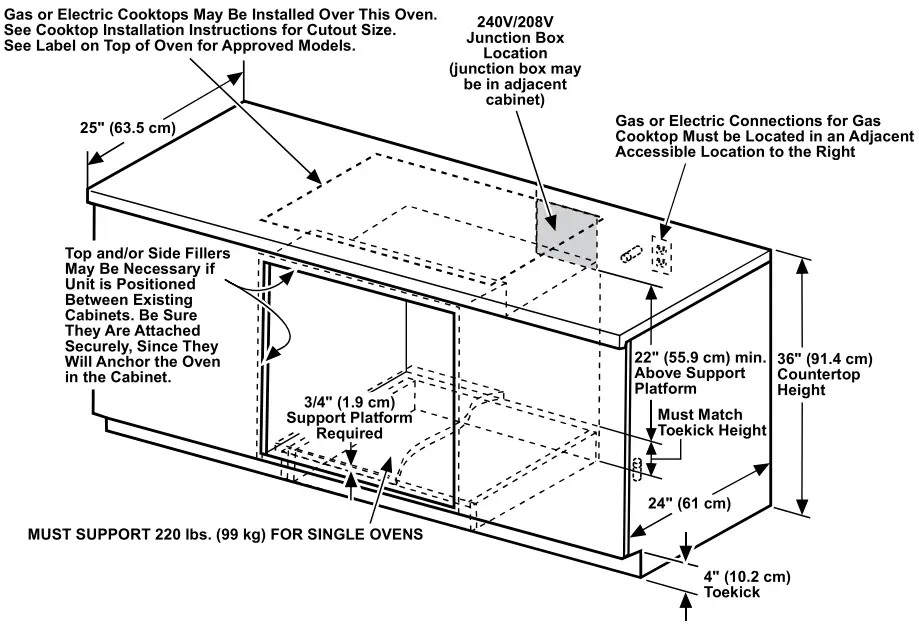

UNDERCOUNTER INSTALLATION

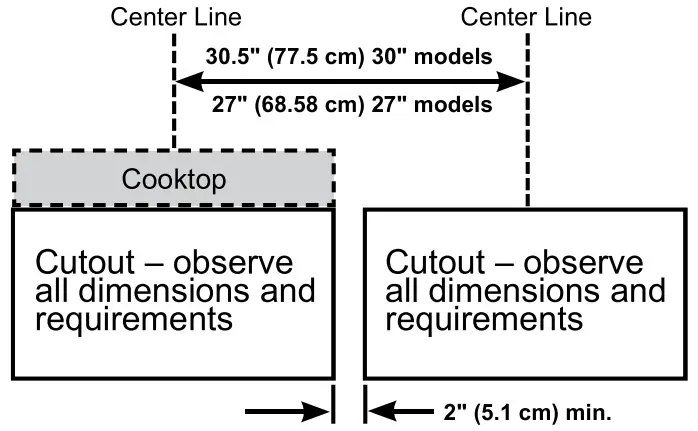

SIDE-BY-SIDE INSTALLATION (TWO OVENS IN SEPARATE CUTOUTS)
NOTE: One cooktop may be centered over either oven in the side-by-side installation.
INSTALLATION BELOW A COOKTOP

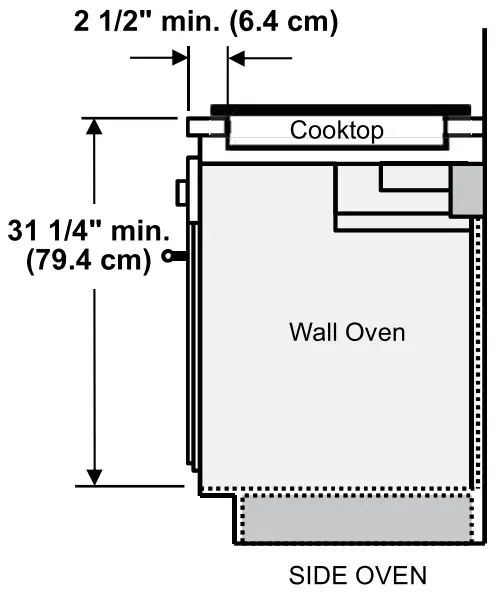

IMPORTANT: Maintain a minimum distance of 31 1/4″ from the top surface of the countertop to the wall oven platform to ensure that the cooktop and wall oven do not interfere with each other (see picture).
For answers to your GE Profile” Series or GE Appliances product questions, visit our website at geappliances.com or call GE Answer Center® Service, 800.626.2000.
