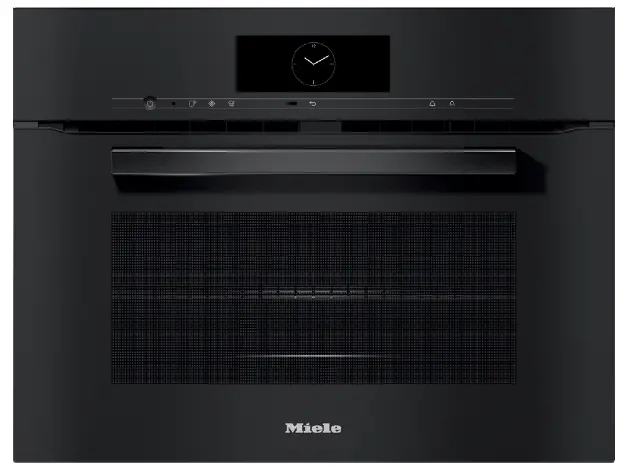

Miele H 7840 BM 24 Inch Speed Oven
H 7840 BM – Obsidian Black
24” Speed Oven – VitroLine
Features
- Speed ovens combine the functionality of a microwave and compact convection oven into one appliance
- M-Touch Display – Simple to use touch controls
- WifiConn@ct – Monitor appliances from your mobile device
- Motion React – Appliance reacts to you when approached
- Roast Probe – Precise temperature control of food
- Automatic programs – easily master new recipes
Included:
- 1 Baking and Roasting Rack with Perfect Clean
- 2 Glass Dishes
SPECIFICATIONS
| SPECIFICATIONS | |
| Overall Unit Dimensions | 237/16” (595 mm) W x 1715/16” (455.5 mm) H x 215/8” (549 mm) D |
| Niche | |
| Minimum Cabinet Niche Opening | 221/8” (562 mm) W x 1711/16” (450 mm) H x24” (610 mm) D |
| Electrical | |
| Electrical Requirements | 120/208-240V, 60Hz, 30 Amps |
| Power Cord (Convertible to hardwire) | NEMA 14-30 plug, 5 ft (1.52 m) |
| Shipping | |
| Shipping Weight | 101 lbs (46 kg) |
| Shipping Dimensions | 273/8” (695 mm) W x 235/8” (600 mm) H x 383/8” (975 mm) D |

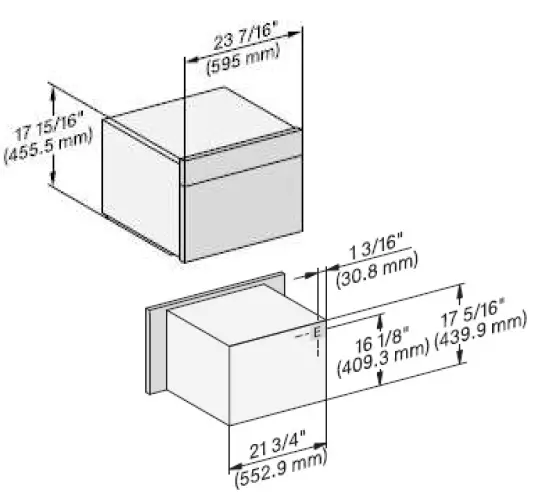

PRODUCT DIMENSIONS
E = Electrical connection

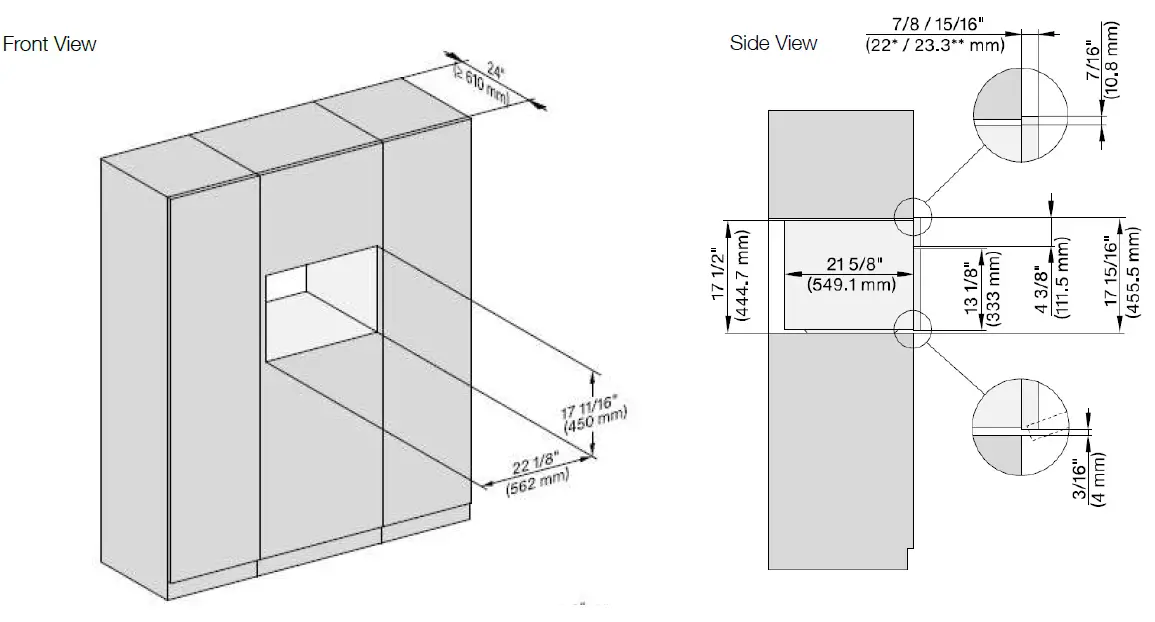

PROUD CUTOUT DIMENSIONS

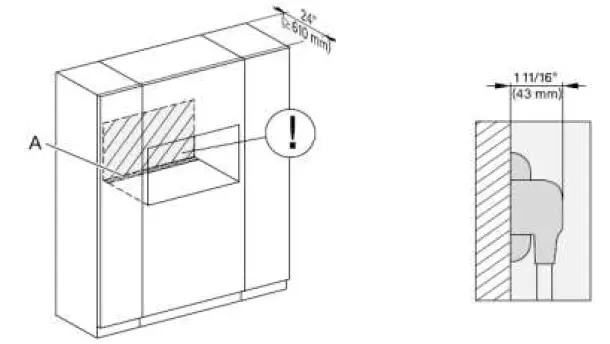

A – Cut-out (4” x 28” [100 mm x 720 mm]) in the bottom of the cabinet for the power cord and Ventilation
- Electrical and water supplies are recommended to be placed in adjacent cabinetry.
Additional cabinet depth is required when placing the electrical and water supplies behind the appliance.
