Item no. 009541
SOLAR CELL CHARGER
OPERATING INSTRUCTIONS
Important! Read the user instructions carefully before use. Save them for future reference. (Translation of the original instructions)
Care for the environment!
Recycle discarded products in accordance with local regulations.
Jula reserves the right to make changes. For latest version of operating instructions, see www.jula.com
SAFETY INSTRUCTIONS
- Do not use the product if it or the power cord is damaged.
- Do not dismantle the product or attempt to modify, or repair it.
SYMBOLS
 | Read the operating instructions. |
 | Approved in accordance with the relevant directives. |
| Recycle discarded products in accordance with local regulations. |
TECHNICAL DATA
| Voltage | 5,5 VDC |
| Current | 1.2 A |
| Output | 7 W |
| Connection | 1× USB |
| Solar panel | 2×130×220 mm |
| Size unfolded | 480× 230× 30 mm |
| Size folded up | 160× 230 ×30 mm |
| Weight | 400g |
DESCRIPTION

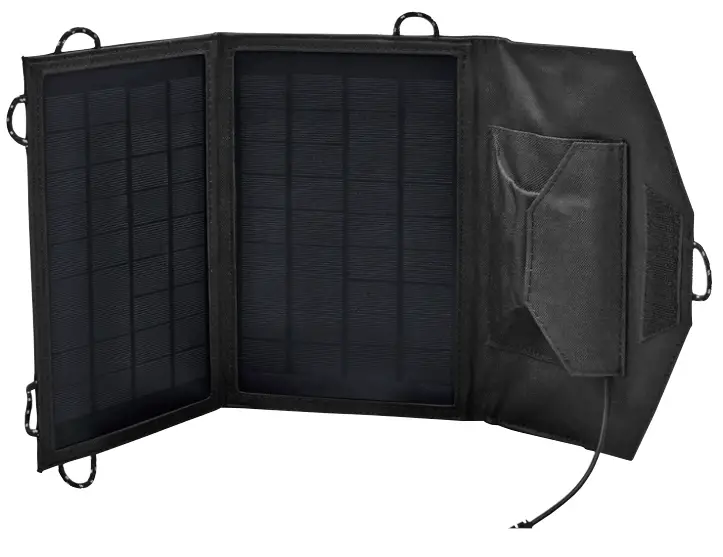

Solar panel for charging mobile devices via USB.
USE
POSITIONING
Check that the ambient sunlight is at least 60000 Lux. Place the solar cell panel so that it is exposed to sunlight during the hours the energy level is highest. Perpendicular positioning towards the sun produces maximum efficiency.
HOW TO USE
- Connect a USB cable between the USB port on the external device and the USB port on the product.
- Check that the external device is charging. The external device can be put in the supplied net bag during the charging.

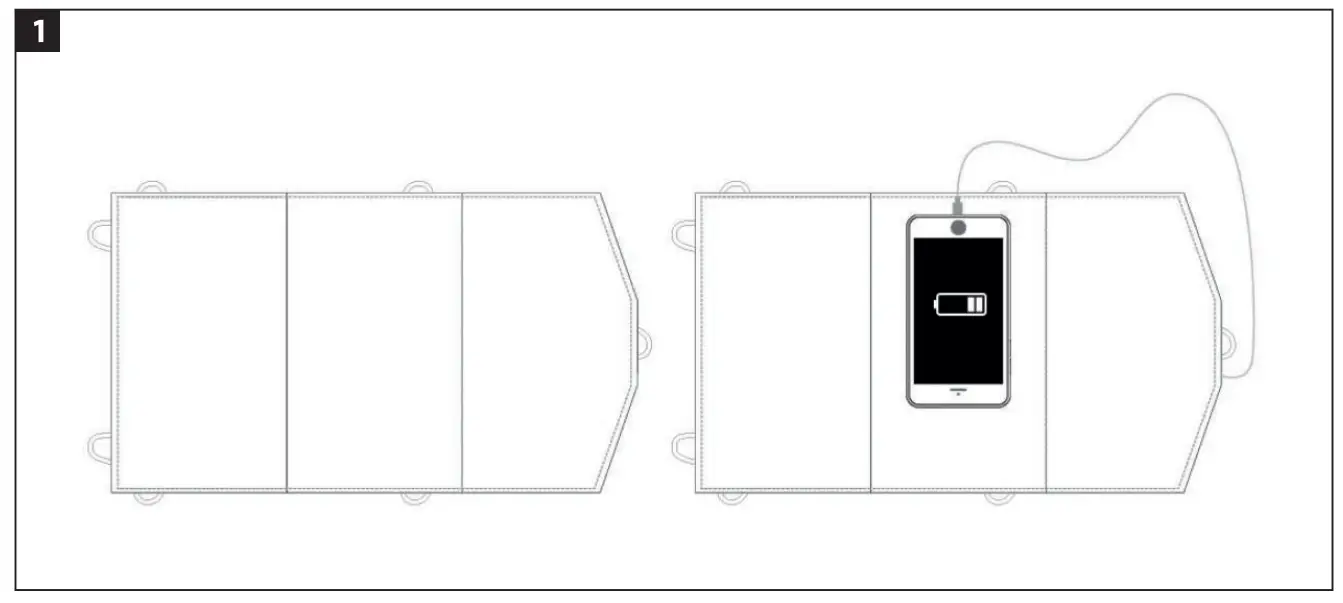

FIG. 1
JULA AB, BOX 363, SE-532 24 SKARA
2022-03-22
© Julia AB
