PAC C2R-GM11b GM Radio Replacement Interface for GMLAN 11-bit Vehicles without OnStar

The C2R-GM11b allows aftermarket radio installation without the retention of the factory radio. The interface replicates all factory warning chimes, and audible turn signal indicators and provides a data bus-generated 12-volt accessory output that acts just as GM’s R.A.P. (Retained Accessory Power) system did prior to radio removal. R.A.P. keeps the radio powered after the key is off until the driver door is opened or a 10-minute timer ends, whichever comes first. The C2R-GM11b will work with or without factory-amplified audio systems.

Installation

Connect the speaker-level radio outputs to C2R-GM11b’s speaker inputs. If the vehicle and the interface both chime, move the chime switch to the off position. The other wire connections are as follows:

• Yellow 12 Volt Constant Voltage
• Black Ground
• Red 12 Volt R.A.P Voltage (1 AMP max)
• Blue/White Antenna turn on, Amplifier turn on
• Orange Dimmer/illumination
• Lt. Green – SWC Output Wire

Using the SWC Output wire
Connect the SWC (green) output wire to a P.A.C. SWI1 interface. Use the green SWI interface wire and program the SWI interface for version 1. Do not cut the Brown loop.

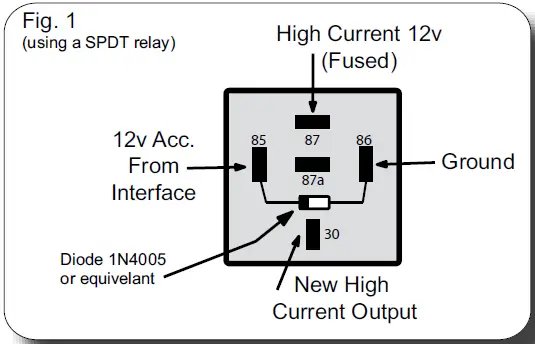

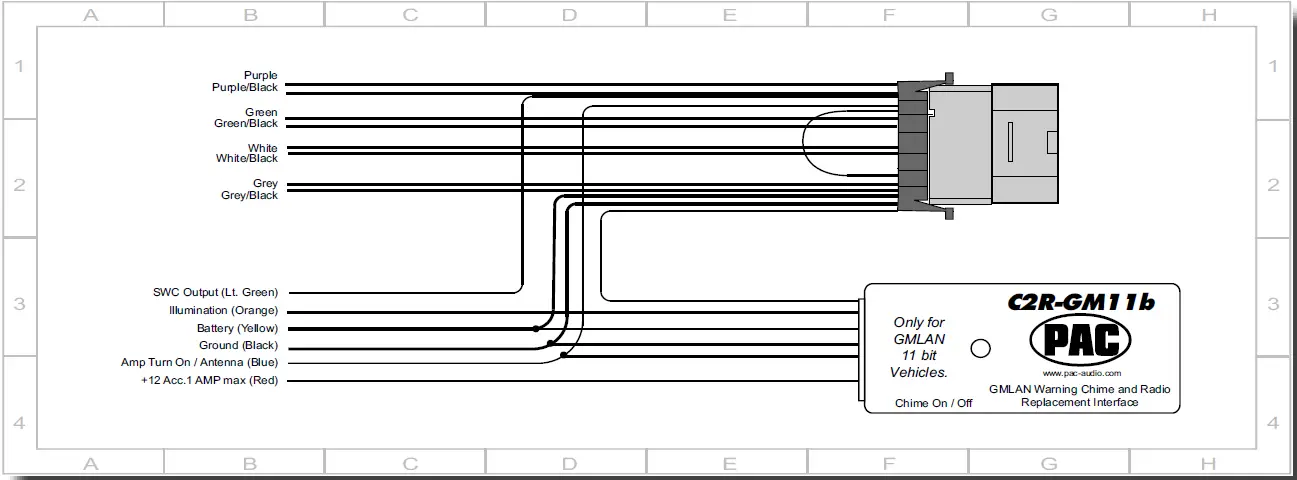

If more than 1 AMP is needed from the Red +12v Accessory wire refer to Fig 1.

DISCLAIMER: Under no circumstances shall the manufacturer or the distributors of the C2R-GM11b parts be held liable for consequential damages sustained in connection with the C2R-GM11b. The manufacturer and its distributors will not, nor will they authorize any representative or any other individual to assume obligation or liability in relation to the C2R-GM11b other than its replacement.

Specification

Pacific Accessory Corporation

A leader in mobile audio interfacing equipment. Our technology, product quality, customer service, and over 30 years of experience assure your satisfaction.

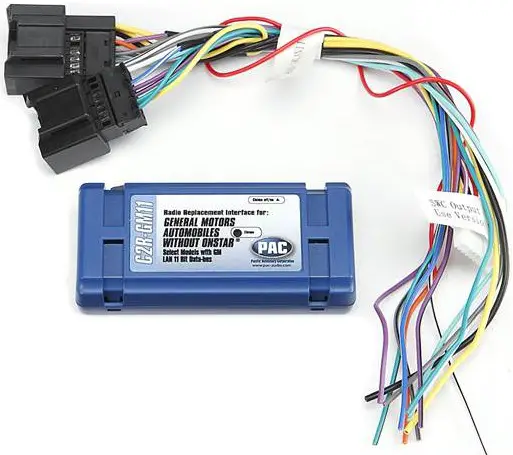

C2R-GM11b
Radio Replacement Interface for GM LAN 11-bit Vehicles Without OnStar®

The C2R-GM 11 b is a plug-and-play interface that allows the replacement of a General Motors GMLAN factory stereo for Vehicles without OnStar® or when OnStar® is not serviced or is unwanted.

• Provides an accessory turn-on wire and retains the factory Retained Accessory Power (RAP) feature.
• Provides a steering wheel control wire output that can be connected directly to an SWI-JACK, SWI-PS, or SWI-X.
• Retains all warning chimes and turn signal/hazard clicks. The Following General Motors Vehicles using the GMLAN 11-bit data Bus with or without a Factory Amplifier:
  • Pontiac: G6 (2005-2007)
  • Chevrolet: Cobalt (2005-2007)Malibu (2004-2007)

Visit www.pac-audio.com for updates or bulletins.

For technical assistance call 714-835-3022 Email us at: [email protected] For updates, instructions, and bulletins, visit our website at: www.pac-audio.com.

Pacific Accessory Corporation is committed to ongoing research and development. New materials and design refinements may be introduced in order to improve performance. function and reliability. For this reason. Pacific Accessory Corporation reserves the right to make changes without notice to any product or specification described herein.

© 2000-2006 Pacific Accessory Corporation Santa Ana, CA 92705.

Designed and · Engineered and MADE IN THE U.S.A. with foreign and domestic components.
