Legrand 4 120 15 Connected Energy Meter User Manual

legrand 4 120 15 Connected Energy Meter

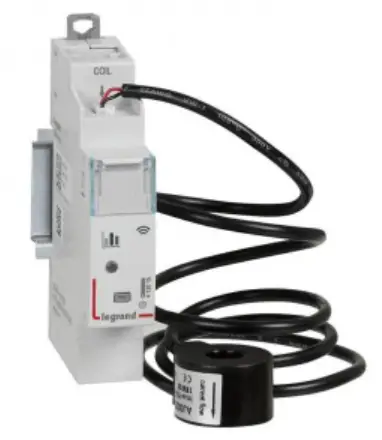

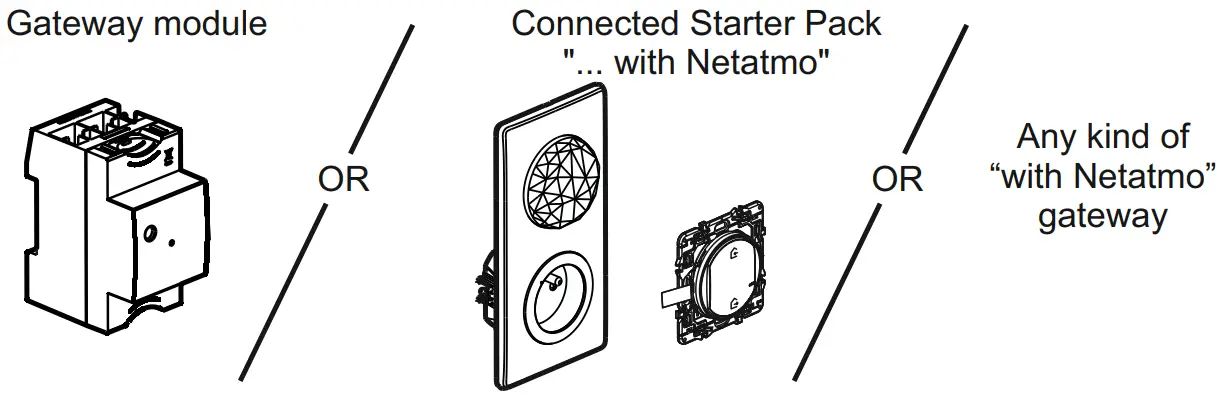

Requires the installation of a:

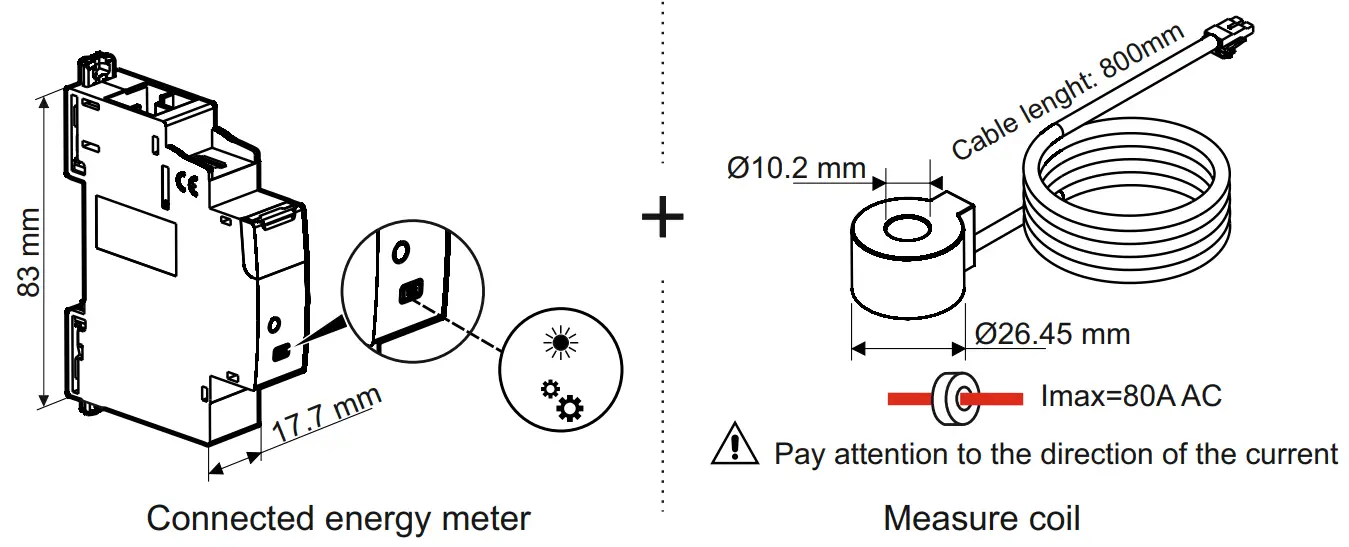

Composition

				Accuracy	Measure
+5°C +45°C	100-240V~ 50 / 60Hz	80A MAX	2,4 à 2,4835Ghz <100 mW	+/-1% under 63A	Global or Per circuit

CE Directive
Compliant with the following European directive:

Low voltage directive
(LVD) 2014/35/UE

Electromagnetic compatibility
(CEM) n° 2014/30/UE

Imperative security precaution

The instructions for installation and use must be strictly observed in order to avoid the risk of electric shock or fire.

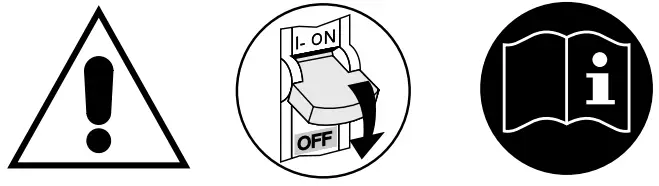

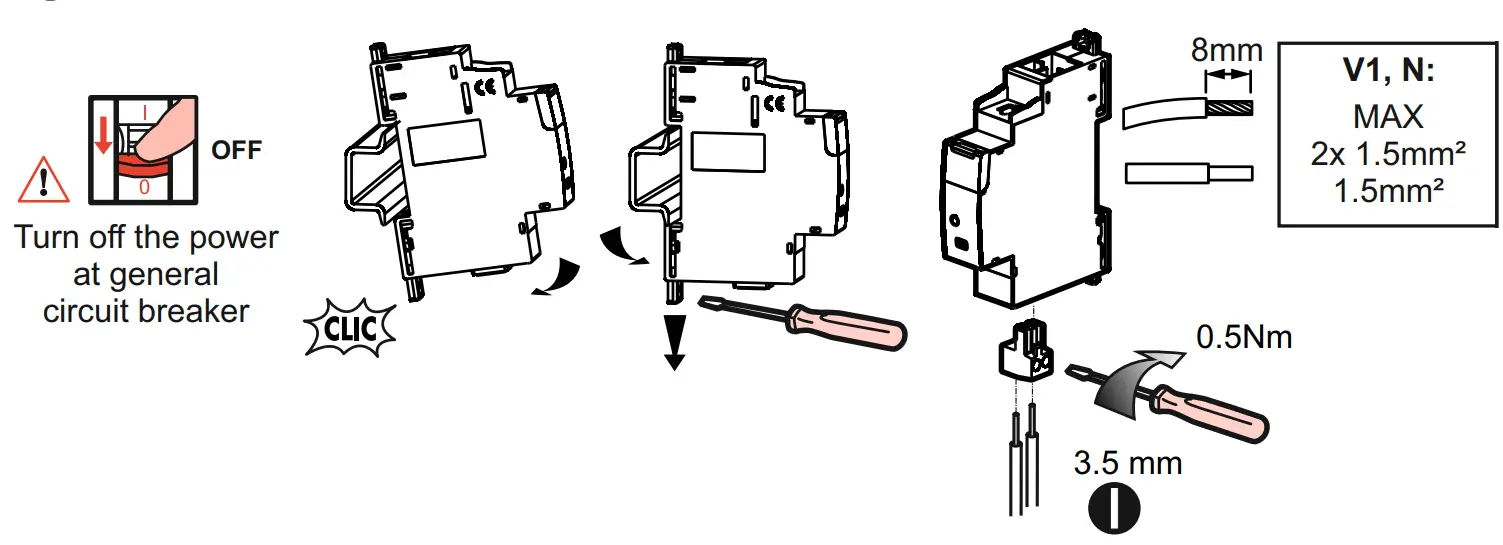

Preparation, connexion

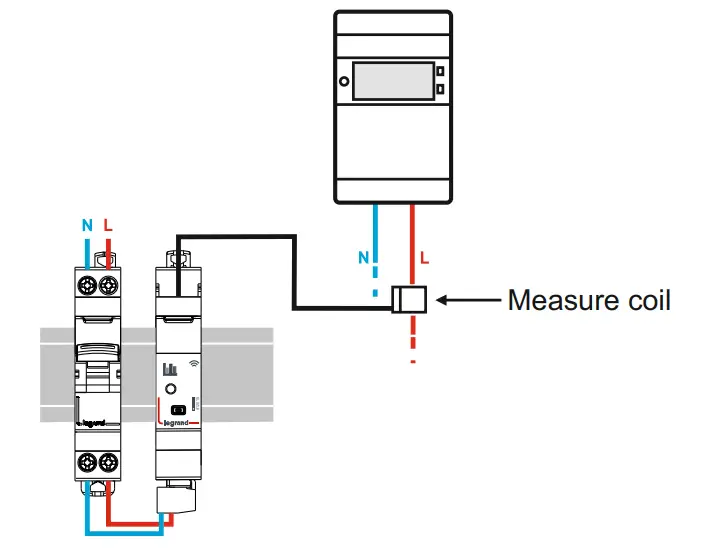

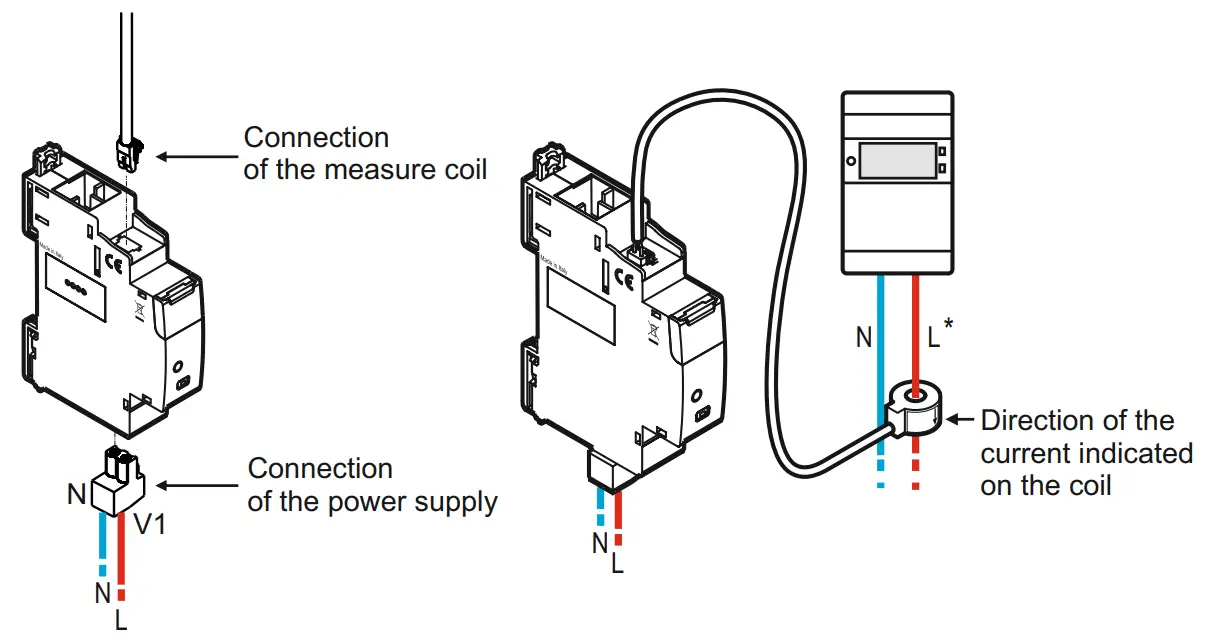

Wiring

A circuit breaker with rated current C2 to C16 is necessary depending on wire section used for supplying the energy meter.

*: Do not use on a three Lines electrical installation.
N (neutral) = blue L (Line) = Everything but blue and green/yellow

Add the Energy meter in a connected installation

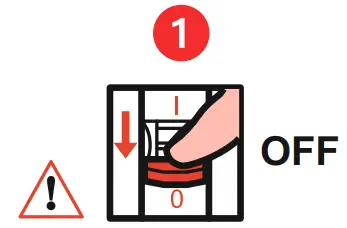

Turn off the power at general circuit breaker

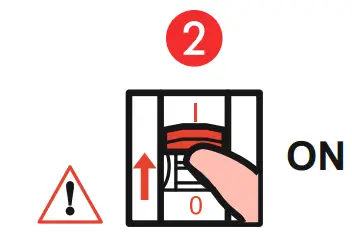

Turn on the power at the general circuit breaker* once the installation completed and controlled**

* In order to restart all connected products at the same time.
**: After wiring the installation, refit the front plate so that no active live part is accessible.

Finalize the installation in the Legrand Home + Control app

Download the Home + Control App and follow the instructions for adding the connected product in your setup.

You also have the option of controlling your installation via a voice assistant. and can customize your scenarios via the Home + Control App.

Reset an Energy meter to remove it from a connected installation

Press the the configuration button of the Energy meter (> 5 seconds) until the configuration indicator lights up in fixed red.
It is no longer associated with the gateway present in the installation.

http://www.legrand.fr/reference/412015

LEGRAND – Pro and Consumer Service – BP 30076
87002 LIMOGES CEDEX FRANCE • www.legrand.com

UE SIMPLIFIED DECLARATION OF CONFORMITY

The undersigned,
Legrand
declares that the radio equipment listed on this instruction sheet are compliant to the directive 2014/53/UE.
The full text of the UE declaration of conformity is available at the following website:
www.legrandoc.com
