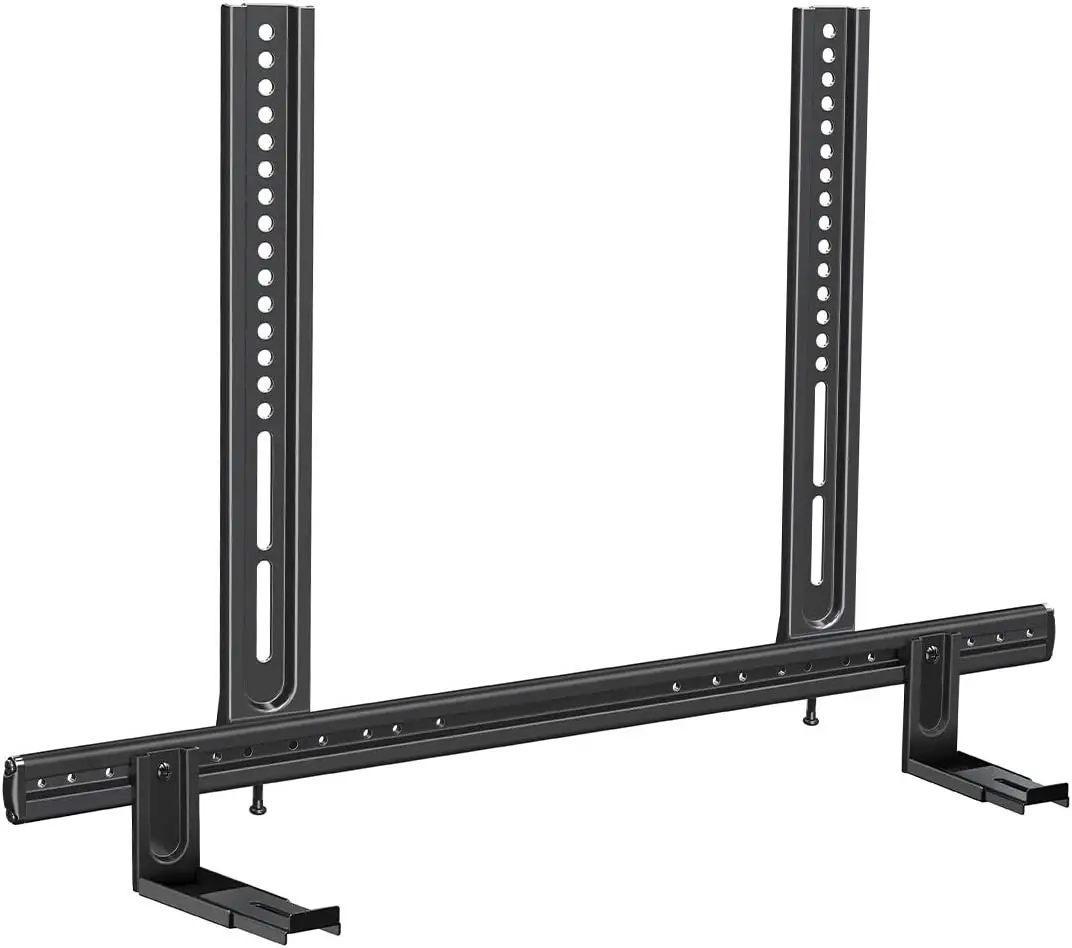

Mounting Dream MD5428 Soundbar Mount Instruction Manual

Before You Begin

Please check the following items:

• The weight of your sound bar DO NOT EXCEED 26.5 LBS (12 KG).
• You must verify that the total weight of your TV, sound bar, sound bar mount and any accessories must be lower than the maximum weight rating of your TV mount.
• You read through the user manuals of your TV, sound bar and TV mount for additional guidance.
• You have the tools needed for installation.


Safety Caution

Please read this instruction carefully before installation.

• For wall mounted cases, the wall must be capable of supporting five times the weight of the TV, mount and sound bar combined.
• Incorrect installation may result in product damage or body injury. Mounting Dream shall bear no responsibility for any damage or injury resulted from incorrect installation, incorrect assembly or misuse.
• Do not apply this product to any purpose not indicated by Mounting Dream.

Assemble Horizaotal Bar

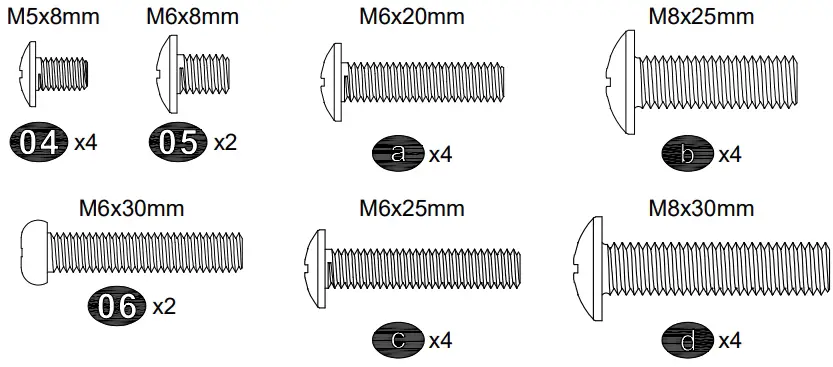

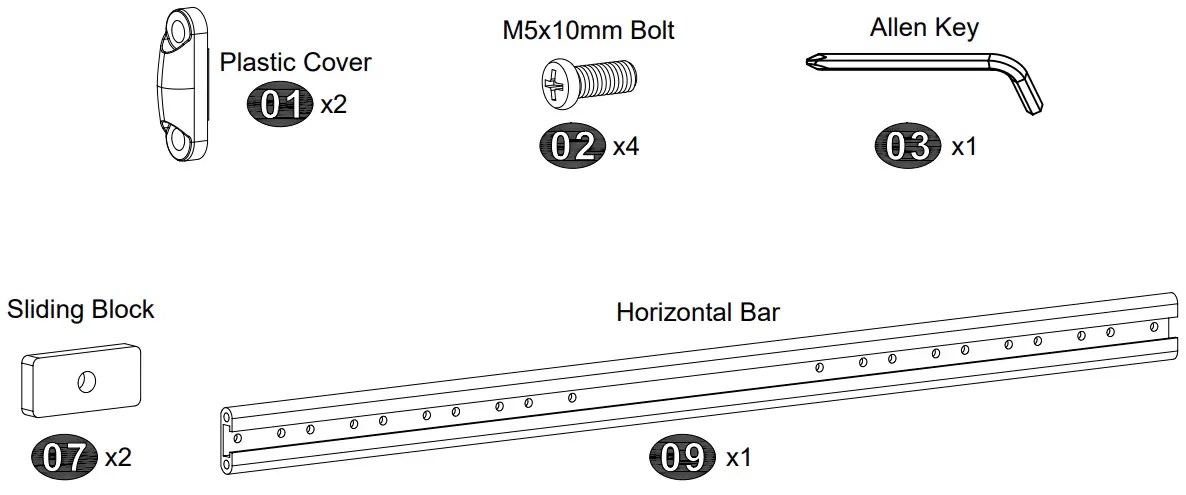

Parts and Hardware

WARNING: This product contains small items that could be a choking hazard if swallowed. Before starting assembly, verify all parts are included and undamaged.
NOTE: Not all hardware included will be used.

Assemble Horizontal Bar

Further Assembly of Soundbar Brackets

Parts and Hardware

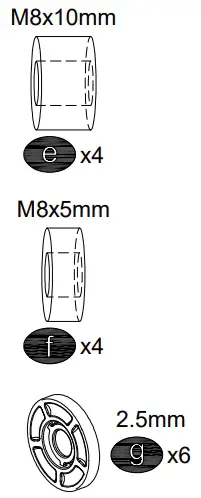

• TV Screws

• Spacers

• Washers

• Adjustment tablet

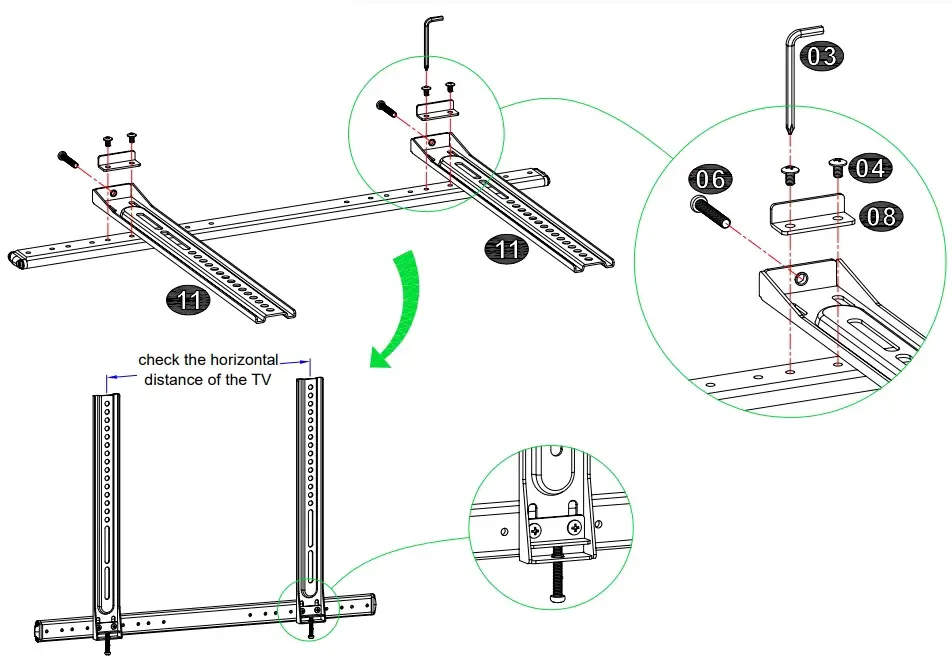

Attach brackets to horizontal bar unit

Tips: Check the horizontal distance of the TV before connecting the wall plate unit to the brackets.

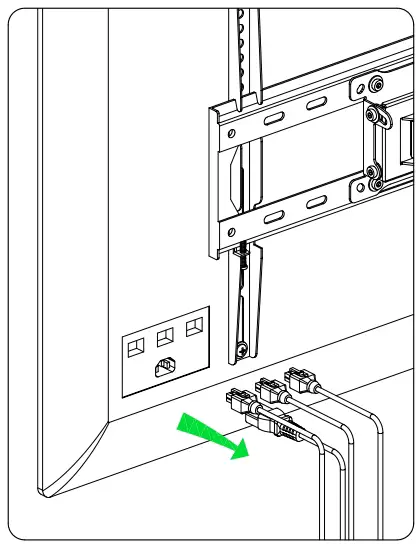

Disassemble Your TV from the Mount

1. Remove all cables

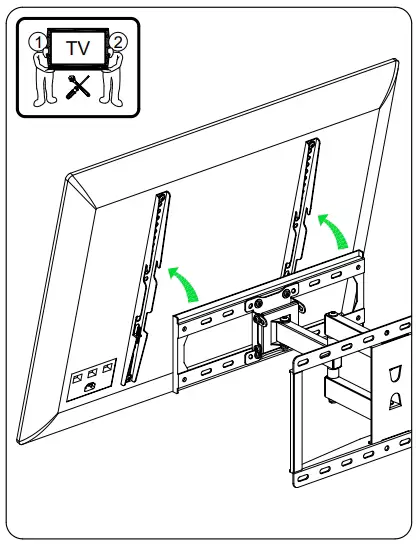

2. Take off the TV from the mount

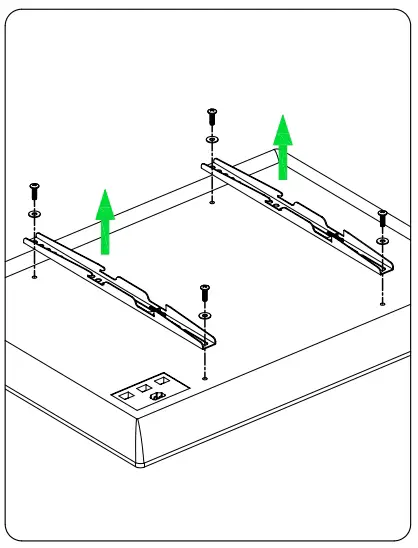

3. Remove the TV brackets from your TV


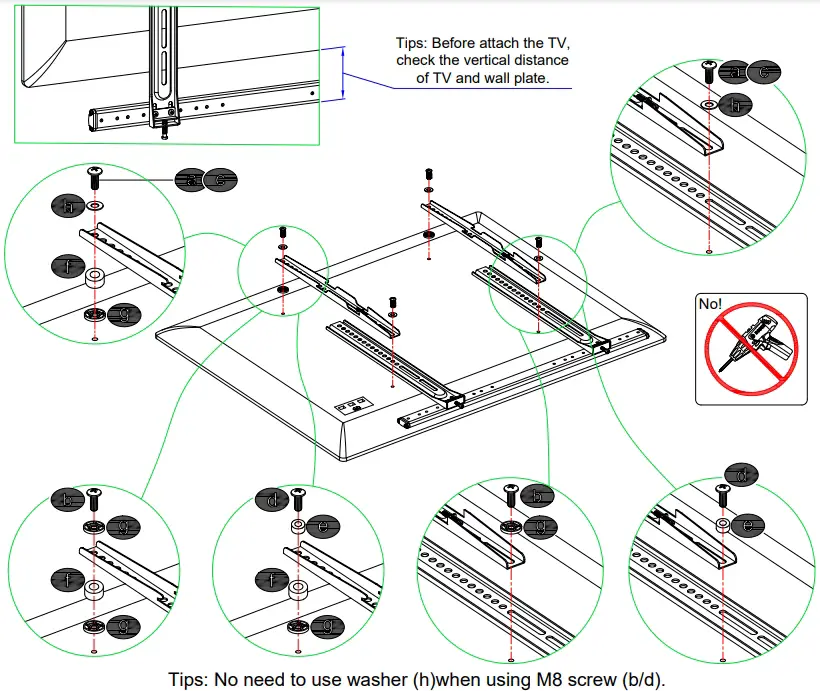

Attach the Assembled Sound Bar and Brackets Unit to Your TV

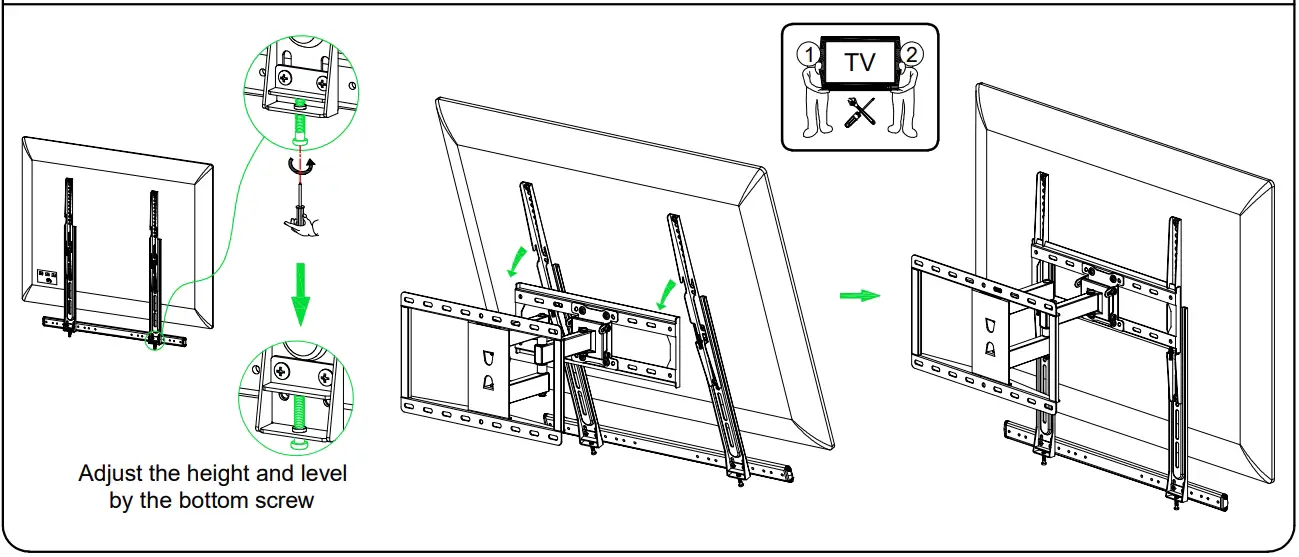

Hang the Whole Assembled Unit to the Mount

Hang the hooks

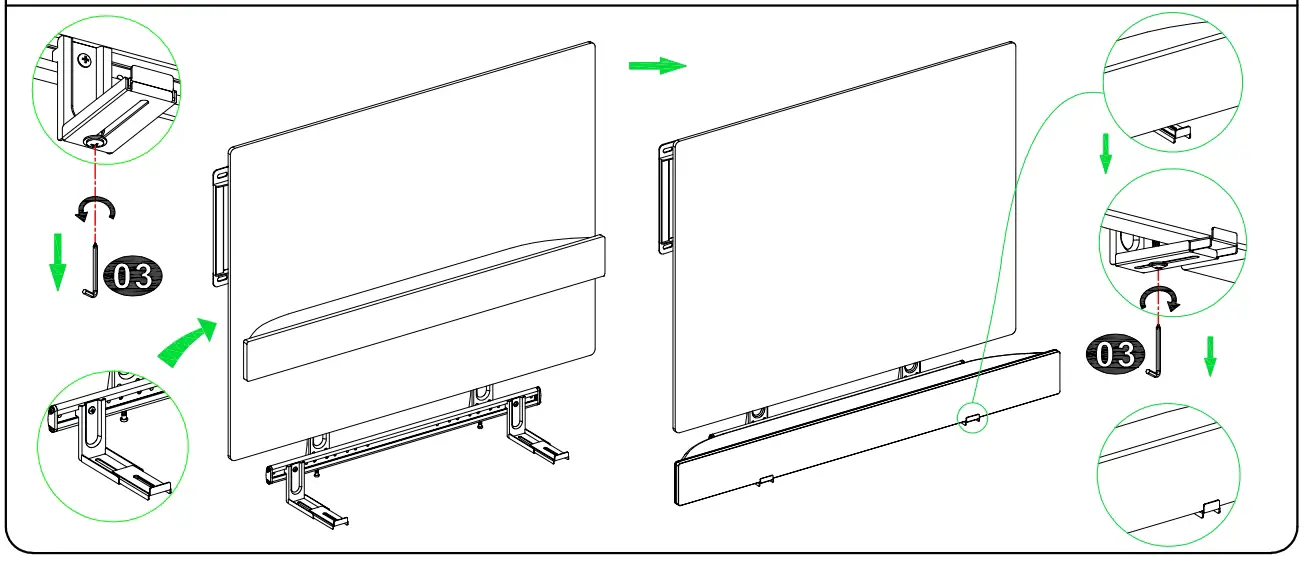

Put on the soundbar

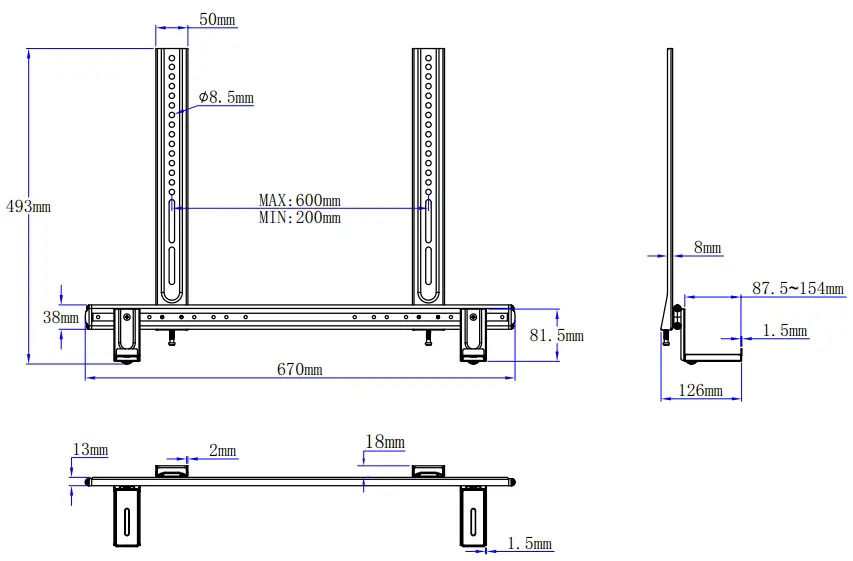

Product Dimensions
