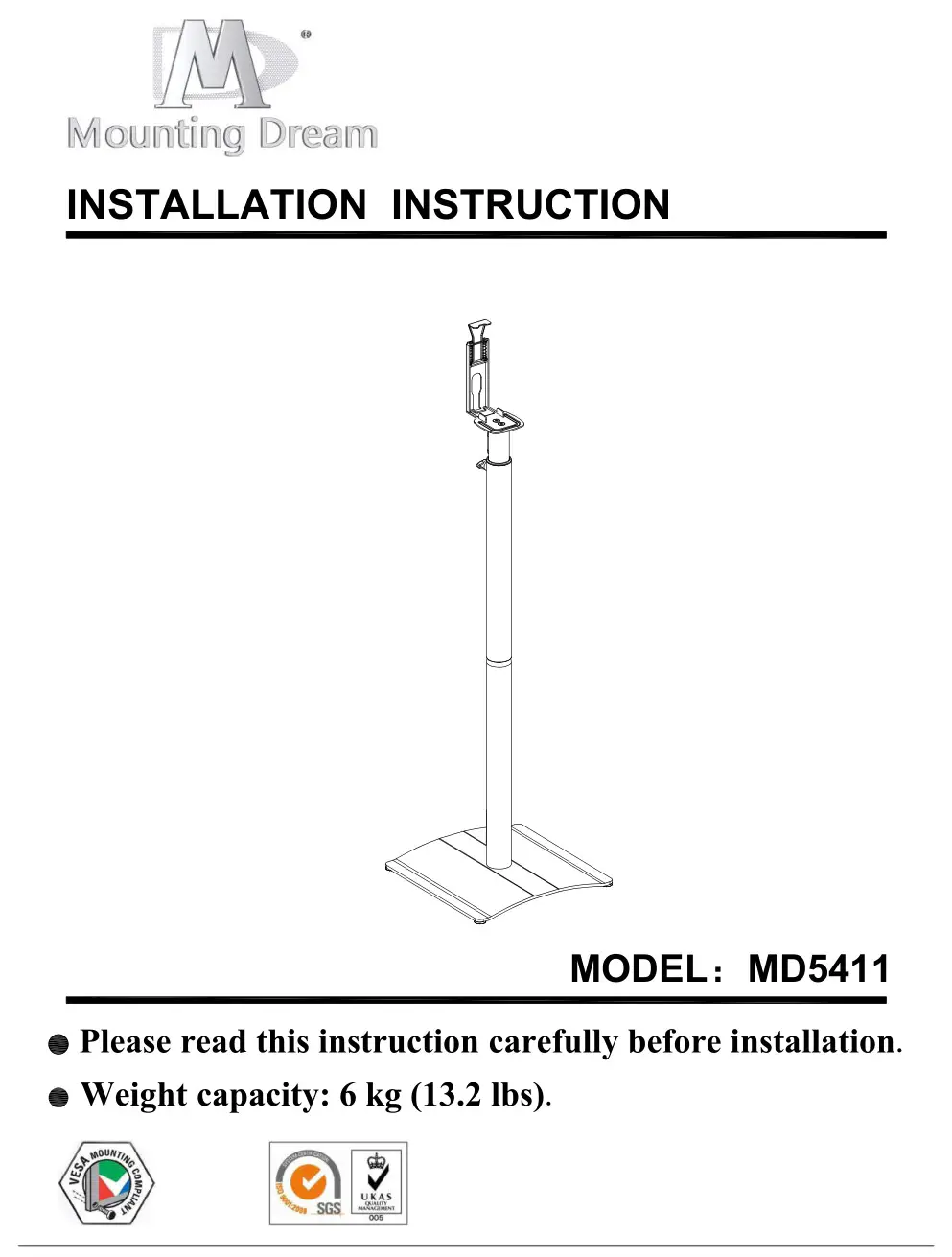

Mounting Dream MD5411 Speaker Stand Installation Guide
WARNING!
Safety Warning: Thank you for choosing Mounting Dream speaker stand. For safe application of model MD5411, and preventing yourself or others from danger or property loss, please read through this manual before use. If you do not understand these instructions or have any doubt over safety of installation, please contact qualified contractor or Mounting Dream customer service. Please check carefully before assembly to ensure no parts missed or damaged. Our customer service representative will assist you timely in installation to solve the issue of parts shortage or damage. Replacement parts purchased through authorized distributor will be delivered to your door. Please do not use defective parts. Incorrect installation may result in product damage or body injury. Do not apply this product to any purpose not indicated by Mounting Dream. We shall bear no responsibility for any damage or injury resulted from incorrect installation, incorrect assembly or misuse.

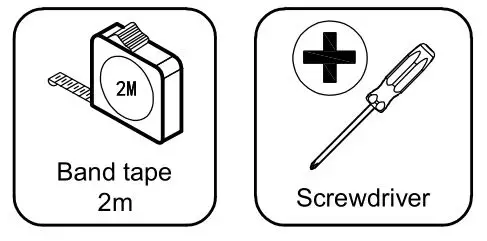

Installation tools:

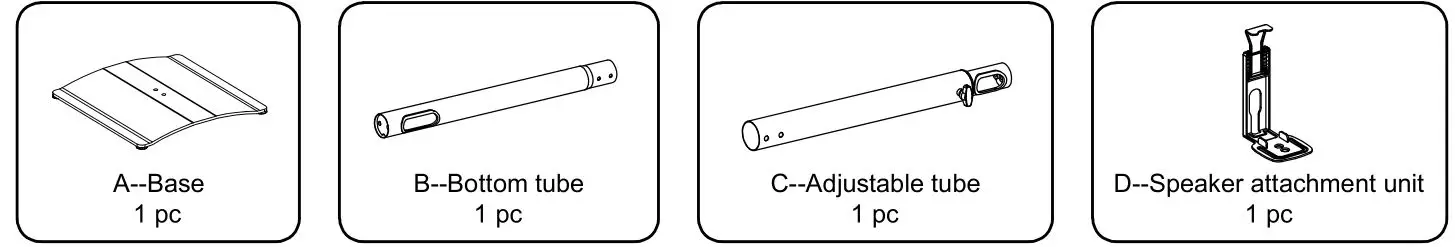

Part list

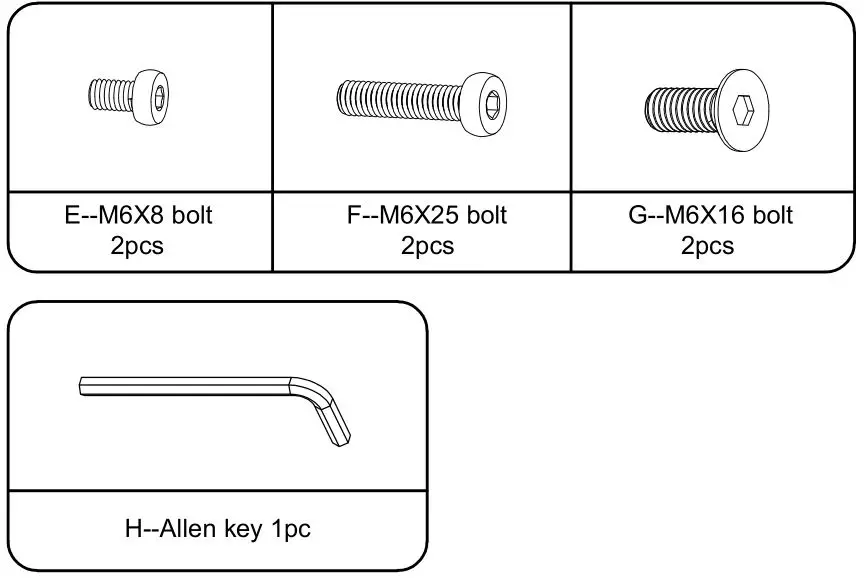

Hardware for stand assembly

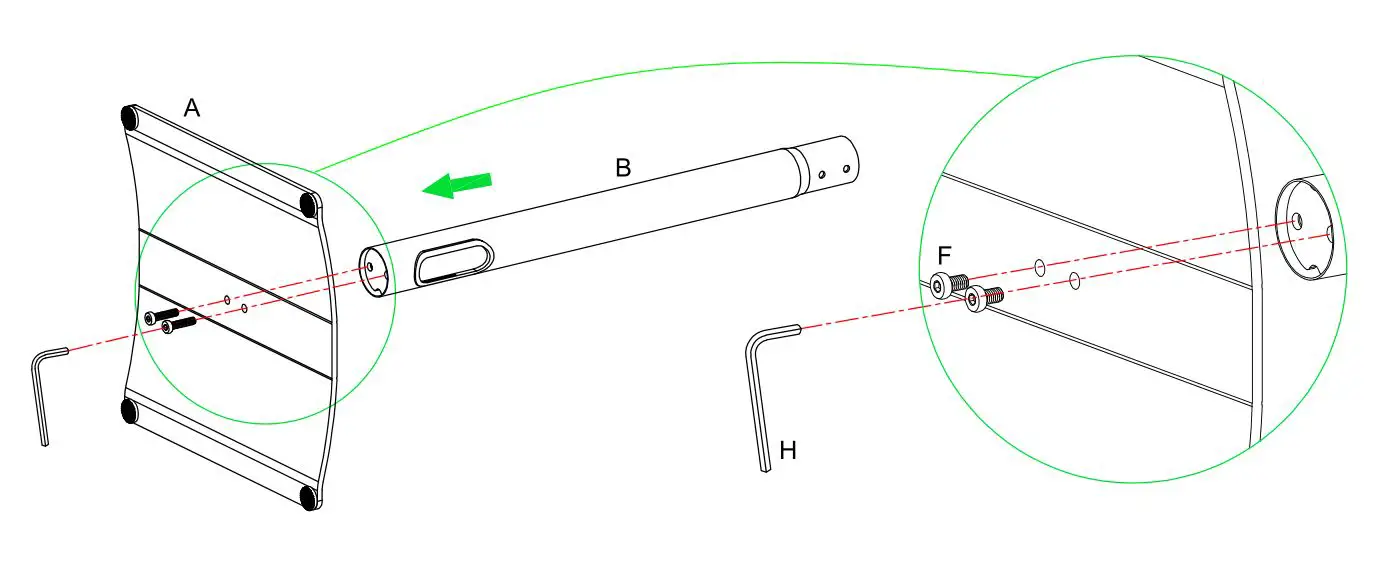

Step 1 Insert bottom tube (B) into base (A),then fasten bolt (F) by using Allen key (H) .

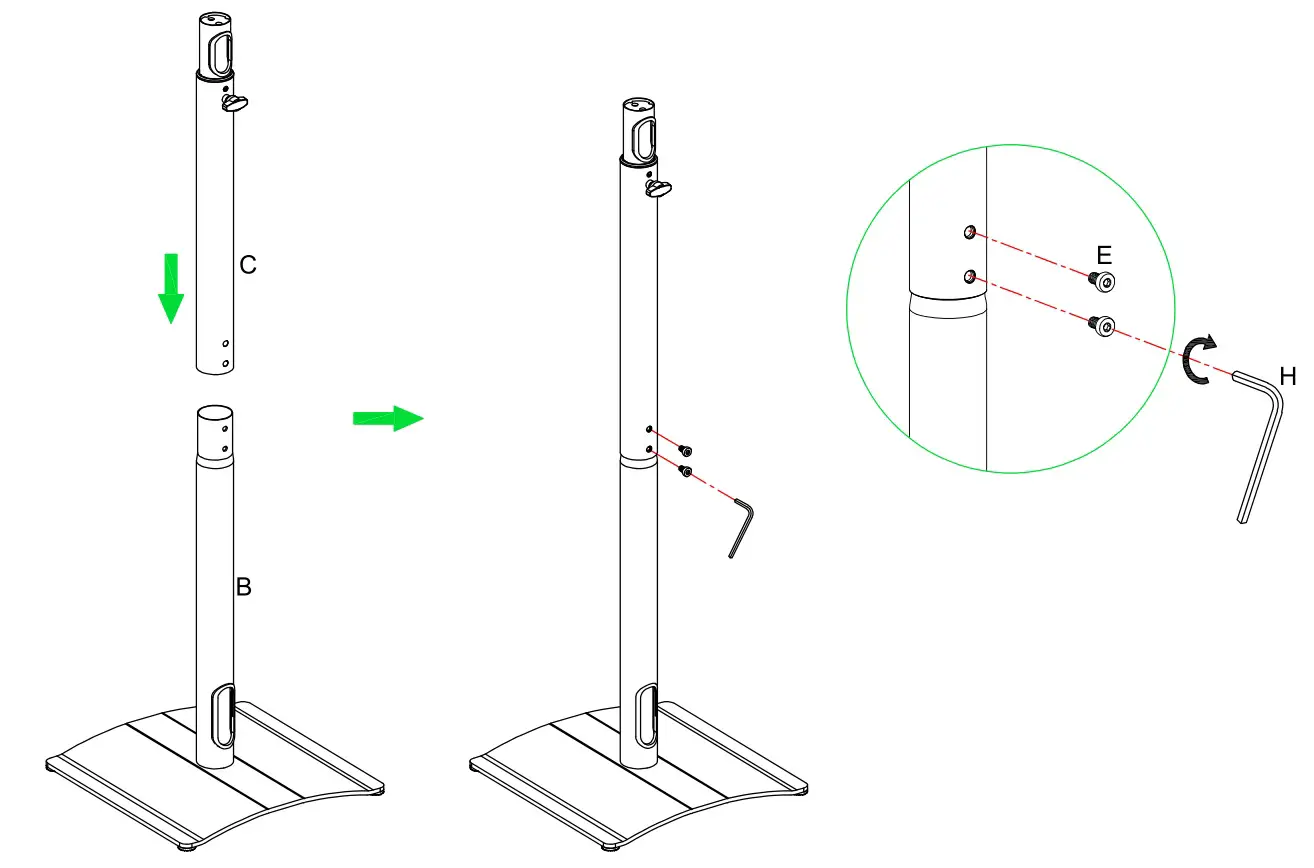

Step 2 Insert adjustable tube (C) into bottom tube (B) and use Allen key (H) to fasten bolt (E).

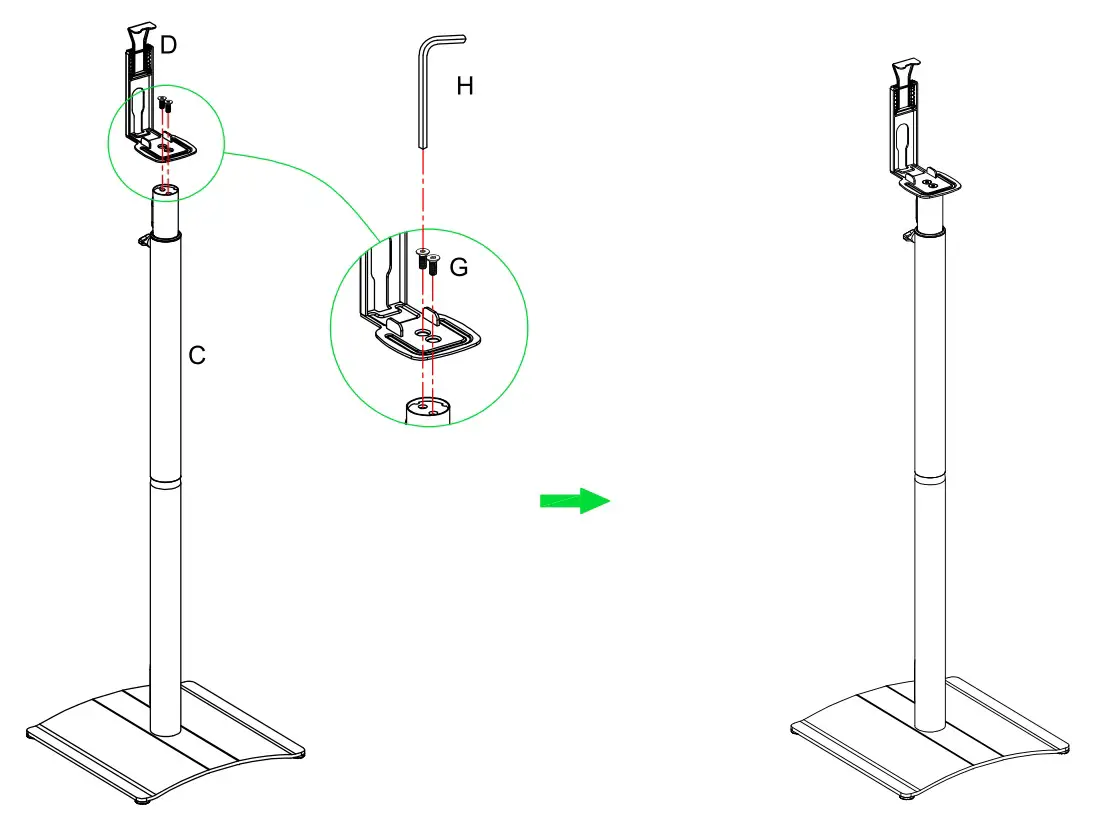

Step 3 Insert the speaker attachment unit (D) into the adjustable tube (C), and use Allen key (H) to fasten bolt (G).

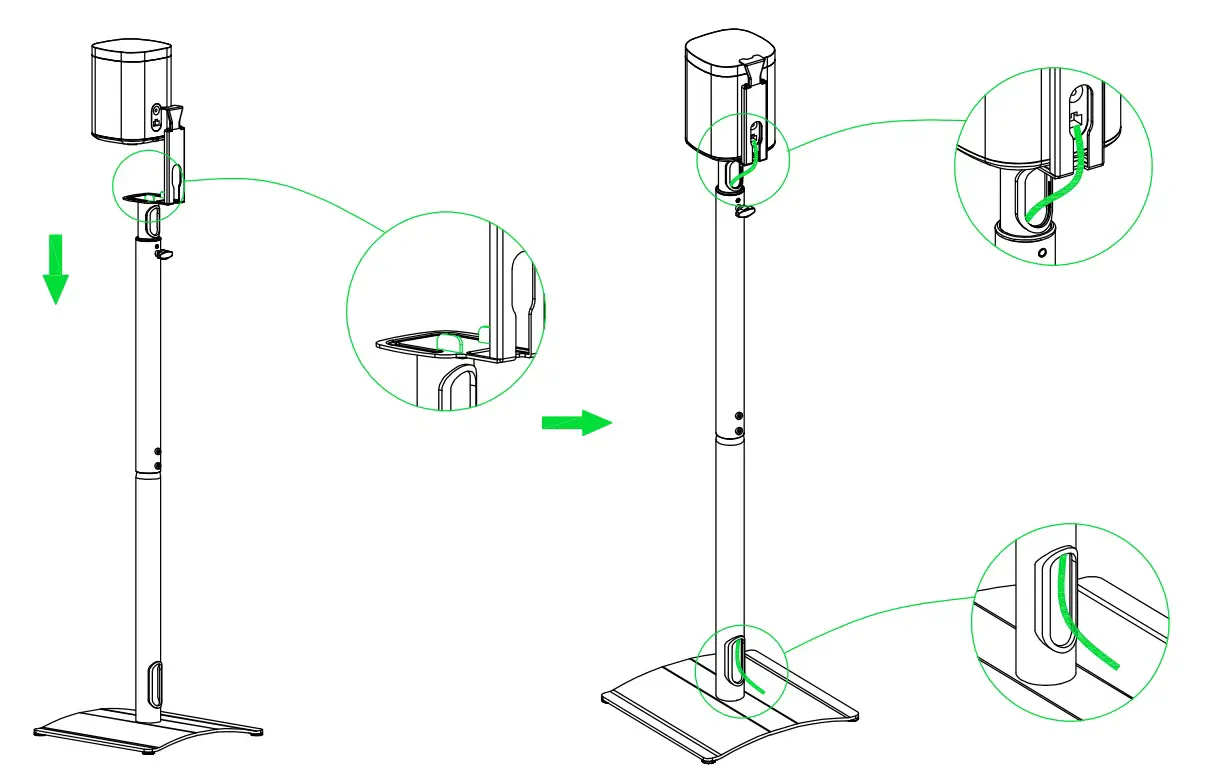

Step 4 Insert the speaker into the speaker attachment unit (D) .

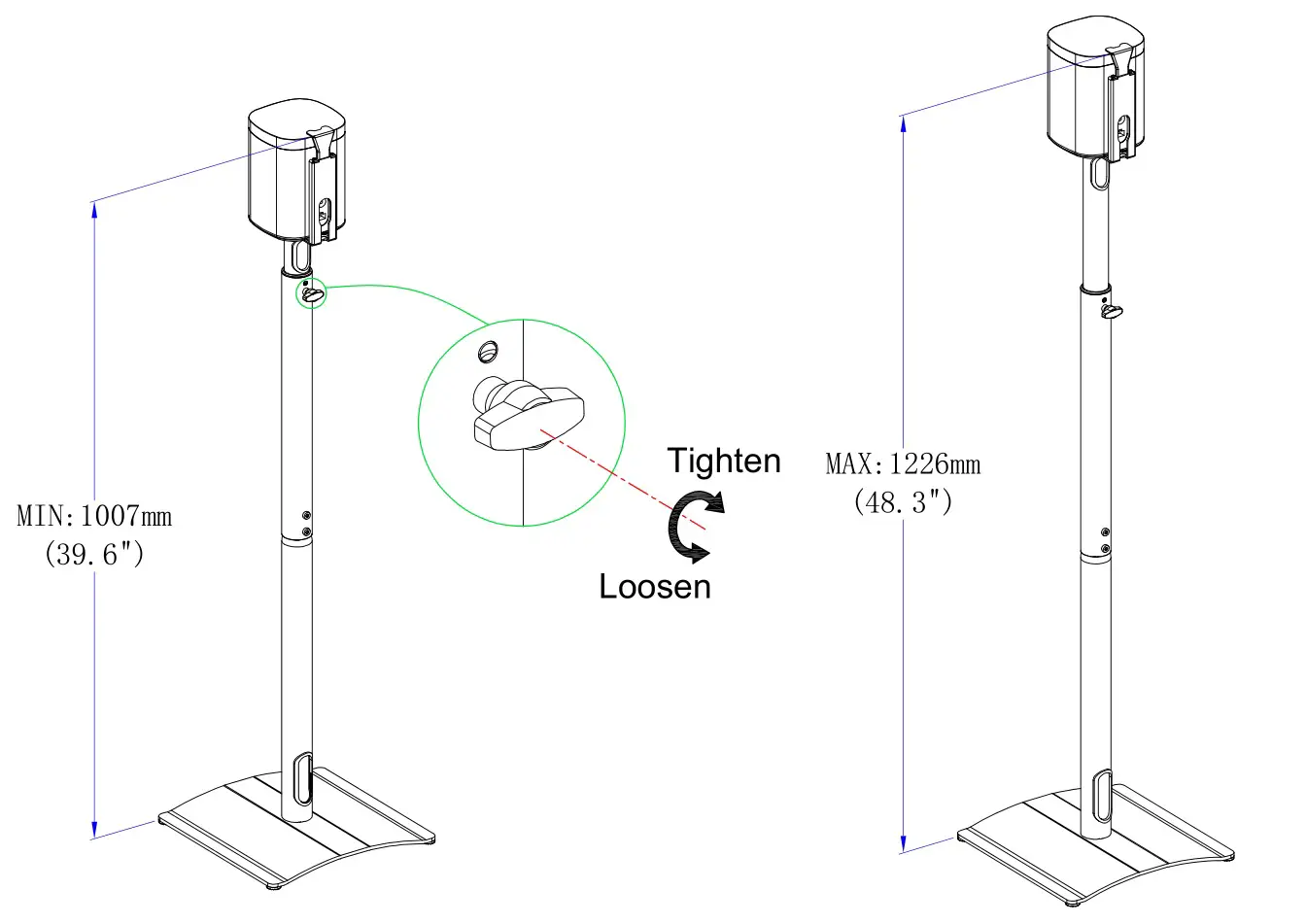

Step 5 Height Adjustment

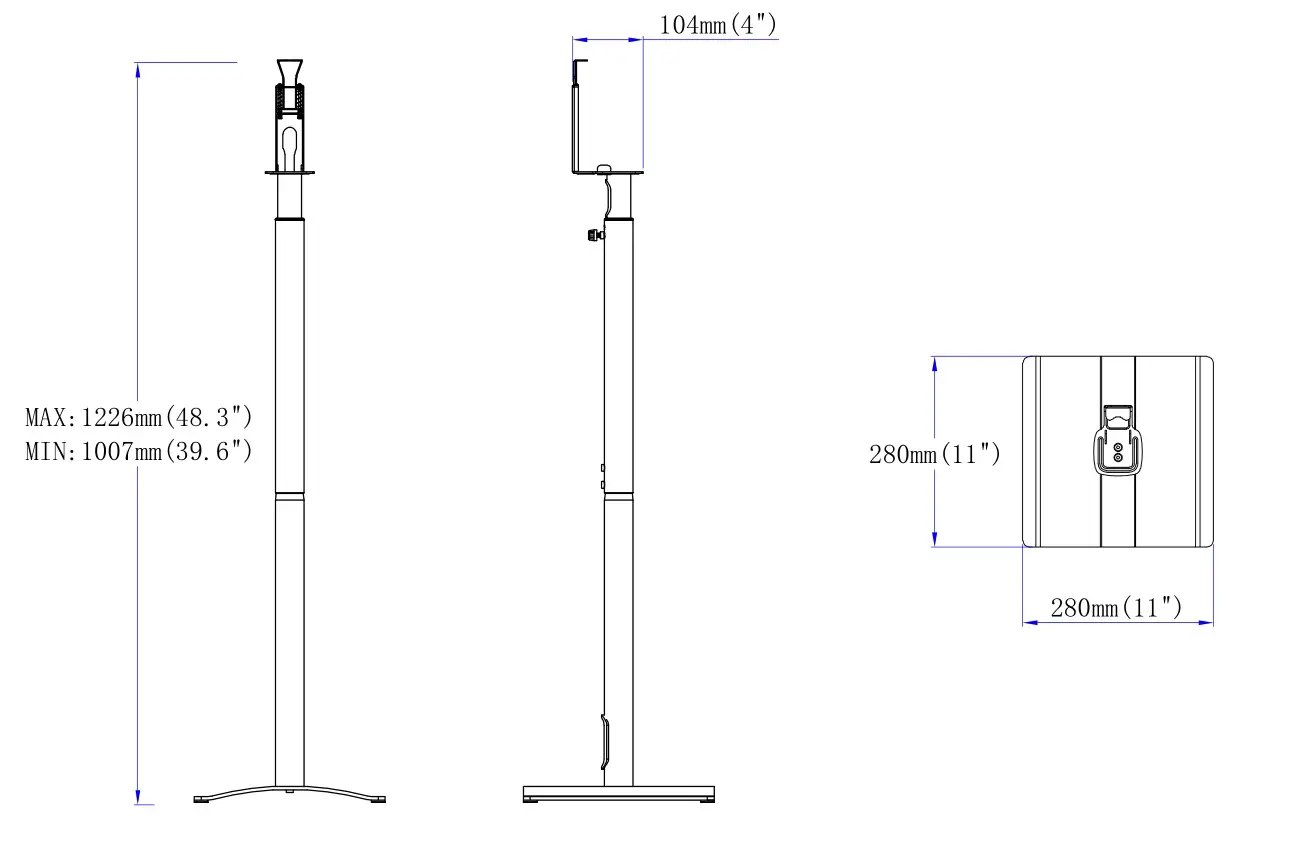

Product dimensions:
