GROTHE ETA S 200 Doorbell Surface Mounted

Installation Instructions

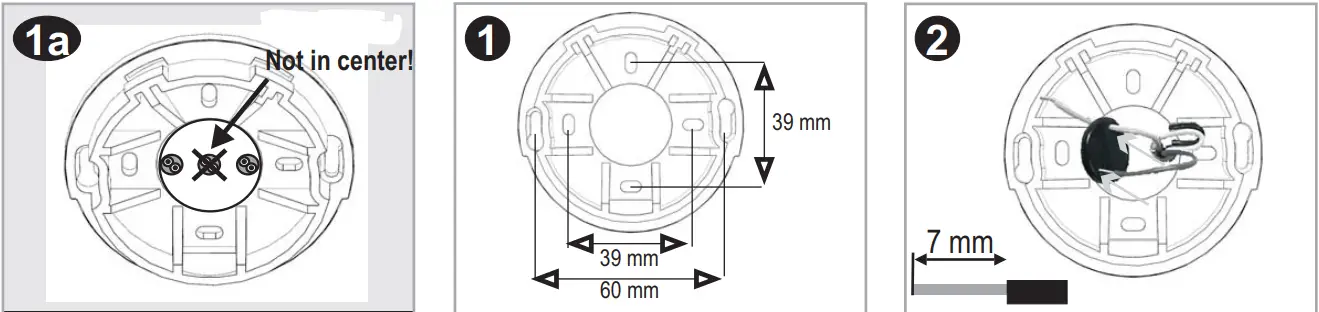

1. Positions of wire (at the side!)
   1. Wall fixation of bracket
2. Insert wires into gasket

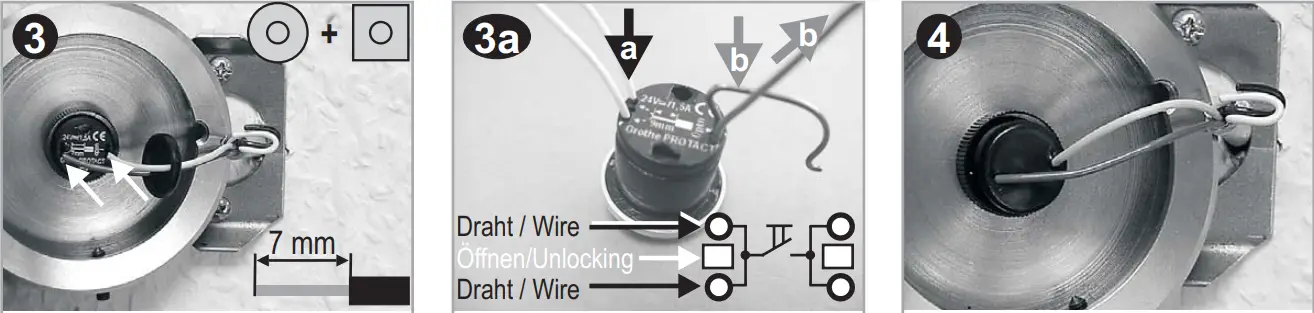

3. Connection of push! See 3a)
   1. Wiring
   2. Unlocking
4. Fixation of gasket on push

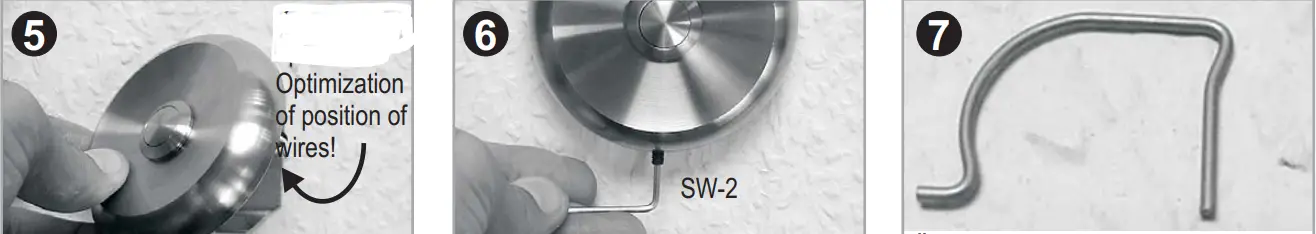

5. Fixation of push on bracket
6. Fixation of screw (at bottom)
7. Stow opening tool separately because of corrosion possibility.

General

1. Please note that installation and assembly of electrical equipment should only be under-taken by a qualified electrician!
2. Nationally specific regulations on electrical installation work must be observed
3. Before starting installation ensure that the circuit is isolated from the supply by withdrawing the circuit fuse or circuit breaker!
