QM‐133BD
User’s Manual
QM-133BD LCD Touch Monitor
Legal Notice
Copyright ©2022 Quixant plc
All information contained in this document is proprietary and confidential to Quixant plc and is subject to a non‐disclosure agreement.
Unauthorized use, duplication, modification or disclosure of this information by any means without prior consent of Quixant plc is prohibited.
Every effort has been made to ensure the accuracy of this document; however, Quixant plc accepts no responsibility for any inaccuracies, errors or omissions herein. Quixant plc reserves the right to change specifications without prior notice in its absolute discretion, to supply the best product possible. Where Quixant plc or any of its group companies has (i) made a change to a product to incorporate a specific customer requirement or (ii) has created a design to a customer’s specific requirements, in either case the customer will indemnify and hold the relevant Quixant entity harmless against any claim that delivery against such requirement breaches any intellectual property or other rights of any 3rd party.
All brands and trademarks are the property of their respective owners and are hereby fully acknowledged.
Introduction
QM‐133BD Includes 2 bonding types with touch panels, air and optical bonding. It’s beneficial to slot machine designer to adapt, depending on customer request. Here’s showing drawing for mechanical type and the photo of touch with smash hole.

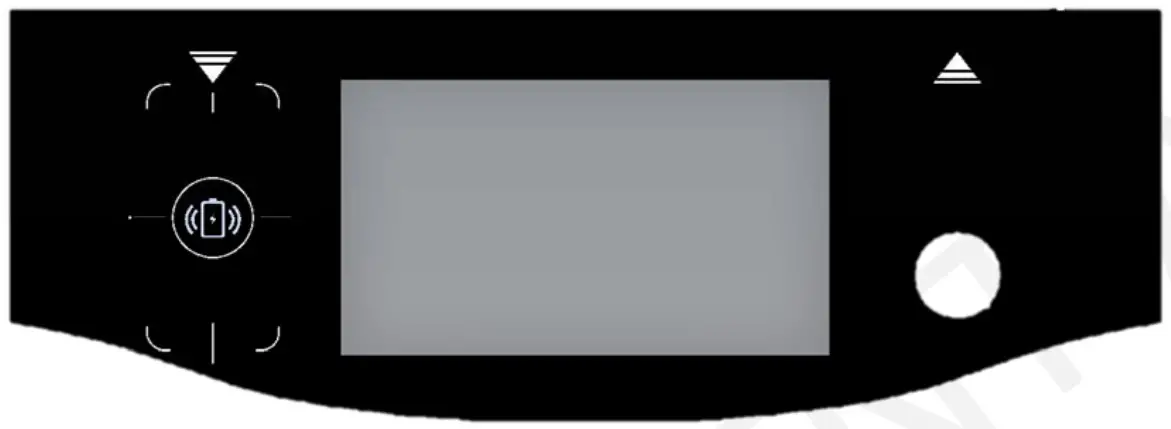

1.1 Appearance
1.2 Safety Instruction
Strictly follow these Instructions for Use, please read these safety instructions carefully.
Remind to keep this User’s Manual for later reference, and any use of the product requires full understanding and strict observation of all portions of these instructions.
Repair of the device may also only be carried out by trained service personnel. Quixant Plc recommends that a service contract be obtained with Quixant Service and that all repairs also be carried out by them. Otherwise, the correct functioning of the device may be compromised.
1.3 RF Instruction
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
- Any changes or modifications not expressly approved by the party responsible for compliance could void the authority to operate equipment.
- This device and its antenna must not be co‐located or operating in conjunction with any other antenna or transmitter.
RF Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body.
Specification
| LCD | Size | 13.3” LCD wide view angle panel |
| Resolutions | 1920 x 1080 | |
| Display Colors | 16.7M | |
| Brightness/Backlight | 400 cd/m2 LED Backlight (270 cd/m2 Min.) | |
| View Angel | 178°/178° degree | |
| Contrast Ration | 800:1 (600:1 Min. with panel native color temp.; 450:1 with 6500K) | |
| Touch Panel | Touch Type | PCT Touch |
| Touch point | Multi-touch | |
| Interface | USB Type B | |
| OS Support | Win7 (HID supported) | |
| System | I/O | 1x DVI-D port, 1x DP port, 1x USB Type B, 1x Micro-Fit (for wireless charger power input connector), 1x DC In |
| OSD | Power, Menu, Auto Adjustment, left(up)/right(down) | |
| Wireless Charger (QB-049) | 15W, 1 x TX COIL (10W Min.) | |
| Power | Normal Input Voltage Range | DC In, 12 VDC ± 10% |
| Power connector | ELR-02V | |
| Power Consumption | 45W Typical | |
| Mechanical | Dimension(WxHxD) | 693.4 x 249 x 42.6 mm |
| VESA Mount | N / A | |
| Environment | Operating Temperature | 0~ 50° C |
| Storage Temperature | -20 ~ 60° C (-4 ~ 140° F) | |
| Humidity | 20 ~ 85% @ 40° C, non-condensing | |
| Regulation | Regulation (meet standard) | UL 60950-1, 2nd Edition, 2014-10-14 |
| EMC and RF | FCC P18 (EMC), FCC P15C (RF) and FCC P2.1091 (MPE) CISCPR 11 and CISPR 32, EN 301 489-1/-3 (EMC), EN 303 417 (RF) EN 62311 (SAR) |

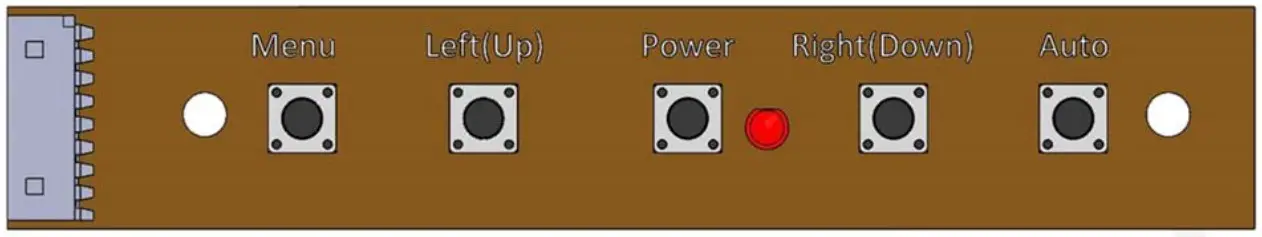

External I/O & OSD Function Key
OSD Menu Setting
| No. | Button | Function |
| 1 | Menu | Activates OSD main menu |
| 2 | Left (Up) | Left/Up arrow |
| 3 | Power | Power On/Off |
| 4 | Right (Down) | Right arrow |
| 5 | Auto/Exit | Adjust automatically for VGA interface. Exit/Return |
| ‐ | LED | Blue: On Red: Off |
3.1 Input/Output
QM‐133BD includes 2 connectors of display output, including DVI and DP. For touch function and power enable, it complies with 1 connector of USB type B for touch connection, and 1 connector of 2 pin for +12V DC power in.

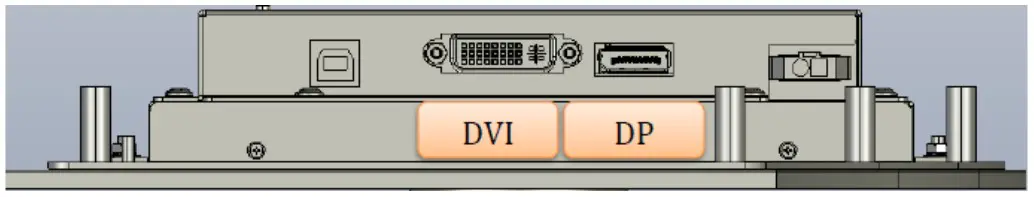

a. DVI & DP Signal Input

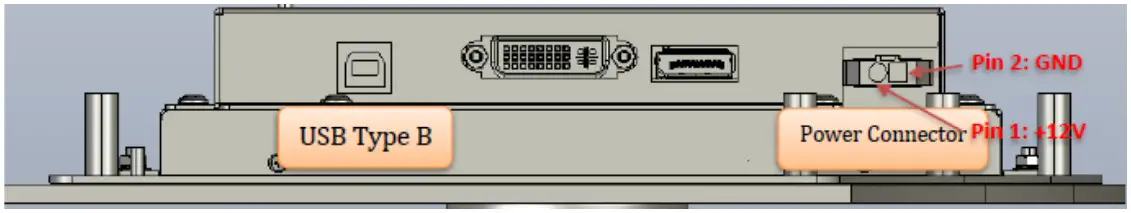

b. USB Type B & 2 Pins type Power Connector
Note: Power connector Pin definition:
| Pin 1 | Pin 2 |
| +12V | GND |

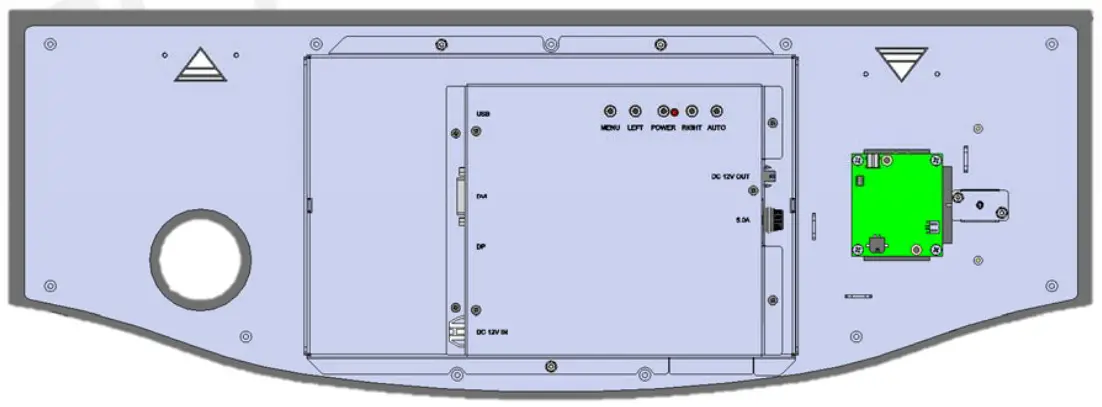

Mounting Design
QM‐133BD design several mounting features for customer to fit in slot machine, which provide a solid stand onto slot machines. For details specification, please consult specification with Quixant.
5.1 OSD Menu

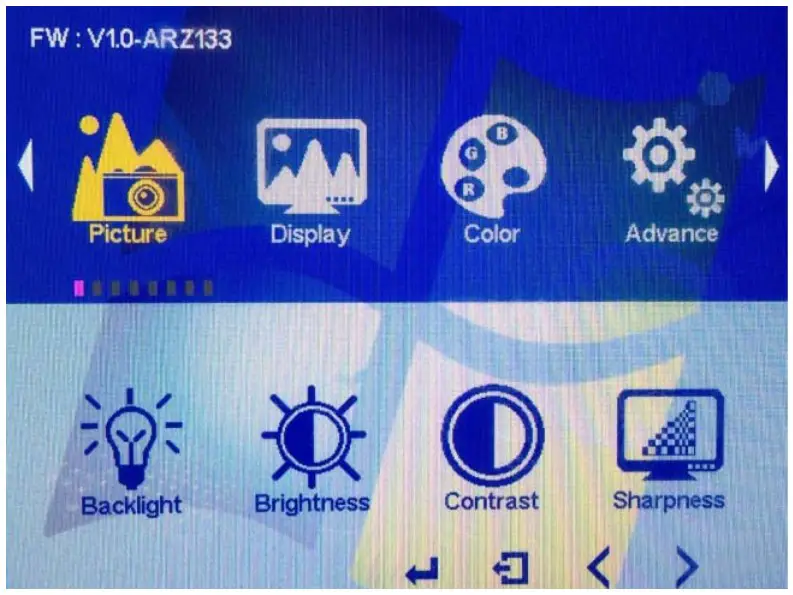

a. OSD Main Menu

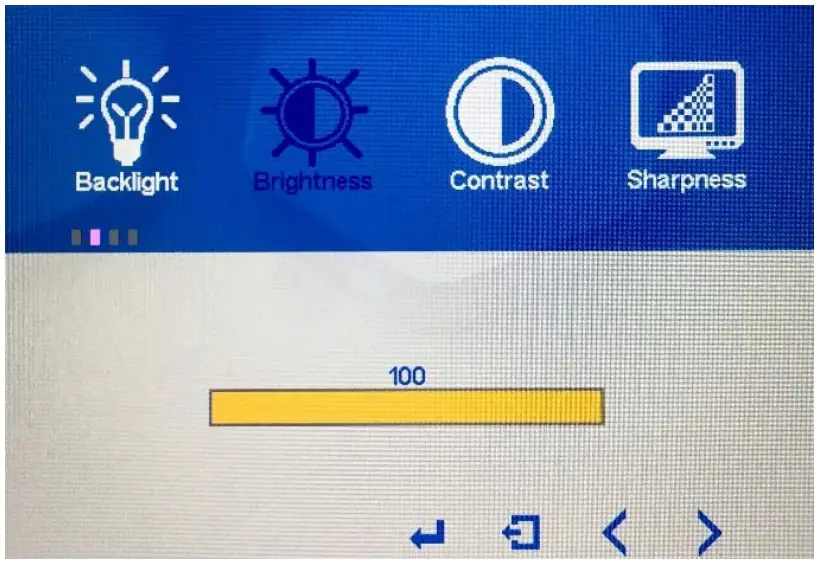

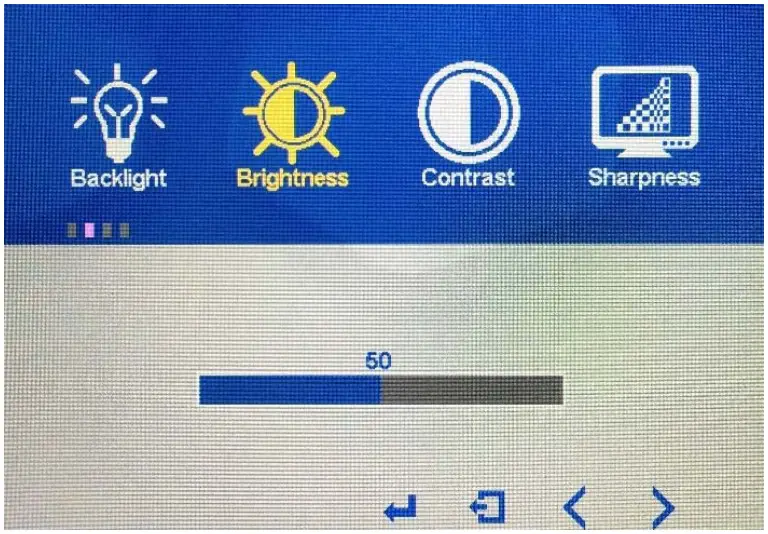

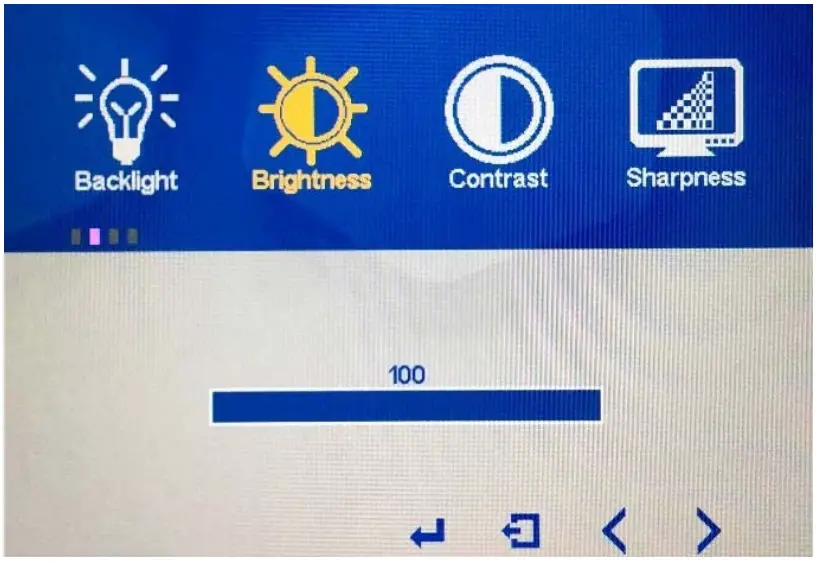

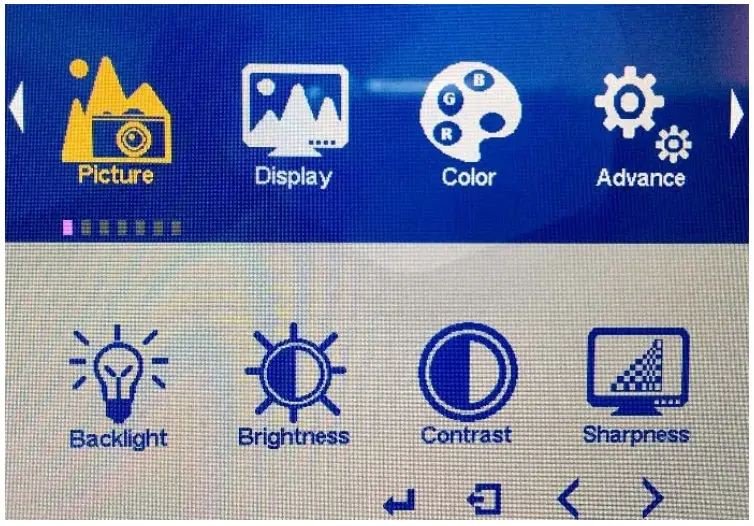

b. Adjusting and Saving
- Choose a menu (for example: PICTURE), then Press “Menu” key to enter
- Choose an item (for example: Brightness), then Press “Menu” key to enter
- Use “Left” / “Right” keys to adjust value, then Press “Menu” key to save
- The item of Brightness adjustment is completed.
5.2 OSD Default Setting
| Item | Sub Menu | Description | Default |
| Picture | Backlight | Adjust the backlight. (0-100) | 100 |
| Brightness | Adjust the brightness. (0-100) (Separate brightness setting by sources) | 50 | |
| Contrast | Adjust the contrast. (0-100) (Separate contrast setting by sources) | 50 | |
| Sharpness | Adjust the sharpness. (0-4) | 2 | |
| Display | Disp Rotate | 0/180 | 180 |
| Color | Gamma | Supported gamma. (OFF/2.2) | Calibration: 2.2 No calibration: Off USER – (128, 128, 128) 6500K – (128. 128, 128) |
| Temperature | Color temperature schemes. (OFF/6500/User) | 6500K | |
| Hue | Color hue/saturation value. (0-100) | 50 | |
| Saturation | 50 | ||
| Advance | Aspect Ratio | Monitor display ratio setting. (Full/16:9/4:3/S:4/1:1/User) | Full |
| DDCCI | DCC/CI function. (ON/OFF) | On | |
| Input | Auto Select | Auto source select | Auto |
| DO: DP | DP source select | ||
| D3: DVI | DVI source select | ||
| Other | Reset | Reset user setting (without color setting) | |
| Menu Time | Adjust the OSD menu timeout. (5-60 sec) | 30 | |
| OSD H Position | Adjust the OSD horizontal position. (0-100) | 50 | |
| OSD V Position | Adjust the OSD vertical position. (0-100) | 50 | |
| Transparency | Change the transparency of the OSD. (0-7) | 2 | |
| OSD Rotate | OSD menu rotate. (0/90/270/180) | 180 | |
| Power Saving | 0-30 (min), 0: off | 1 | |
| Information | Input, Resolution, H-Freq, V-Freq, PCLK, HDCP Status | ||
Touch Function Installation
QM‐133BD Touch function is designed to easily install. It complies with plug & play function, which allows user to enable the touch function by only connecting QM‐133BD and operation systems with USB type B. Hence, the driver and utility is not required. If there’s any driver installation question with various operating OS, please consult with Quixant.
Wireless Charger Function
In the wireless charging area, you can charge the battery of your phone without connecting any cables to your phone. The device is compliant with the Qi standard.
- All wireless devices may be susceptible to interference, which could affect performance.
- Only qualified personnel may install or repair the device.

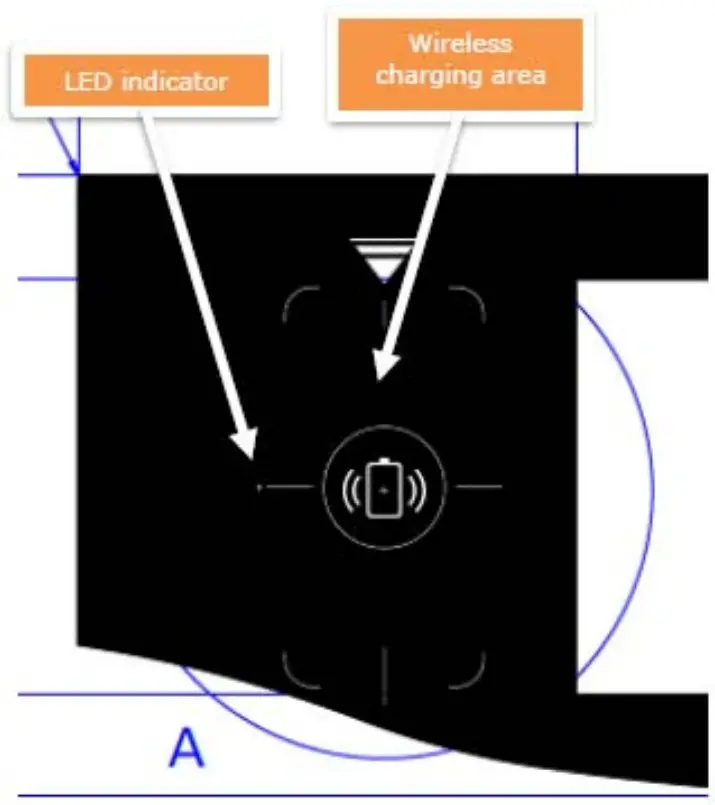

Charge your phone
It’s simple: place your phone or another Qi‐compatible device on the charging area to start charging.
- Place your phone on the charging area. The indicator light is blinking while the phone charges.
- It’s normal for the charging area and phone to get warm while charging.
- LED indicator is blue when standby.
QM‐133BD‐03‐2 QIG v1.0
©2022 Quixant Plc.
Version 1.0
Feb 24, 2022
