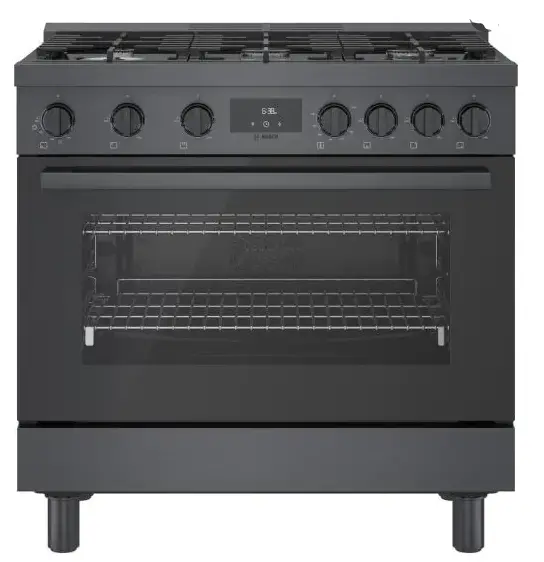

BOSCH 36″ Industrial Style Gas Range
Features & Benefits
- Black stainless steel helps guard against scratches and fingerprints to maintain their bold look.
- Powerful 18,000 BTU double ring burner speeds cooking time.
- Dishwasher safe grates for easy cleaning.
- A full extension telescopic rack rail offers easy access to the oven cavity.
- Dampened hinges softly and quietly guide the door shut.
General Properties
| General Properties | |
| Cooking modes | Bake, Convection Bake, Broil |
| Cleaning type | Catalytic Clean |
| Type of grate | Cast iron |
| Knob material | Metal |
| Interior light | 1 |
| Kitchen timer | Yes |
| Drawer type | Not available |
| Sealed burners | Yes |
| Oven Performance | |
| Bake / broil burner power BTU | 17,000 / 14,000 BTU |
| Burner Performance | |
| Total cooktop burners | 6 |
| Total cooktop (NG / LP) BTU | 63,000 / 63,000 |
| Power of front left burner (NG / LP) BTU | 18,000 / 18,000 |
| Power of back left burner (NG / LP) BTU | 5,000 / 5,000 |
| Power of center burner (NG / LP) BTU | N/A |
| Power of back center burner (NG / LP) BTU | 10,000 / 10,000 |
| Power of front center burner (NG / LP) BTU | 10,000 / 10,000 |
| Power of back right burner (NG / LP) BTU | 10,000 / 10,000 |
| Power of front right burner (NG / LP) BTU | 10,000 / 10,000 |
Technical Details
| Technical Details | |
| Circuit breaker (A) | 15 A |
| Volts (V) | 120 V |
| Frequency (Hz) | 60 Hz |
| Plug type | US 3-prong |
| Cord length (in.) | 59″ with plug |
| Energy source | Gas |
| Gas type | Natural gas 14.9 mbar (USA) [7″ WC] |
| Alternative gas type | LP 27.4 mbar (USA)[11″ WC] |

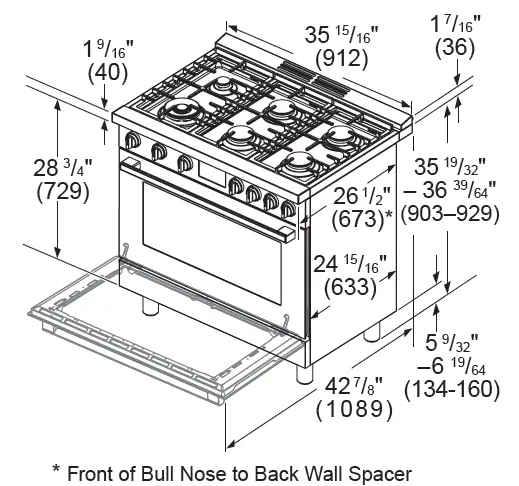

| Dimensions & Weight | |
| Overall appliance dimensions (HxWxD)(in.) | 36″ x 35 15/16″” x 24 15/16″ (26 1/2″ with bull nose) |
| Required cutout size (HxWxD)(in.) | 36″ x 36″ x 25″ |
| Adjustable range height (in.) | 35 19/32″ Min. 36 39/64″ Max. |
| Oven cavity size (cu. ft.) | 3.4 |
| Overall oven interior dimensions (HxWxD)(in.) | 15″ x 28 7/16″ x 17 11/16″ |
| Usable oven interior dimensions (HxWxD)(in.) | 15″ x 28 11/32″ x 17 11/16″ |
| Net weight (lbs) | 207 lbs |
| Accessories—Included | |

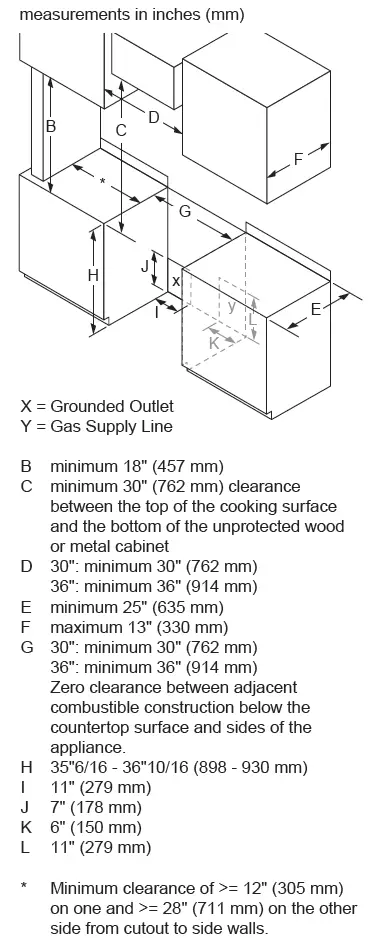

Installation Details
Accessories: To purchase Bosch accessories, cleaners & parts please visit www.bosch-home.com/us/store or call 1-800-944-2904 (Mon to Fri 5 am to 6 pm PST, Sat 6 am to 3 pm PST).
Notes: All height, width and depth dimensions are shown in inches. BSH reserves the absolute and unrestricted right to change product materials and specifications, at any time, without notice. Consult the product’s installation instructions for final dimensional data and other details prior to making cutout.
Warranties: Please see Use & Care manual or Bosch website for statement of limited warranty.
