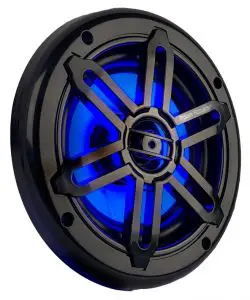

POWER ACOUSTIK 6.5″ Marine Grade Audio Speaker
FEATURES
- Manne Grade Waterproof 6 5″ Coaxial Speaker
- High Density ABS Construction w/ UV Coating
- 100% Waterproof Sealed Back Speaker Frame
- Stemless Steel Mounting Hardware Included
- injection Molded Polypropylene speaker cone
- Rubber Surround & Tweeter Pole Gasket
- 1 “Titanium Dome Tweeter
- White and Black Grills Included
- Quick Disconnect Terminals
- Meets ROHS and CE Certifications
- With Built-in LED lights
- 4-ohm System Impedance
- 400w MAX Power Handling
- 200w RMS Power Handling
- 60-20kHz Frequency Response
- 91dB System Efficiency (1w/1m)
- 2.55″Mounting Depth

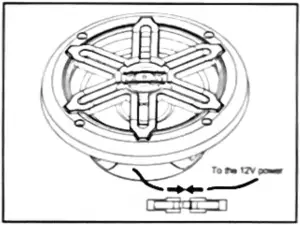

LED Lights Connection Diagram
INSTALLATION GUIDE

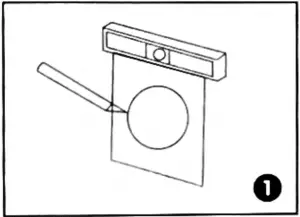

- Cut the drywall
Note: Always allow at least one-half inch between a wan stud and the speaker cutout the locking tabs will not be able lo swivel into place.

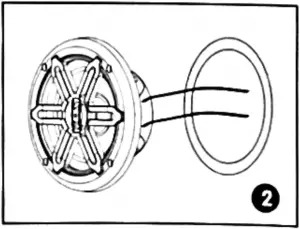

- Connect the speaker wires 10 the speaker.

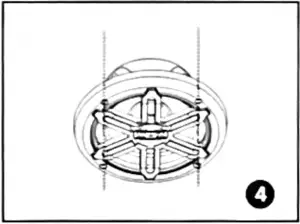

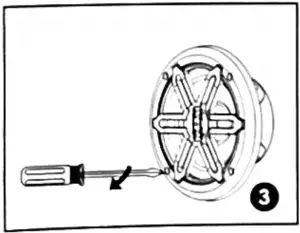

- Screw down each of the four phillips head screws the locking tab Philips head screws The locking tabs will swivel into place and secure the unit to the rear surface of the drywall Put in the strops of adhesive 10 secure the gnlle.
- Replace the metal gnlle.
