SJE RHOMBUS IFS Single Phase Duplex Capacitor

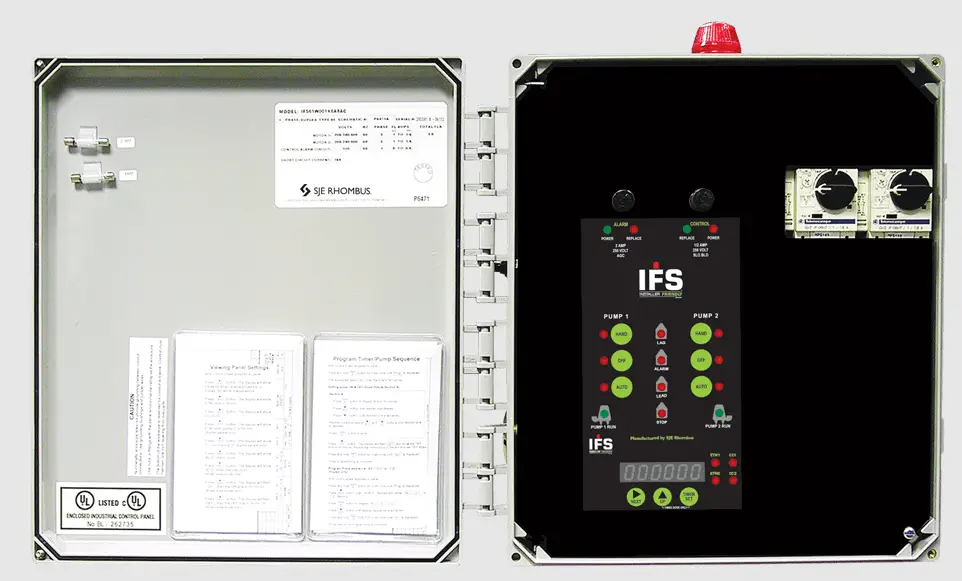

The IFS duplex capacitor (start/run) control panel utilizes an innovative circuit board design to control two alternating 120/208/240V single phase pumps in water and sewage applications. IFS panels feature an easy-to-use touch pad on inner door for programming and system monitoring. The alternating action equalizes pump wear. In addition, this system provides override control should either pump fail. The panel configuration can be easily converted in the field to either a timed dose or demand dose. Available with the EZconnex® float system. The panel can utilize the C-Level™ sensor for continuous level monitoring. It senses the level in the tank and sends a signal to the panel. Pump activation levels can be adjusted by using the panel touch pad. C-Level™ CL40 sensor operating range is 3-39.9 inches (7.6-101.3 cm). C-Level™ CL100 operating range is 3-99.5 inches (7.6-252.7 cm).
NOTE: SJE Rhombus will warranty motor start kit components supplied by SJE Rhombus for one year. SJE Rhombus makes no warranty of any type with respect to motor start kits supplied by the customer.

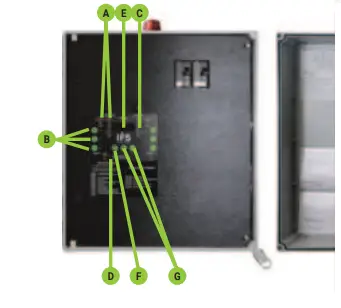

TOUCHPAD FEATURES
- A. Level Status indicators illuminate when floats or set points are activated; an alarm will activate if a float operates out of sequence
- B. HOA (Hand-Off-Automatic) buttons control pump mode with indication; Hand mode defaults to Automatic when stop level or redundant off level is reached
- C. Pump Run indicators will illuminate when pumps are called to run
- D. Lead/Lag selector toggles pump operation (alternate 1-2 and 2-1)
- E. LED display for system information including level in inches or centimeters (C-Level™ only), mode, pumps elapsed time (hh: mm), events (cycles), alarm counter, float error count, timed dose override counter (timed dose only), and ON/OFF times (timed dose only)
- F. NEXT push button toggles display
- G. UP and SET push buttons set pump ON/OFF times (timed dose only) and activation levels (C-Level™ only)
- Panel layout may vary with options. Reg. Cdn Pat. & TM Off C-Level™ Sensor US Patent No. 8,336,385; 8,567,242; 8,650,949

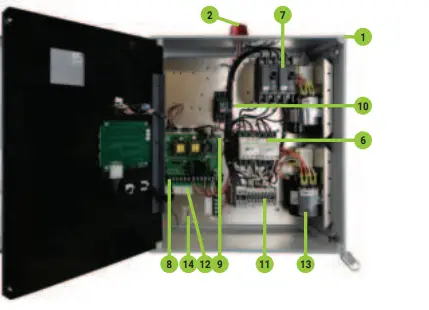

COMPONENTS
- Enclosure base measures 18 x 16 x 8 inches (45.72 x 40.64 x 20.32 cm); NEMA 4X fiberglass for outdoor or indoor use
- The Red LED beacon provides a 360° visual check of the alarm condition
- The exterior Alarm Test/Normal/Silence switch allows the horn and light to be tested and the horn to be silenced in an alarm condition; the alarm automatically resets once the alarm condition is cleared (Not shown)
- The alarm horn provides audio warning of alarm conditions (83 to 85-decibel rating) (Not shown)
- Overload relays (optional) provide pumps overload protection (Not shown)
- IEC motor contactors control pumps by switching electrical lines
- Circuit breakers (optional) provide pump disconnect and branch circuit protection
- Float and control/alarm incoming power terminal block
- The Control Power indicator/fuse indicator light illuminates if control power is present in the panel; an alarm will activate if the control fuse is blown
- The alarm Power indicator/fuse indicator light illuminates if alarm power is present in the panel
- Large pump/incoming power terminal block
- Terminal block float and control/alarm incoming power wiring label
- Cap kits
- Ground lugs
Note: Options, voltage, and amp range selected may change enclosure size and component layout.
Note: Schematic/Wiring Diagram and Pump Specification Label are located inside the panel.
INSTALLER FRIENDLY SERIES® SINGLE PHASE DUPLEX CAPACITOR (START/RUN) – Demand dose float-controlled system for pump control and system monitoring.
| IFS | 8 | 1 | W | 1 | 8AC | |||||||||||
| CONTROL PANEL | MODEL TYPE | ALARM PACKAGE | ENCLOSURE RATING | STARTING DEVICE | PUMP FULL-LOAD AMPS | PUMP DISCONNECTS | FLOAT SWITCH APPLICATION | OPTIONS (LISTED BELOW) | ||||||||
| CONTROL PANEL | 3 | IFS | |
| MODEL TYPE 3 | 8 | Single Phase Duplex Capacitor (includes Option 8AC as standard) | |
| ALARM PACKAGE ENCLOSURE RATING | 3 | 1 | Alarm Package (includes test/normal/silence switch, fuse, red light, & horn) |
| 3 | W | Weatherproof, NEMA 4X (engineered thermoplastic) | |
| STARTING DEVICE 3 | 1 | 120/208/240V IEC Motor Contactor | |
|
PUMP FULL-LOAD AMPS | 0 | 0 – 7 FLA | |
| 1 | 7 – 15 FLA | ||
| 2 | 15 – 20 FLA | ||
| 3 | 20 – 30 FLA | ||
| 4 | 30 – 40 FLA | ||
| PUMP DISCONNECTS | 0 | No Pump Disconnect | |
| 4 | Circuit Breaker | ||
| FLOAT SWITCH APPLICATION | H | Floats – Pump Down (select Option 17 below) | |
| L | Floats – Pump Up (select Option 17 below) | ||
| E | EZconnex® Float Switch System (select Option 34 or 35 below) | ||
| X | No Floats | ||
| C | C-Level™ Sensor (select Option 24 or 29) Select Option 3E and/or 4A & 4D for high water alarm and/or redundant off floats. Pump down applications only. | ||
NOTE: Pump down applications only. Industry practices suggest that a secondary device, such as a float switch,
be used for redundant activation of the high-level alarm and pump shut off when using the C-Level™ sensor.
ENCLOSURE UPSIZE:
If you selected one or more of the options, add a one-time charge for enclosure upsize.
PRICING WORKSHEET
- IFS Single Phase Duplex Capacitor Base Price———————————
- Alarm Package———————————–
- Enclosure Rating————————————
- Starting Device———————————-
- Pump Full Load Amps———————————-
- Pump Disconnects—————————————
Float Switch Application——————————– - Total Options—————————————
- Enclosure Upsize——————————-
- TOTAL LIST PRICE———————————–
Start/run capacitor kits must be ordered separately (see Option 12 below or call the factory).
| OPTIONS | DESCRIPTION | OPTIONS | DESCRIPTION | ||||
| 3A | Alarm Flasher | 16A | 10’ Cord in Lieu of 20’ Cord (per Float) | ||||
| 3B | Manual Alarm Reset | 16B | 15’ Cord in Lieu of 20’ Cord (per Float) | ||||
| 3E | High Water Alarm Float (must also select Option 17) Only Available with Float Switch Application = C | 16C | 30’ Cord in Lieu of 20’ Cord (per Float) | ||||
| 16D | 40’ Cord in Lieu of 20’ Cord (per Float) | ||||||
| 4A | Redundant Off (must also select Option 4D if floats are required) | 17C | Sensor Float® / Internally Weighted (per Float) – Mercury | ||||
| 4D | Redundant Off Float (must also select Option 4A and Option 17) | 17D | Sensor Float® / Externally Weighted (per Float) – Mercury | ||||
| 5A | Thermal Cutout/Heat Sensor Auto Reset (for pumps with thermal switch leads) | 17G | SJE MilliAmpMaster™ / Pipe Clamp (per Float) – Mechanical | ||||
| 17H | SJE MilliAmpMaster™ / Externally Weighted (per Float) – Mechanical | ||||||
| 5E | Seal Failure Circuit and Red Indicator (2 Wire) | 17J | Sensor Float® / Pipe Clamp (per Float) – Mercury | ||||
| 6A | Auxiliary Alarm Contact, Form C | 19F | Fourth Float to Separate Alarm Function from Lag | ||||
| 3 | 8AC | Display Board – Includes: ETM Counter, Events (Cycles) Counter, Alarm Counter and Lead/Lag Selector (included as standard) | 24E | C-Level™ CL40 Sensor with 4’ Vent Tube and 20’ Cord | |||
| 24F | C-Level™ CL40 Sensor with 4’ Vent Tube and 40’ Cord | ||||||
| 9_A | Pump Overload – Specify Amperage after Number 9 Followed by Letter “A” Example: 912A = 12 amp pump | 0 – 30 FLA | 24G | C-Level™ CL40 Sensor with 8’ Vent Tube and 20’ Cord | |||
| 24H | C-Level™ CL40 Sensor with 8’ Vent Tube and 40’ Cord | ||||||
| 30 – 40 FLA | |||||||
| 24X | No C-Level™ CL40 Sensor | ||||||
| 10E | Lockable Latch – NEMA 4X | 29A | C-Level™ CL100 Sensor with 10’ Vent Tube and 20’ Cord | ||||
| 10F | Lightning Arrestor (must select pump circuit breakers, control and alarm power combined) | 29B | C-Level™ CL100 Sensor with 10’ Vent Tube and 40’ Cord | ||||
| 29X | No C-Level™ CL100 Sensor | ||||||
| 10K | Anti-condensation Heater | 34D | EZconnex® 4-Port, 25’, with 10’ Floats (3) / Pipe Clamp, Sealing Plug | ||||
| 11C | Additional NEMA 1 Remote Alarm Panel (must also select Option 6A) | 34E | EZconnex® 4-Port, 50’, with 10’ Floats (3) / Pipe Clamp, Sealing Plug | ||||
| 11D | Additional NEMA 4X Remote Alarm Panel (must also select Option 6A) | 34G | EZconnex® 4-Port, 25’, with 20’ Floats (3) / Pipe Clamp, Sealing Plug | ||||
| 12B | Customer Supplied Motor Start Components, Mounted in Enclosure by SJE Rhombus | 34H | EZconnex® 4-Port, 50’, with 20’ Floats (3) / Pipe Clamp, Sealing Plug | ||||
| 35D | EZconnex® 4-Port, 25’, with 10’ Floats (4) / Pipe Clamp | ||||||
| 12C | Motor Start Components, Mounted and Supplied by SJE Rhombus | 35E | EZconnex® 4-Port, 50’, with 10’ Floats (4) / Pipe Clamp | ||||
| 35G | EZconnex® 4-Port, 25’, with 20’ Floats (4) / Pipe Clamp | ||||||
| 35H | EZconnex® 4-Port, 50’, with 20’ Floats (4) / Pipe Clamp | ||||||
- EZconnex® mechanically-activated, narrow-angle float switches with quick-release connections
- California Prop 65 requires the following:
- WARNING-Cancer and Reproductive
- Harm – www.P65Warnings.ca.gov
