INSTALLER FRIENDLY SERIES® (IFS)
SINGLE PHASE SIMPLEX CAPACITOR (START/RUN)
Demand Dose or Timed Dose, Float or C-Level™ Sensor Controlled System for Pump Control and System Monitoring
Instruction Manual
Panel layout may vary with options. Reg. Cdn Pat. & TM Off C-Level™ Sensor US Patent No. 8,336,385; 8,567,242; 8,650,949
IFS Single Phase Simplex Capacitor
The IFS simplex capacitor (start/run) control panel utilizes an innovative circuit board design to control one 120/208/240V single phase pump in water and sewage applications. IFS panels feature an easy-to-use touch pad on inner door for programming and system monitoring. The panel configuration can be easily converted in the field to either a timed dose or demand dose. Available with the EZconnex® float system.
The panel can utilize the C-Level™ sensor for continuous level monitoring. It senses the level in the tank and sends a signal to the panel. Pump activation levels can be adjusted by using the panel touch pad. C-Level™ CL40 sensor operating range is 3-39.9 inches (7.6-101.3 cm). C-Level™ CL100 operating range is 3-99.5 inches (7.6-252.7 cm).
NOTE: SJE Rhombus will warranty motor start kit components supplied by SJE Rhombus for one year. SJE Rhombus makes no warranty of any type with respect to motor start kits supplied by the customer.

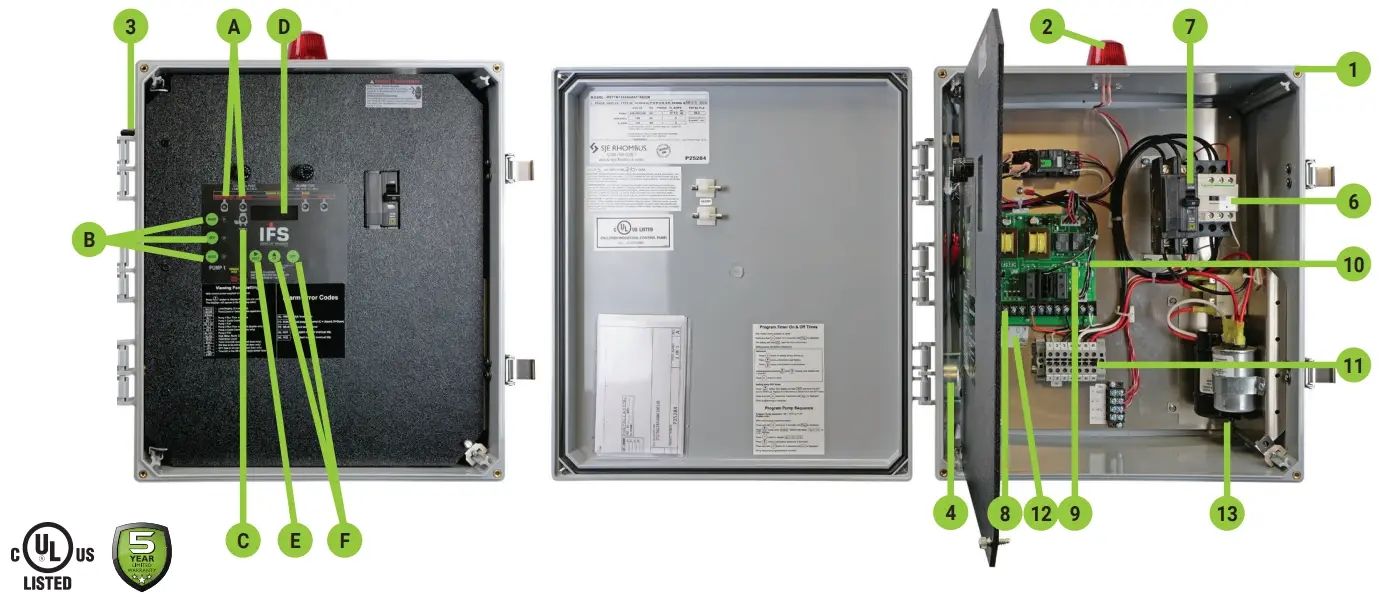

TOUCH PAD FEATURES
A. Level Status indicators illuminate when floats or set points are activated; alarm will activate if a float operates out of sequence
B. HOA (Hand-Off-Automatic) buttons control pump mode with indication; Hand mode defaults to Automatic when stop level or redundant off level is reached
C. Pump Run indicator will illuminate when pumps are called to run
D. LED Display for system information including: level in inches or centimeters (C-Level™ only), mode, pumps elapsed time (hh:mm), events (cycles), alarm counter, float error count, timed dose override counter (timed dose only), and ON/OFF times (timed dose only)
E. NEXT push button toggles display
F. UP and SET push buttons set pump ON/OFF times (timed dose only) and activation levels (C-Level™ only)
COMPONENTS
- Enclosure base measures 16 x 14 x 6 inches (40.64 x 35.56 x 15.24 cm); NEMA 4X (ultraviolet stabilized thermoplastic with removable mounting feet for outdoor or indoor use)
- Red LED beacon provides 360° visual check of alarm condition
- Exterior Alarm Test/Normal/Silence switch allows horn and light to be tested and horn to be silenced in an alarm condition; alarm automatically resets once alarm condition is cleared
- Alarm horn provides audio warning of alarm condition (83 to 85 decibel rating)
- Overload relay (optional) provides pump overload protection (Not shown)
- IEC motor contactor controls pump by switching electrical lines
- Circuit breaker (optional) provides pump disconnect and branch circuit protection
- Float and control/alarm incoming terminal block
- Control Power indicator/fuse indicator light illuminates if control power is present in panel; alarm will activate if control fuse is blown
- Alarm Power indicator/fuse indicator light illuminates if alarm power is present in panel
- Large pump connection power terminal block
- Terminal block float and control/alarm incoming power wiring label
- Ground lugs
Note: Options, voltage, and amp range selected may change enclosure size and component layout.
Note: Schematic/Wiring Diagram and Pump Specification Label are located inside the panel.
INSTALLER FRIENDLY SERIES® SINGLE PHASE SIMPLEX CAPACITOR (START/RUN) – Demand dose float controlled system for pump control and system monitoring.
| CONTROL PANEL | √ | IFS | |
| MODEL TYPE | √ | 7 | Single Phase Simplex Capacitor (includes Option 8AC as standard) |
| ALARM PACKAGE | √ | 1 | Alarm Package (includes test/normal/silence switch, fuse, red light, & horn) |
| ENCLOSURE RATING | √ | W | Weatherproof, NEMA 4X (engineered thermoplastic) |
| STARTING DEVICE | √ | 1 | 120/208/240V IEC Motor Contactor |
| PUMP FULL LOAD AMPS | 0 | 0 – 7 FLA | |
| 1 | 7-15 FLA | ||
| 2 | 15 – 20 FLA | ||
| 3 | 20 – 30 FLA | ||
| 4 | 30 – 40 FLA | ||
| PUMP DISCONNECTS | 0 | No Pump Disconnect | |
| 4 | Circuit Breaker | ||
| FLOAT SWITCH APPLICATION | H | Floats – Pump Down (select Option 17 below) | |
| L | Floats – Pump Up (select Option 17 below) | ||
| E | EZconnex Float Switch System (select Option 33 or 34 below) | ||
| X | No Floats WITH Alarm Package | ||
| C | C.-Lever” Sensor (select Option 24 or 29) Select Option 3E and/or 4A & 4D for high water alarm and/or redundant off floats |
NOTE: Pump down applications only. Industry practices suggest that a secondary device, such as a float switch, be used for redundant activation of the high level alarm and pump shut off when using the C-Level™ sensor.
Start/run capacitor kits must be ordered separately (see Option 12 below or call factory).
| OPTIONS | DESCRIPTION | ||
| 3A | Alarm Flasher | ||
| 3B | Manual Alarm Reset | ||
| 3E | High Water Alarm Float (must also select Option 17) Only Available with Float Switch Application = C | ||
| 4A | Redundant Off (must also select Option 4D if floats are required) | ||
| 4D | Redundant Off Float (must also select Option 4A and Option 17) | ||
| 5A^ | Thermal Cutout/Heat Sensor Auto Reset (for pumps with thermal switch leads) | ||
| 5E | Seal Failure Circuit and Red Indicator (2 Wire) | ||
| 6A | Auxiliary Alarm Contact, Form C | ||
| ✓ | 8AC | Display Board – Includes: ETM Counter, Events (Cycles) Counter, Alarm Counter (included as standard) | |
| 9_A | Pump Overload – Specify Amperage after Number 9 Followed by Letter “A” Example: 912A =12 amp pump | 0 – 30 FLA | |
| 30 – 40 FLA | |||
| 10E | Lockable Latch – NEMA 4X | ||
| 1 OF | Lightning Arrestor (must select pump circuit breakers, control and alarm power combined) | ||
| 10K | Anti-condensation Heater | ||
| 11 C | Additional NEMA 1 Remote Alarm Panel (must also select Option 6A) | ||
| 11 D | Additional NEMA 4X Remote Alarm Panel (must also select Option 6A) | ||
| 12B | Customer Supplied Motor Start Components, Mounted in Enclosure by SJE Rhombus | ||
| 12C | Motor Start Components Mounted and Supplied by SJE Rhombus | ||
| 16A | 10′ Cord in Lieu of 20′ Cord (per Float) | |
| 16B | 15′ Cord in Lieu of 20′ Cord (per Float) | |
| 16C | 30′ Cord in Lieu of 20′ Cord (per Float) | |
| 16D | 40′ Cord in Lieu of 20′ Cord (per Float) | |
| 17C | Sensor Float® / Internally Weighted (per Float) – Mercury | |
| 17D | Sensor Float® / Externally Weighted (per Float) – Mercury | |
| 17G | SJE MilliAmpMasterm / Pipe Clamp (per Float) – Mechanical | |
| 17H | SJE MilliAmpMasterw / Externally Weighted (per Float) – Mechanical | |
| 17J | Sensor Float® / Pipe Clamp (per Float) – Mercury | |
| 24E | C-Level'” CL40 Sensor with 4′ Vent Tube and 20′ Cord | |
| 24 F | C-Lever CL40 Sensor with 4′ Vent Tube and 40′ Cord | |
| 24G | C-Level'” CL40 Sensor with 8′ Vent Tube and 20′ Cord | |
| 24H | C-Level'” CL40 Sensor with 8′ Vent Tube and 40′ Cord | |
| 24X | No C-Level”” CL40 Sensor | |
| 29A | C-LevelTM CL100 Sensor with 10′ Vent Tube and 20′ Cord | |
| 29B | C-LevelTM CL100 Sensor with 10′ Vent Tube and 40′ Cord | |
| 29X | No C-LevelTM CL100 Sensor | |
| 33D ■ | EZconnex® 3-Port, 25′, with 10′ Floats (3) / Pipe Clamp | |
| 33E ■ | EZconnex® 3-Port, 50′, with 10′ Floats (3) / Pipe Clamp | |
| 33G ■ | EZconnex® 3-Port, 25′, with 20′ Floats (3) / Pipe Clamp | |
| 33H ■ | EZconnex® 3-Port, 50′, with 20′ Floats (3) / Pipe Clamp | |
| 34D ■ | EZconnex® 4-Port, 25′, with 10′ Floats (3) / Pipe Clamp, Sealing Plug | |
| 34E ■ | EZconnex® 4-Port, 50′, with 10′ Floats (3) / Pipe Clamp, Sealing Plug | |
| 34G ■ | EZconnex® 4-Port, 25′, with 20′ Floats (3) / Pipe Clamp, Sealing Plug | |
| 34H ■ | EZconnex® 4-Port, 50′, with 20′ Floats (3) / Pipe Clamp, Sealing Plug |
■ EZconnex® mechanically-activated, narrow angle float switches with quick release connections
California Prop 65 requires the following:
WARNING Cancer and Reproductive Harm – www.P65Warnings.ca.gov
www.sjerhombus.com
email: [email protected]
SEE PRICE BOOK FOR PRICING.
9500057J Rev 05/21
© 2020 SJE, Inc. All Rights Reserved.
SJE Rhombus is a trademark of SJE, Inc.
