INSTALLER FRIENDLY SERIES® (IFS)
SINGLE PHASE DUPLEX
Demand Dose or Timed Dose, Float or C-Level™ Sensor Controlled System for Pump Control and System Monitoring

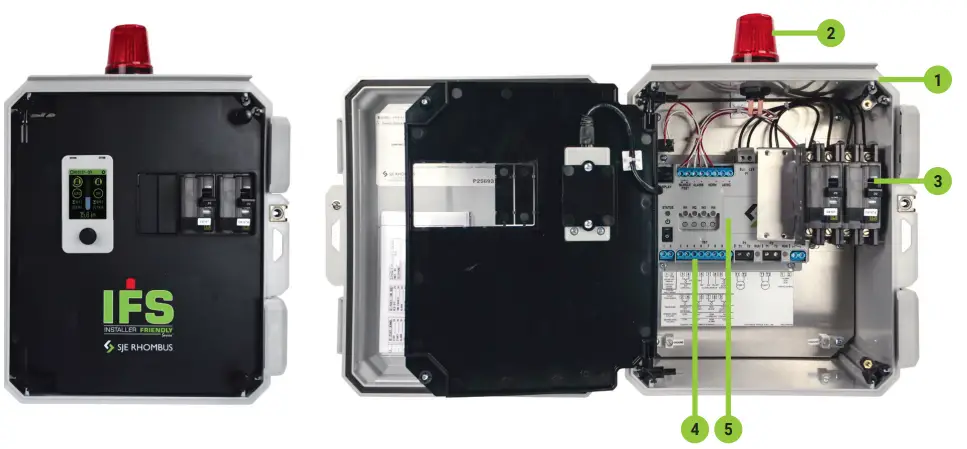

Single Phase Duplex
Panel layout may vary with options.
Reg. Cdn Pat. & TM Off
C-Level™ Sensor US Patent No. 8,336,385; 8,567,242; 8,650,949
The Next Generation IFS duplex control panel utilizes an innovative circuit board design enclosed in a touch-safe housing to control two 120/208/240V single phase pumps in water and sewage applications. These newly redesigned IFS panels feature an easy-to use color LCD interface located on the inner door for programming and system monitoring. The panel configuration can be easily converted in the field to either a timed dose or demand dose through the LCD interface. Available with the EZconnex® float system.
The panel can easily be changed in the field to utilize either floats or the patented C-Level™ sensor for continuous level monitoring. The C-Level™ sensor senses the level in the tank and sends a signal to the panel. Pump activation levels can be adjusted by using the LCD interface. C-Level™ CL40 sensor operating range is 3-39.9 inches (7.6-101.3 cm). C-Level™ CL100 operating range is 3-99.5 inches (7.6-252.7 cm). The C-Level™ Sensor features a five year limited warranty.
LCD INTERFACE FEATURES
- Full color graphics and menu navigation encoder for easy setup
- Touch safe housing
- Pump Hand/Off/Auto Control selectable via menu navigation
- C-Level™ Sensor or Float operation selectable via menu navigation
- Demand or Timed Dose operation selectable via menu navigation
- Tank Level Indication and setpoint monitoring at-a-glance
- Lead pump is easily identified by a graphic ring around the current lead pump regardless of control mode (timed dose or demand)
- Displays remaining time in each active ON or OFF Timed Dose mode, as well as at-a-glance ON or OFF time elapsed graphic around lead pump
- RJ45 communication connector
- Flashing function for alarm beacon and horn (configurable)
- Manual alarm reset (configurable)
COMPONENTS
- Enclosure measures 12 x 10 x 6 inches (30.48 x 24.4 x 15.24) NEMA 4X (ultraviolet stabilized thermoplastic, padlockable with integral mounting flanges, drip shield, heavy duty cover latches, and stainless steel ¼ turn set screw; for outdoor or indoor use)
- Red Alarm Beacon provides 360° visual check of alarm condition
- Circuit breakers provides pump power disconnect and branch circuit protection included as standard on all panels
- C-Level™ Sensor and float connection terminal blocks
- Controller Features:
a. Incoming Control/Alarm Power terminal blocks
b. Control/Alarm Power/System Status green LED indicators illuminate if control/alarm power is present and controller is operating*
c. Controller status green LED indicators for: Power/Active, Float Input Status, Pump Run, C-Level Active*
d. Normally open auxiliary alarm contacts included as standard
e. Control Power On/Off switch
f. Green LED Pump Run indicators illuminate when pump is called to run*
g. Control panel able to operate if LCD interface fails or is disconnected
h. Touch safe housing - Alarm Horn provides audible warning of alarm condition (not shown)
- Exterior Alarm Test/Silence push button allows horn and light to be tested and horn to be silenced in an alarm condition; alarm automatically resets once alarm condition is cleared (not shown)
- Modbus Port (RJ45) for future expansion – eg. seal fail modules, remote monitoring, valve control, In-Site® , logging, etc. (not shown)
*In fault condition, LED indicators will be red.
Note: Added options, voltage, and amp range selected may change enclosure size and enclosure features, and component layout.
Note: Schematic/Wiring Diagram and Pump Specification Label are located inside the panel.
INSTALLER FRIENDLY SERIES® SINGLE PHASE DUPLEX – Demand or timed dose float controlled system for pump control and system monitoring.
| IFN | 4 | 1 | W | 1 | 4 | 6A8AC10E | ||
| CONTROL PANEL | MODEL TYPE | ALARM PACKAGE | ENCLOSURE RATING | STARTING DEVICE | PUMP FULL LOAD AMPS | PUMP DISCONNECTS | FLOAT SWITCH APPLICATION | OPTIONS (LISTED BELOW) |
| CONTROL PANEL | ✓ | IFN | ||
| MODEL TYPE | ✓ | 4 | Single Phase Duplex (includes Options 6A, 8AC and 10E as standard) | $1,599.00 |
| ALARM PACKAGE | ✓ | 1 | Alarm Package (includes test/normal/silence switch, fuse, red light, & horn) | Base |
| ENCLOSURE RATING | ✓ | W | Weatherproof, NEMA 4X (engineered thermoplastic) | Base |
| STARTING DEVICE | ✓ | 1 | 120/208/240V | Base |
| PUMP FULL LOAD AMPS | 0 | 0 – 7 FLA | Base | |
| 1 | 7 – 15 FLA | Base | ||
| 2 | 15 – 20 FLA | $129.00 | ||
| PUMP DISCONNECTS | ✓ | 4 | Circuit Breaker 120/208/240V | Base |
| FLOAT SWITCH APPLICATION | H | Floats – Pump Down (select Option 17 below) Timed dose = redundant off, timer enable, alarm / Demand dose = stop, start, alarm (all systems will ship with 3 floats by default) | Base | |
| E | EZconnex® Float Switch System (select Option 33 or 35 below) | – $102.00 | ||
| X | No Floats | – $102.00 | ||
| C | C-Level™ Sensor (select Option 24 or 29) Select Option 3E and/or 4A & 4D for high water alarm and/or redundant off floats | – $102.00 |
NOTE: Pump down applications only. Industry practices suggest that a secondary device, such as a float switch, be used for redundant activation of the high level alarm and pump shut off when using the C-Level™ sensor.
PRICING WORKSHEET
IFS Duplex Base Price: $1,599.00
Alarm Package: —————————-
Enclosure Rating: —————————-
Starting Device: —————————-
Pump Full Load Amps: —————————-
Pump Disconnects: —————————-
Float Switch Application: —————————-
Total Options: —————————-
TOTAL LIST PRICE: —————————-
| OPTIONS | DESCRIPTION | LIST PRICE | ||
| 1J | Duo Alarm Inputs | $34.00 | ||
| 3E | High Water Alarm Float (must also select Option 17) Only Available with Float Switch Application = C | $34.00 | ||
| 4A | Redundant Off (must also select Option 4D) Only Available with Float Switch Application = C | Timed Dose | $0.00 | |
| Demand Dose | $72.00 | |||
| 4D | Redundant Off Float (must also select Option 4A and Option 17) | $34.00 | ||
| ✓ | 6A | Auxiliary Alarm Contact, Form C included as standard) | $0.00 | |
| ✓ | 8AC | Display Board – Includes: ETM Counter, Events (Cycles) Counter, Alarm Counter, and Override Counter (Timed Dose Only) (included as standard) | $0.00 | |
| ✓ | 10E | Lockable Latch – NEMA 4X (included as standard) | $0.00 | |
| 10F | Lightning Arrest or (must also select Option 15A) | $285.00 | ||
| 10K | Anti-condensation Heater (must also select Option 15A) | $124.00 | ||
| 11C | Additional NEMA 1 Remote Alarm Panel | $114.00 | ||
| 11D | Additional NEMA 4X Remote Alarm Panel | $368.00 | ||
| 15A | Control/Alarm Circuit Breaker | $112.00 | ||
| 16A | 10’ Cord in Lieu of 20’ Cord (per Float) | – $3.00 | ||
| 16B | 15’ Cord in Lieu of 20’ Cord (per Float) | – $2.00 | ||
| 16C | 30’ Cord in Lieu of 20’ Cord (per Float) | $6.00 | ||
| 16D | 40’ Cord in Lieu of 20’ Cord (per Float) | $18.00 | ||
| OPTIONS | DESCRIPTION | LIST PRICE | |
| 17C | Sensor Float® / Internally Weighted (per Float) – Mercury | $13.00 | |
| 17D | Sensor Float® / Externally Weighted (per Float) – Mercury | $15.00 | |
| 17G | SJE MilliAmpMaster™ / Pipe Clamp (per Float) – Mechanical | $0.00 | |
| 17H | SJE MilliAmpMaster™ / Externally Weighted (per Float) – Mechanical | $8.00 | |
| 17J | Sensor Float® / Pipe Clamp (per Float) – Mercury | $6.00 | |
| 19F | Timer Override Float (Timed Dose Float Panel Only) | $34.00 | |
| 24E | C-Level™ CL40 Sensor with 4’ Vent Tube and 20’ Cord | $349.00 | |
| 24F | C-Level™ CL40 Sensor with 4’ Vent Tube and 40’ Cord | $384.00 | |
| 24G | C-Level™ CL40 Sensor with 8’ Vent Tube and 20’ Cord | $354.00 | |
| 24H | C-Level™ CL40 Sensor with 8’ Vent Tube and 40’ Cord | $390.00 | |
| 24X | No C-Level™ CL40 Sensor | $0.00 | |
| 29A | C-Level™ CL100 Sensor with 10’ Vent Tube and 20’ Cord | $359.00 | |
| 29B | C-Level™ CL100 Sensor with 10’ Vent Tube and 40’ Cord | $396.00 | |
| 29X | No C-Level™ CL100 Sensor | $0.00 | |
| 33D ■ | EZconnex® 3-Port, 25’, with 10’ Floats (3) / Pipe Clamp | $313.00 | |
| 33E ■ | EZconnex® 3-Port, 50’, with 10’ Floats (3) / Pipe Clamp | $355.00 | |
| 33G ■ | EZconnex® 3-Port, 25’, with 20’ Floats (3) / Pipe Clamp | $337.00 | |
| 33H ■ | EZconnex® 3-Port, 50’, with 20’ Floats (3) / Pipe Clamp | $379.00 | |
| 35D ■ | EZconnex® 4-Port, 25’, with 10’ Floats (4) / Pipe Clamp | $442.00 | |
| 35E ■ | EZconnex® 4-Port, 50’, with 10’ Floats (4) / Pipe Clamp | $496.00 | |
| 35G ■ | EZconnex® 4-Port, 25’, with 20’ Floats (4) / Pipe Clamp | $473.00 | |
| 35H ■ | EZconnex® 4-Port, 50’, with 20’ Floats (4) / Pipe Clamp | $526.00 |
- EZconnex® mechanically-activated, narrow angle float switches with quick release connections
California Prop 65 requires the following:
WARNING Cancer and Reproductive Harm – www.P65Warnings.ca.gov
www.sjerhombus.com
E-mail: [email protected]
SEE PRICE BOOK FOR PRICING.
