VENTS MV 150 Plastic Ceiling/Wall Grille in White for 6 in. Duct Opening

INSTALLATION

TOOLS REQUIRED

• Pencil

• Drill

• Hammer

• Screwdriver

• Dowel 4 pcs

• Screws 4 pcs

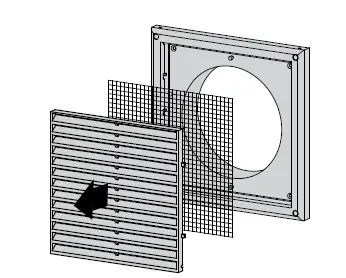

1. DISASSEMBLE THE HOOD

2. MARK FASTENING HOLES USING THE FRAME

3. DRILL HOLES ON THE MOUNTING SURFACE ACCORDING TO THE MARKING

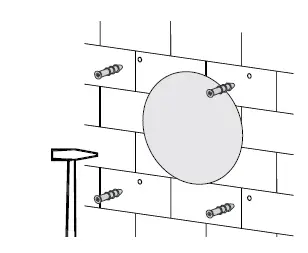

4. INSERT THE DOWELS IN THE HOLES.

5. FIX THE FRAME ON THE MOUNTING SURFACE WITH SCREWS.

6. INSTALL THE FILTER AND FIX THE HOOD ON THE FRAME USING THE LATCHES.
