Turbo Tube Pro Exhaust Duct Fan
INLINE FANS
Owner’s Manual
Turbo Tube Pro Exhaust Duct Fan
Standard Speed Switch Get Two fans in One!
ONE OF THE MOST POWERFUL FANS IN THE INDUSTRY*
SOLUTION FOR RESIDENTIAL AND COMMERCIAL VENTILATION
 |  |
TT PRO _ SUPER HIGH-POWERED INLINE FANS
TT PRO _ SUPER HIGH-POWERED INLINE FANS
SOLUTION FOR:
- KITCHENS
- POOLS
- STORES
- BARS
- RESTAURANTS
- OFFICES
- MANUFACTURING FACILITIES AND MORE

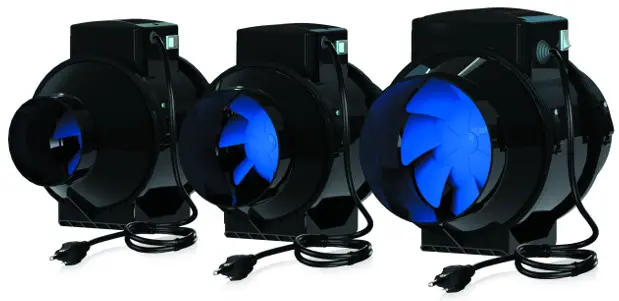

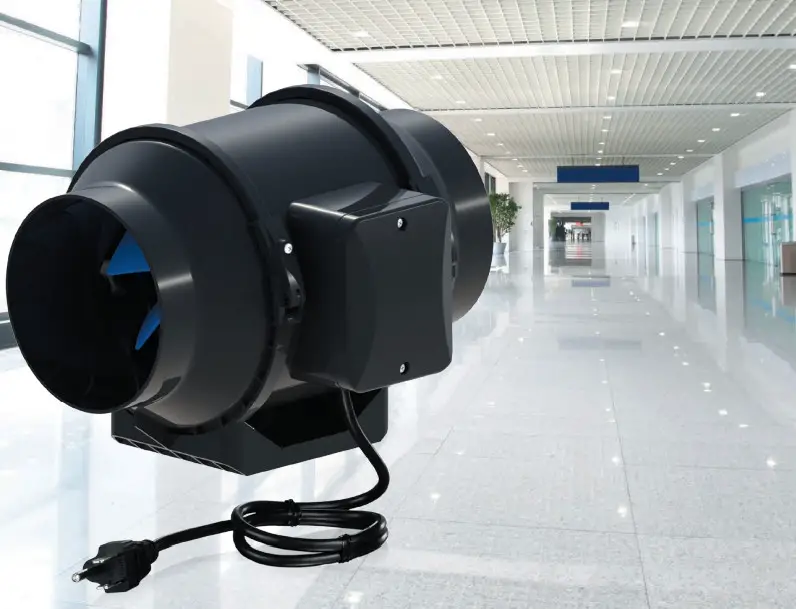

TURBO TUBE PRO series is the NEW IDEAL ENGINEERING SOLUTION for premises where powerful, airflow is required.
The combination of a UNIQUE MOTOR, POWERFUL MIXED FLOW IMPELLER and SPECIAL AERODYNAMIC CASE enables the TURBO TUBE PRO fans to deliver SUPERB AIRFLOW PERFORMANCE even at HIGHER STATIC PRESSURE typically found in extensive ventilation systems.
New TURBO TUBE PRO fans are POWERFUL, work on HIGH PRESSURE SYSTEMS!
BENEFITS
- HIGH PERFORMANCE: up to 372 CFM
- ENERGY EFFICIENT: 39 – 81 W
- DUCT COMPATIBILITY: Ø 4”, 5”, 6”
- HIGH PRESSURE
- DOUBLE-SPEED CAPACITOR MOTOR WITH THERMAL OVERLOAD PROTECTION
- LONG-LIFE BALL BEARING (up to 40 000 hours)
- VIBRATION FREE OPERATION
- BUILT-IN 2-SPEED SWITCH & POWER CORD INCLUDED
- ROTARY AND REMOVABLE CENTRAL “BODY” FOR EASY INSTALLATION & MAINTENANCE
- COMPACT SIZE FOR LIMITED SPACES
- LIGHTWEIGHT, DURABLE AND UV RESISTANT PLASTIC CASE (FLAME RATING – 5VA)
- CORROSION FREE
INNOVATIVE DESIGN
AERODYNAMIC CASE
The unique motor and special aerodynamic case combination enables the fans to deliver superb airflow performance even at higher static pressure.
NEWLY DESIGNED IMPELLER
The newly designed impeller, due to the specifically changed angle of inclination, provides the most powerful airflow at any pressure in ventilation systems.
EASY TO INSTALL & CLEAN

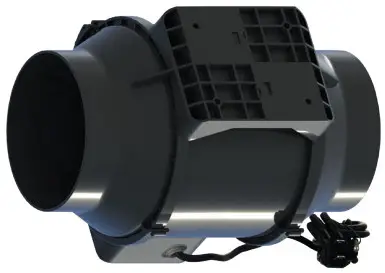

The Removable Body, including motor, impeller and junction box, is the Ultimate Solution for Easy Installation & cleaning.
EASY CONNECTION

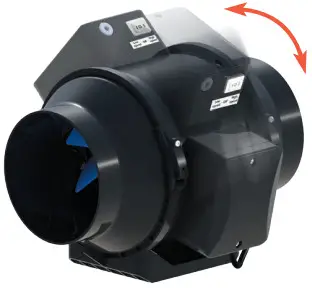

The Removable Body with the junction box can be rotated 180º to Facilitate Mounting and Wiring.
BUILT-IN SPEED CONTROL

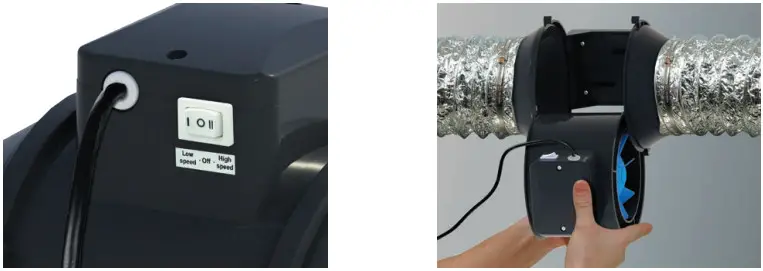

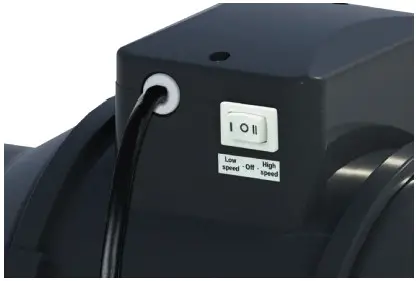

The Double-speed Motor is controlled with a Built-in Speed Switch.
INTEGRATED MOUNTING BRACKET
EASY INSTALLATION

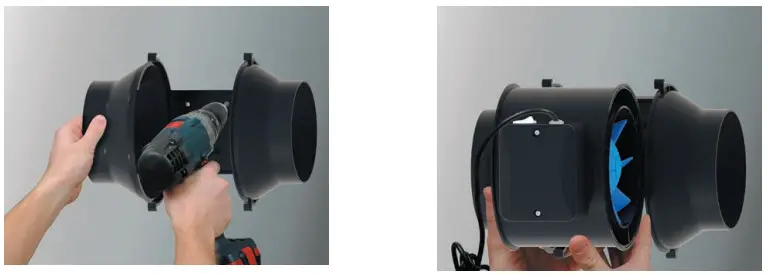

| Fix the fan mounting plate on the flat surface. | Install the removable body” inside the fan case. |
 | |
| Lock the removable body by clamps with latches. | Secure latches by screws. |
 | |

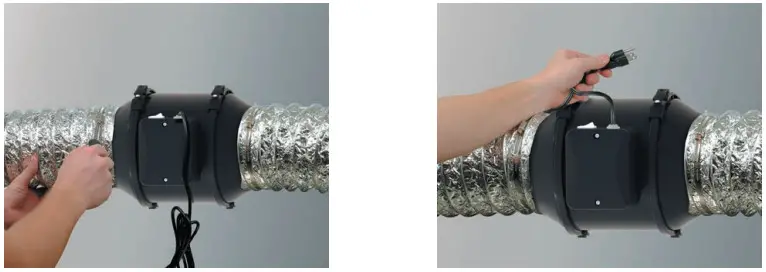

| Attach the ducts with clamps. | Insert the plug into electrical socket – the fan is READY to GO! |
 | |
| Select a required speed by the built-in speed switch. ENJOY the FRESH AIR. | Forget about dismantling! Just remove the central body from the case and complete the servicing! |
 | |
Turbo Tube PRO product sheet

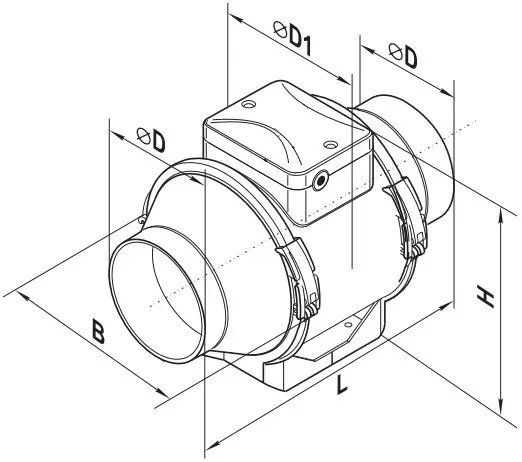

DIMENSIONS
| Model | Measurements [in.] | lbs | ||||
| ØD | ØD1 | B | H | L | ||
| TT PRO 100 | 3 7/8” | 5 1/2” | 7 5/8” | 8 7/8” | 12” | 4.0 |
| TT PRO 125 | 4 7/8” | 6 3/8” | 7 1/2” | 8 7/8” | 10 1/8” | 4.0 |
| TT PRO 150 | 5 7/8” | 7 3/4” | 8 1/2” | 9 7/8” | 11 3/8” | 6.0 |

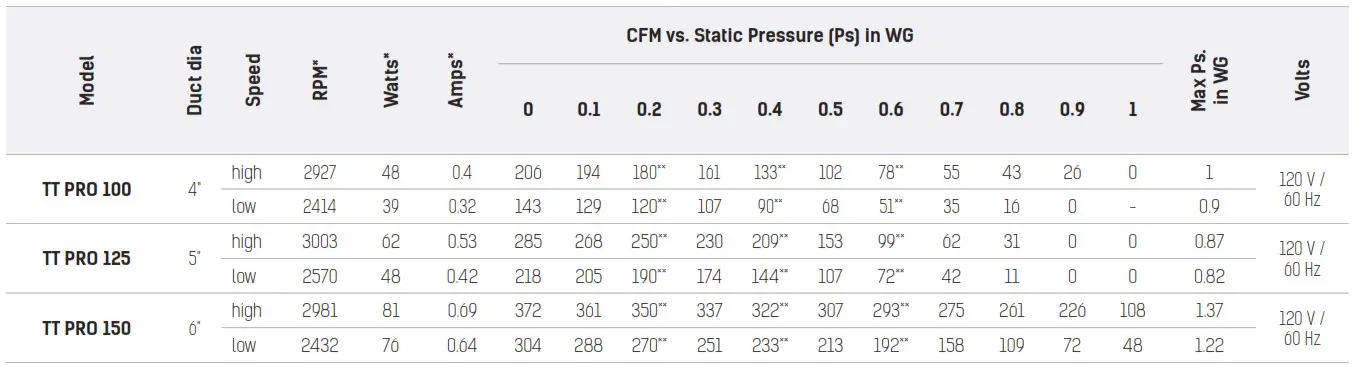

PERFORMANCE
* The parameters RPM, Watts, Amps are indicated at 0.2 in WG static pressure.
** HVI rated
SPECIFICATIONS
| Voltage: 120 V / 60 Hz | Suitable for working airstreams up to 140 °F |
| Motor: single-phase asynchronous two speed motor | IPX4 protection |
| Duct compatibility: Ø 4”, 5”, 6” | Thermal overload protection |
| Airflow capacity: up to 372 CFM | Power cord included |
| Power consumption: 39 – 81 W | Two year warranty |
Tel: 888-640-0925
513-348-3853
Fax: 513-268-4597
[email protected]
VentsUS.com
400 Murray Rd, Cincinnati, OH 45217
www.vents-us
