ESM32D 32 Inch Network Digital Menu Boards
Instruction Manual

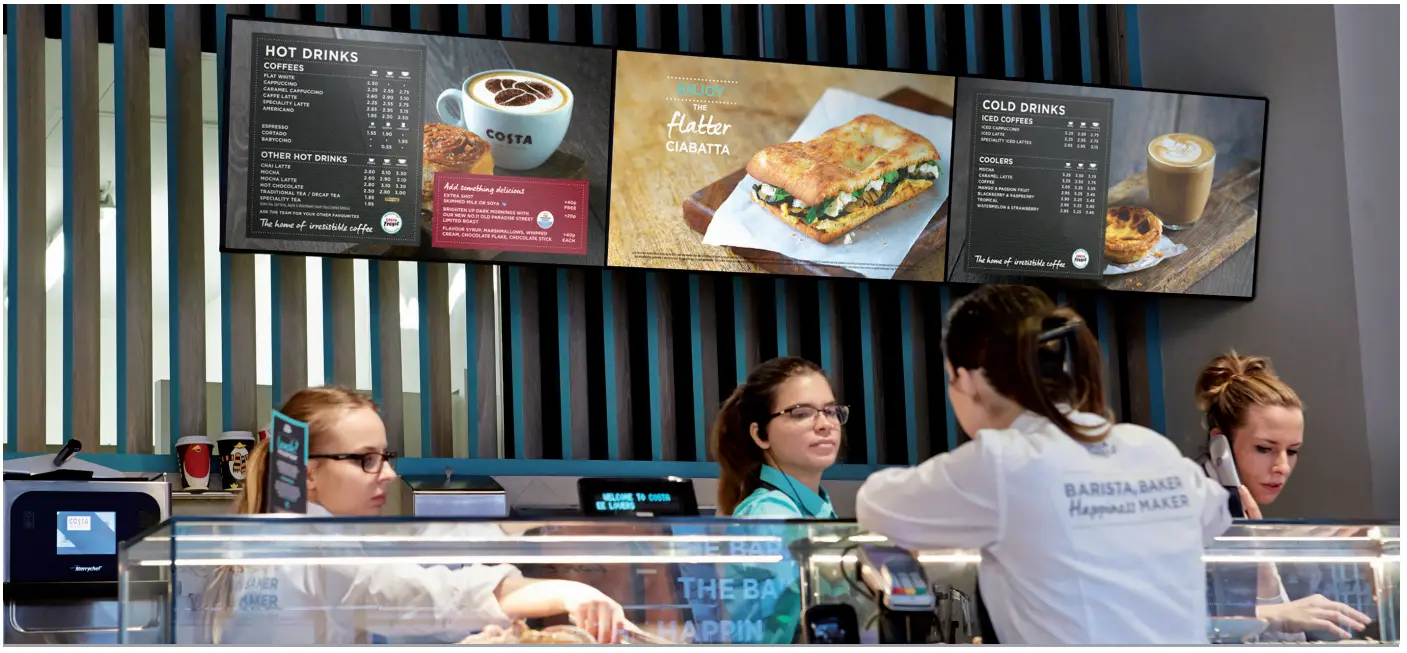

Network Digital Menu Boards
32″ | 43″ | 50″ | 55″
Cost-effective package solution; 24/7 commercial grade displays with built-in network media player and 1-year CMS software subscription

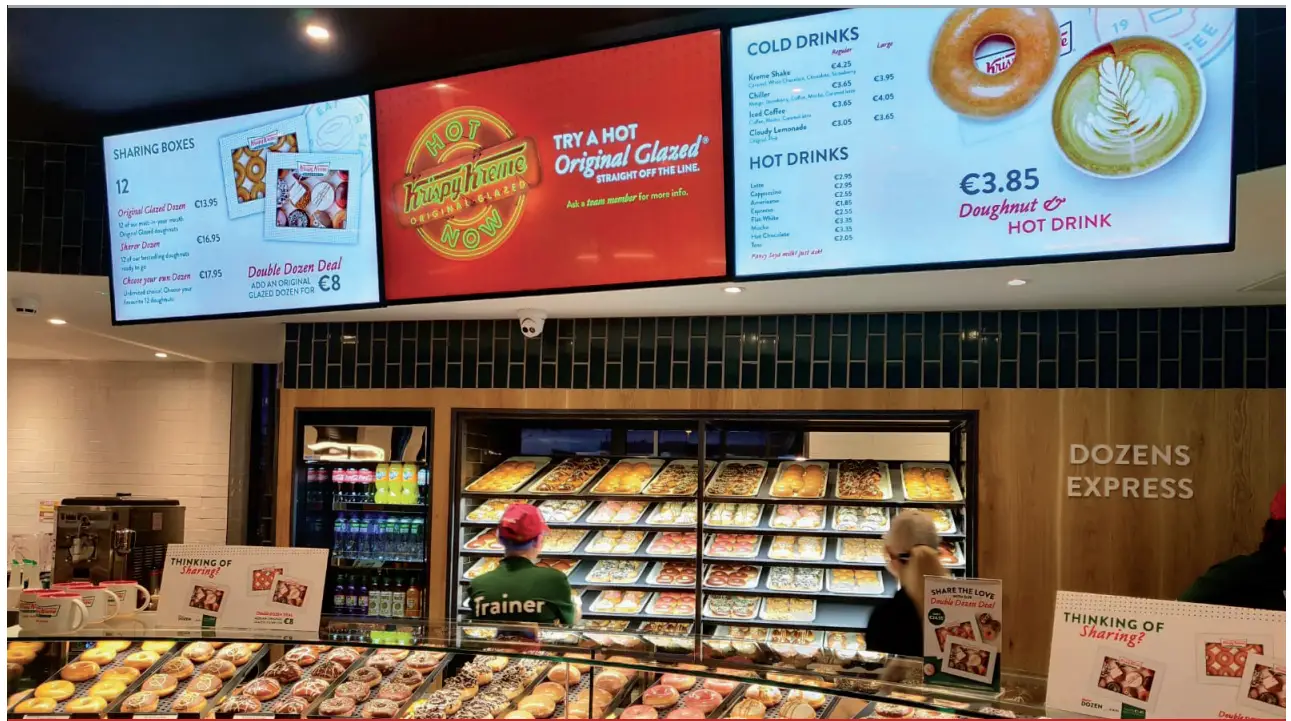

Complete Package Solution
We have combined a 24/7 commercial display, a network Android media player, one year of free CMS software, and a library of pre-designed templates for the ultimate package solution.
1st Year Free Software Subscription
The first year of using our cloud-based CMS is absolutely free. You can also purchase 3 additional years’ access at the point of purchase or make a one-off payment to have access for life.

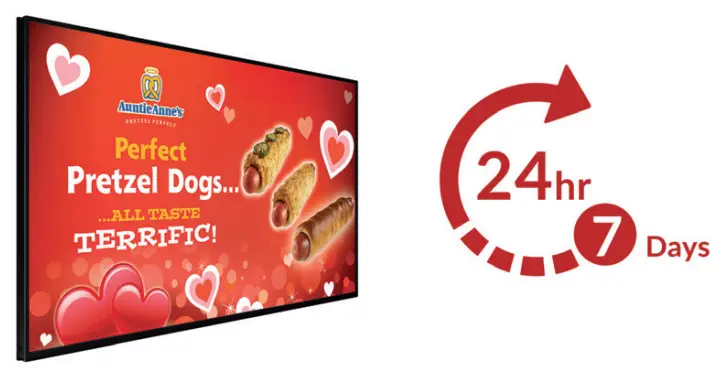

24/7 Commercial Use
These displays use a commercial-grade LCD panel and LED backlight. They have the ability to be in constant use 24/7 for over 70,000 hours and have no external buttons or controls to avoid tampering.

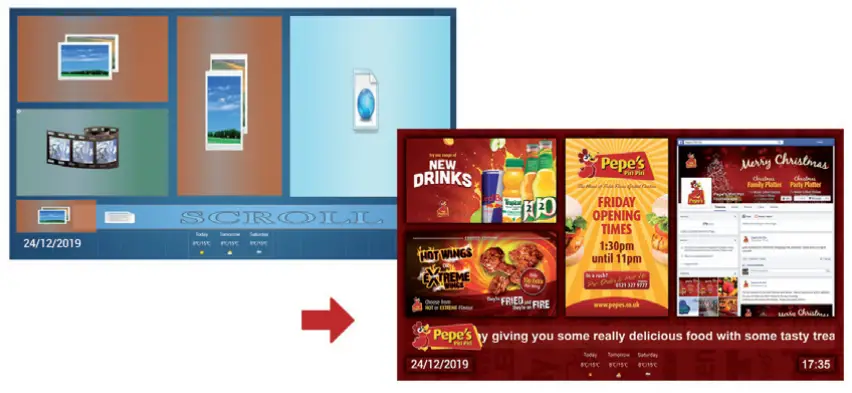

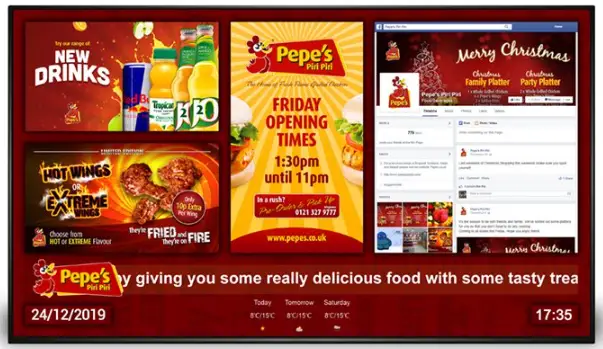

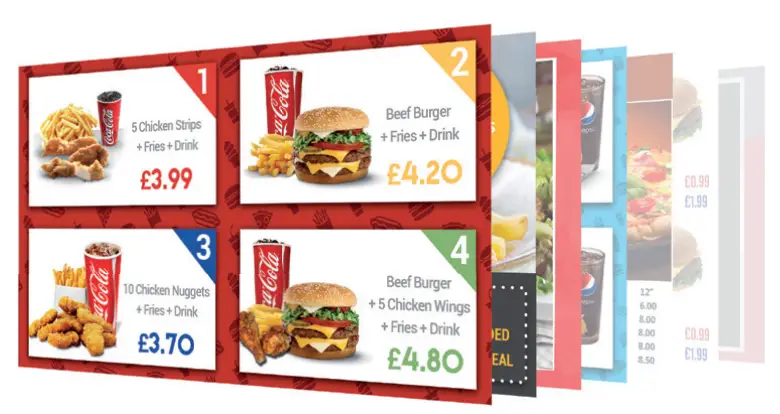

Exclusive Template Library
As well as being able to create your own layouts you can choose from our exclusive library of pre-design editable templates. Choose an existing layout, add your own images and information then publish it to your screen.
Other Features
450cd/m2 IPS Panel
Commercial-grade IPS technology accurately displays image quality and color depth with no fall-off in color accuracy. These panels are designed to achieve the ultimate lifelike color temperature when used in either landscape or portrait.

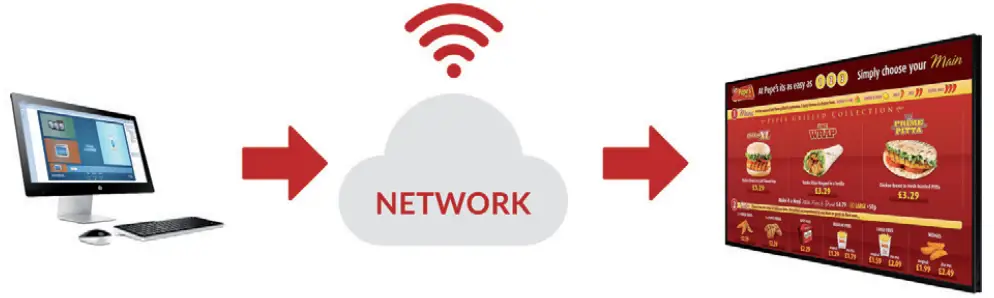

Update Instantly and From Anywhere
No special software installation or dedicated PC is required, simply login to our online your portal and update your screens from anywhere in the world with an internet connection.
Multi-Screen Synchronisation
Create stunning content across multiple displays or just have your menus change at the same time.
Narrow Bezel
The slim border on the Digital Menu Boards allows your menu to take center stage especially when multiple displays are placed side by side.

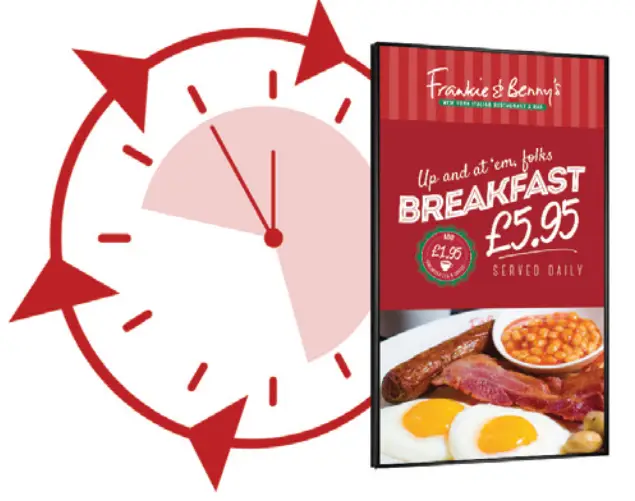

Power Timer
The eco-friendly power timer allows you to assign daily or weekly on and off times for your screen meaning that it is only in use when it needs to be; improving your environmental efficiency.

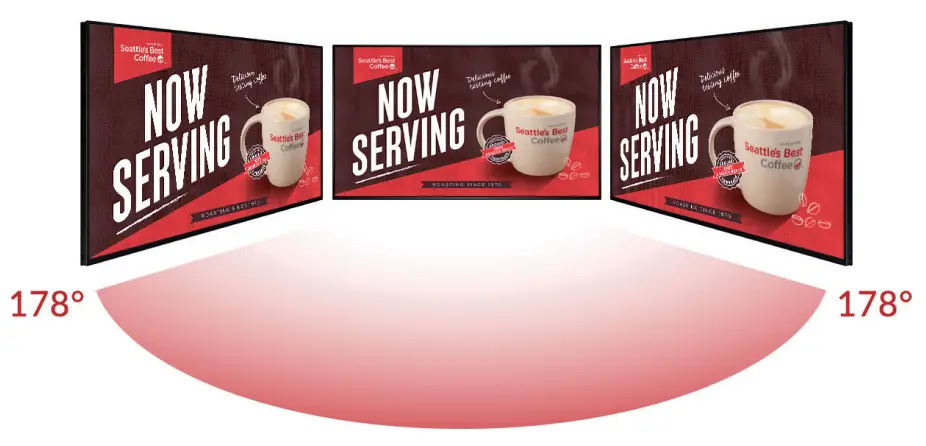

Wide Viewing Angle
Thanks to the IPS technology these displays provide fantastic image quality with a remarkable viewing angle of 178° in both landscape and portrait.

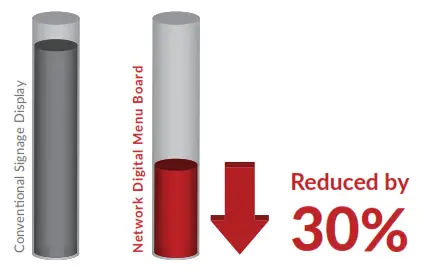

Low Power Consumption
The LED backlight technology provides improved brightness and contrast. Their lifespan is drastically improved to over 70,000 hours and the power consumption is reduced by around 30%.

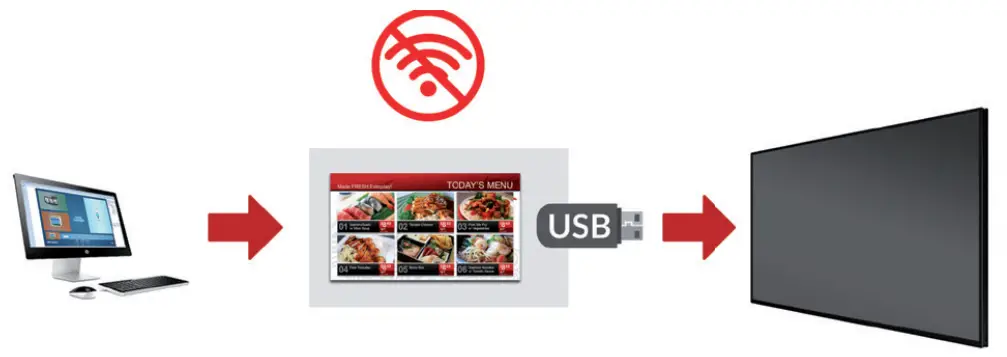

Plug and Play Backup
If you lose your internet connection you can still update the screen using a USB stick to keep things simple.

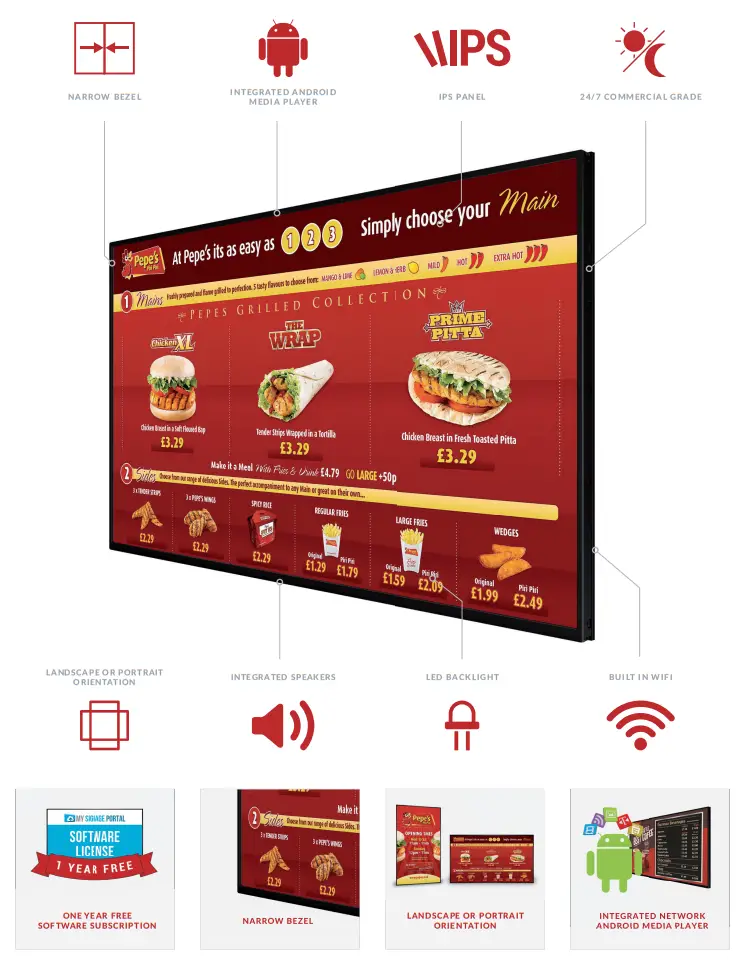

Key Features
Specification Table
…………………………………………………………………………32 Inch……………………….43 Inch……………………….50 Inch………………………55 Inch
| Panel | Resolution | 1920×1080 | |||
| Display Area (mm) | 698.4×393 | 941.2×529.4 | 1073.8×604 | 1209.6×680.4 | |
| Aspect Ratio | 16:9 | ||||
| Brightness (cd/m2) | 450 | ||||
| Colour | 16.7M | ||||
| Viewing Angle | 178° | ||||
| Contrast Ratio | 4000:1 | ||||
| Audio Speaker Type | 5W, 8Ω (x2) | ||||
| AV Inputs | Video | HDMI, VGA | |||
| Audio | Audio Socket (3.5mm) | ||||
| Power | Power Consumption (W) | 38 | 45 | 55 | 65 |
| Input Voltage | AC110~240V (50Hz~60Hz) | ||||
| Mechanical | Unit Size (WxHxD mm) | 716.2x415x45.95 | 963.6×557.9×46.1 | 1090.4×621.3×56.9 | 1232×708.9×50.4 |
| Package Size (WxHxD mm) | 870x565x170 | 1067x660x163 | 1238x760x195 | 1380x835x195 | |
| VESA Holes (mm) | 400×200 | 400×400, 400×200 | 400×200 | ||
| Net Weight (kg) | 8.6 | 11.25 | 19.3 | 18 | |
| Gross Weight (kg) | 11.8 | 15.2 | 24 | 23.95 | |
|
Environmental | Operating Temperature | 0 °C to 50 °C | |||
| Storage Temperature | -30°C to 60°C | ||||
| Operating Humidity | 10% to 80% | ||||
| Storage Humidity | 5% to 95% | ||||
| Computer | Media Formats | Video (MPG, AVI, MP4, RM, RMVB, TS), Audio (MP3, WMA), Image (JPG, GIF, BMP, PNG) | |||
| Media Resolution | 1920×1080/1080×1920 | ||||
| Internal Memory | 6GB | ||||
| CPU | Quad-Core ARM Cortex A17, 1.6GHz | ||||
| GPU | Quad-Core ARM Mali-T764 | ||||
| RAM | 2GB DDR3 | ||||
| ROM | 8GB eMMC | ||||
| USB | 1 x USB (OTG/HOST), 1 x USB (HOST) | ||||
| LAN | 10/100M Ethernet | ||||
| Wi-Fi | 802.11b/g/n/ac | ||||
| OS | Android 7.1 | ||||
| Graphic Engine | OpenGL ES 1.1/2.0/3.0/3.1, OpenCL 1.1, Renderscript, Direct3D 11.1 | ||||
| Accessories | Included | Scheduling Software, Remote Control, User Manual | |||
| Optional | Wall Mount, Floor Stand/Trolley, Ceiling Mount, Table Stand | ||||
| Warranty | Warranty Period | 3 Year Warranty | |||
| Technical Support | Lifetime | ||||
Errors and omissions excepted
