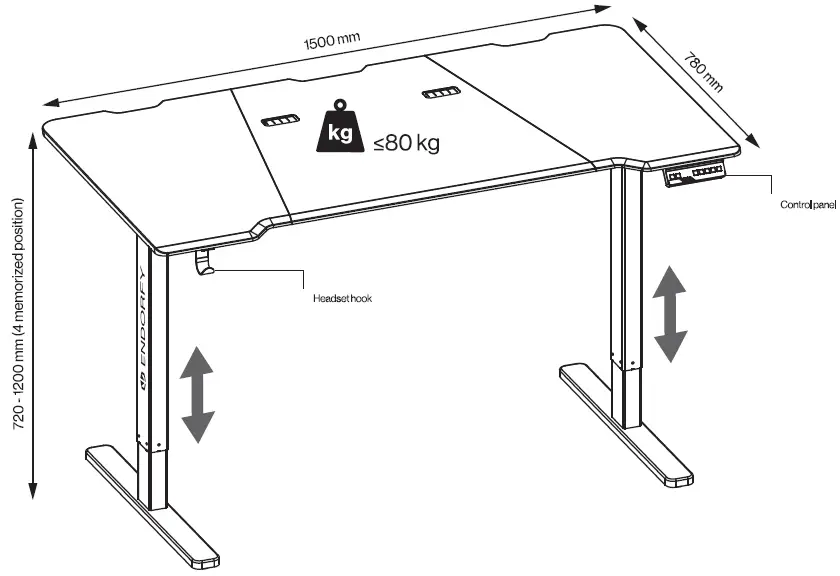

ENDORFY EY8E004 Atlas L Electric Gaming Desk

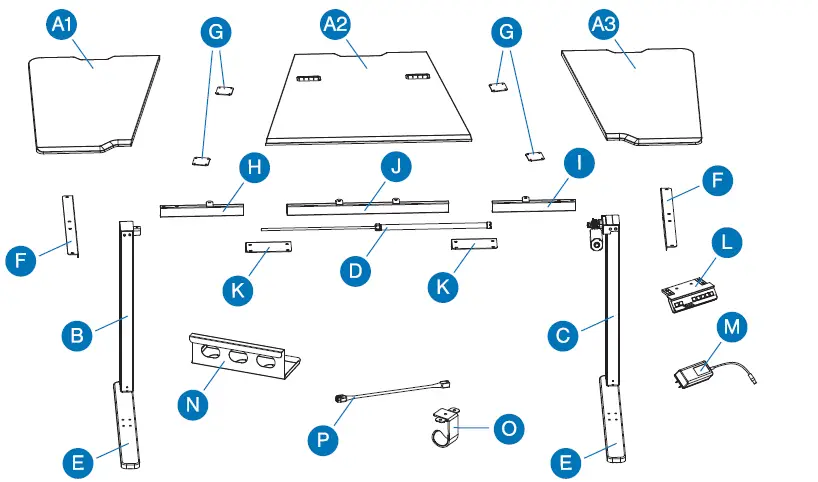

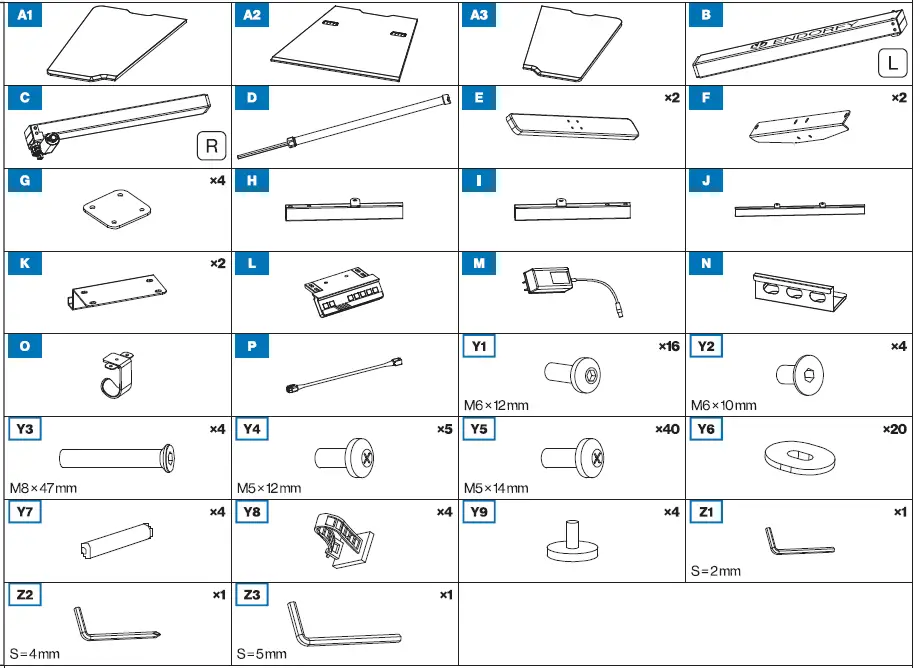

PARTS
ACCESSORIES
SPARE PARTS

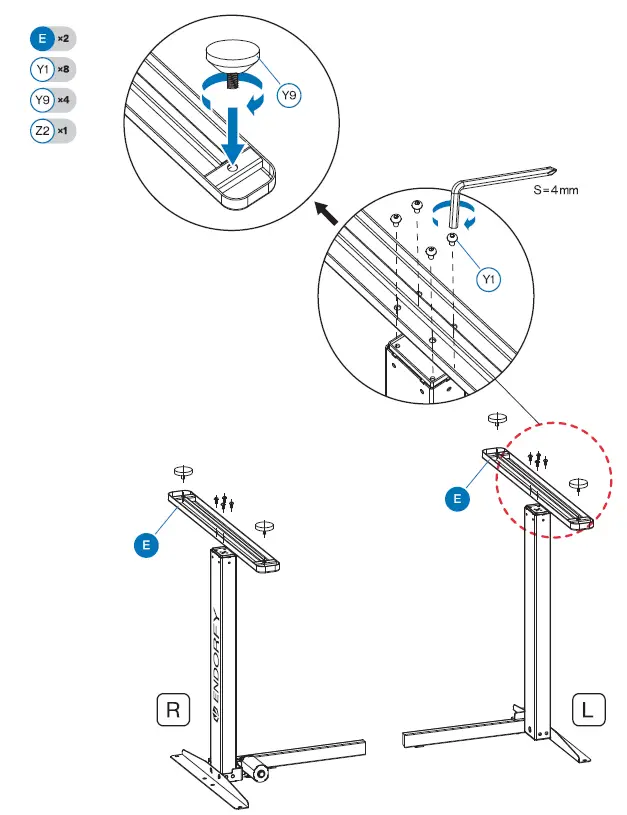

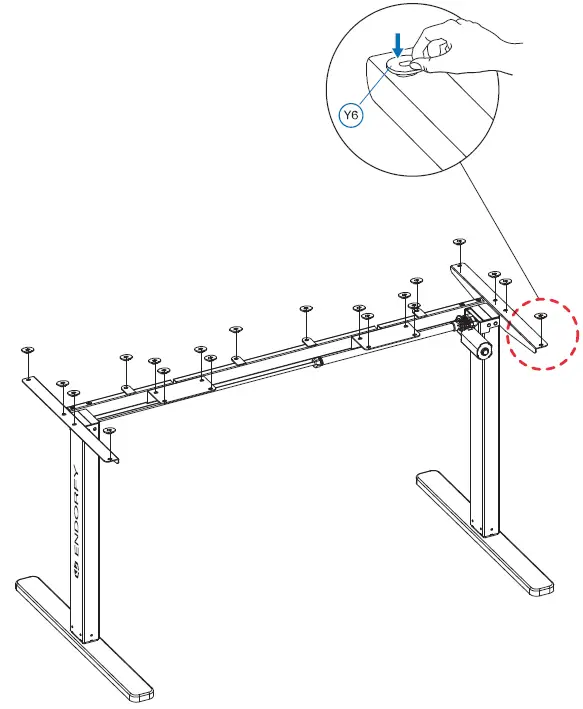

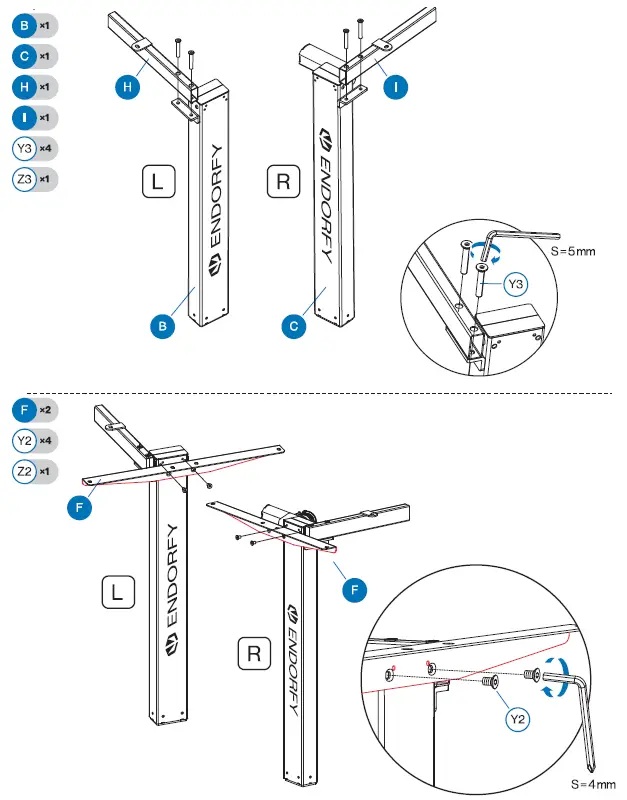

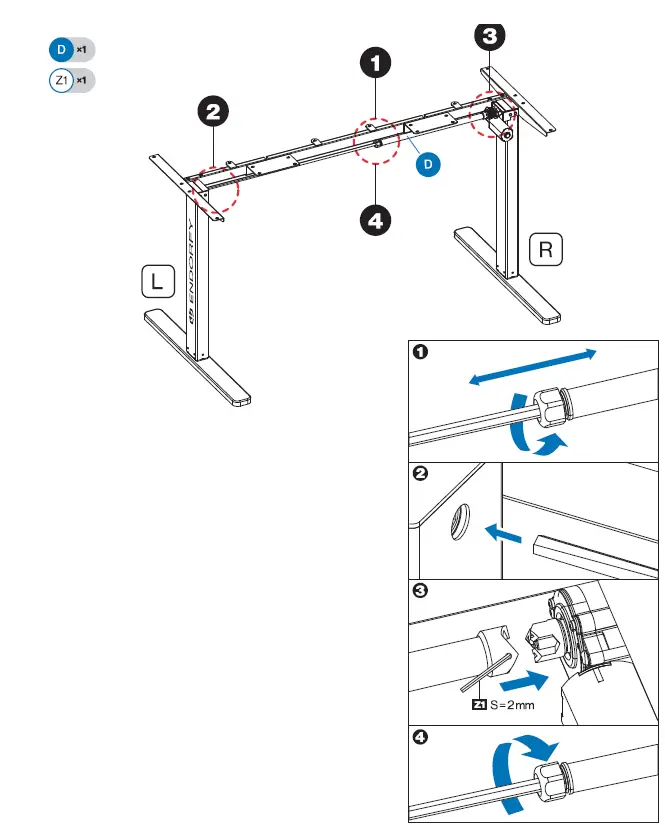

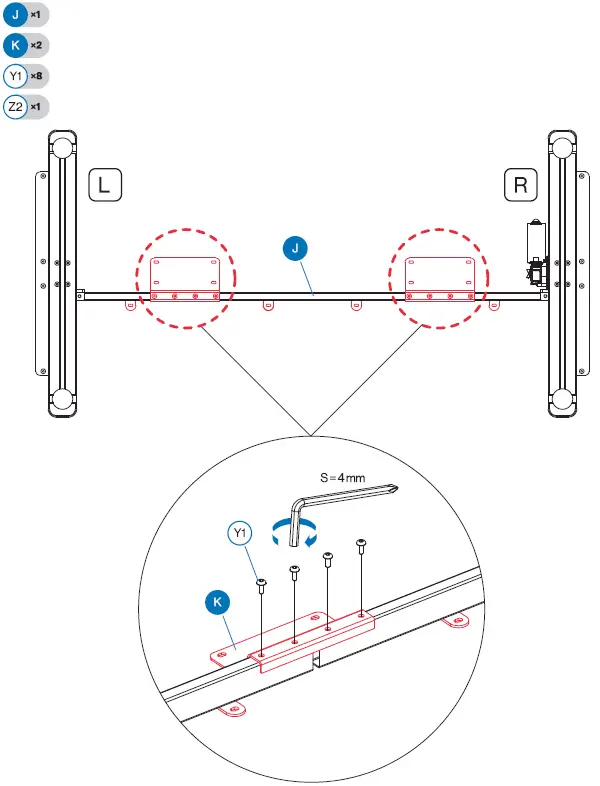

ASSEMBLY

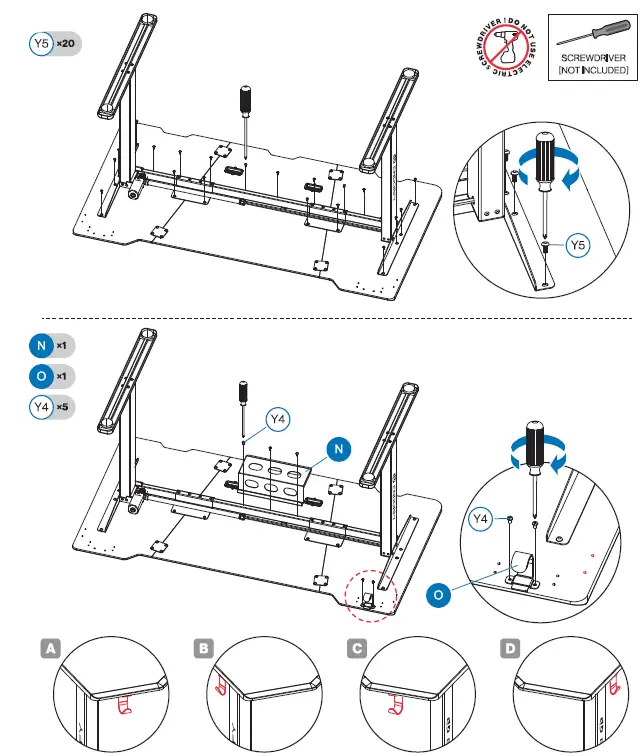

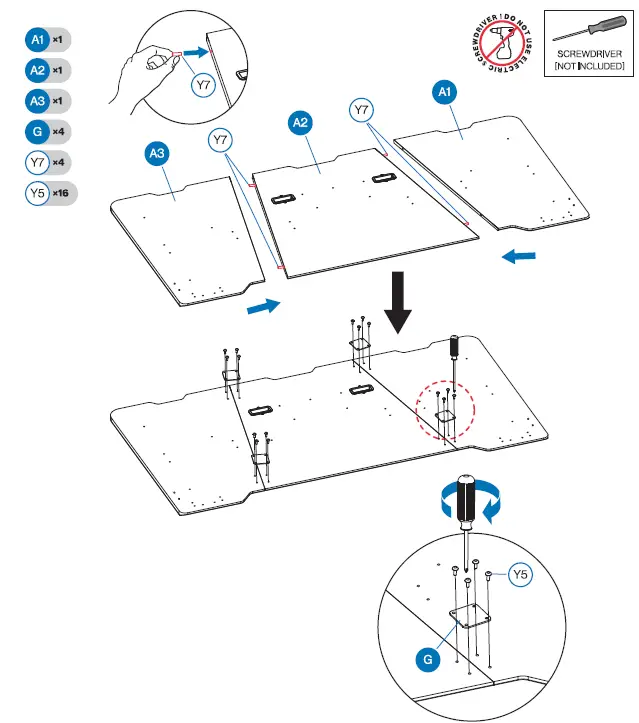

Please tighten the screws gently to avoid any damages. Screwdriver (not included).

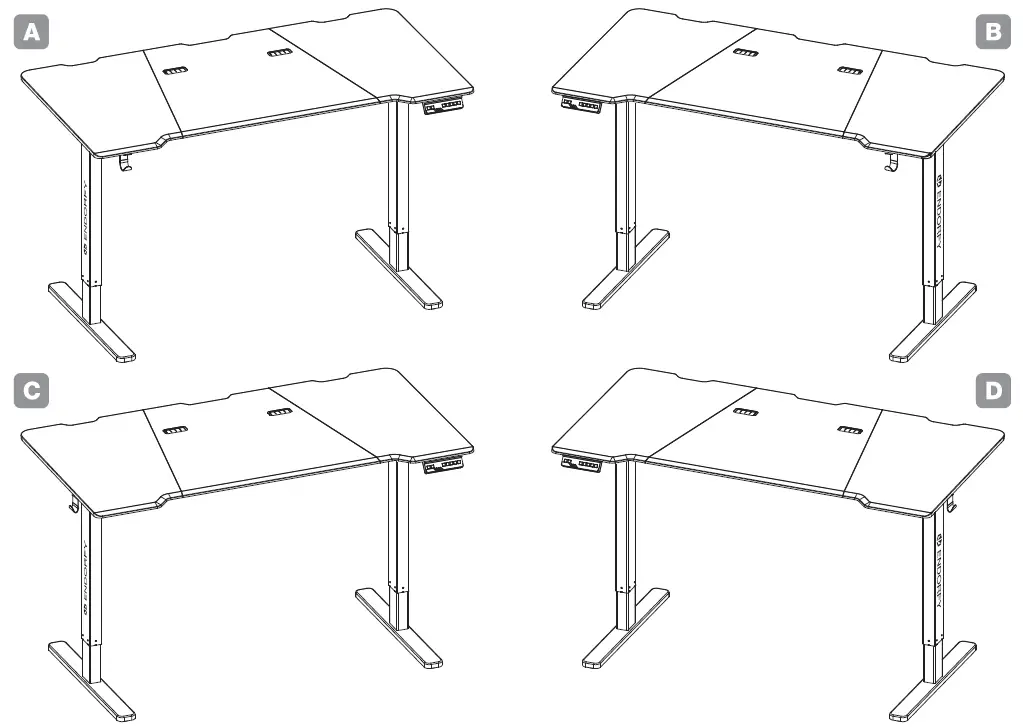

Different position could be choised for headset hook.

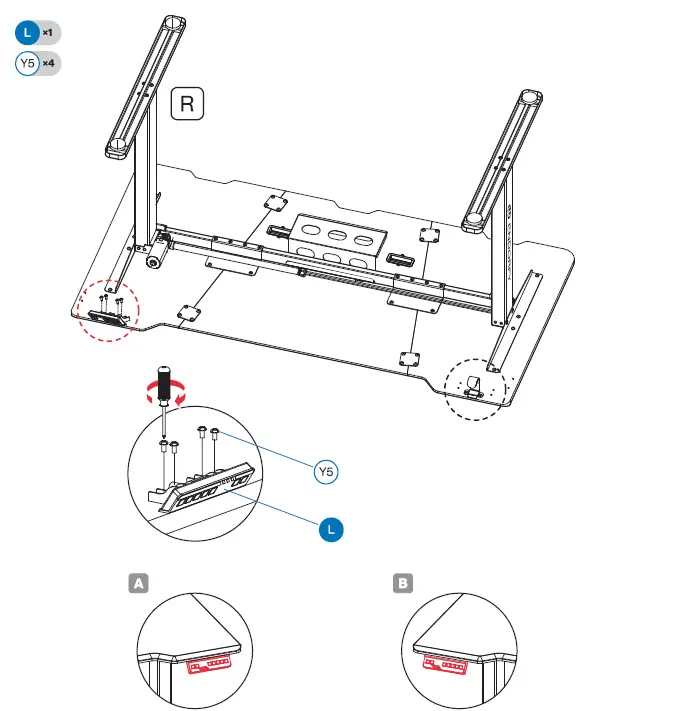

Controller: left and right position could be choised on our requirement

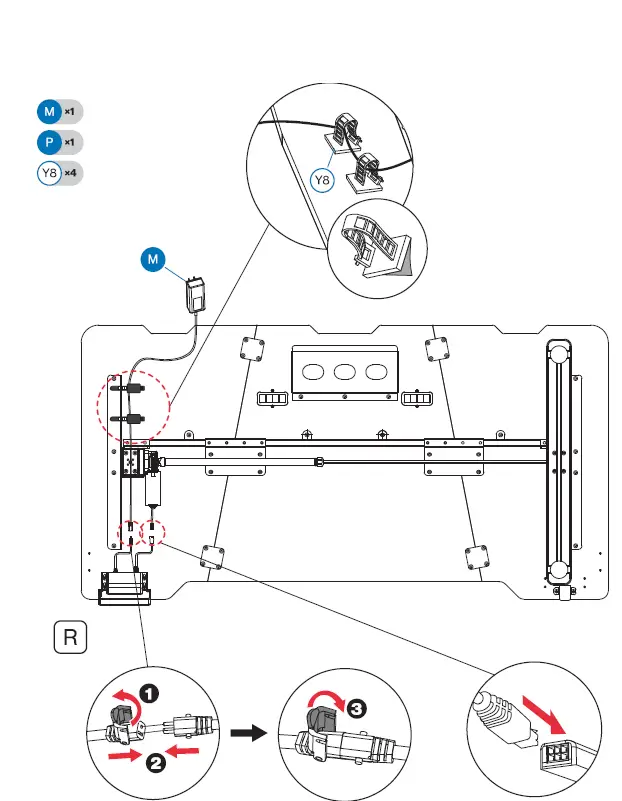

Caution: extension cord (P) have to be used if controller is installed at the left side.
Well done, vou can now plug in power adapter.

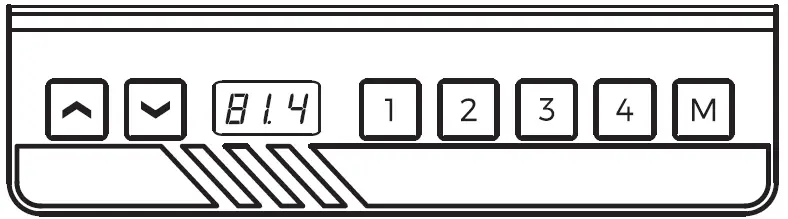

CONTROL PANEL
Move up
Move down
- Height preset 1
- Height preset 2
- Height preset 3
- Height preset 4
Memory button: press it (LED display will start flashing) and then press 1 / 2 / 3 / 4 to save preset.

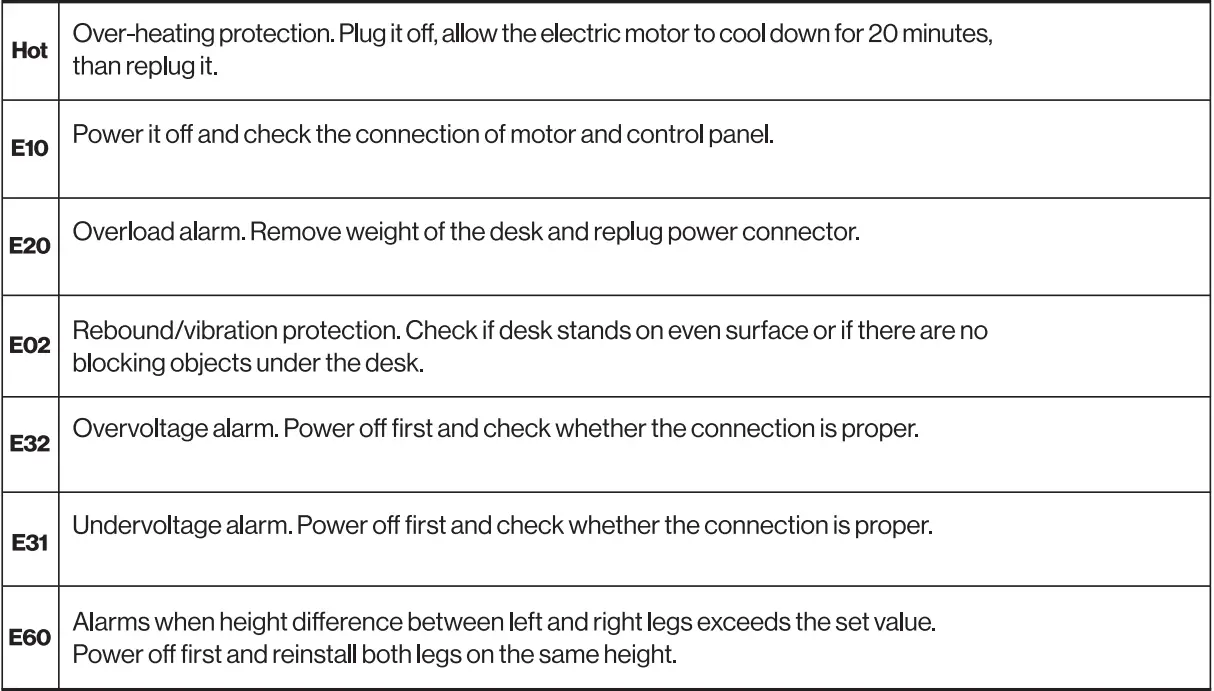

TROUBLESHOOTING
RESET
Adiust desk to the lowest position (by pressing ).
In the lowest position click and hold button for 5 seconds.
SCAN THE QR CODE
