LITHONIA LIGHTING RAZ 9IN Rayzer Modular LED Lighting System
FEATURES
INTENDED USE
Provides task or accent lighting in commercial, retail, hospitality, and residential applications. Ideal for use under and over cabinets, display cases, task lighting, office lighting, coves, and utility/work areas.
CONSTRUCTION
Durable aluminum construction in a low-profile design. A frosted acrylic diffuser and a continuous row of LEDs provide even illumination.
ELECTRICAL
Link up to 7.5’ of a modular system to one transformer (required, sold separately). Fixtures can be linked end-to-end with the included end row connector (1-3/8″ spacing) or 18″ linking cord). 3”, 24” and 121” connector cords may also be purchased separately for use between fixtures. Can be plugged in or direct-wired (splice box and 24″ connector cord required for direct-wiring).
OPTICS
LEDs have a 50,000-hour L70-rated life. Provides a warm color temperature at 3000K, with 95 CRI.
Dimmable when used with the optional step dimmer (sold separately).
INSTALLATION
All mounting hardware is included. Mounting clips allow for quick & easy installation. Can be flush mounted or angled at 30° using the provided clips. All configurations tested to IES LM79 standards.
LISTING
UL is listed to US and Canadian safety standards.
WARRANTY
5-year limited warranty. This is the only warranty provided and no other statements in this specification sheet create any warranty of any kind. All other express and implied warranties are disclaimed. Complete warranty terms are located at: www.acuitybrands.com/support/warranty/terms-and-conditions.
NOTE:
Actual performance may differ as a result of end-user environment and application. All values are designed or typical values, measured under laboratory conditions at 25 °C.
Specifications are subject to change without notice.
ORDERING INFORMATION
For the shortest lead times, configure products using bolded options.
Example: RAZ 12IN 30K 90CRI
| Series1,2 | Length | Color temperature | CRI | Finish | |||||
| RAZ | Rayzer low profile LED undercabinet | 9IN 12IN 18IN 24IN | 9″ nominal 1′ nominal 1.5′ nominal 2′ nominal | 30K | 3000K | 90CRI | >90 | (blank) | Brushed nickel |
Accessories/Replacement Parts1,2
| Accessories /Replacement Parts1,2 | |
| RAZTRANS24 120 24v transformer – 120v power source, includes 5′ cord and plug and 24″ connector cord (for linking to first fixture) RAZTRANS24 MVOLT 24v transformer – Multi-Volt power source, includes integrated direct-wire junction box and 24″ connector cord (for linking to first fixture) RAZDIM Step dimmer with remote touchpad, 10′ cord length on remote touchpad RAZ CC121 121” Linking cord (fixture to fixture) RAZ CC24 24” linking cord (fixture to fixture) RAZ CC3 3” linking cord (fixture to fixture) RAZLVCC Low voltage linking cord (cord to cord), to connect multiple linking cords | RAZ ERC End row connector (fixture to fixture, 1 3/8″ fixture spacing, 1 connector per pack) RAZ PHD Power hub distributor allows for additional fixture run RAZ INLS26 In-line power switch (transformer to linking cord, 26″ cord length) UCD JB Splice box – white (required for 120V direct wire) UCD JB BL Splice box – black (required for 120V direct wire) UC ERC24 24” connector cord – white (required for 120V direct wire for splice box to transformer connection) |
Notes
- Link up to 7.5’ of a modular system to one transformer.
- The transformer is required for operation.

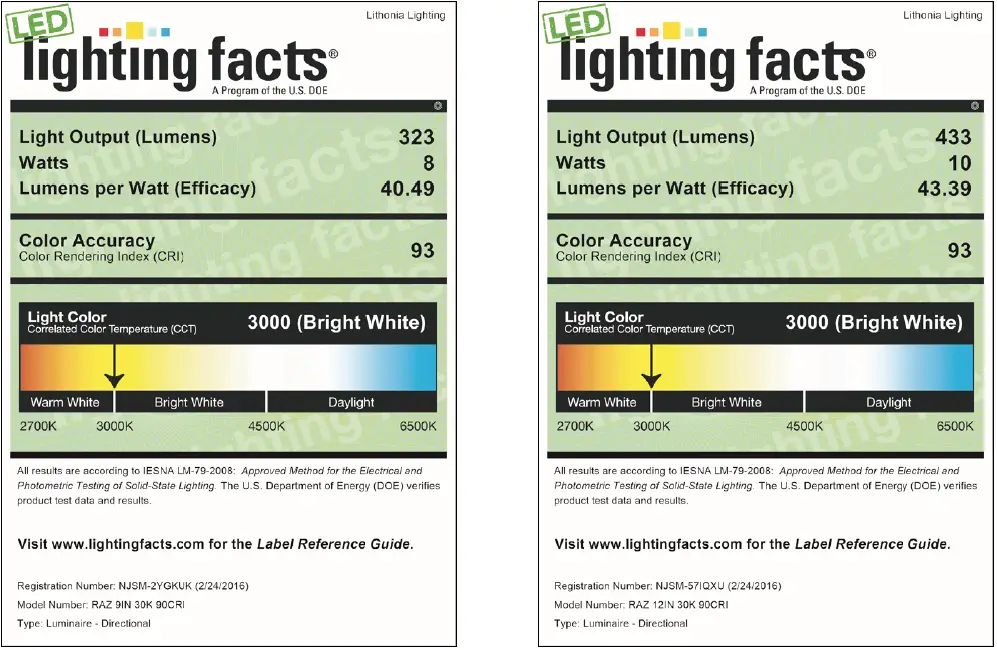

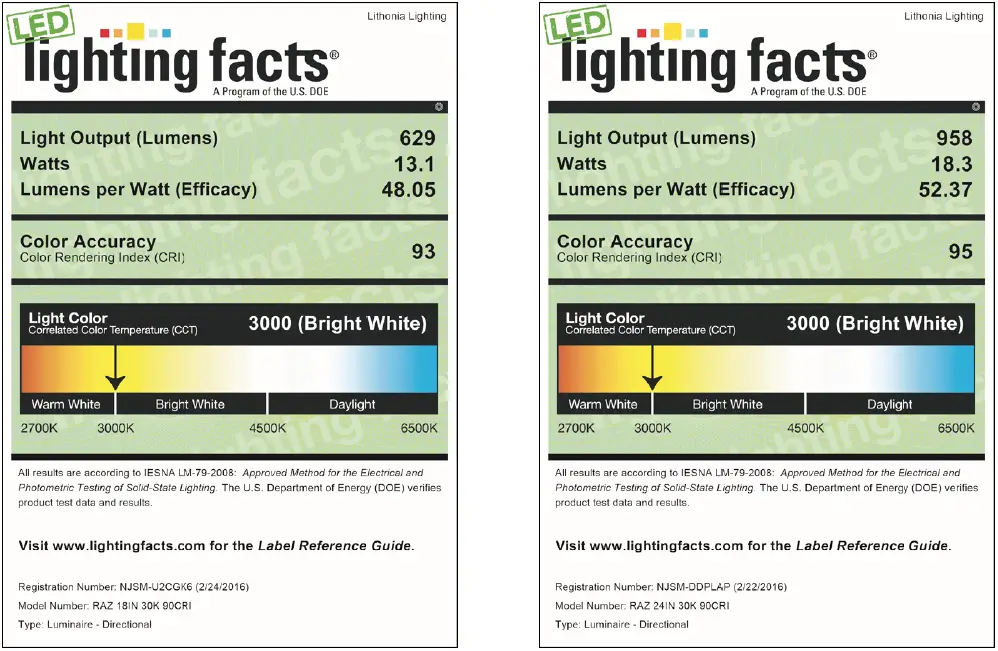

SPECIFICATIONS
| SPECIFICATIONS | 9″ | 12″ | 18″ | 24″ |
| Lumens (3000K): | 324 | 434 | 630 | 958 |
| Watts (3000K): | 8 | 10 | 13.1 | 18.3 |
| Lumens per watt: | 41 | 43 | 48 | 52 |
| Length: | 9-1/4 (23.5) | 12-1/4 (31.1) | 18-1/4 (46.4) | 24-1/4 (61.6) |
| Width: | 1-1/4 (3.18) | 1-1/4 (3.18) | 1-1/4 (3.18) | 1-1/4 (3.18) |
| Height: | 1/2” (1.27) | 1/2” (1.27) | 1/2” (1.27) | 1/2” (1.27) |
All dimensions are inches (millimeters) unless otherwise indicated. Weights are pounds (kilograms).
Full photometric data report available within 2 weeks from request. Consult factory.

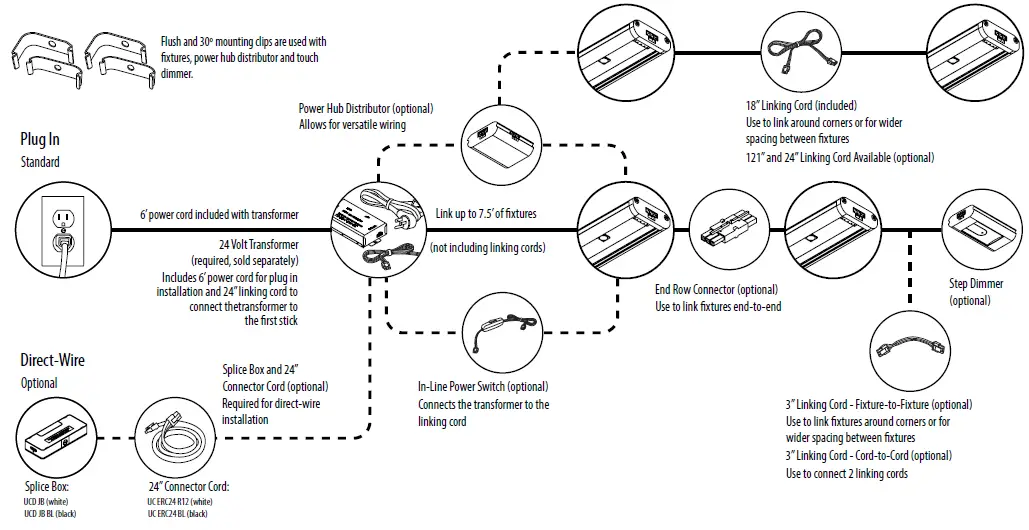

INSTALLATION DIAGRAM
Note:
The fixture includes a 1 3/8″ end row connector, an 18” linking cord, mounting clips for flush or 30º mounting, and screws.
DECORATIVE INDOOR:
