ASSEMBLY INSTRUCTION MODEL #ARC-1909-SA-CL-MWP
ARC-1909-SA-CL-MWP Arcadia 12 Light Antique Silver Chandeli
All electrical components must be installed by a licensed electrician in accordance with the National Electric Code and the appropriate local electrical codes.
You will need 12 Candelabra Base Bulb 40 Watts Recommended 60 Watts Max.
USE LED BULBS FOR EXTENDED USE
How to Install
1. Please place the fixture parts on a soft-cloth covered platform before instalation. Do a complete inventory of al parts and components before you start installing

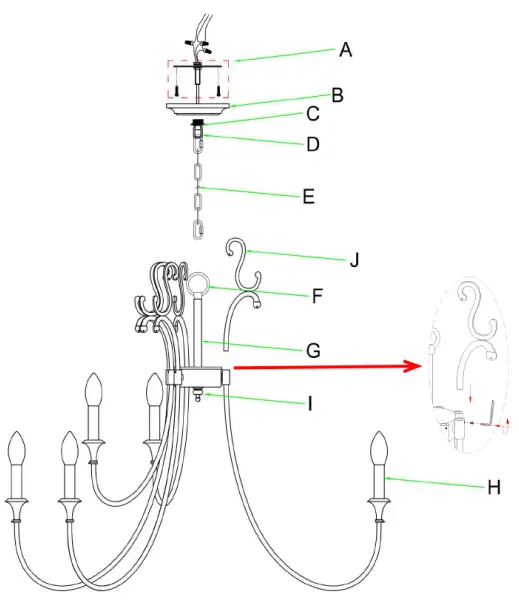

2. Insert a scroll onto the top of each arm and secure using the provided screw and wrench
3. Screw the top stem onto the top of the fixture.
4. Open the quick link at the end of the chain and fasten the
chain o the fixure loop. Fasten mourting hardware to
junction box with the machine screws. After the wires are
connected, screw the screw colar loop onto the nipple:
Place the canopy up against
the celing and secure by
tightering the screw colar loop ring
5. After safely attaching
the fixture onto the junction box,
install the bulbs and proceed to connecting the power.

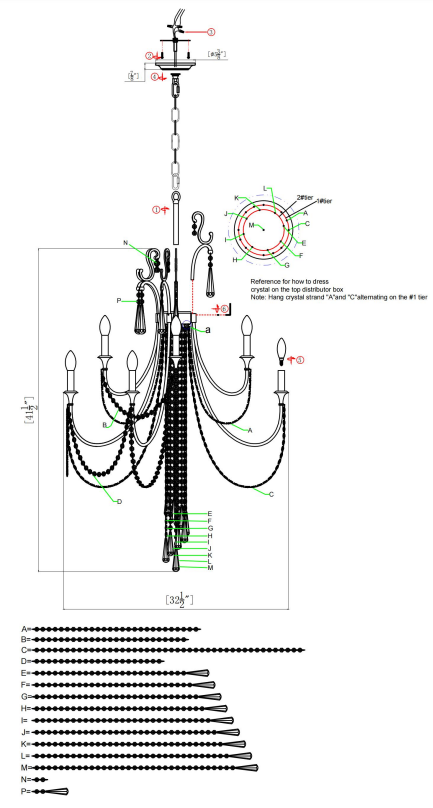

6. WWhen you begin to dress the fixure, start with package
labeled(A).
7. IMPORTANTApply crystal sets in alphabetical orcer.
