addon QSFP28-100GB-LR-CW33-AO MSA and TAA Compliant 100GBase-CWDM QSFP28 Single Lambda Transceiver

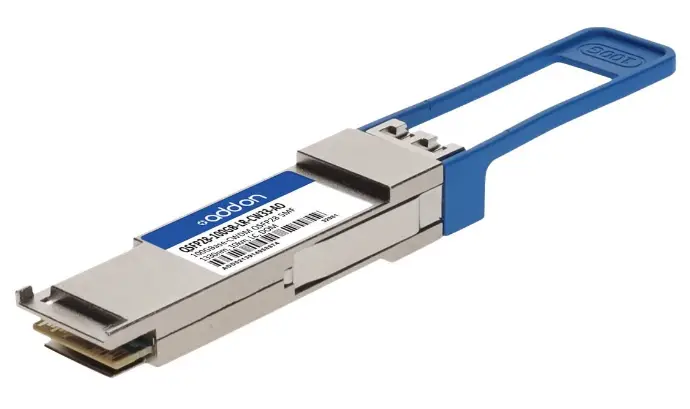

MSA and TAA Compliant 100GBase-CWDM QSFP28 Single Lambda Transceiver (SMF, 1330nm, 10km, LC, DOM, with FEC)
Features
- Supports 100Gbps
- 100G Lambda MSA 100G-LR Specification Compliant
- Single 3.3V Power Supply
- Power Dissipation < 4.5W
- Up to 10km over SMF with FEC
- QSFP28 MSA Compliant
- SFF-8636 Rev 2.10a Compliant
- 4x25G Electrical Interface
- LC Duplex Connector
- Operating Case Temperature: 0°C to 70°C
- I2C Interface with Integrated Digital Diagnostic Monitoring
- RoHS compliant
Applications:
- 100G Ethernet
- Data Center
Product Description
This MSA-compliant QSFP28 transceiver provides 100GBase-CWDM throughput up to 10km over single-mode fiber (SMF) using a single lambda wavelength of 1330nm via an LC connector. It is guaranteed to be 100% compatible with the equivalent MSA-compliant transceiver. This easy-to-install, hot-swappable transceiver has been programmed, uniquely serialized and data traffic and application tested to ensure that it will initialize and perform identically. Digital optical monitoring (DOM) support is also present to allow access to real-time operating parameters. This transceiver is Trade Agreements Act (TAA) compliant. We stand behind the quality of our products and proudly offer a limited lifetime warranty.
AddOn’s transceivers are RoHS-compliant and lead-free.
TAA refers to the Trade Agreements Act (19 U.S.C. & 2501-2581), which is intended to foster fair and open international trade. TAA requires that the U.S. Government may acquire only “U.S. – made or designated country-end products.”
Regulatory Compliance
- ESD to the Electrical PINs: compatible with MIL-STD-883E Method 3015.4
- ESD to the LC Receptacle: compatible with IEC 61000-4-3
- EMI/EMC compatible with FCC Part 15 Subpart B Rules, EN55022:2010
- Laser Eye Safety compatible with FDA 21CFR, EN60950-1& EN (IEC) 60825-1,2
- RoHS compliant with EU RoHS 2.0 directive 2015/863/EU
CWDM Available Wavelengths
| Wavelengths | Min. | Typ. | Max. |
| 27 | 1264.5 | 1271 | 1277.5 |
| 29 | 1284.5 | 1291 | 1297.5 |
| 31 | 1304.5 | 1311 | 1317.5 |
| 33 | 1324.5 | 1331 | 1337.5 |
Absolute Maximum Ratings
| Parameter | Symbol | Min. | Typ. | Max. | Unit |
| Maximum Supply Voltage | Vcc | -0.5 | 4.0 | V | |
| Storage Temperature | TS | -40 | +85 | °C | |
| Operating Case Temperature | Tc | 0 | 70 | °C | |
| Operating Relative Humidity | RH | 5 | 85 | % | |
| Damage threshold | Rxdmg | 5.5 | dBm |
Electrical Characteristics
| Parameter | Symbol | Min. | Typ. | Max. | Unit | Notes |
| Power Supply Voltage | Vcc | 3.135 | 3.3 | 3.465 | V | |
| Power Dissipation | PD | 4.5 | W | |||
| Transmitter | ||||||
| Differential data input swing per lane | 900 | mVp-p | ||||
| Differential input impedance | Zin | 90 | 100 | 110 | ohm | |
| DC common mode voltage (Vcm) | -350 | 2850 | mV | |||
| Receiver | ||||||
| Differential output amplitude | 900 | mVp-p | ||||
| Differential output impedance | Zout | 90 | 100 | 110 | ohm | |
| Output Rise/Fall Time | tr/tf | 12 | ps | 20%~80% | ||
| AC Common Mode Output Voltage | 7.5 | mV | ||||
| Eye width | 0.57 | UI | ||||
| Eye height differential | 228 | mV | @TP4, 1E-15 | |||
| DC common mode voltage (Vcm) | -350 | 2850 | mV | 1 | ||
Notes:
- Vcm is generated by the host. Specification includes effects of ground offset voltage.
Optical Characteristics
| Parameter | Symbol | Min. | Typ. | Max. | Unit | Notes |
| Transmitter | ||||||
| Signaling speed | 53.125 | Gbaud | ||||
| Modulation format | PAM4 | |||||
| Optical center wavelength | λ | λc–6.5 | λc | λc+6.5 | nm | |
| Side-mode suppression ratio | SMSR | 30 | dB | |||
| Extinction ratio | ER | 3.5 | dB | |||
| Transmit OMA | TxOMA | 0.7 | 4.7 | dBm | ||
| Transmit average | TxAVG | -1.4 | 4.5 | dBm | 1 | |
| Launch power in OMAouter minus TDECQ | -0.7 | dBm | 2 | |||
| Launch power in OMAouter minus TDECQ | -0.6 | dBm | 3 | |||
| Transmitter and dispersion eye closure | TDECQ | 3.4 | dB | |||
| Optical return loss tolerance | 15.6 | dB | 4 | |||
| Receiver | ||||||
| Signaling speed | 53.125 | Gbaud | ||||
| Damage threshold | 5.5 | dBm | ||||
| Receive power (OMAouter) | RxOMA | 4.7 | dBm | |||
| Average receive power | RxAVG | -7.7 | 4.5 | dBm | ||
| Receiver sensitivity (OMAouter) | SenOMA | Max(-6.1, SECQ-7.5) | dBm | 5 | ||
| Receiver reflectance | -26 | dB | ||||
| LOS assert | LOSA | -15 | dBm | |||
| LOS De-assert | LOSD | -12 | dBm | |||
| LOS hysteresis | 0.5 | dB | ||||
Notes:
- Average launch power (min) is informative and not the principal indicator of signal strength. A transmitter with launch power below this value cannot be compliant; however, a value above this does not ensure compliance.
- For ER≥4.5dB
- For ER<4.5dB
- Transmitter reflectance is defined looking into the transmitter.
- Sensitivity is specified at 2.4×10-4 BER.
Pin Descriptions
| Pin | Symbol | Name/Descriptions | Ref. |
| 1 | GND | Transmitter Ground (Common with Receiver Ground) | 1 |
| 2 | Tx2- | Transmitter Inverted Data Input | |
| 3 | Tx2+ | Transmitter Non-Inverted Data output | |
| 4 | GND | Transmitter Ground (Common with Receiver Ground) | 1 |
| 5 | Tx4- | Transmitter Inverted Data Input | |
| 6 | Tx4+ | Transmitter Non-Inverted Data output | |
| 7 | GND | Transmitter Ground (Common with Receiver Ground) | 1 |
| 8 | ModSelL | Module Select | 2 |
| 9 | ResetL | Module Reset | 2 |
| 10 | VccRx | 3.3V Power Supply Receiver | |
| 11 | SCL | 2-Wire serial Interface Clock | 2 |
| 12 | SDA | 2-Wire serial Interface Data | 2 |
| 13 | GND | Transmitter Ground (Common with Receiver Ground) | 1 |
| 14 | Rx3+ | Receiver Non-Inverted Data Output | |
| 15 | Rx3- | Receiver Inverted Data Output | |
| 16 | GND | Transmitter Ground (Common with Receiver Ground) | 1 |
| 17 | Rx1+ | Receiver Non-Inverted Data Output | |
| 18 | Rx1- | Receiver Inverted Data Output | |
| 19 | GND | Transmitter Ground (Common with Receiver Ground) | 1 |
| 20 | GND | Transmitter Ground (Common with Receiver Ground) | 1 |
| 21 | Rx2- | Receiver Inverted Data Output | |
| 22 | Rx2+ | Receiver Non-Inverted Data Output | |
| 23 | GND | Transmitter Ground (Common with Receiver Ground) | 1 |
| 24 | Rx4- | Receiver Inverted Data Output | 1 |
| 25 | Rx4+ | Receiver Non-Inverted Data Output | |
| 26 | GND | Transmitter Ground (Common with Receiver Ground) | 1 |
| 27 | ModPrsl | Module Present | |
| 28 | IntL | Interrupt | 2 |
| 29 | VccTx | 3.3V power supply transmitter | |
| 30 | Vcc1 | 3.3V power supply | |
| 31 | LPMode | Low Power Mode | 2 |
| 32 | GND | Transmitter Ground (Common with Receiver Ground) | 1 |
| 33 | Tx3+ | Transmitter Non-Inverted Data Input | |
| 34 | Tx3- | Transmitter Inverted Data Output |
| 35 | GND | Transmitter Ground (Common with Receiver Ground) | 1 |
| 36 | Tx1+ | Transmitter Non-Inverted Data Input | |
| 37 | Tx1- | Transmitter Inverted Data Output | |
| 38 | GND | Transmitter Ground (Common with Receiver Ground) | 1 |
Notes:
- The module signal grounds are isolated from the module case.
- This is an open collector/drain output that on the host board requires a 4.7KΩ to 10KΩ pull-up resistor to VccHost.

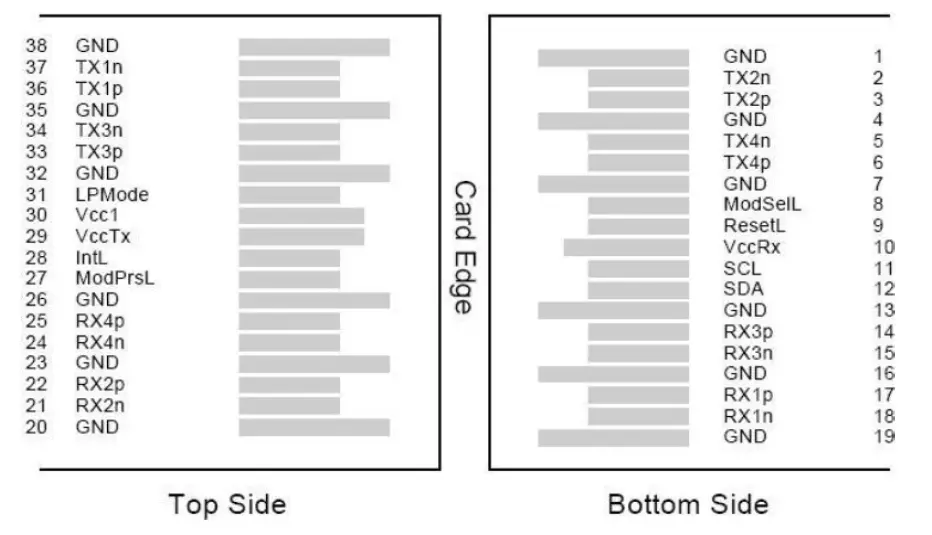

Electrical Pin-out Details

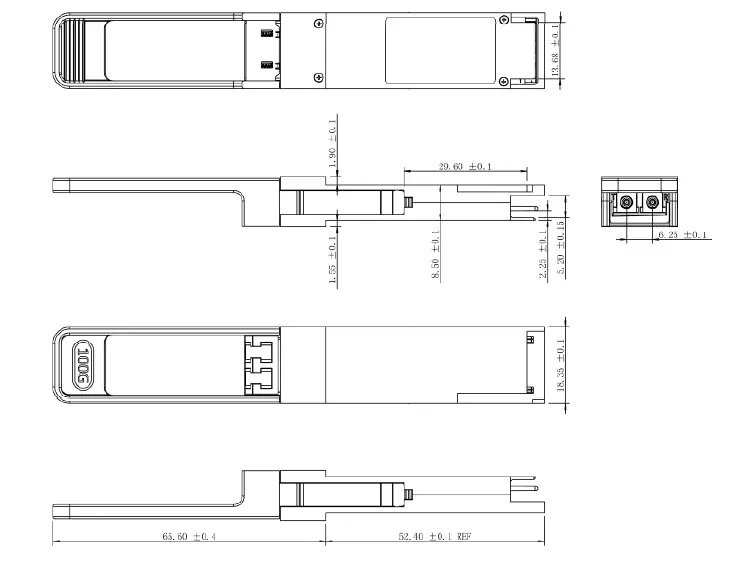

Mechanical Specifications
