addon MC2309130-0xx-25G-AO Mellanox Compatible TAA Compliant 25GBase-CU QSFP28 to 1xSFP28 Direct Attach Cable

MC2309130-0xx-25G-AO

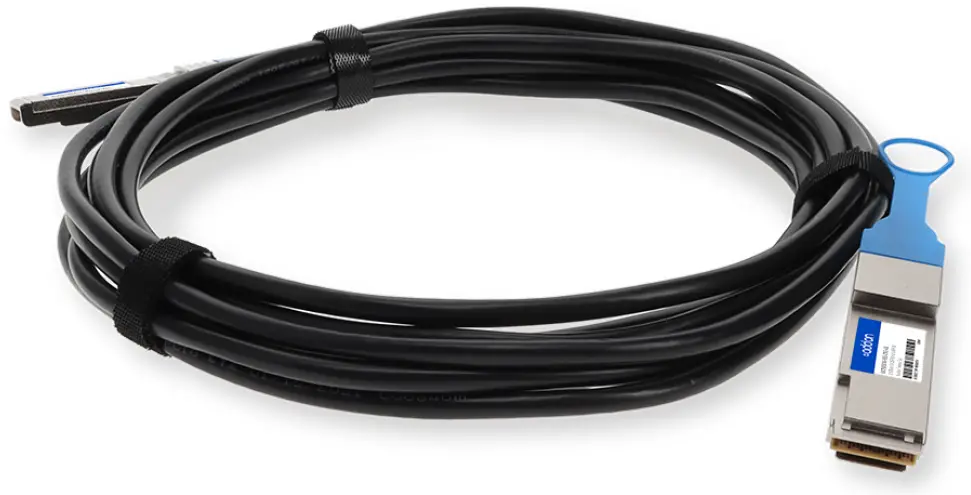

Mellanox® Compatible TAA Compliant 25GBase-CU QSFP28 to 1xSFP28 Direct Attach Cable (Passive Twinax, Up to 5m)

Features

• QSFP28 End: Compliant with QSFP28 MSA specifications
• SFP28 End: Compliant with SFP28 MSA specifications
• 1 independent duplex channels operating at 25Gbps
• AC coupled inputs and outputs
• 100 Ohm differential impedance
• 26AWG to 30AWG Wire Gauge
• All-metal housing for superior EMI performance
• Single power supply 3.3V, low power consumption
• Operating Temperature: 0°C to 70°C
• ROHS Compliant

Applications

• Serial Data Transmission Storage
• Fiber Channel

Product Description

• This is a Mellanox® compatible 25GBase-CU QSFP28 to 1xSFP28 direct attach cable that operates over passive copper with a maximum reach up to 5.0m (16.4ft). It has been programmed, uniquely serialized, and data-traffic and application tested to ensure it is 100% compliant and functional. This direct attach cable is TAA (Trade
• Agreements Act) compliant, and is built to comply with MSA (Multi-Source Agreement) standards. We stand behind the quality of our products and proudly offer a limited lifetime warranty.
• AddOn’s direct attach cables are RoHS compliant and lead free.
• TAA refers to the Trade Agreements Act (19 U.S.C. & 2501-2581), which is intended to foster fair and open international trade. TAA requires that the U.S. Government may acquire only “U.S. – made or designated country end products

Order Information

Regulatory Compliance

• ESD to the Electrical PINs: compatible with MIL-STD-883E Method 3015.4
• ESD to the LC Receptacle: compatible with IEC 61000-4-3
• EMI/EMC compatible with FCC Part 15 Subpart B Rules, EN55022:2010
• Laser Eye Safety compliant with FDA 21CFR, EN60950-1& EN (IEC) 60825-1,2
• RoHS compliant with EU RoHS 2.0 directive 2015/863/EU

General Specifications

Notes:

1. Case temperature
2. Ambient temperature

Insertion Loss Level and Wire Gauge

Notes:
Cable insertion loss classification standard: IEEE 802.3by 110-10

Weight

Notes:

1. The weight of the product.
2. The weight of unit length cable (two sticks). For example: the weight of 26AWG cable is: 110+43*(5-1)+0.80+1.40=284.2g

Cable Specifications

Cable Dimension

Nominal Length

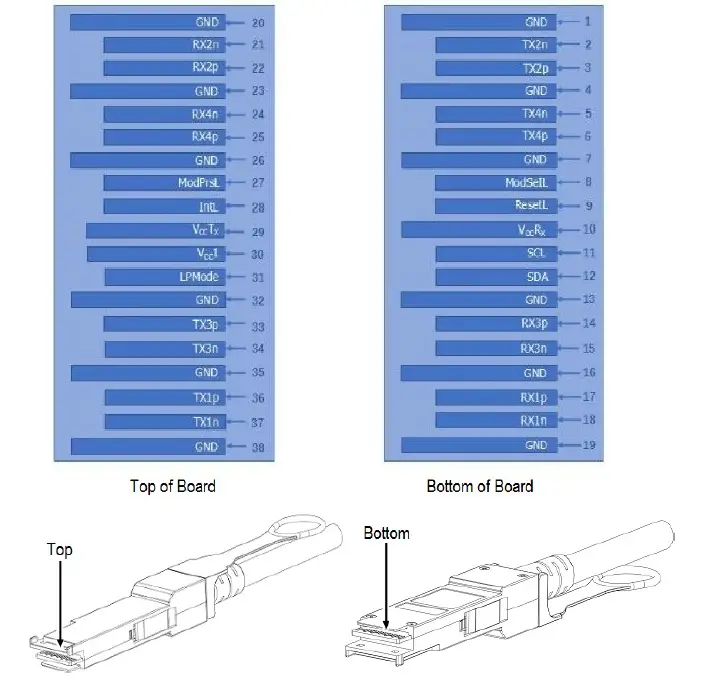

Electrical Pin-out Details (QSFP28 END)

Pin Descriptions (QSFP28 END)

Notes:

1. ModSelL is the input pin. The module responds to 2-wire serial communication commands when it is held low by the host. ModSelL allows multiple QSFP modules to be used on a single 2-wire interface bus. If ModSelL is High, the module will not respond to any 2-wire interface communication from the host. ModSelL has internal pull-up resistors in the module
2. The module restart pin, when the low level on the ResetL pin lasts longer than the minimum pulse length, resets the module and restores all user modules to their default state. When performing reset device, the host should ignore all status bits. Until the module reset interrupt is completed, please note that during hot plugging, the module will issue this information to complete the reset interrupt without resetting
3. This pin is active high, indicating that the module is running under a low power module. The signal has no effect on the functionality of this product.
4. IntL is the output pin, which is the open collector output and must be pulled up to Vcc with a 4.7kΩ-10kΩ resistor on the motherboard. When it is low, it indicates that the module may malfunction. The host uses a 2-wire serial interface to identify the interrupt source
5. Circuit ground is internally isolated from chassis ground

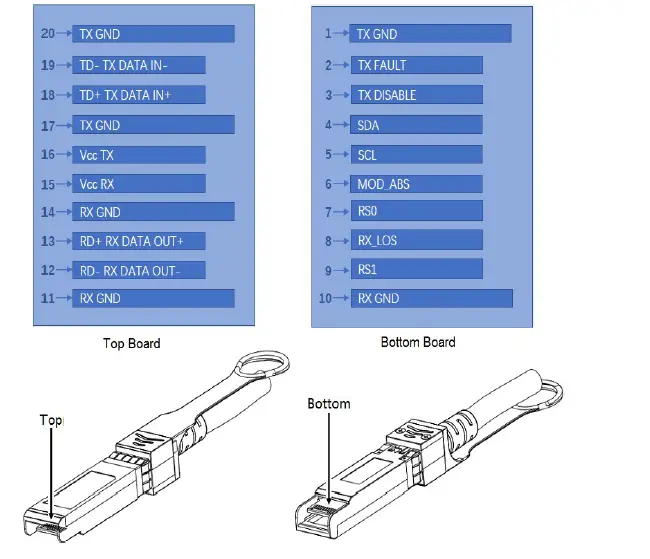

Electrical Pin-out Details (SFP28 END)

Pin Descriptions (SFP28 END)

Notes:

1. Circuit ground is isolated from chassis ground
2. Should Be pulled up with 4.7k – 10k ohm on host board to a voltage between 2V and 3.6V

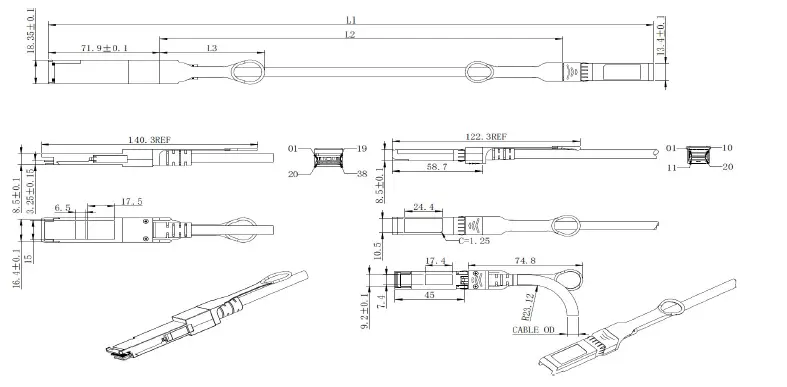

Mechanical Specifications

ALL DIMENSIONS ARE ±0.2mm UNLESS OTHERWISE SPECIFIED
UNIT: mm
