FS MC2207130-00A Active Optical Cables

Safety Instructions

Caution against moisture.
Do not disassemble or modify the cables.
Please wear antistatic gloves.
Excessive bending is strictly prohibited.
Do not approach or look directly at the optical fiber exit with naked eyes.
The cables can only be installed or replaced by qualified personnel.

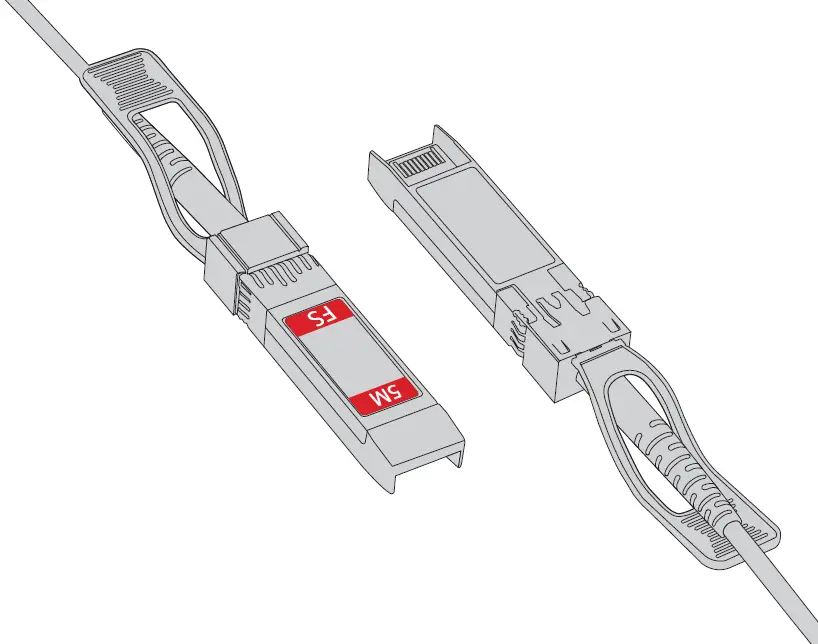

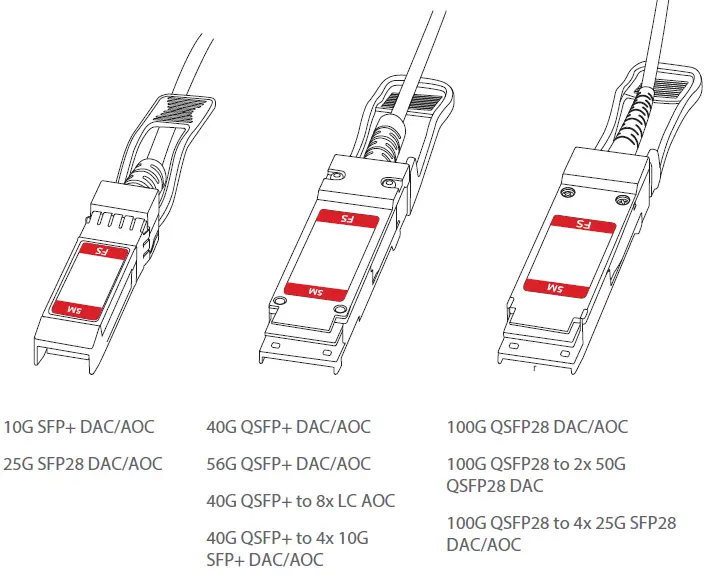

Overview

DAC & AOC Installation and Removal

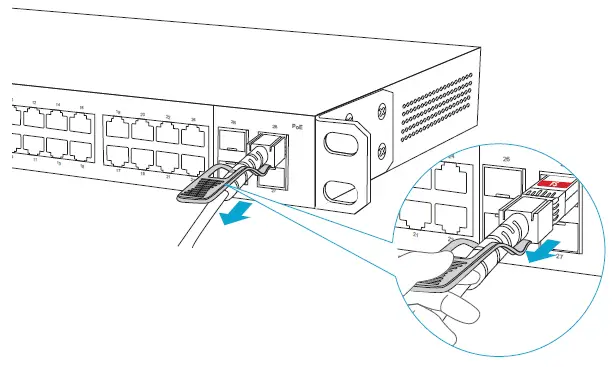

10G/25G DAC or AOC

NOTE: When inserting into a device, please make sure the module matches the device bayonet properly. Do not push in or pull out the module with force.

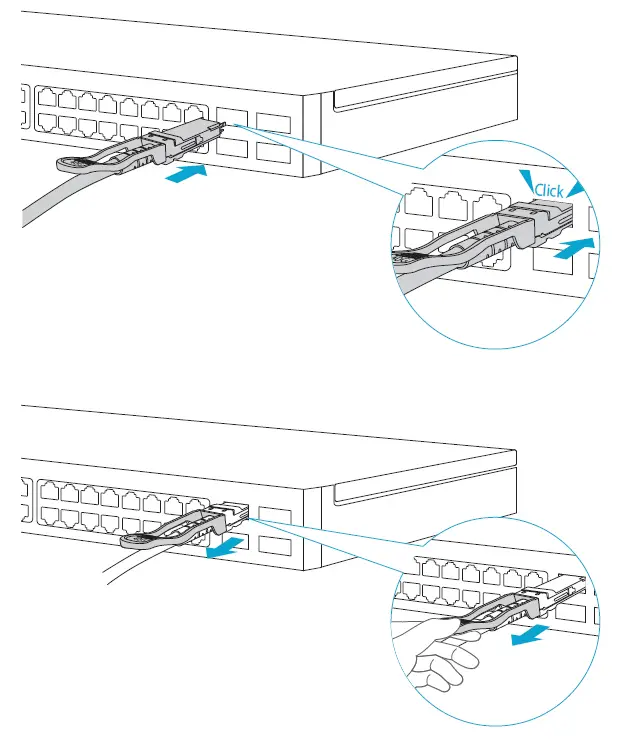

40G/56G/100G DAC or AOC

NOTE: when inserting into a device, please make sure the module matches the device bayonet properly. Do not push in or pull out the module with force.

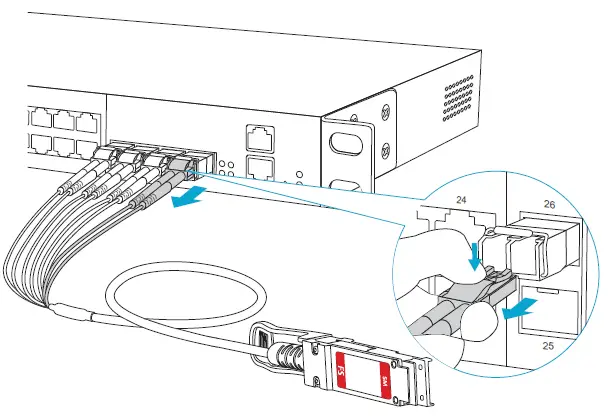

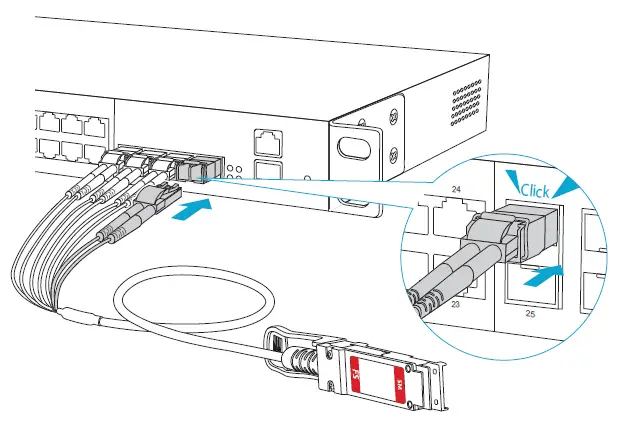

40G QSFP+ to 8x LC AOC

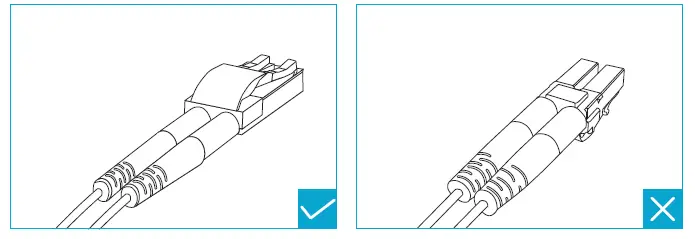

NOTE: Please remove the dust cap before installation and the connector clip should be upward when inserting.

Product Warranty

FS ensures our customers that any damage or faulty items due to our workmanship, we will ffer a free return within 30 days from the day you receive your goods. For Fiber Optic Transceivers, we also offer replacement service if there are any quality issues within 1 year.

Warranty: All Fiber Optic Transceivers enjoy 5 years limited warranty against defect in materials or workmanship. For more details about warranty, please check at https://www.fs.com/policies/warranty.html

Return: If you want to return item(s), information on how to return can be found at https://www.fs.com/policies/day_return_policy.

Compliance Information

FCC

Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

this device may not cause harmful interference, and
this device must accept any interference received, including interference that may cause undesired operation.

CAUTION:
Any changes or modifications not expressly approved by the grantee of this device could void the user’s authority to operate the equipment.
Responsible party (only for FCC matter)
FS.COM Inc.
380 Centerpoint Blvd, New Castle, DE 19720, United States
https://www.fs.com

FS.COM GmbH hereby declares that this device is in compliance with the Directive 2014/30/EU. A copy of the EU Declaration of Conformity is available at
www.fs.com/company/quality_control.html

FS.COM LIMITED
24F, Infore Center, No.19, Haitian 2nd Rd, Binhai Community, Yuehai Street,Nanshan District, Shenzhen City
