FS UPC-LC Ultra HD Fiber Cables User Guide

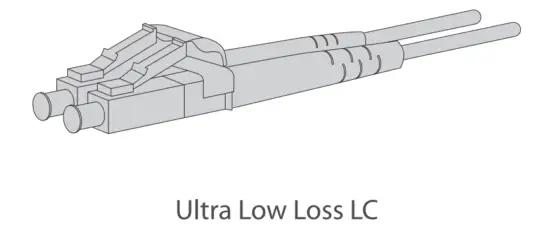

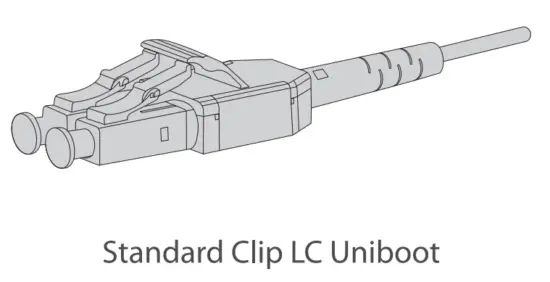

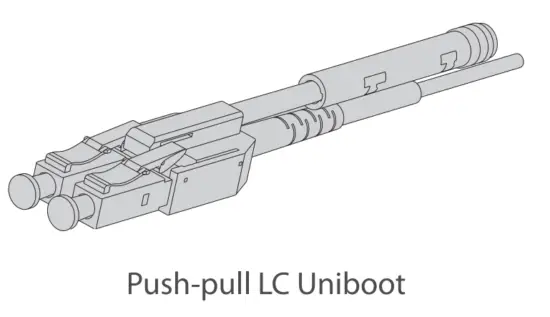

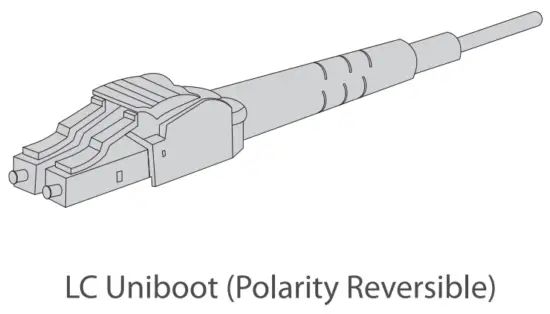

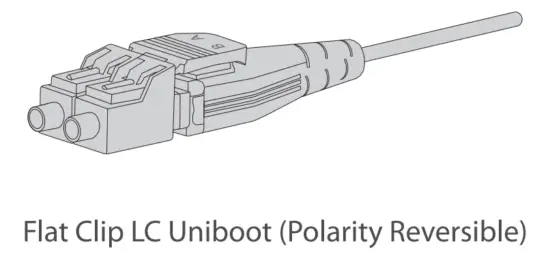

Product Overview

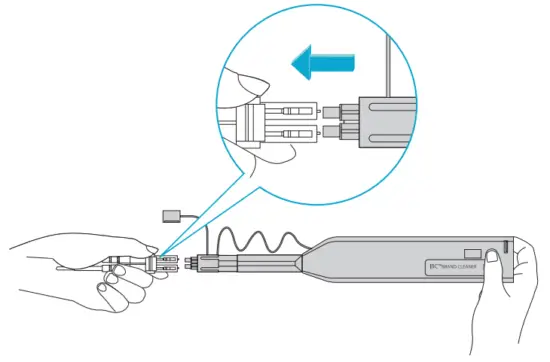

Clean LC Duplex Connectors with US Conec IBC^tm Brand LC² Cleaner

Install the LC Connector into Transceiver Module

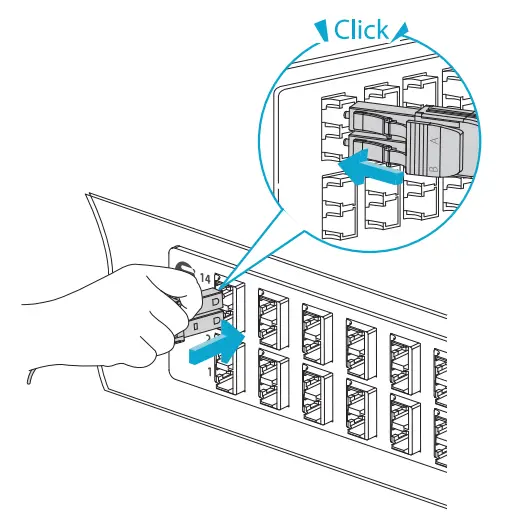

Install the LC Connector into adopter

NOTE:

1. When installing, align the key on the connector body with the keyway on the transceiver or adapter.
2. In high-density fiber cabling data centers, the tool #105341 is recommended for inserting and extracting fiber connectors.

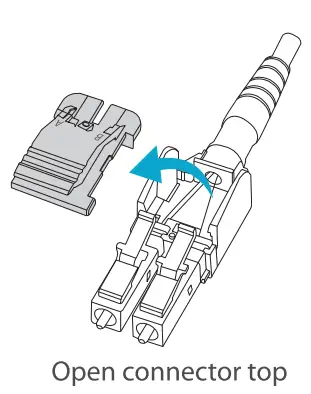

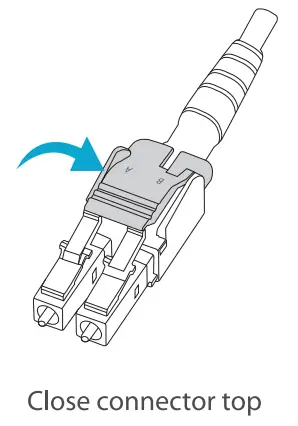

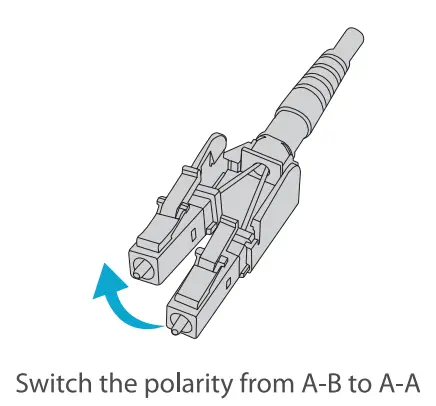

Polarity Reversal of LC uniboat

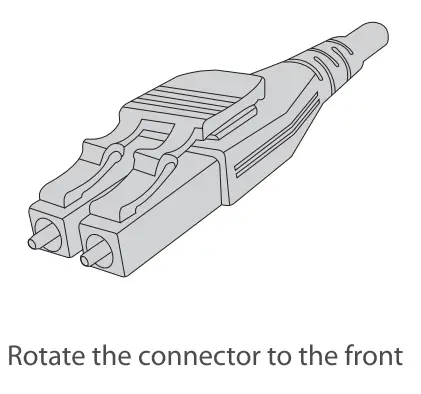

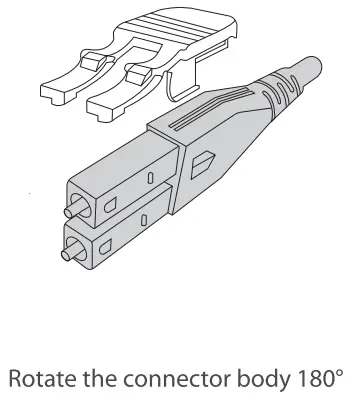

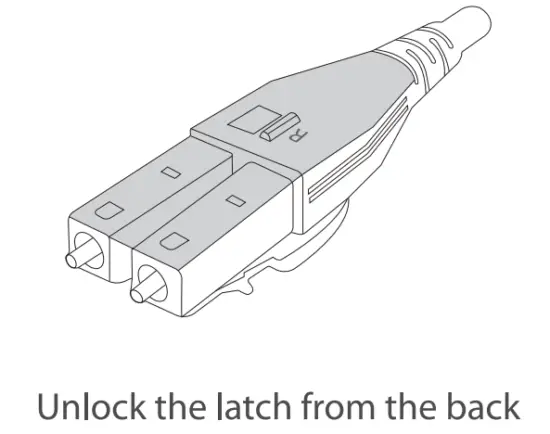

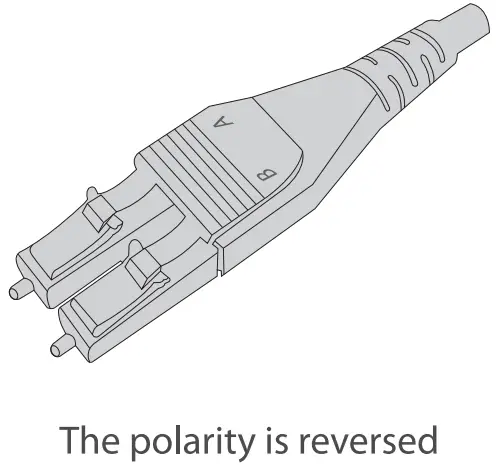

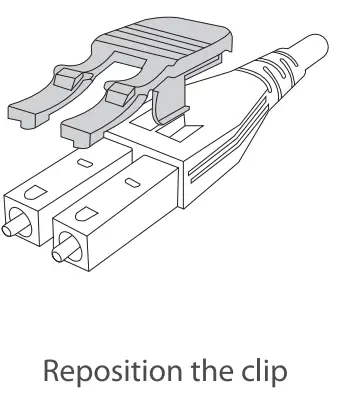

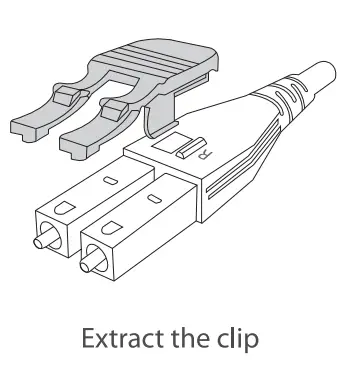

Polarity Reversal of Flat Clip LC Uniboat
