MAZAMA HDM2.0-FIB-II-SM HDMI 2.0 Fiber Extenders
Key Features
- HDMI 2.0 to fiber extenders
- Supports up to 10 Km on single-mode fiber cable
- Supports 4096×2160@60Hz 8 bit(4:4:4), 3840×2160@60Hz 8 bit(4:4:4)
- Supports all resolution up to 594MHz
- HDCP 1.4 and 2.2 compliant
- Supports CEC transfer
- Supports RS-232 transfer
- Supports 38KHz frequency IR control
- Supports multi-channel PCM, Dolby True-HD and DTS HD master audio

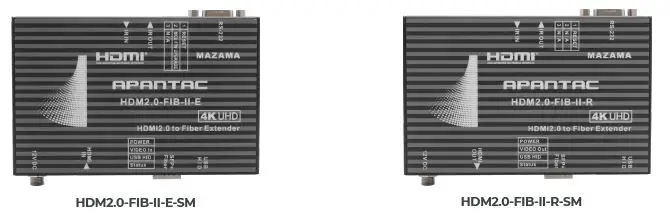

HDM2.0-FIB-II-E-SM
Front View
- RS-232
- DIP Switch
- IR OUT (for IR blaster) IR IN (for IR receiver)
Rear View
- 1 x 12V DC
- HDMI IN
- POWER/VIdeo USB-HID Status SFP+ Fiber module
HDM2.0-FIB-II-R-SM
Front View
- RS-232
- DIP Switch
- IR OUT (for IR blaster) IR IN (for IR receiver)
Rear View
- 1 x 12V DC HDMI OUT
- POWER/Video USB-HID Status SFP+ Fiber module
Related Products
- HDM2.0-FIB-II-HID Display Port (DP 1.2) Fiber Extenders with HID
- HDM2.0-FIB-II
- Display Port (DP 1.2) Fiber Extenders on multi-mode mode fiber
- DP-FIB-II
- Display Port (DP 1.2) Fiber Extenders
Specifications
| Models | HDM2.0-FIB-II-E-SM | HDM2.0-FIB-II-SM-R-SM | |
| Video | Input | HDMI | LC fiber |
| Output | LC fiber | HDMI | |
| Audio | Supports multi-channel PCM, Dolby True-HD and DTS HD master Audio | ||
| RS-232 | For FW upgrade | ||
| IR In/Out | 1 x 3/5 mm stereo jack each. IR blaster and IR receiver cables are optional | ||
| Video Resolution | Up to 4096×2160 @ 60Hz | ||
| Interconnect Cable | LC fiber, single mode | ||
| Maximum Cable Length | 10 Km on single-mode fiber | ||
| Temperatures | Operating temperature: 0 ~ 50 C, storage temperature: -20 ~ 85C | ||
| Environmental Humidity | 0 ~ 80% (non-condensing) | ||
| Power Consumption | 1.155 mW | ||
| Power / Weight / Dimension | DC 12V, 1.5A. 600g. 122 x 74 x 29 mm | ||
