Quickstart Guide
32Gbps 8K 60Hz DisplayPort 1.4 Active Optical Cable with DP++ Support (10m/32ft)
CAB-DAOC-10-C
CAB-DAOC-10-P
WyreStorm recommends reading through this document in its entirety to become familiar with the product’s features prior to starting the installation process.
IMPORTANT!
Installation Requirements
The cable is uni-directional. Follow the connector labeling and color-coding to ensure proper operation of the cable.
In The Box
- 1x CAB-DAOC-10-C or CAB-DAOC-10-P Active Optical DisplayPort Cable
- 2x Reusable Cable Ties
- 1x Quickstart Guide (This Document)

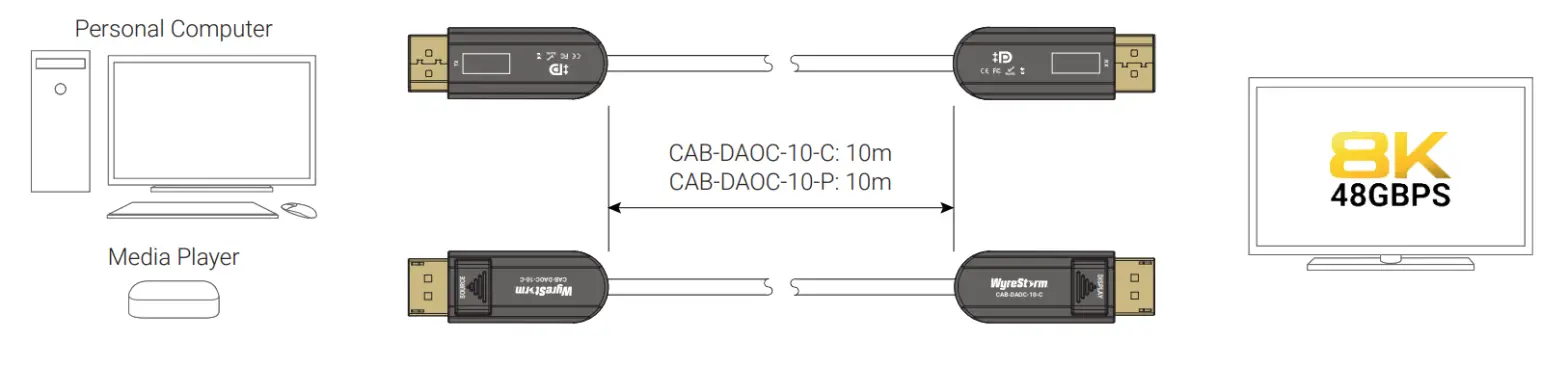

Cable Distances
CAB-DAOC-10-C
CAB-DAOC-10-P
Wiring and Connections
IMPORTANT! Installation Requirements
The WyreStorm Active Optical cable is designed to transmit DisplayPort signals from the source to a display.
- Follow the labeling and the diagrams for connection to ensure proper operation.
- Due to the core of the DAOC being fiber optic the cable cannot have a bend radius greater than 2cm/0.78in.
Keep this in mind when routing cables around objects and inside of walls. - The cables have a max pull tension of 15kg/33lbs. Keep this in mind when routing the cable within cabinets or walls to avoid damaging the cable.
Basic Wiring Diagram
Source Connection Label: TX | Display Connection Label: TX |
 | |
Color: Gray
Color: Gray
Warranty Information
WyreStorm Technologies LLC warrants that its products be free from defects in material and workmanship under normal use for a period of five (5) years from the date of purchase. Refer to the Product Warranty page on wyrestorm.com for more details on our limited
Specifications
Transmission | |||
| Transmission Encoding | Uncompressed AOC | ||
| End to End Latency | 10ps | ||
| Maximum Transmission Bit Rate | 324Gbps (4-core, 8.1G bps per lane) | ||
Video | |||
| DisplayPort | (v1.4) LVDS 186/1 Ob encoding DSC v1.2 (Display Stream Compression) Supported | ||
| Input | lx DisplayPort: 20-pin Male | ||
| Output | lx DisplayPort: 20-pin Male | ||
| Maximum Data Rate | 25.92Gbps | ||
| Supported Video Resolutions* | CAB-DAOC-10-C | CAB-DAOC-10-P | |
| 1920 x 1080p @240Hz 2560 x 1440p @240Hz 3840 x 2160p @120Hz 5120 x 2880p @60Hz 7680 x 4320p @60Hz | 10m/33ft | 15m/49ft | |
| Supported Standards | DSC I Static HDR I HDR10 | ||
Audio | |||
| Audio Formats | 24-bit PCM | ||
| Maximum Sampling Rate | 192KHz | ||
| Maximum Audio Channels | 32 | ||
Communication and Control | |||
| HDCP | Pass-through, 2.2 Supported | ||
| EDID | Pass-through, RX,TX | ||
| Consumer Electronics Control (CEC) | Bidirectional Supported | ||
Installation Restrictions | |||
| Max Bend Radius | 2cm/0.78in | ||
| Max Pull Tension | 151(Q/331bs | ||
| Orientation | Uni-directional – Observe signal Bow direction prior to installation | ||
Power | |||
| Power Supply | Passive 3.3v-5.5v VCC (From Connected Source) | ||
| Max Power Consumption | 250mW | ||
Environmental | |||
| Operating Temperature | 14°F – 122°F (-10°C – 50°C) 110% – 90%, non-condensing | ||
| Storage Temperature | -4°F to – 140°F (20°C – +60°C) 110% – 90%, non-condensing | ||
| Maximum BTU | 0.85 BTU/hr | ||
| Jacket Material | CAB-DA0C-1 0-C: Non-PVC CAB-DA0C-1 0-P: PVC | ||
Dimensions and Weight (Connecbr Hou Bing) | |||
| Height | 12mm/0.47in | ||
| Width | 21 mm/0.82in | ||
| Depth | 45mm/1.77in | ||
| Weight | NA | |
| Cable Length (Connector to Connector) | CAB-DAOC-10-C: CAB-DAOC-10-P: | 10m/33ft 10m/33ft |
Regulatory | ||
| Safety and Emission | CAB-DAOC-10-C: CAB-DAOC-10-P: | CE | FCC | CPR | RoHS | LSZH | EAC CE | FCC | UL (Plenum) | RoHS | EAC |
*denotes supported resolutions using DSC (Display Stream Compression) (requires source-sink compatibility)
Note: WyreStorm reserves the right to change product specification, appearance, or dimensions of this product at any time without prior notice.
Copyright © 2020 WyreStorm Technologies
wyrestorm.com
CAB-DAOC-10-x Quickstart Guide
200318
